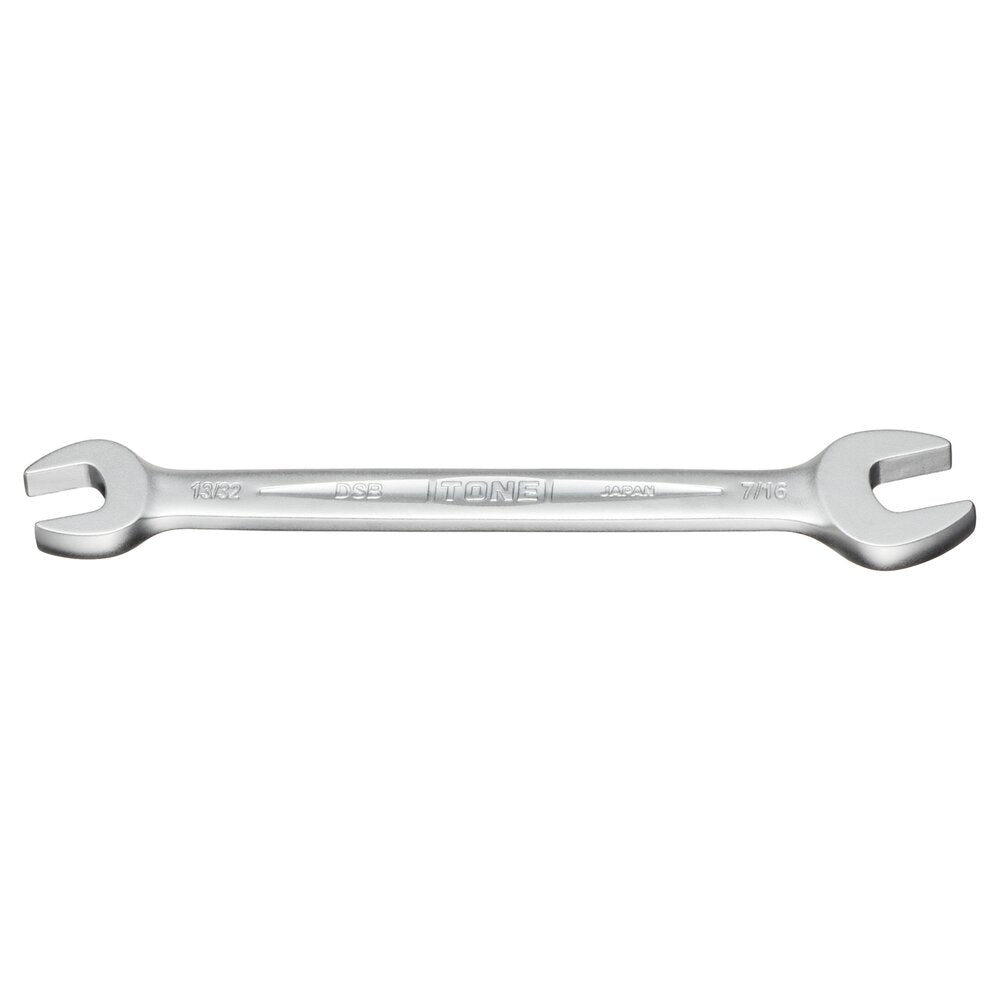

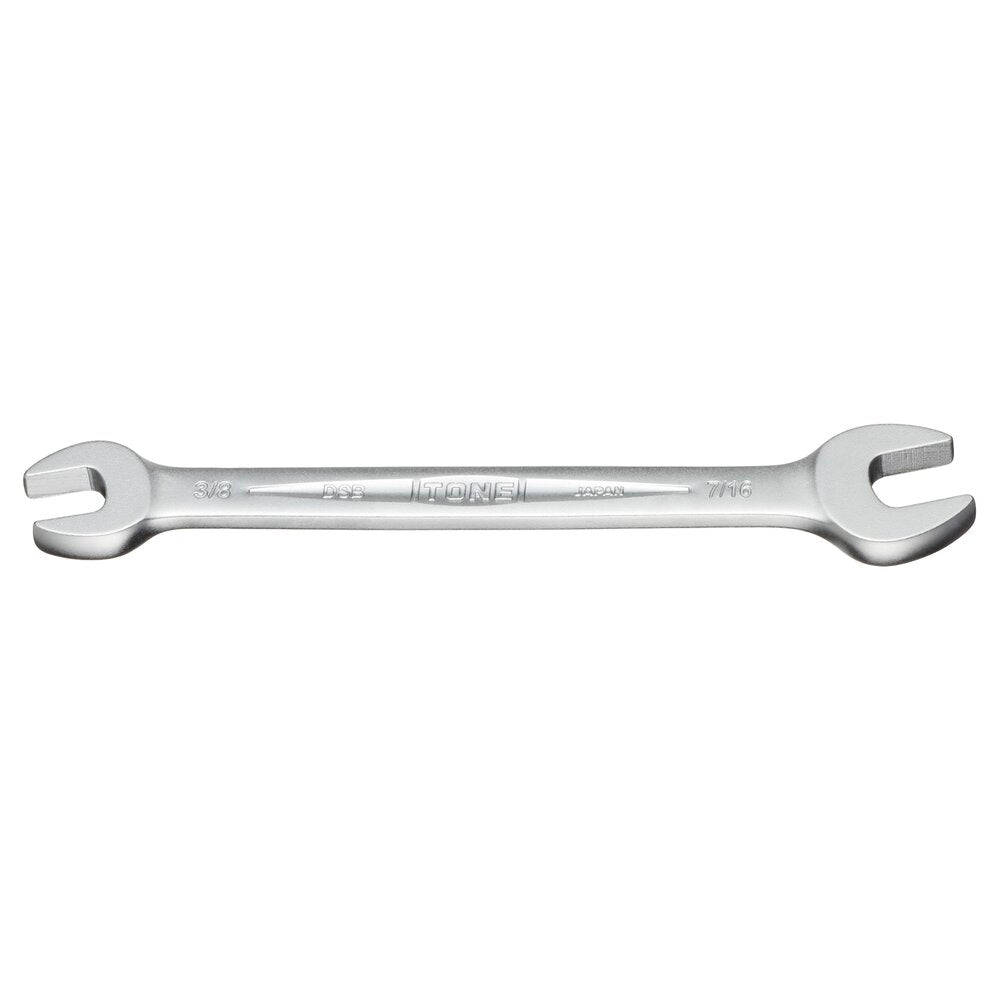

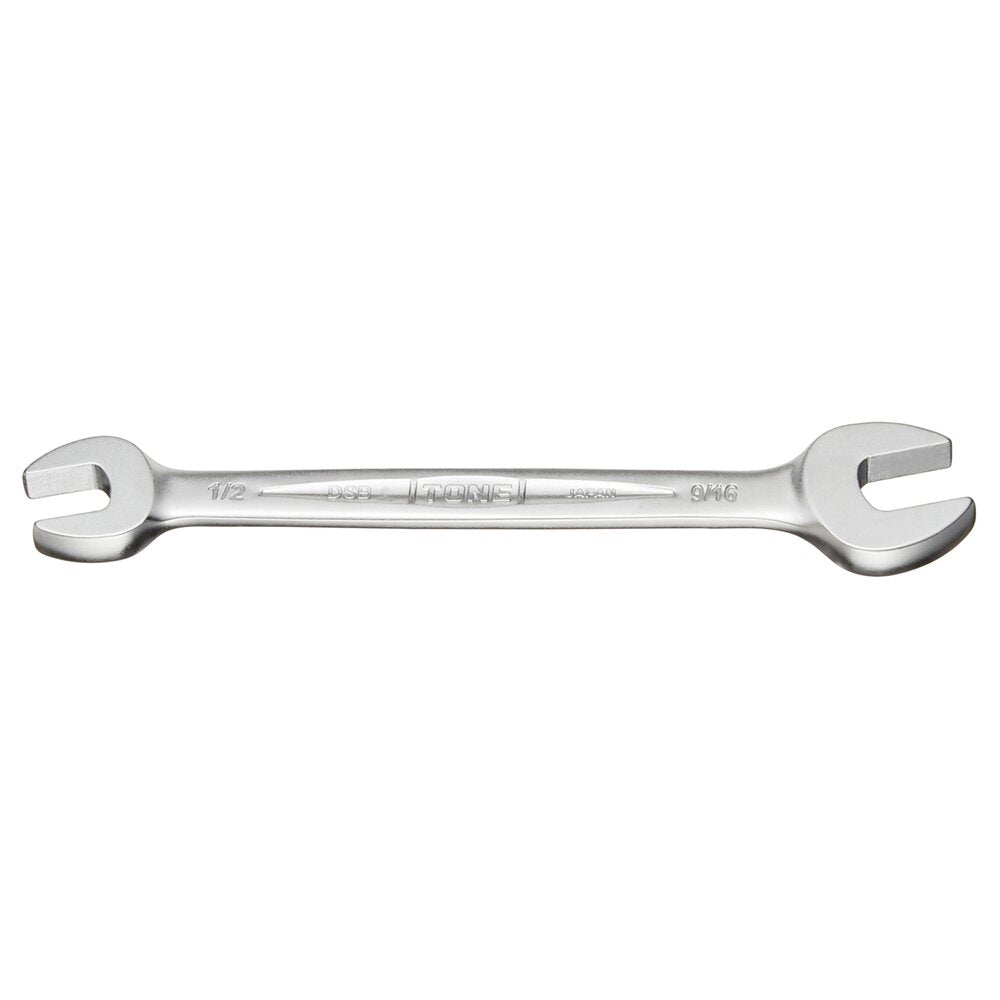

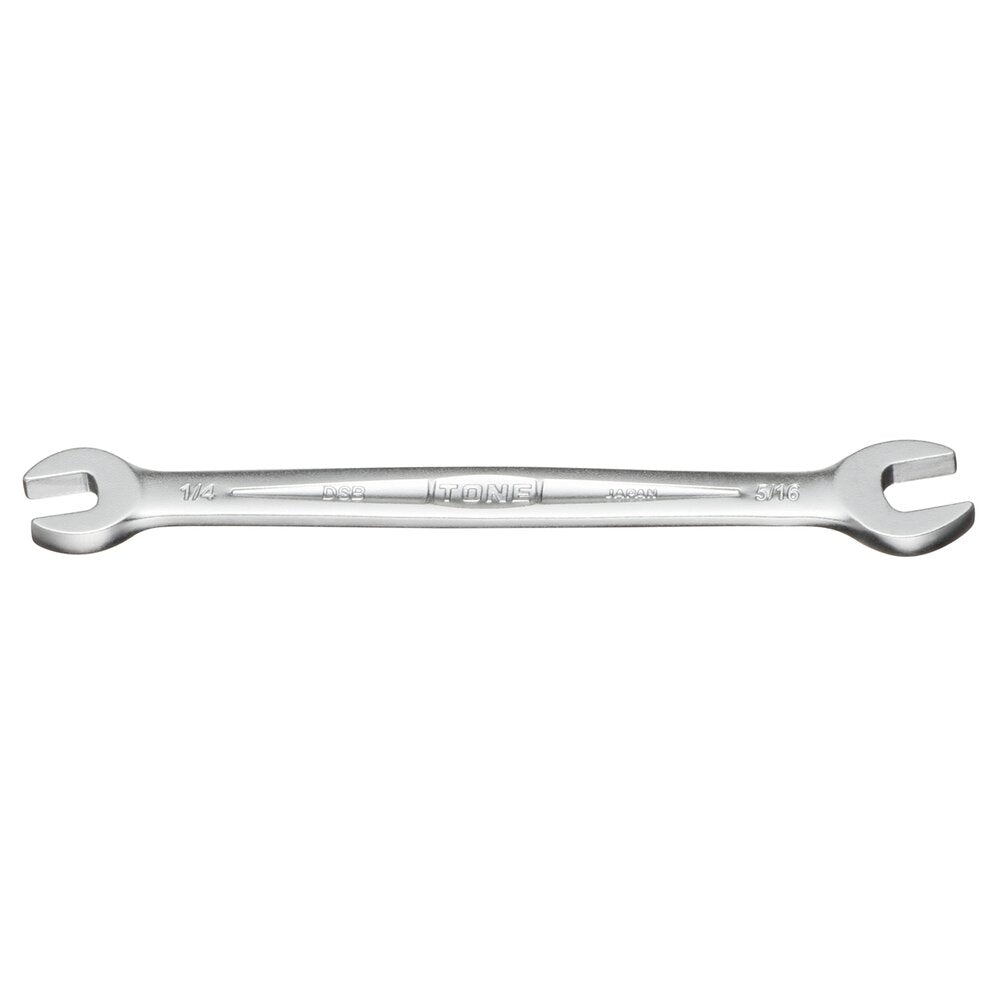

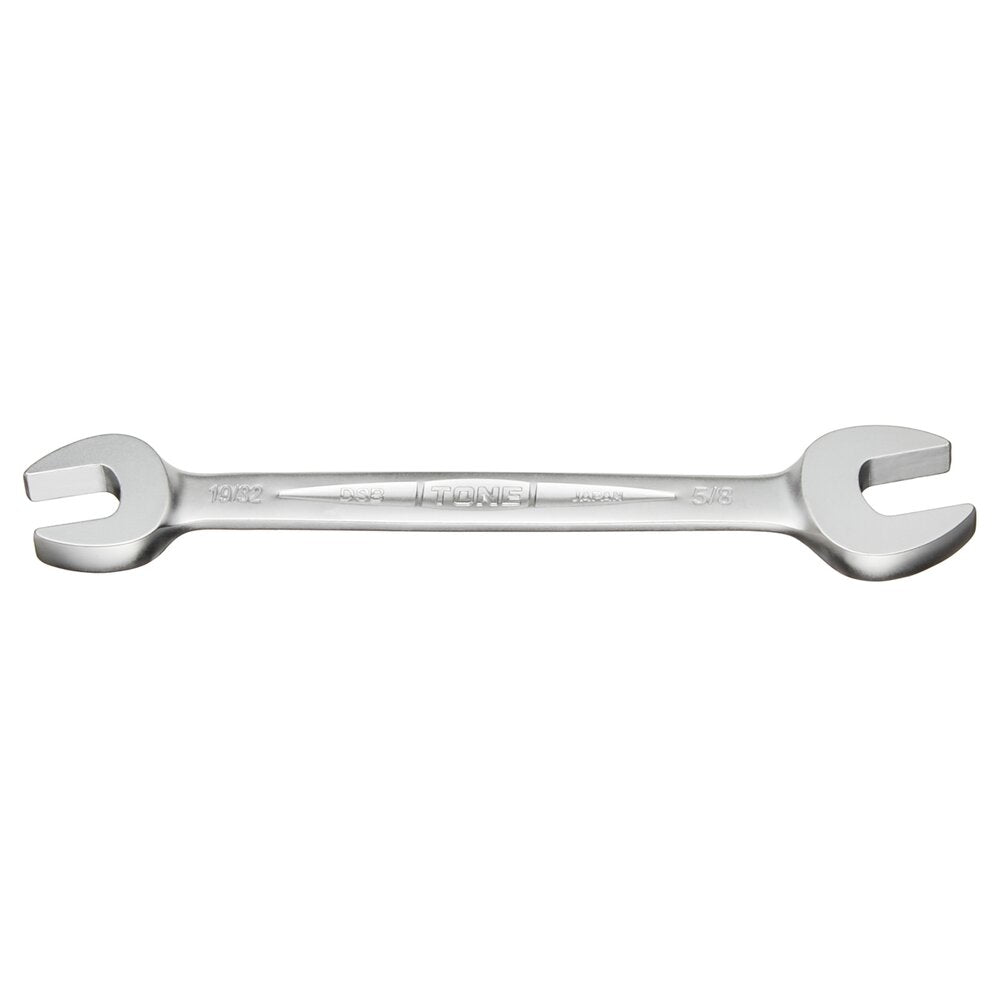

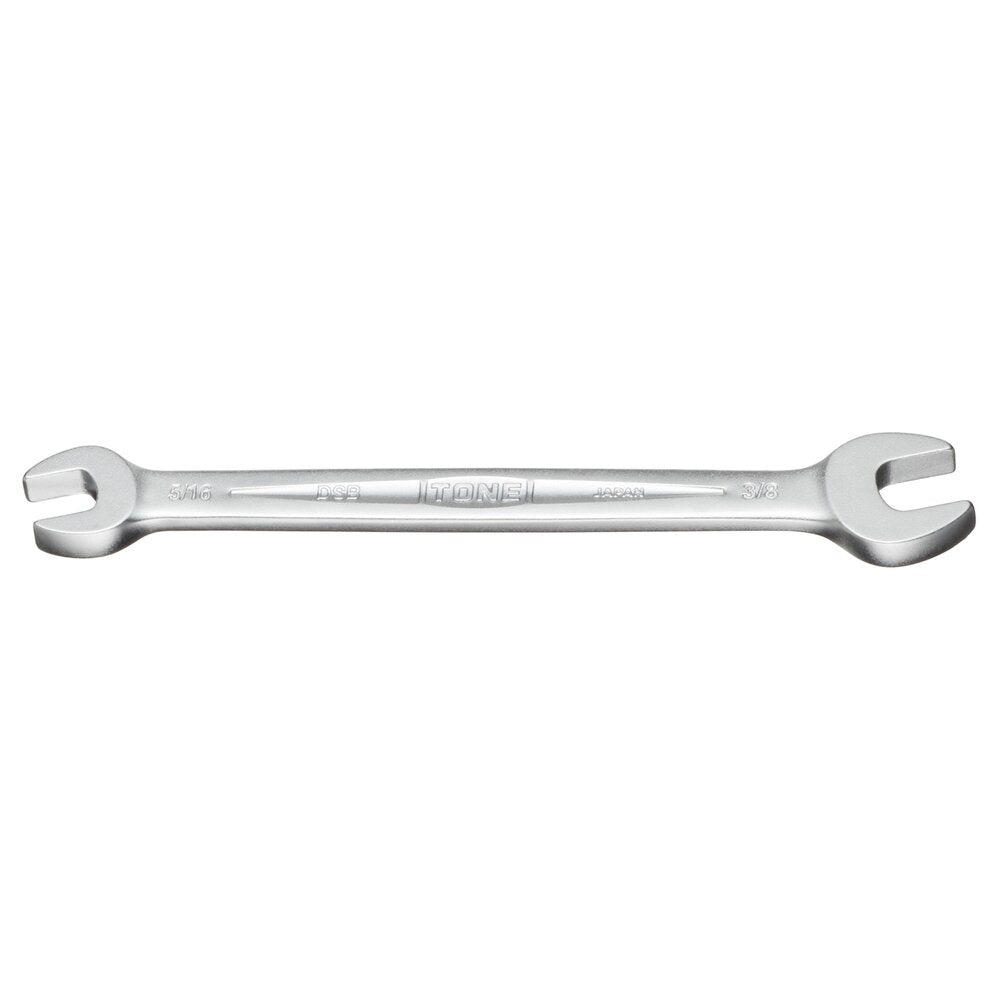

TONE Spanner (Inch Sizes) DSB Series
Sale price
$9.50
Regular price
$10.00
Lifetime Warranty: hand tools only
Description
A beautiful satin finish and soft, curved design that sits comfortably in the hand. A unique head shape that combines the advantages of round and spear-shaped heads.
Application: For tightening and loosening hex bolts and nuts.
Specifications
| Part Number | DSB-0810 to DSB-3032 |
|---|---|
| Tip type | Open end |
| Size system | Inch |
| Finish | Satin finish |
| Material | Structural steel |
Sizes

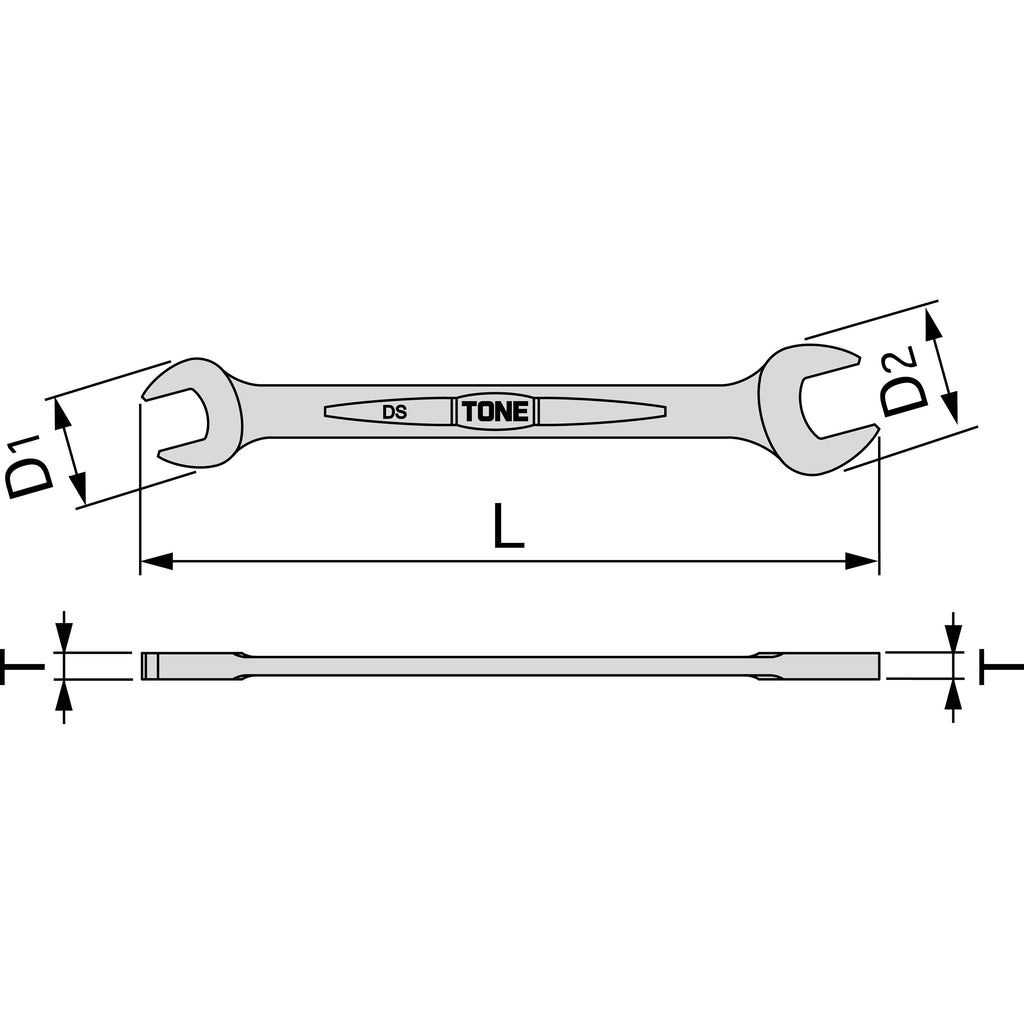

| Part Number | Size | Weight (g) | W × D × H (mm) |
|---|---|---|---|
| DSB-0810 | 1/4" × 5/16" | 21 | 111 × 17 × 4 |
| DSB-1012 | 5/16" × 3/8" | 32 | 126 × 21 × 4.5 |
| DSB-1214 | 3/8" × 7/16" | 47 | 141 × 25 × 5 |
| DSB-1314 | 13/32" × 7/16" | 57 | 149 × 27 × 5.5 |
| DSB-1618 | 1/2" × 9/16" | 113 | 179 × 35 × 7 |
| DSB-1920 | 19/32" × 5/8" | 140 | 186 × 37 × 7.5 |
| DSB-2224 | 11/16" × 3/4" | 198 | 209 × 43 × 8 |
| DSB-2528 | 25/32" × 7/8" | 230 | 224 × 47 × 8 |
| DSB-3032 | 15/16" × 1" | 362 | 254 × 55.5 × 9.5 |
Notes
Use the size that matches the bolt or nut.
Warranty: The TONE lifetime warranty applies to hand tools only.
