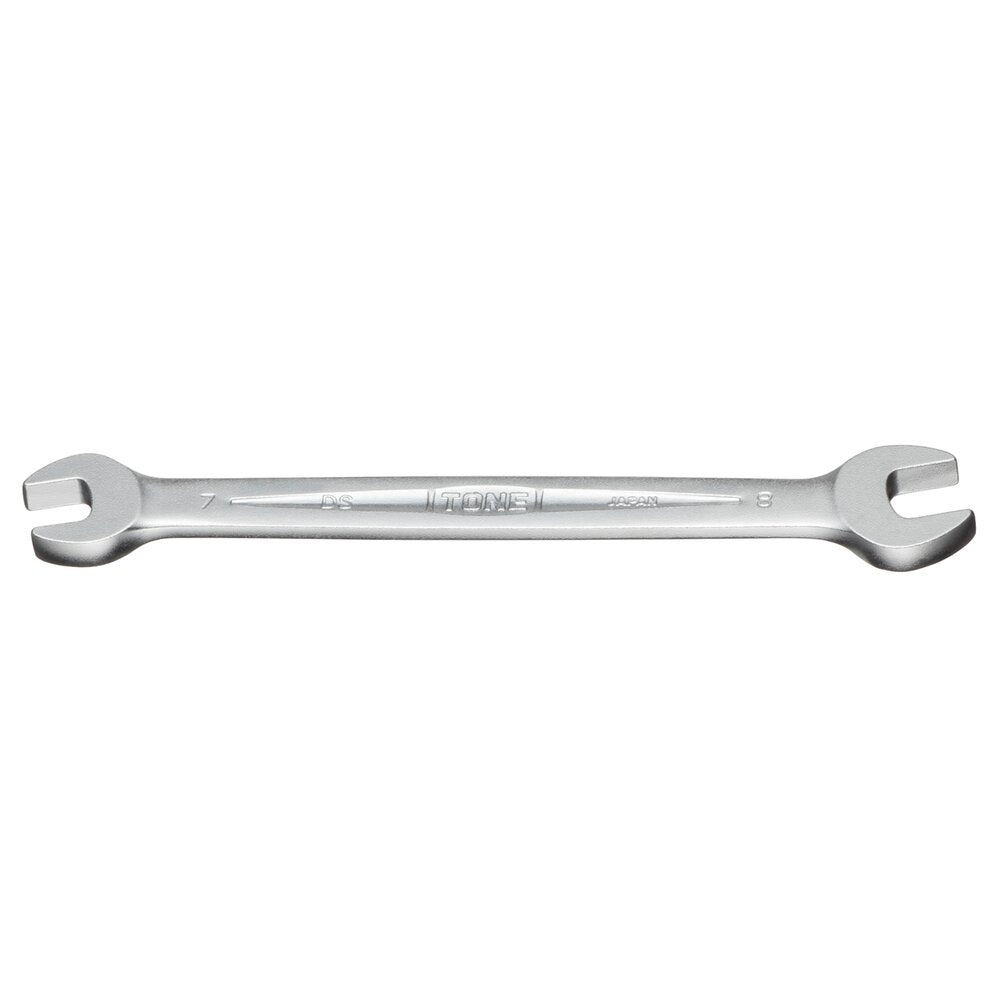

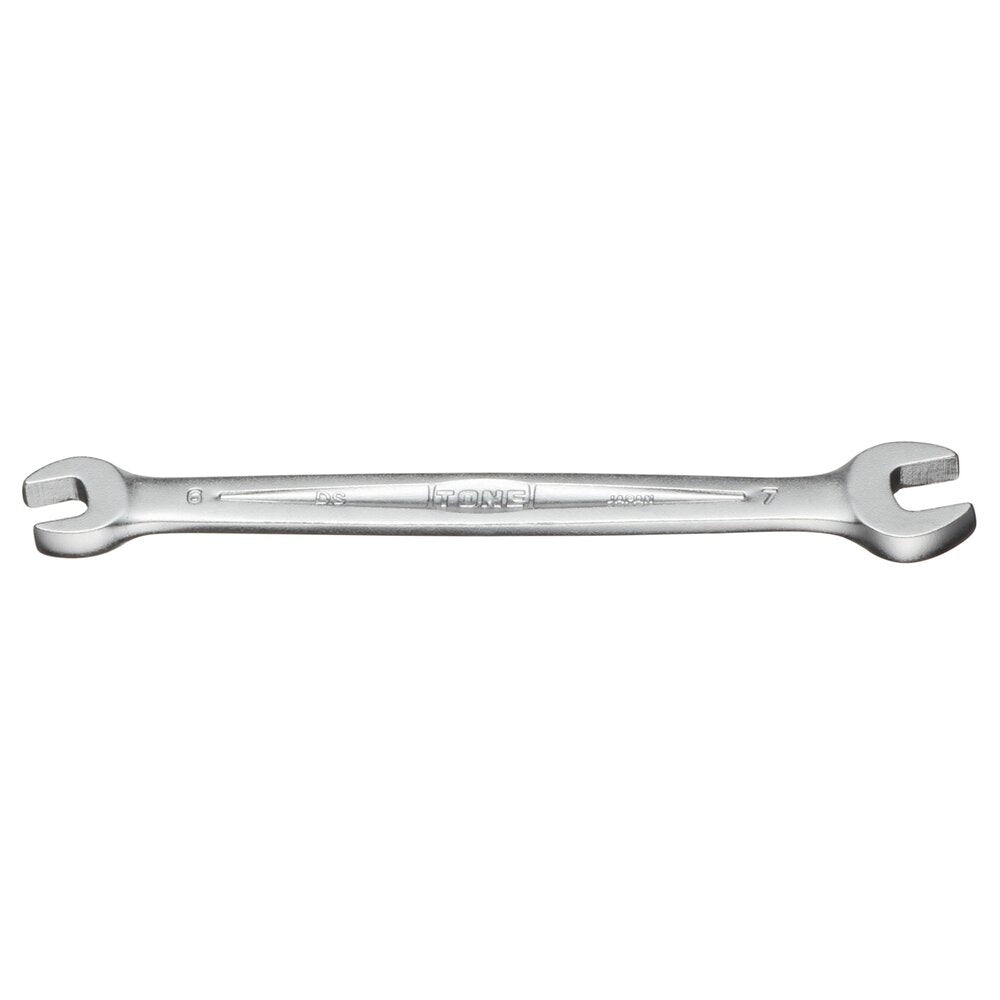

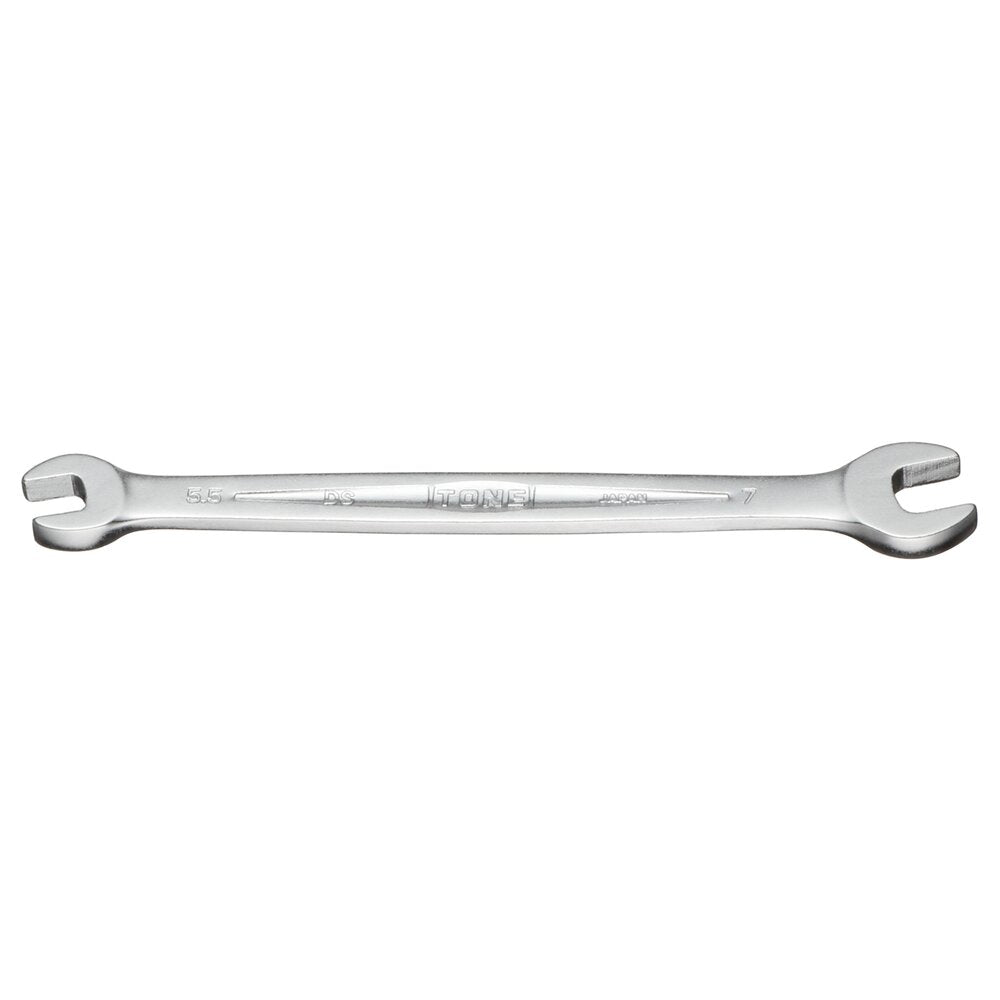

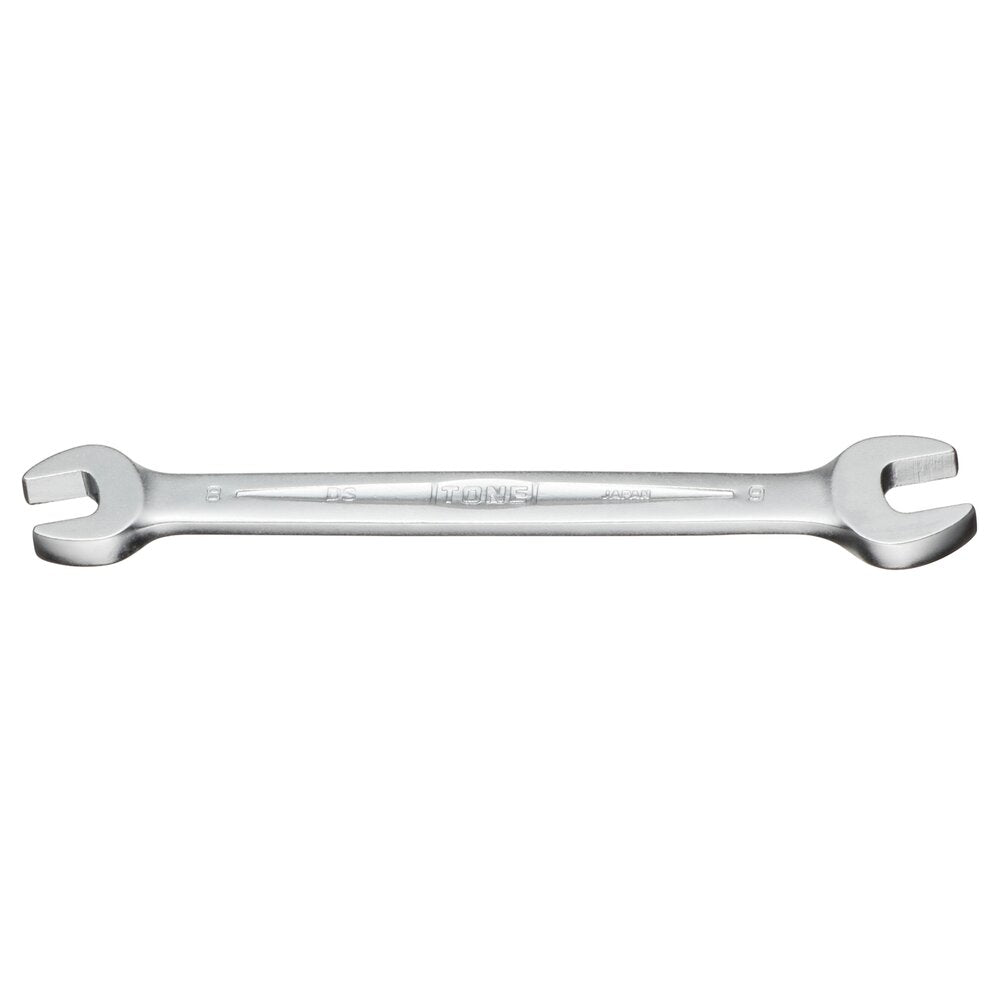

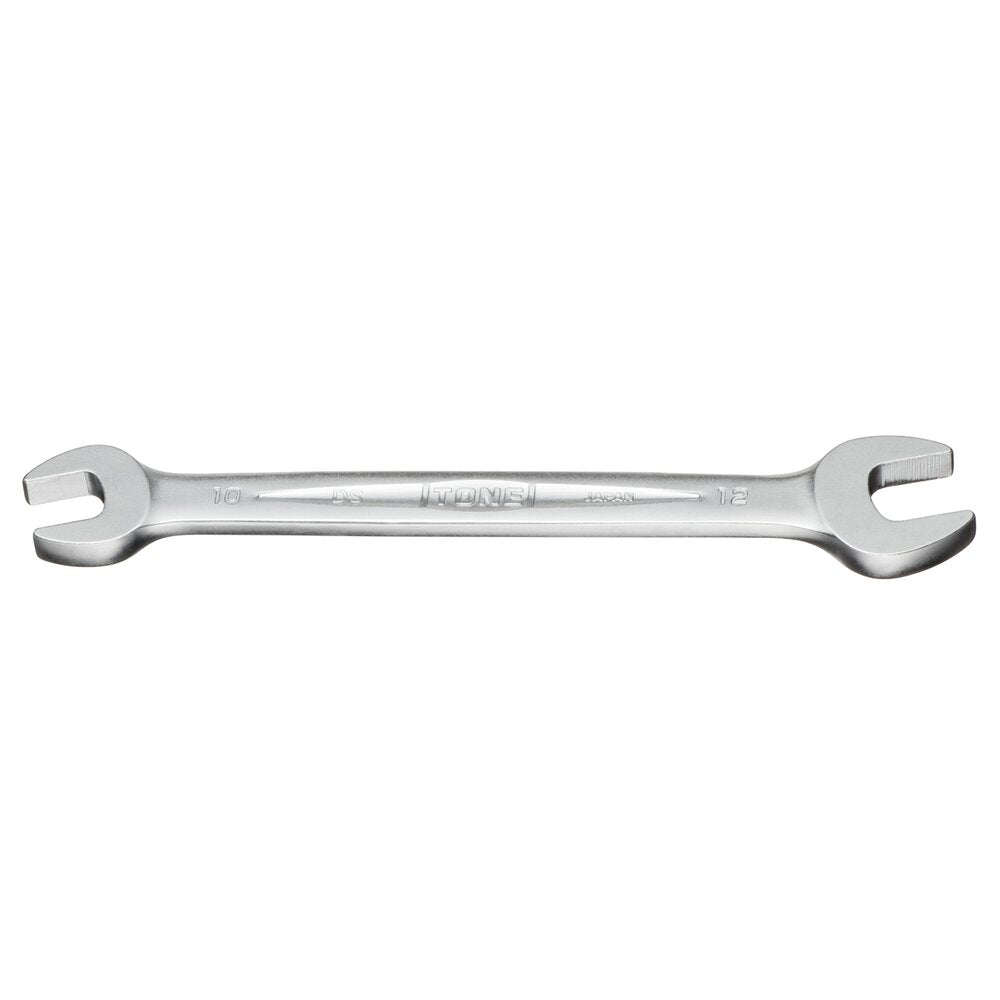

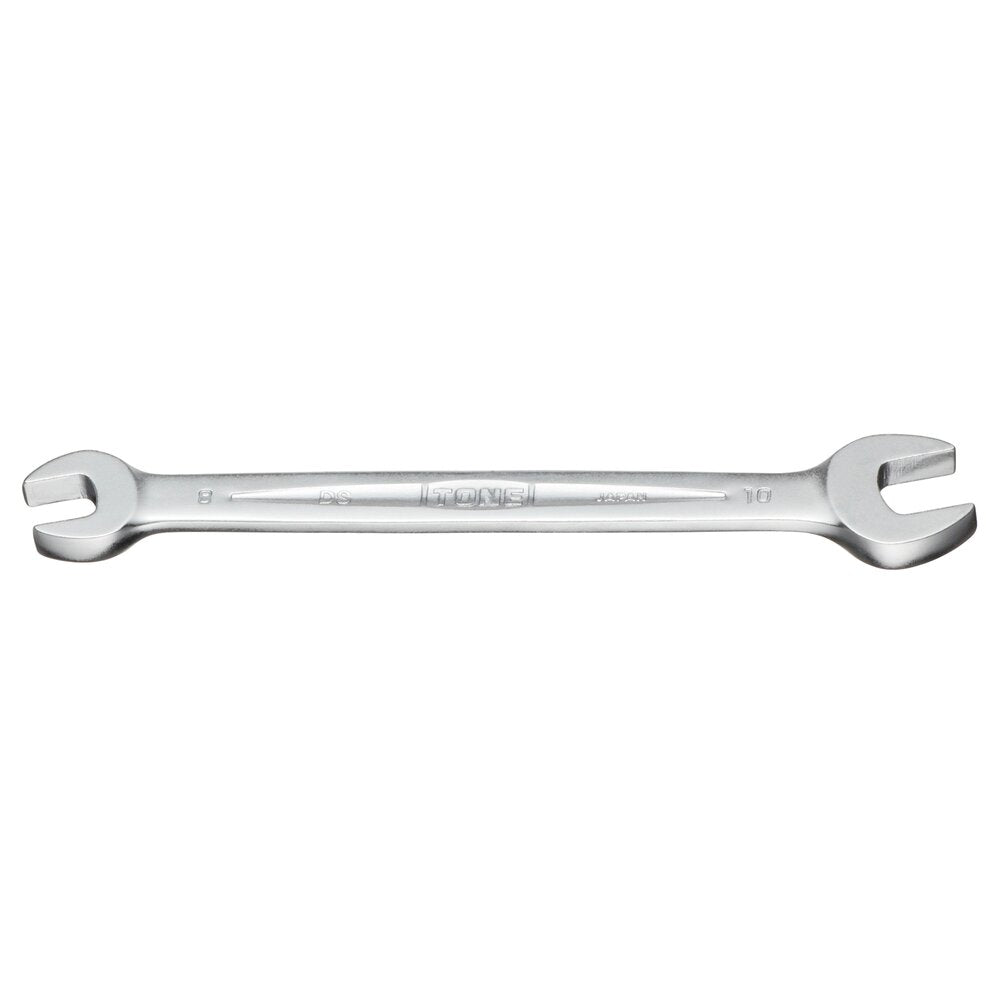

TONE Spanner DS Series
Sale price
$6.27
Regular price
$6.60
Lifetime Warranty: hand tools only
Description
A beautiful satin finish and soft, curved design that sits comfortably in the hand. A unique head shape that combines the advantages of round and spear-shaped heads.
Application: For tightening and loosening hex bolts and nuts.
Specifications
| Part Number | DS-5.507 to DS-2730 |
|---|---|
| Tip type | Open end |
| Size system | Metric |
| Finish | Satin finish |
| Material | Structural steel |
Sizes

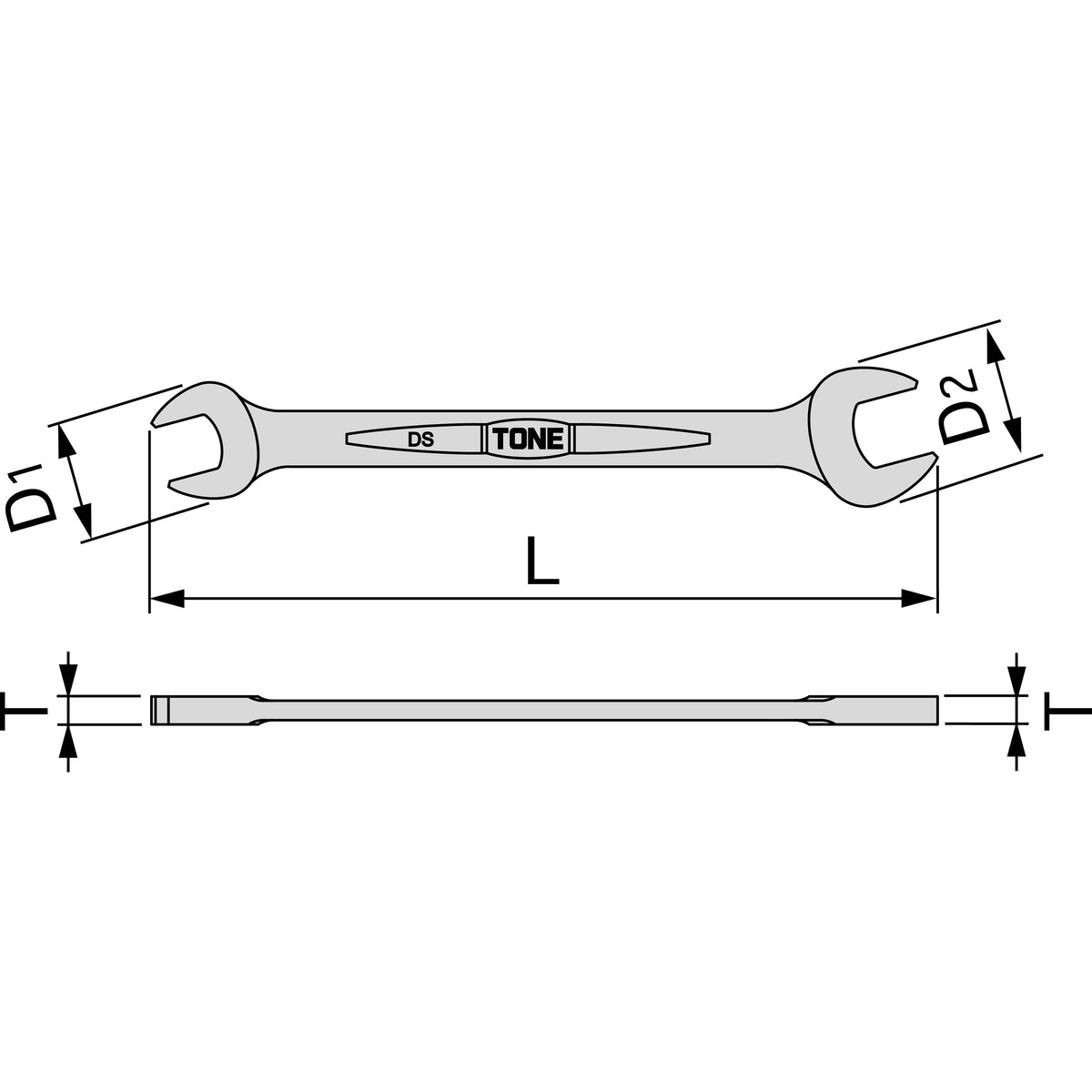

| Part Number | Size | Weight (g) | W × D × H (mm) |
|---|---|---|---|
| DS-5.507 | 5.5 × 7 mm | 14 | 104 × 15 × 3.2 |
| DS-0607 | 6 × 7 mm | 14 | 104 × 15 × 3.2 |
| DS-0708 | 7 × 8 mm | 21 | 111 × 17 × 4 |
| DS-0809 | 8 × 9 mm | 28 | 119 × 19 × 4.5 |
| DS-0810 | 8 × 10 mm | 32 | 126 × 21 × 4.5 |
| DS-1012 | 10 × 12 mm | 47 | 141 × 25 × 5 |
| DS-1013 | 10 × 13 mm | 51 | 149 × 27 × 5 |
| DS-1113 | 11 × 13 mm | 57 | 149 × 27 × 5.5 |
| DS-1214 | 12 × 14 mm | 72 | 156 × 28.5 × 6 |
| DS-1317 | 13 × 17 mm | 103 | 179 × 35 × 6.5 |
| DS-1417 | 14 × 17 mm | 113 | 179 × 35 × 7 |
| DS-1618 | 16 × 18 mm | 140 | 186 × 37 × 7.5 |
| DS-1719 | 17 × 19 mm | 152 | 194 × 39 × 7.5 |
| DS-1921 | 19 × 21 mm | 198 | 209 × 43 × 8 |
| DS-1922 | 19 × 22 mm | 213 | 216 × 45 × 8 |
| DS-2123 | 21 × 23 mm | 230 | 224 × 47 × 8 |
| DS-2224 | 22 × 24 mm | 266 | 231 × 49 × 8.5 |
| DS-2326 | 23 × 26 mm | 316 | 246 × 52 × 9 |
| DS-2427 | 24 × 27 mm | 362 | 254 × 55.5 × 9.5 |
| DS-2730 | 27 × 30 mm | 460 | 276 × 60 × 10 |
Notes
Use the size that matches the bolt or nut.
Warranty: The TONE lifetime warranty applies to hand tools only.
