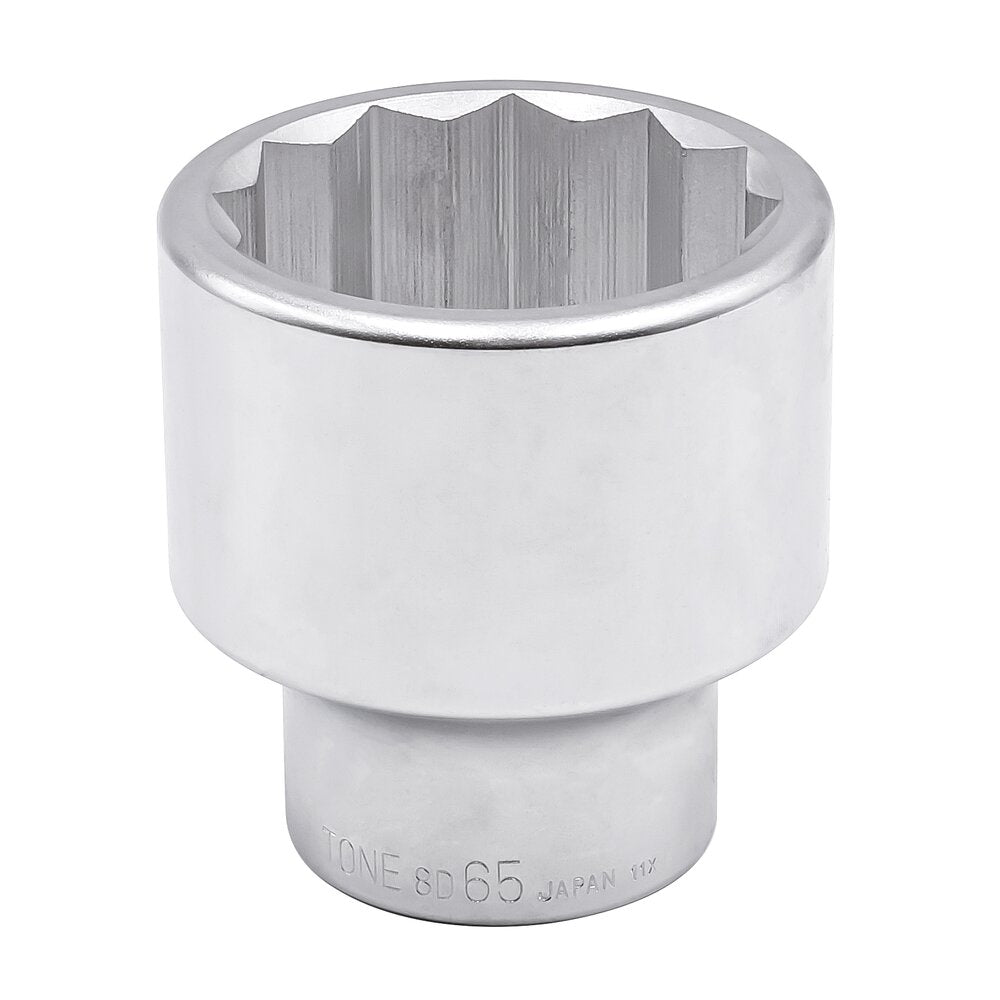

TONE Socket (12-Point, 1" Drive) 8D Series

A standard 12-point profile that resists rounding off fasteners even under torque.

Application: For tightening and loosening large bolts and nuts.

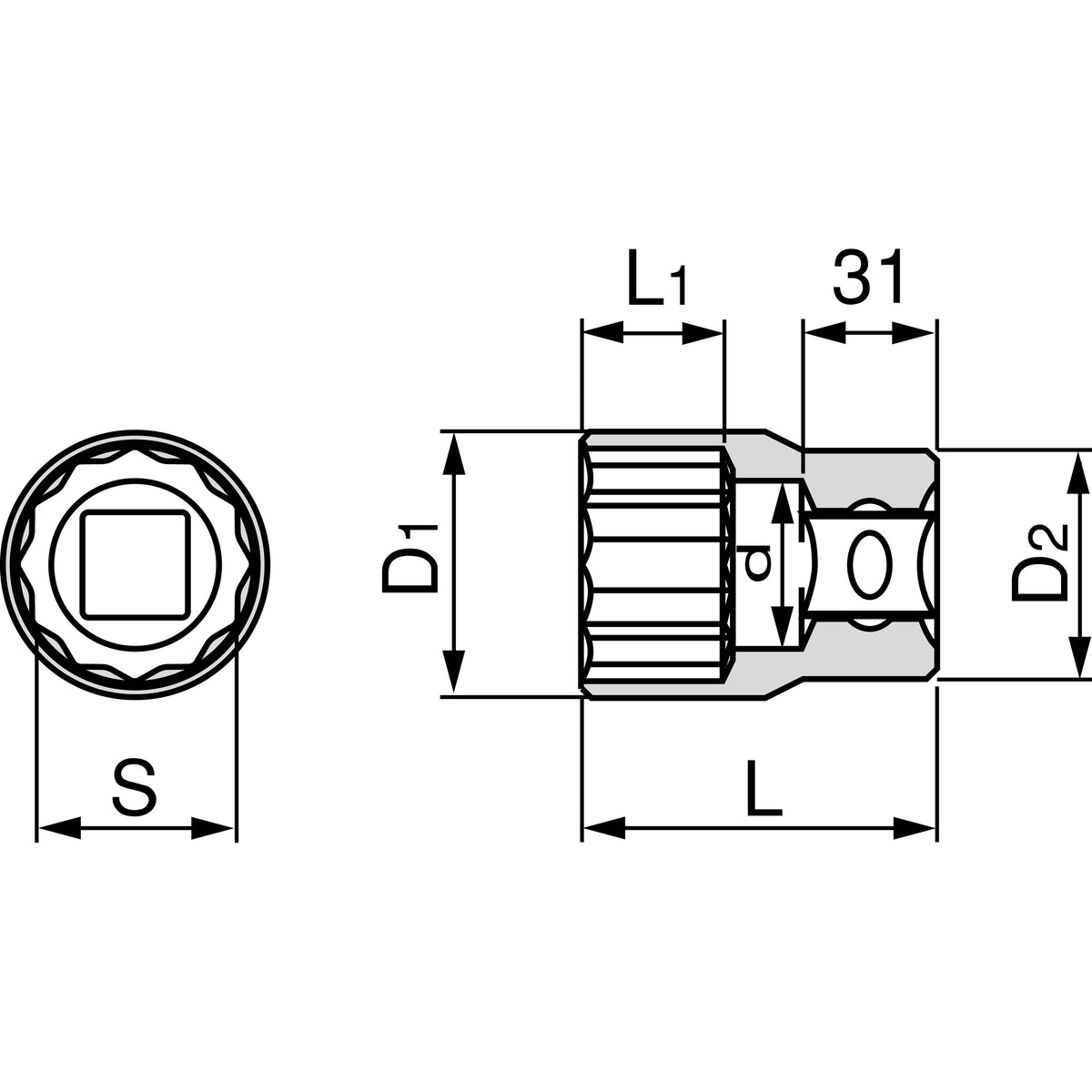

Part Number	Size	Weight (g)	W × D × H (mm)
8D-27	27 mm	380	46 × 46 × 60
8D-30	30 mm	455	48 × 48 × 62
8D-32	32 mm	600	50 × 50 × 62
8D-35	35 mm	600	52 × 52 × 65
8D-36	36 mm	600	54 × 54 × 65
8D-38	38 mm	700	55 × 55 × 68
8D-41	41 mm	800	60 × 60 × 70
8D-46	46 mm	900	66 × 66 × 79
8D-50	50 mm	1000	72 × 72 × 82
8D-54	54 mm	1400	78 × 78 × 86
8D-55	55 mm	1400	80 × 80 × 86
8D-58	58 mm	1500	83 × 83 × 89
8D-60	60 mm	1600	85 × 85 × 91
8D-63	63 mm	1900	89 × 89 × 95
8D-65	65 mm	1800	90 × 90 × 95
8D-67	67 mm	2000	93 × 93 × 100
8D-70	70 mm	2200	97 × 97 × 105
8D-71	71 mm	2300	98 × 98 × 105
8D-75	75 mm	2700	103 × 103 × 110
8D-77	77 mm	2800	106 × 106 × 110
8D-80	80 mm	3100	110 × 110 × 115
8D-85	85 mm	3700	117 × 117 × 120
8D-90	90 mm	3870	120 × 120 × 125
8D-95	95 mm	4320	126 × 126 × 130
8D-100	100 mm	4660	132 × 132 × 135

Do not use with power tools such as impact wrenches.

Warranty: The TONE lifetime warranty applies to hand tools only.
