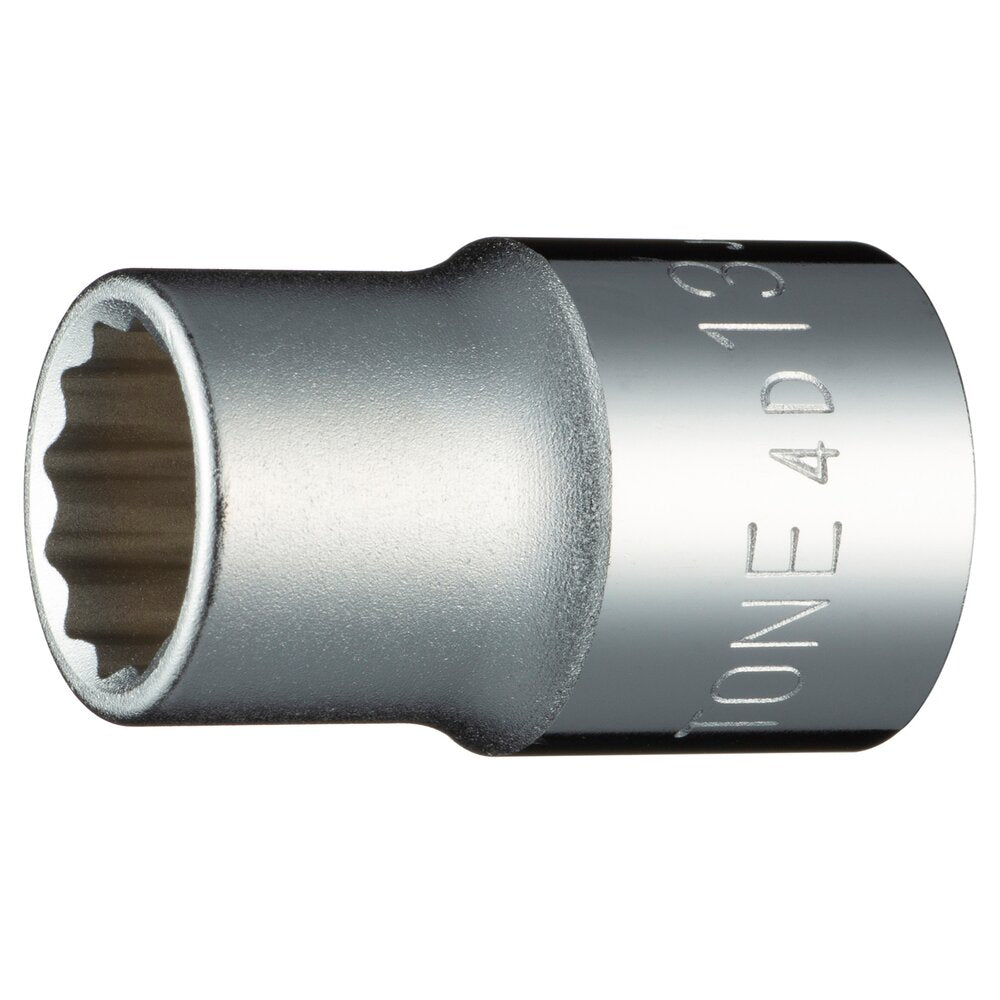

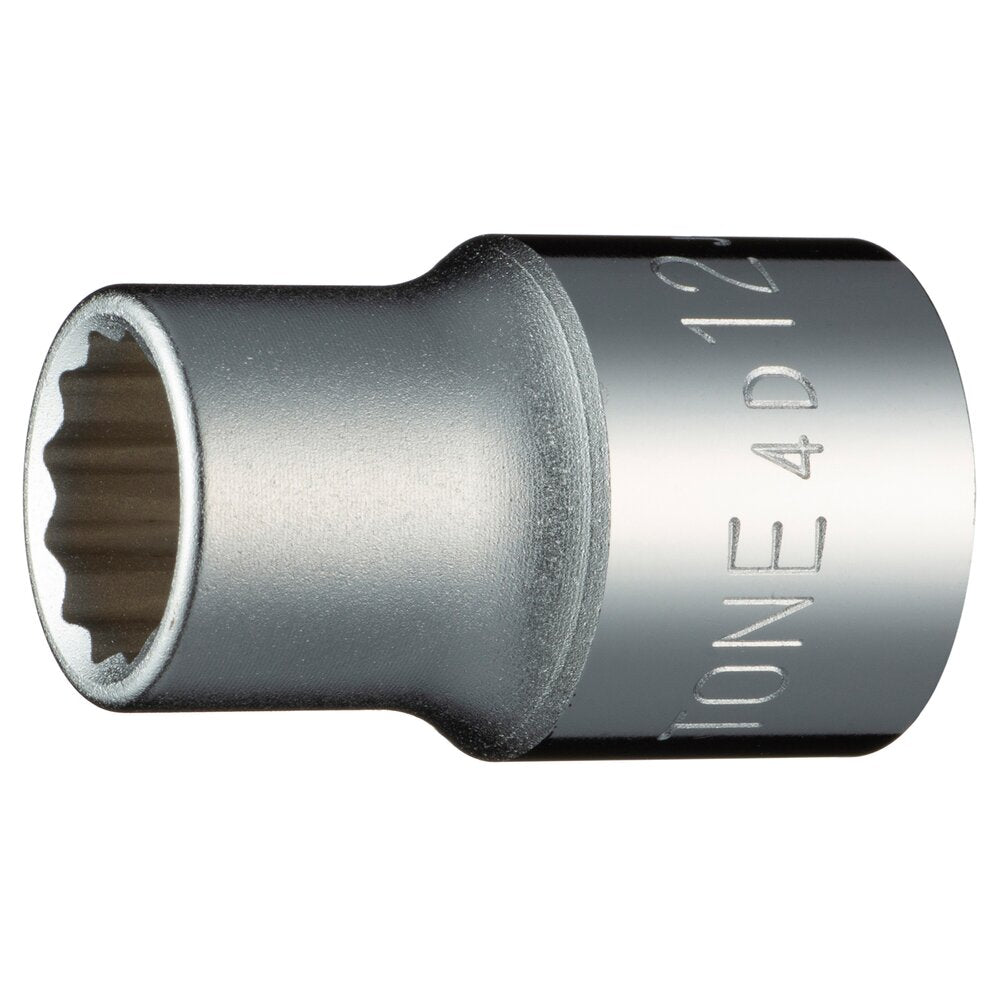

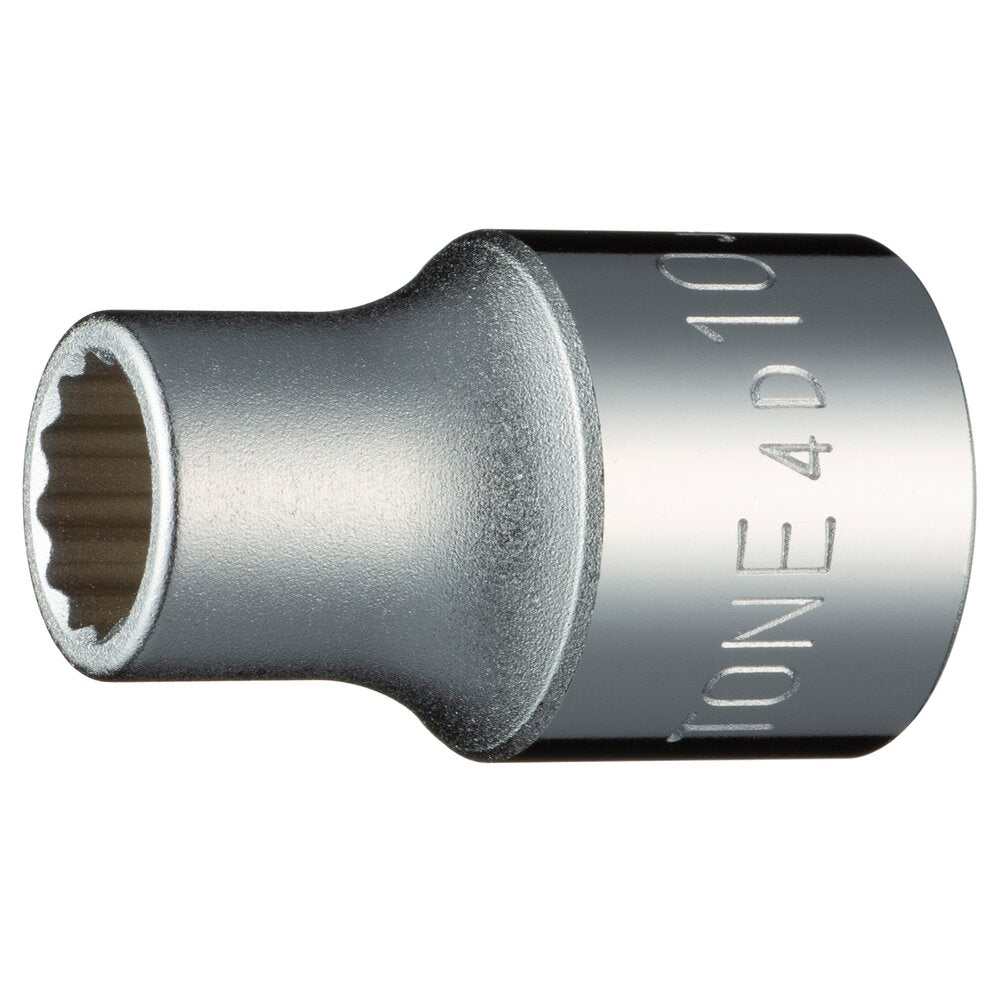

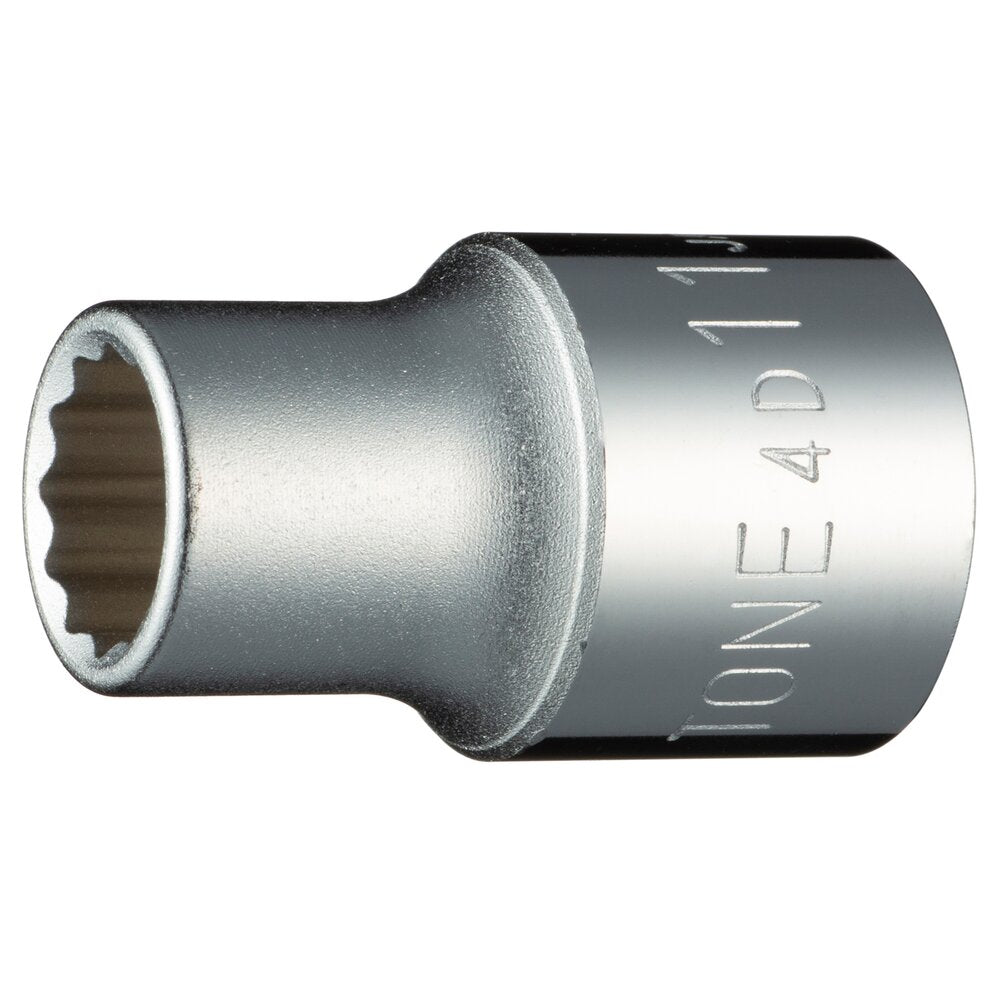

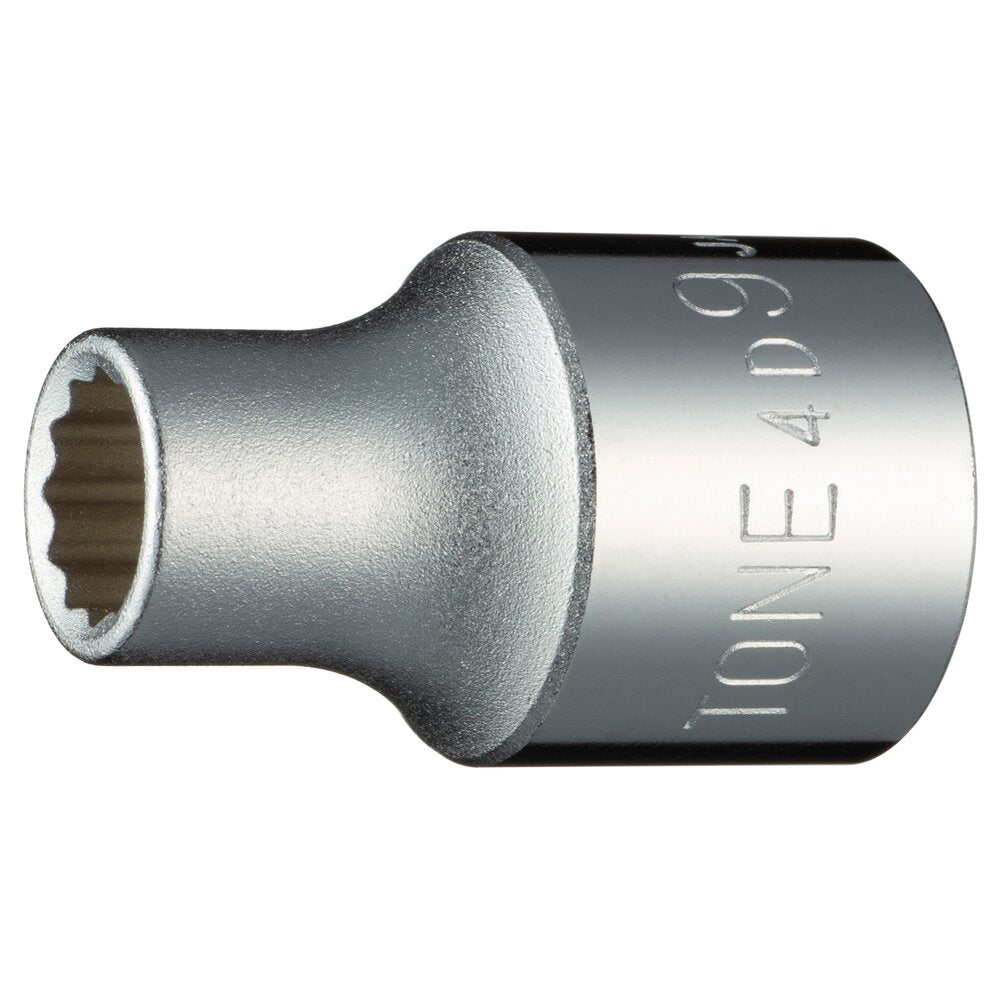

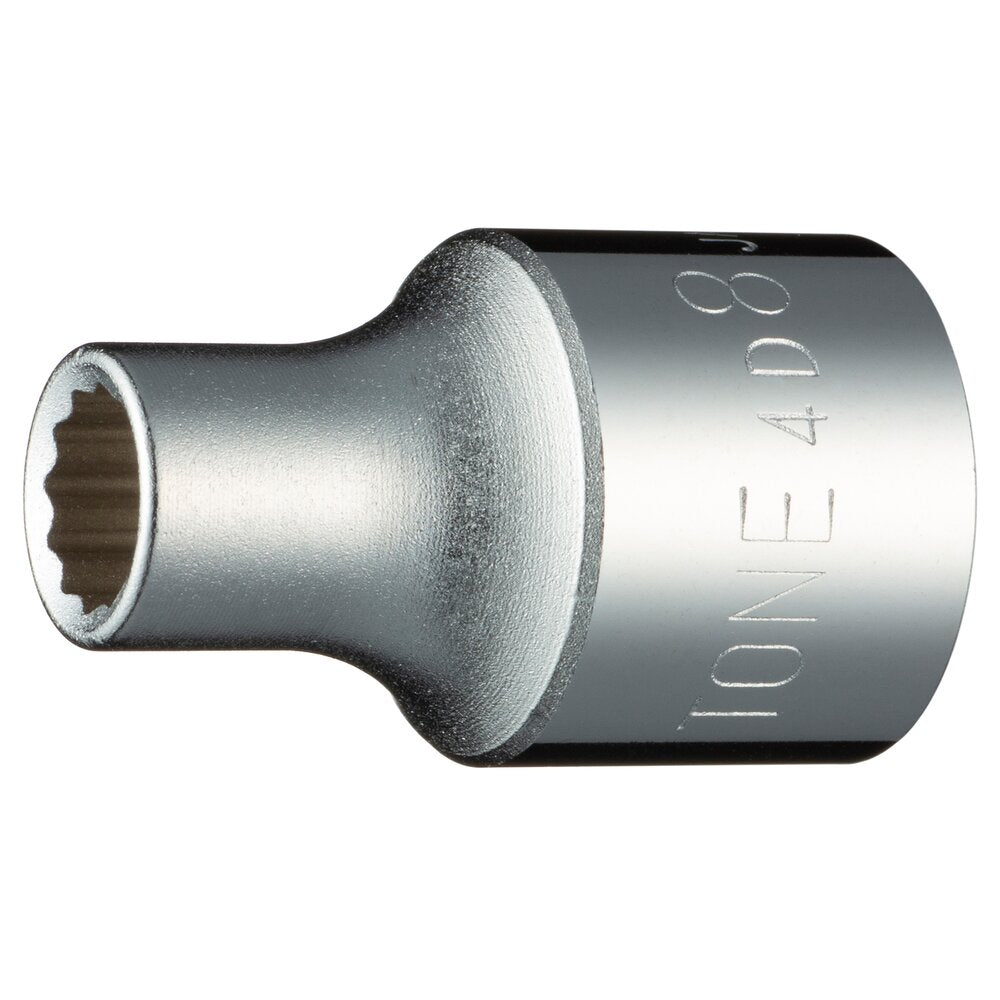

TONE Socket (12-Point, 1/2" Drive) 4D Series

A standard 12-point profile that resists rounding off fasteners even under torque.

Application: For tightening and loosening bolts and nuts.

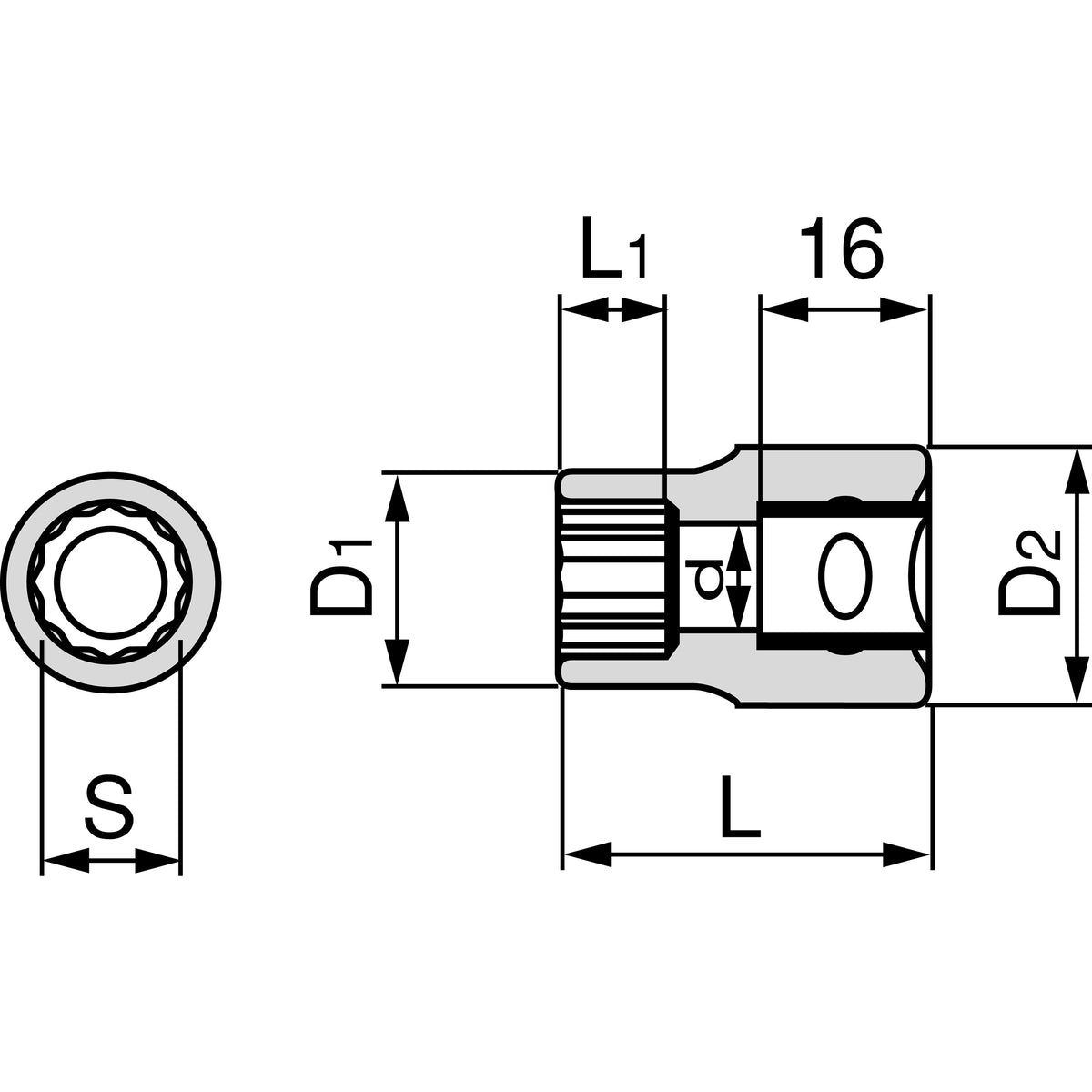

Part Number	Size	Weight (g)	W × D × H (mm)
4D-08	8 mm	40	22 × 22 × 35
4D-09	9 mm	40	22 × 22 × 35
4D-10	10 mm	40	22 × 22 × 35
4D-11	11 mm	45	22 × 22 × 35
4D-12	12 mm	50	22 × 22 × 35
4D-13	13 mm	50	22 × 22 × 35
4D-14	14 mm	50	22 × 22 × 35
4D-14.5	14.5 mm	50	22 × 22 × 35
4D-15	15 mm	55	22 × 22 × 35
4D-16	16 mm	65	23 × 23 × 36
4D-17	17 mm	65	24 × 24 × 37
4D-17.5	17.5 mm	65	24 × 24 × 37
4D-18	18 mm	70	25 × 25 × 37
4D-19	19 mm	70	26 × 26 × 38
4D-20	20 mm	90	28 × 28 × 38
4D-21	21 mm	90	29 × 29 × 39
4D-22	22 mm	105	30 × 30 × 40
4D-23	23 mm	130	32 × 32 × 41
4D-24	24 mm	130	33 × 33 × 41
4D-25	25 mm	130	34 × 34 × 43.5
4D-26	26 mm	135	35 × 35 × 43.5
4D-27	27 mm	145	36 × 36 × 43.5
4D-28	28 mm	170	38 × 38 × 43.5
4D-29	29 mm	175	39 × 39 × 43.5
4D-30	30 mm	200	40 × 40 × 47
4D-31	31 mm	230	42 × 42 × 47
4D-32	32 mm	250	43 × 43 × 47
4D-33	33 mm	250	44 × 44 × 47
4D-34	34 mm	285	45 × 45 × 47
4D-35	35 mm	295	46 × 46 × 47
4D-36	36 mm	310	48 × 48 × 52

Do not use with power tools such as impact wrenches.

Warranty: The TONE lifetime warranty applies to hand tools only.
