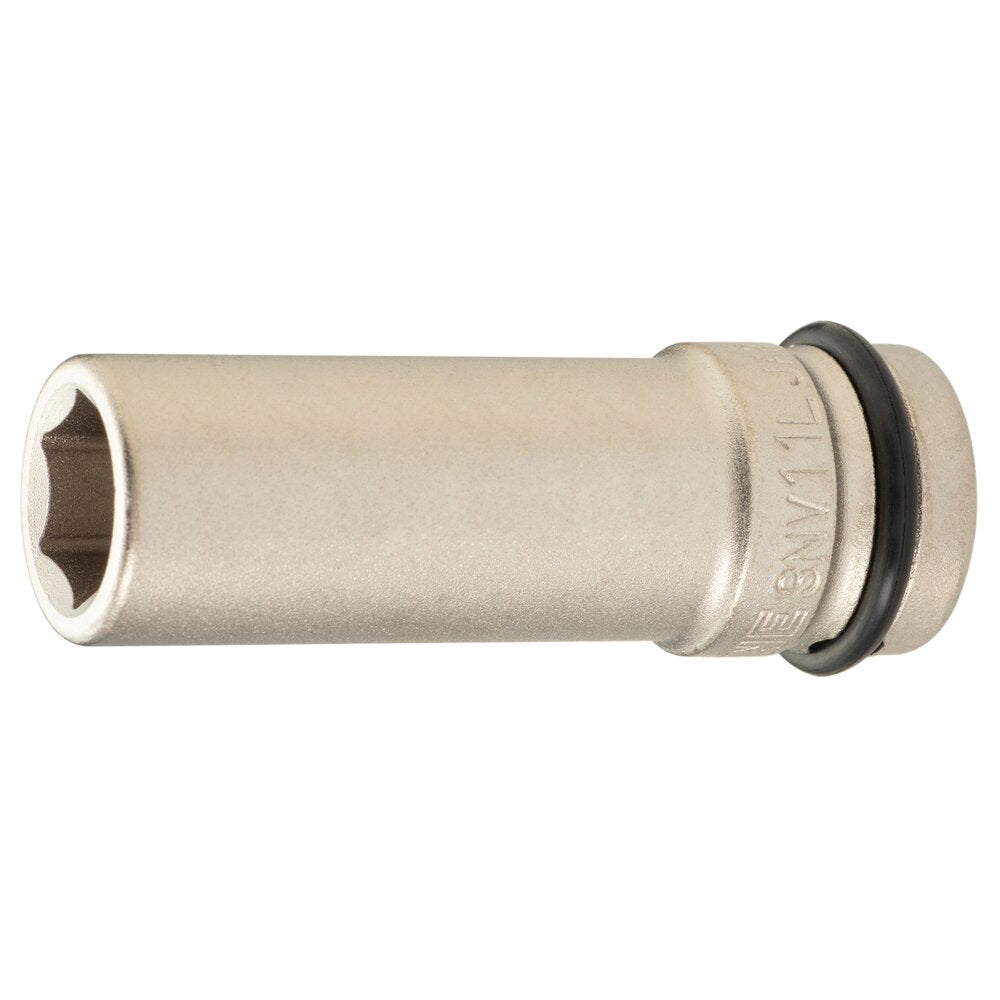

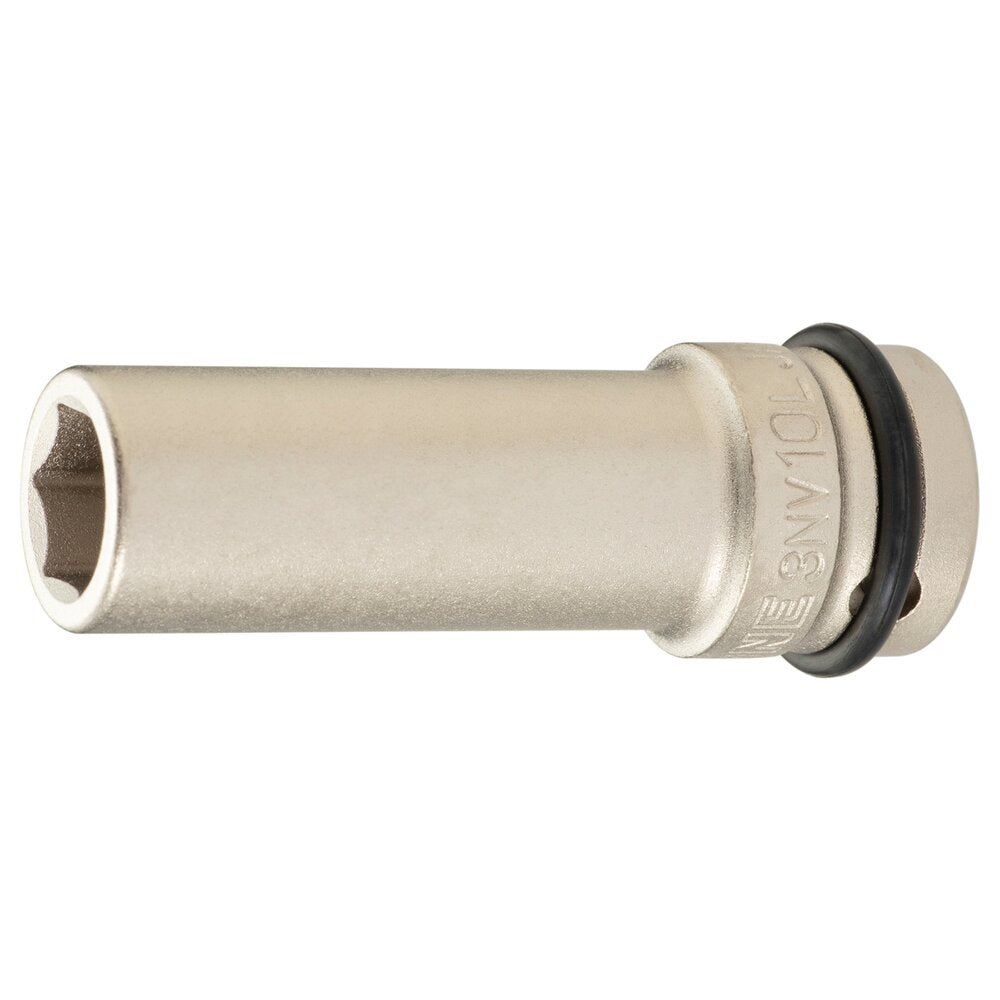

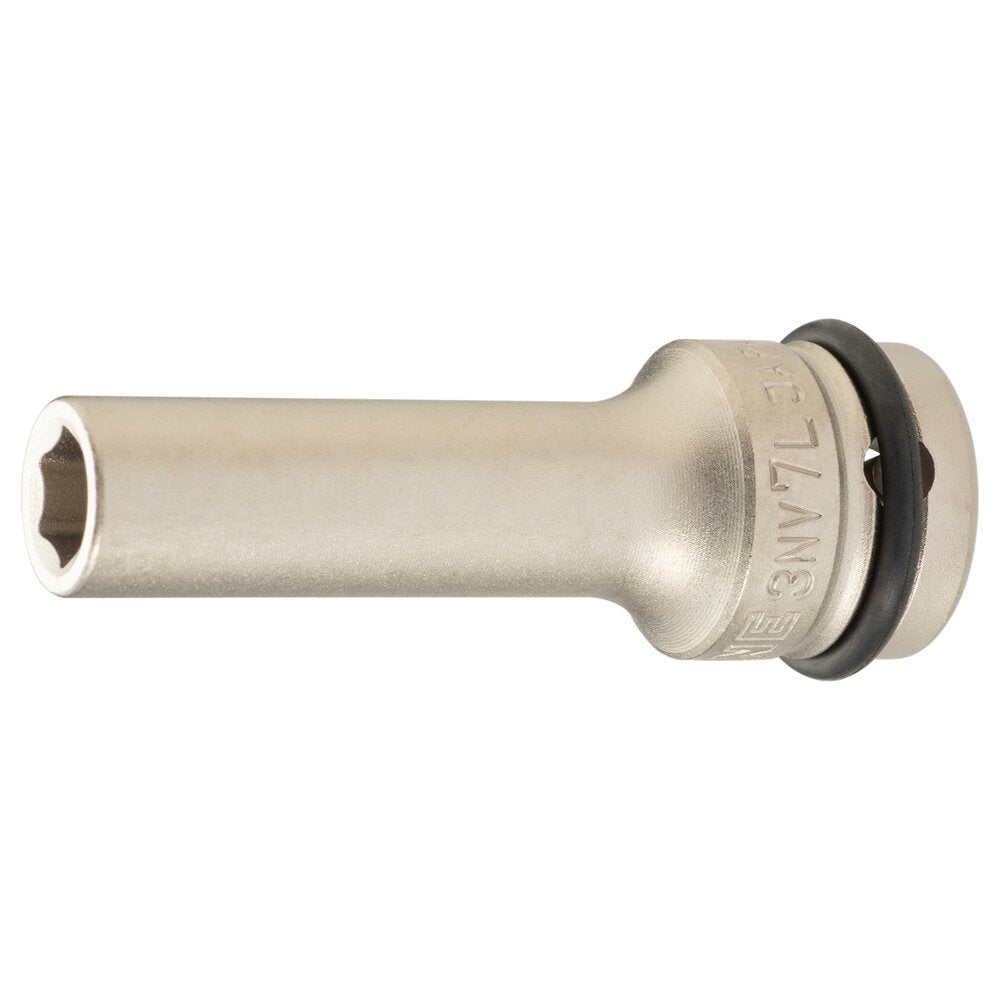

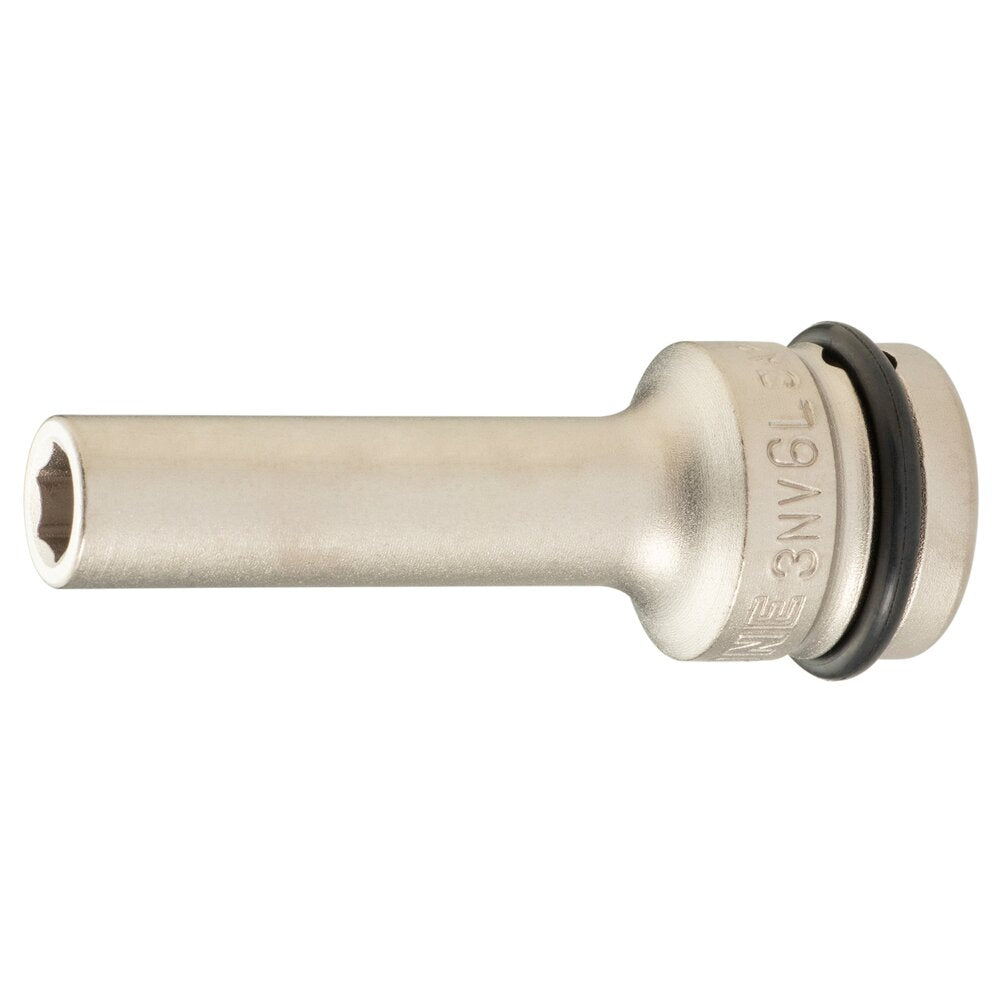

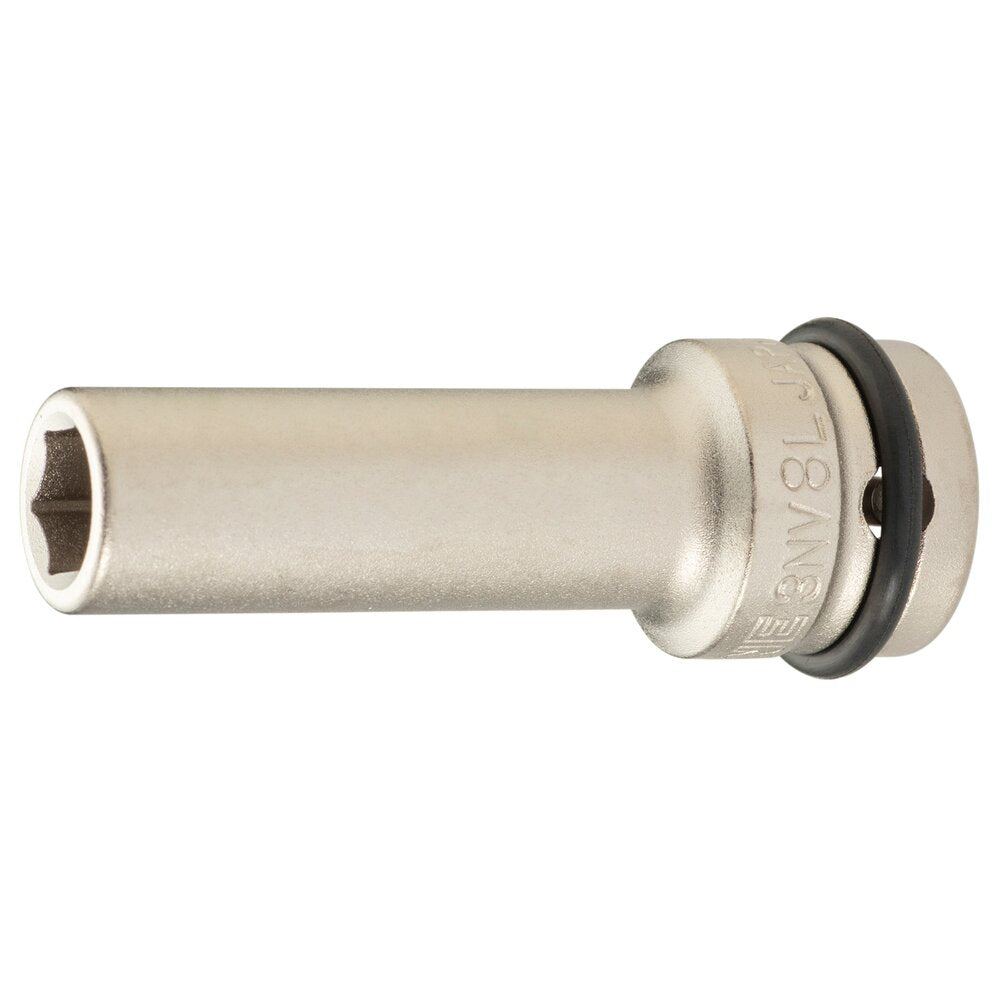

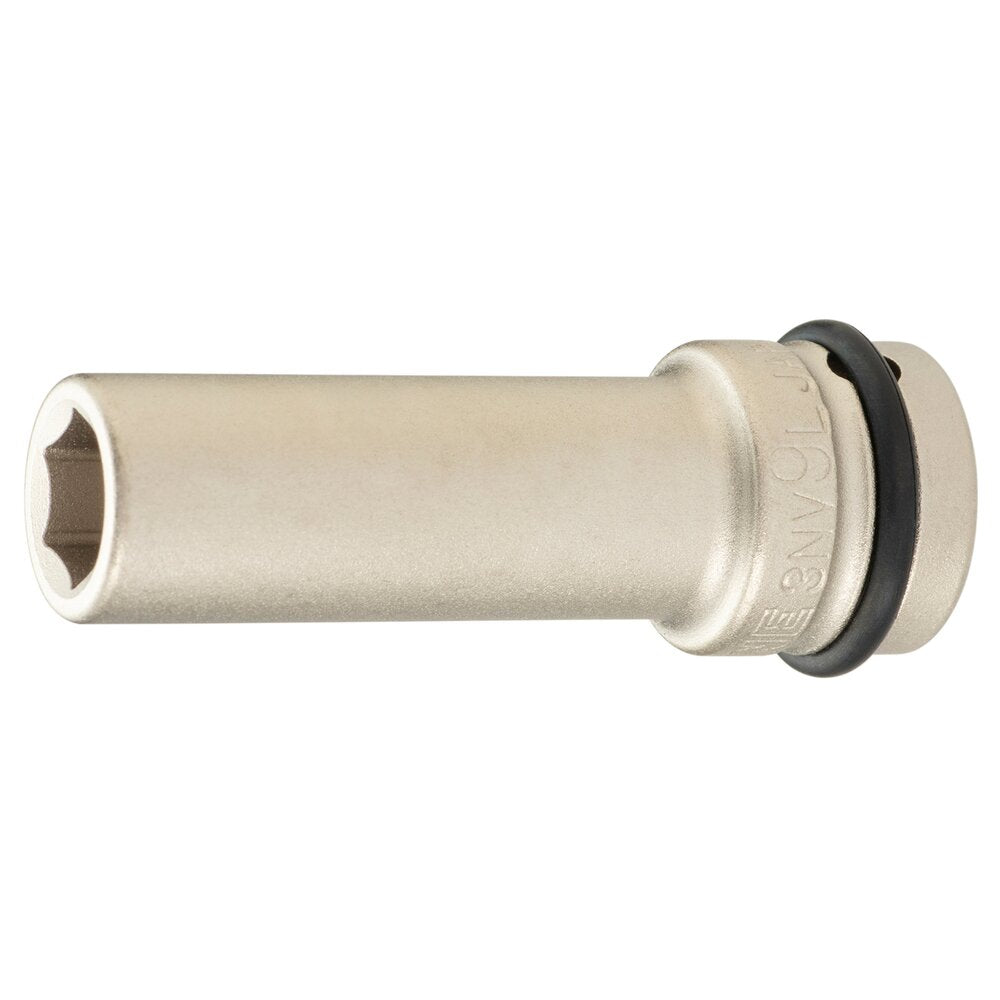

TONE Long Impact Socket (6-Point, 3/8" Drive) 3NV-L Series

A long impact socket with an electroless-plated finish for better appearance and rust resistance. The O-ring parking groove lets you park the O-ring temporarily while fitting or removing the socket on the wrench, making the job easier.

Application: For tightening and loosening bolts and nuts.

Strong Drive 6-point profile. Patented.

Specifications

Part Number	3NV-06L to 3NV-22L
Drive size	9.5 mm (3/8")
Tip type	6-point
Size system	Metric
Replacement pin	P3016S
Replacement O-ring	RINGP16S
Finish	Electroless plating
Material	Structural steel

Sizes

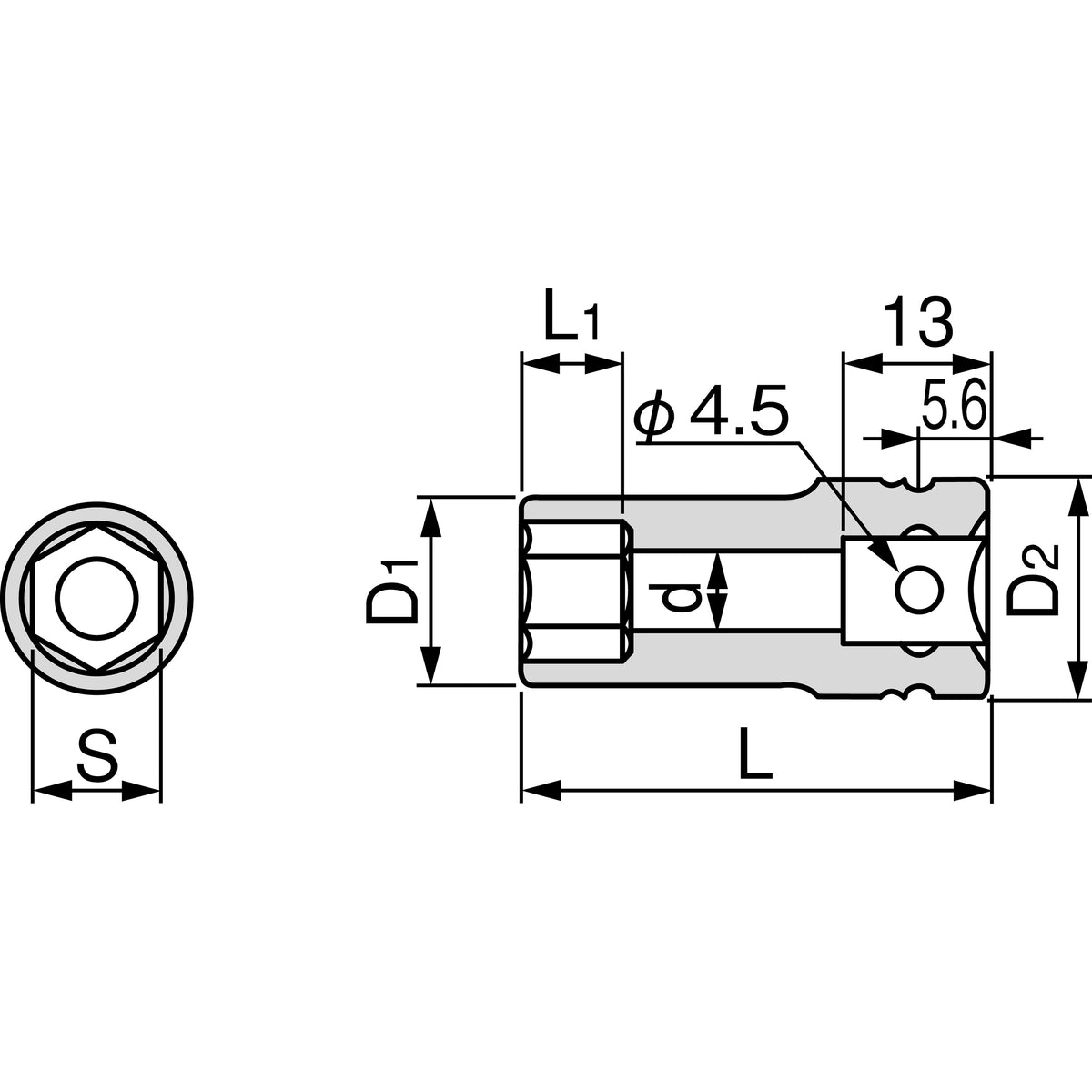

Part Number	Size	Weight (g)	W × D × H (mm)
3NV-06L	6 mm	40	19 × 19 × 55
3NV-07L	7 mm	50	19 × 19 × 55
3NV-08L	8 mm	50	19 × 19 × 55
3NV-09L	9 mm	55	19 × 19 × 55
3NV-10L	10 mm	60	19 × 19 × 55
3NV-11L	11 mm	70	19 × 19 × 55
3NV-12L	12 mm	80	19 × 19 × 55
3NV-13L	13 mm	90	20 × 20 × 55
3NV-14L	14 mm	90	21 × 21 × 55
3NV-15L	15 mm	100	22 × 22 × 55
3NV-16L	16 mm	115	24 × 24 × 55
3NV-17L	17 mm	140	25 × 25 × 55
3NV-18L	18 mm	125	26 × 26 × 55
3NV-19L	19 mm	150	28 × 28 × 55
3NV-21L	21 mm	160	29 × 29 × 55
3NV-22L	22 mm	165	30 × 30 × 55

Notes

Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.

Warranty: The TONE lifetime warranty applies to hand tools only.
