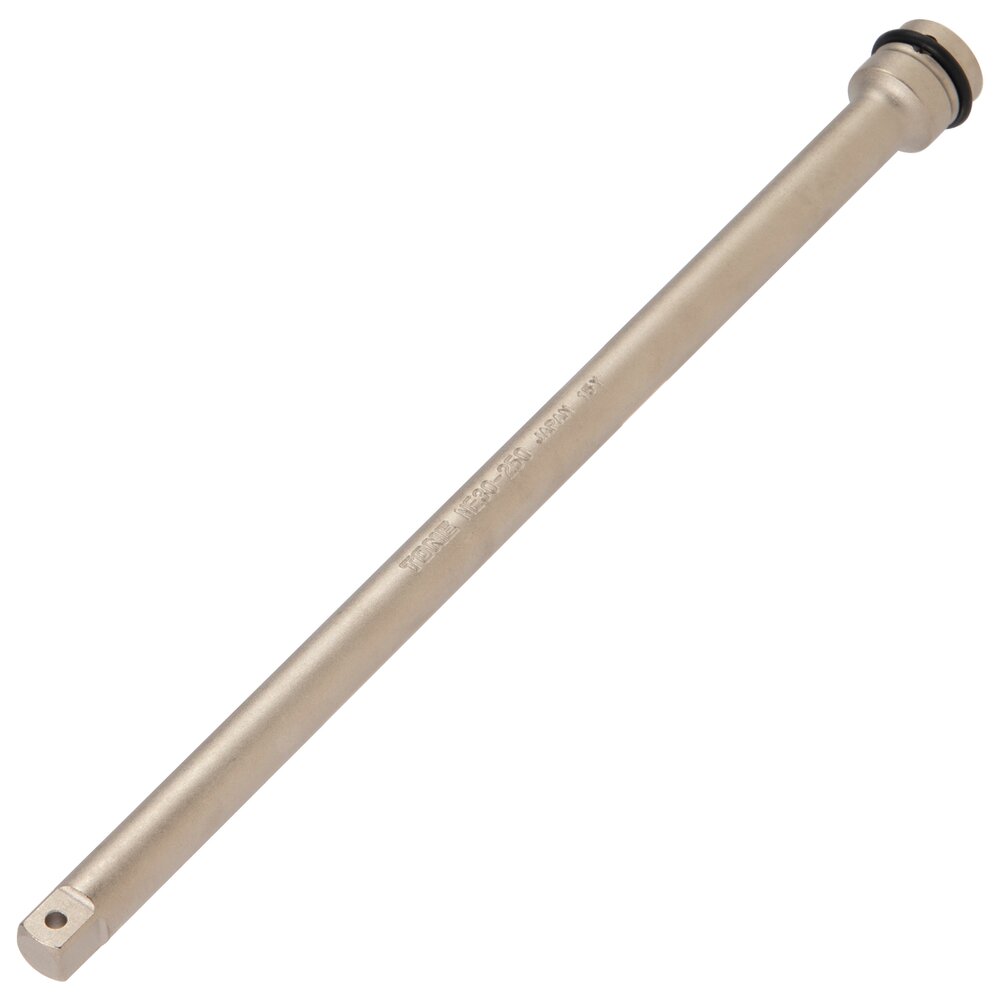

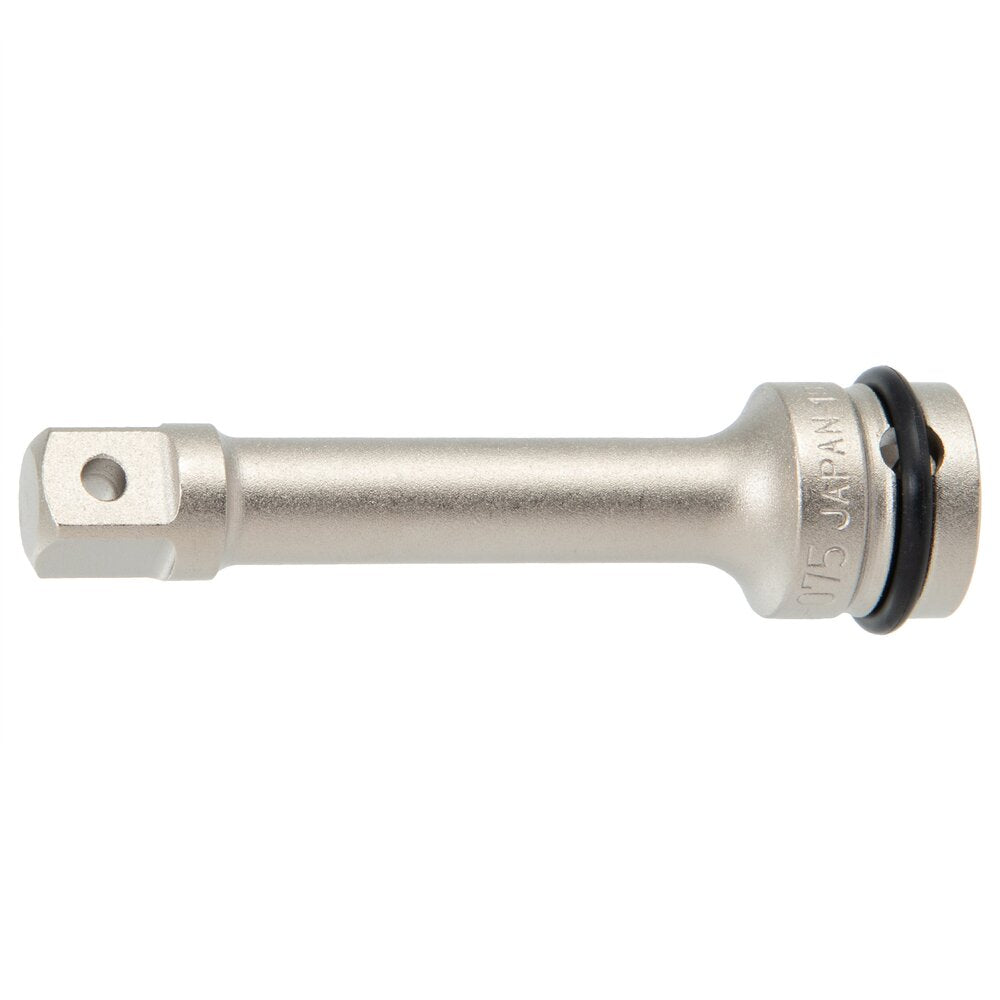

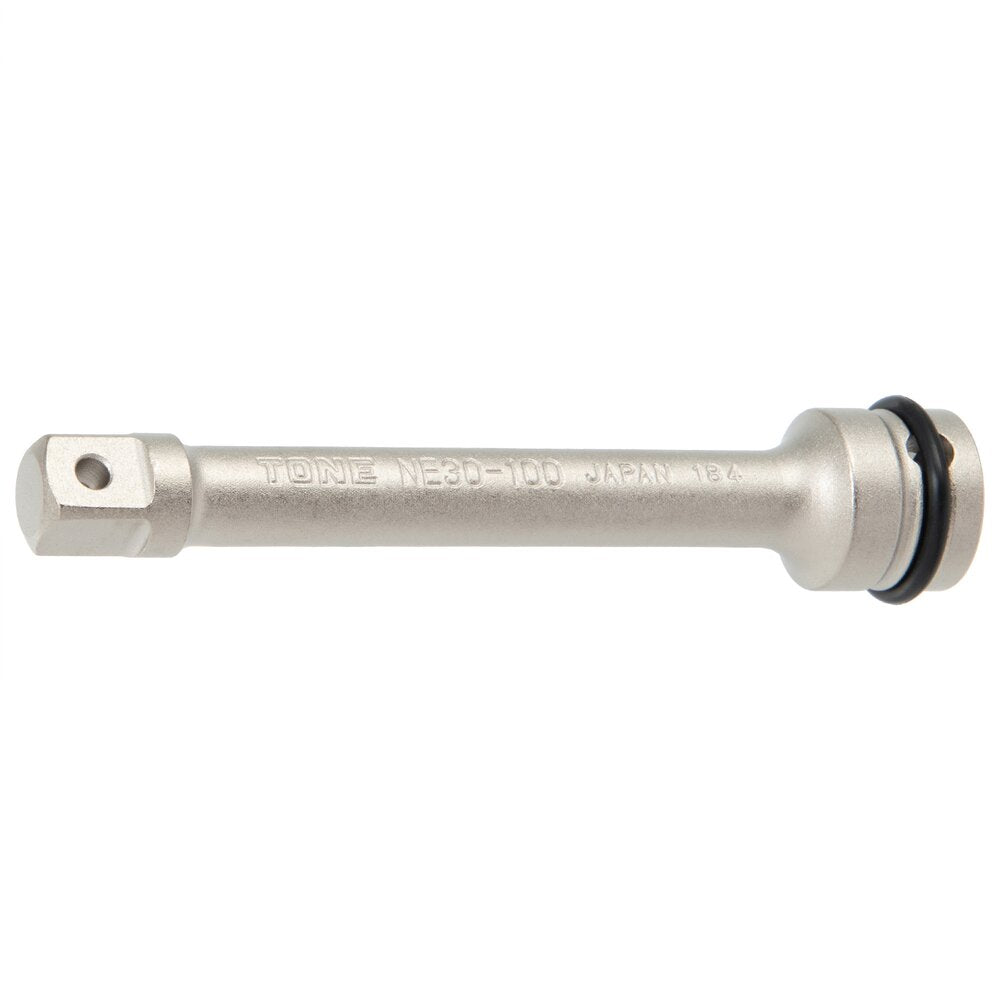

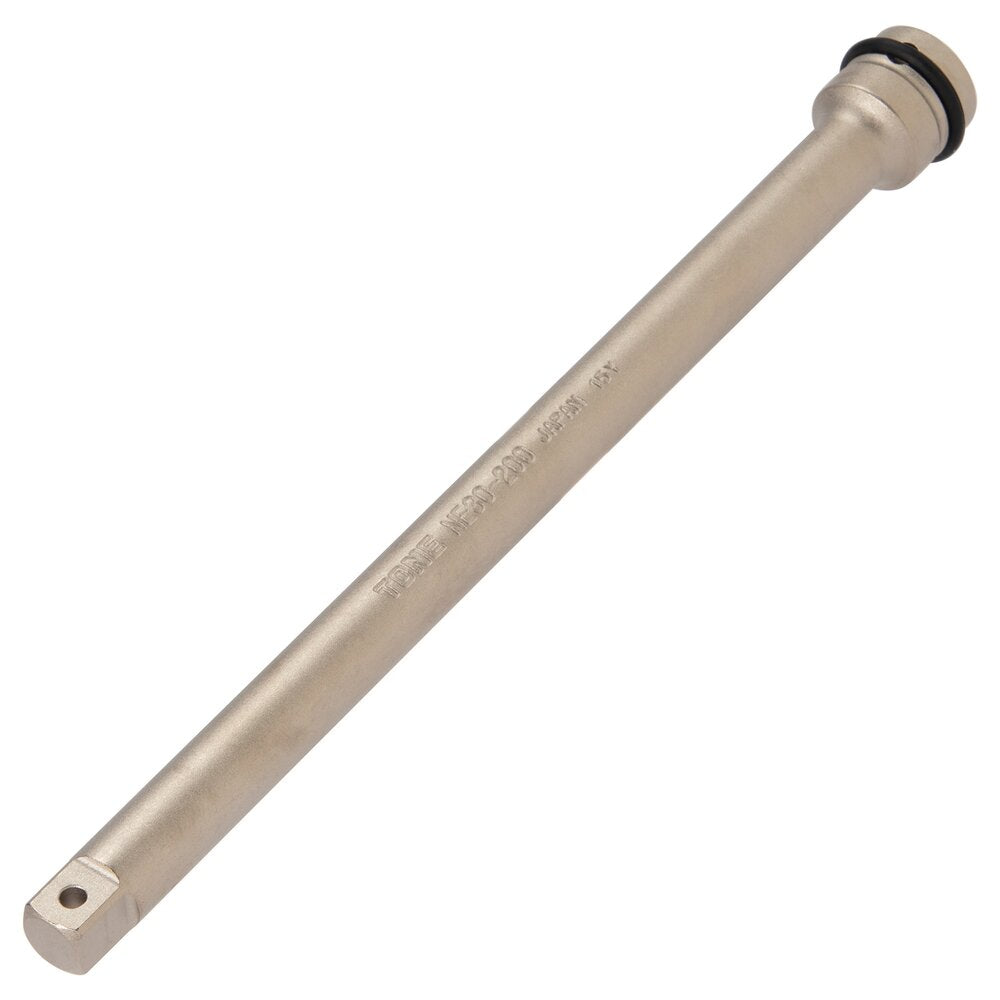

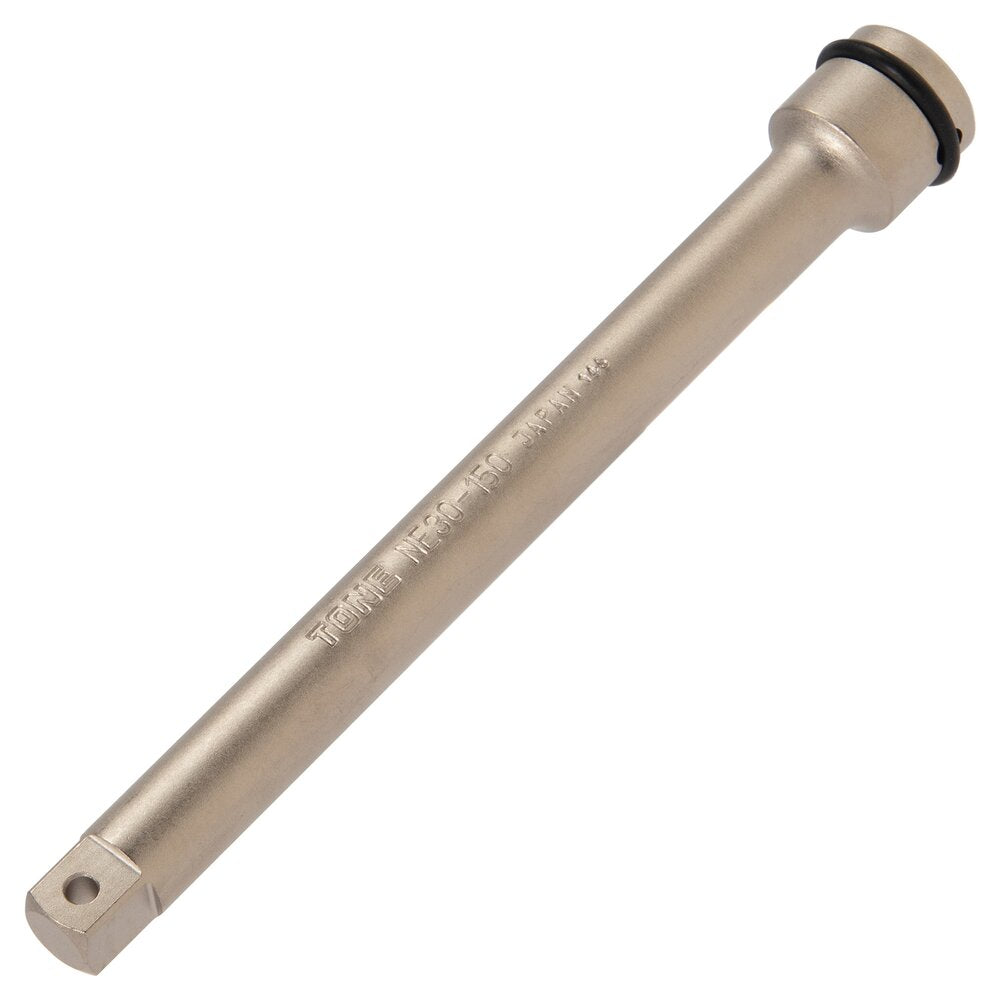

TONE 3/8" Drive Impact Extension Bar NE30 Series
Sale price
$22.71
Regular price
$23.90
Lifetime Warranty: hand tools only
Description
Extends the socket when the handle is hard to operate, such as in deep, narrow spots. Electroless-plated finish for better appearance and rust resistance.
Application: Extends the socket when the impact wrench is hard to operate.
Specifications
| Part Number | NE30-075 to NE30-250 |
|---|---|
| Drive size | 9.5 mm (3/8") |
| Output drive | 9.5 mm (3/8") |
| Tip type | Square drive (pin & O-ring) |
| Replacement pin | P3016S |
| Replacement O-ring | RINGP16S |
| Finish | Electroless plating |
| Material | Structural steel |
Sizes

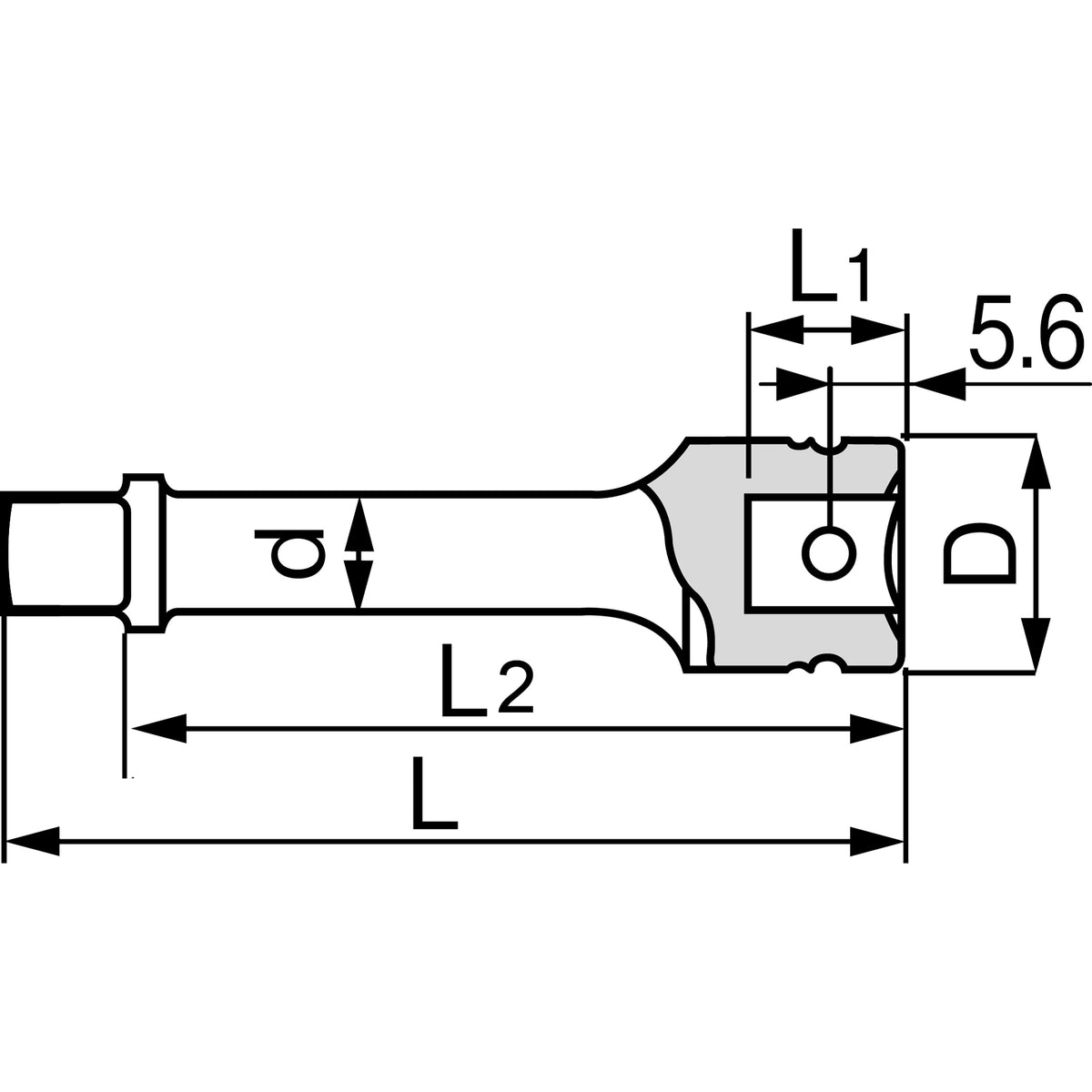

| Part Number | Length | Weight (g) | W × D × H (mm) |
|---|---|---|---|
| NE30-075 | 75 mm | 65 | 19 × 19 × 75 |
| NE30-100 | 100 mm | 80 | 19 × 19 × 100 |
| NE30-150 | 150 mm | 150 | 19 × 19 × 150 |
| NE30-200 | 200 mm | 200 | 19 × 19 × 200 |
| NE30-250 | 250 mm | 250 | 19 × 19 × 250 |
Notes
Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
Warranty: The TONE lifetime warranty applies to hand tools only.
