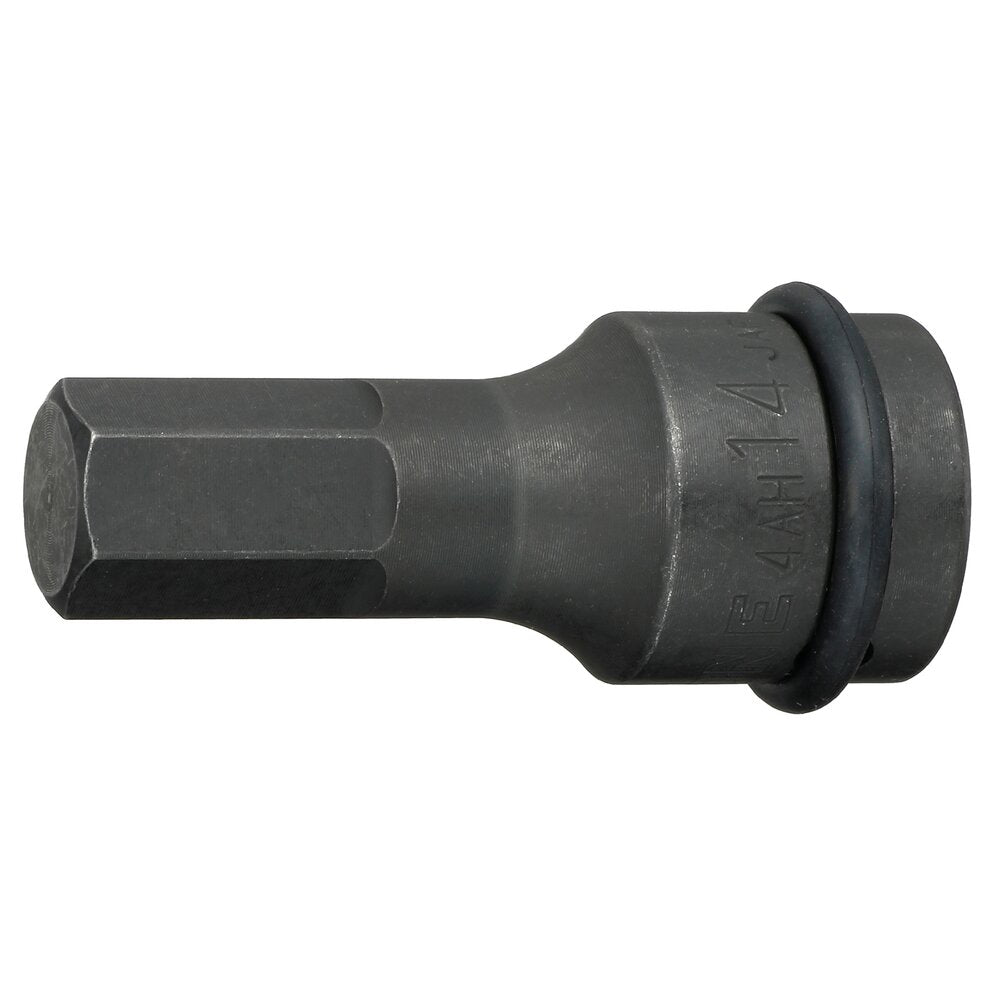

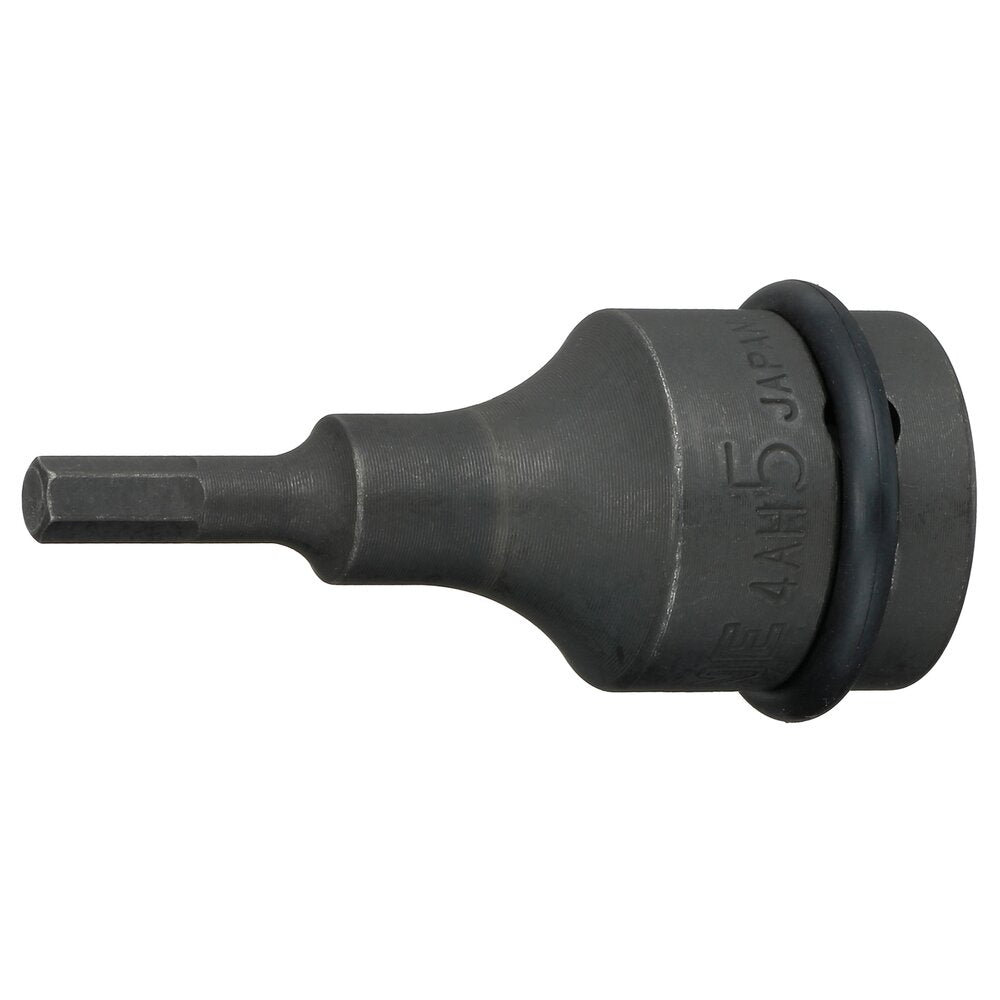

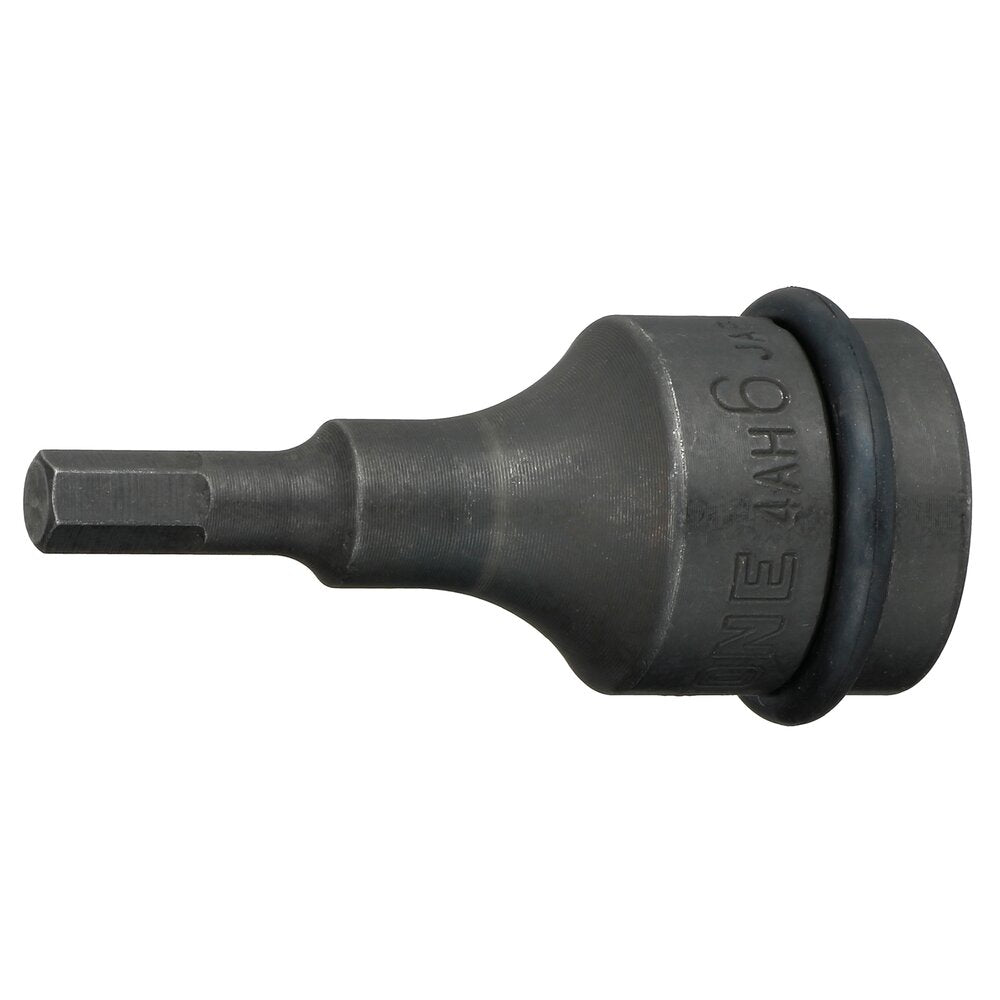

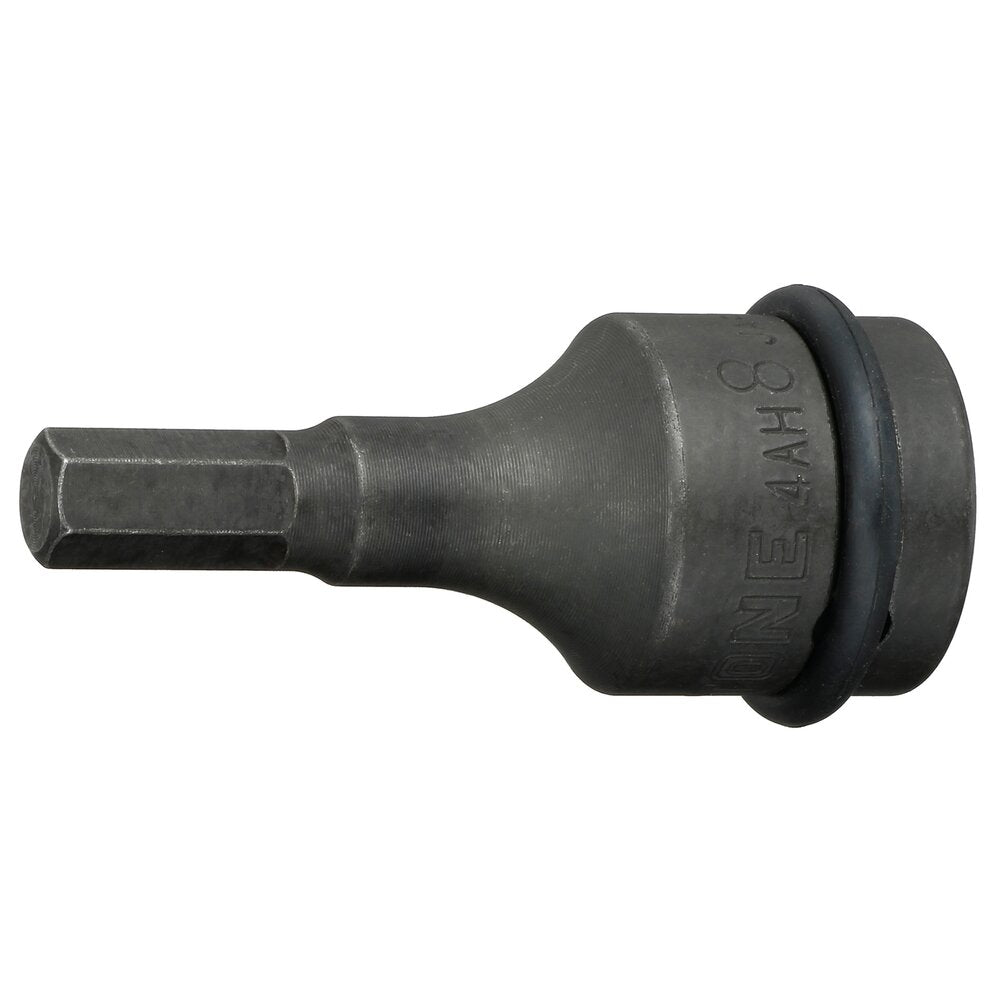

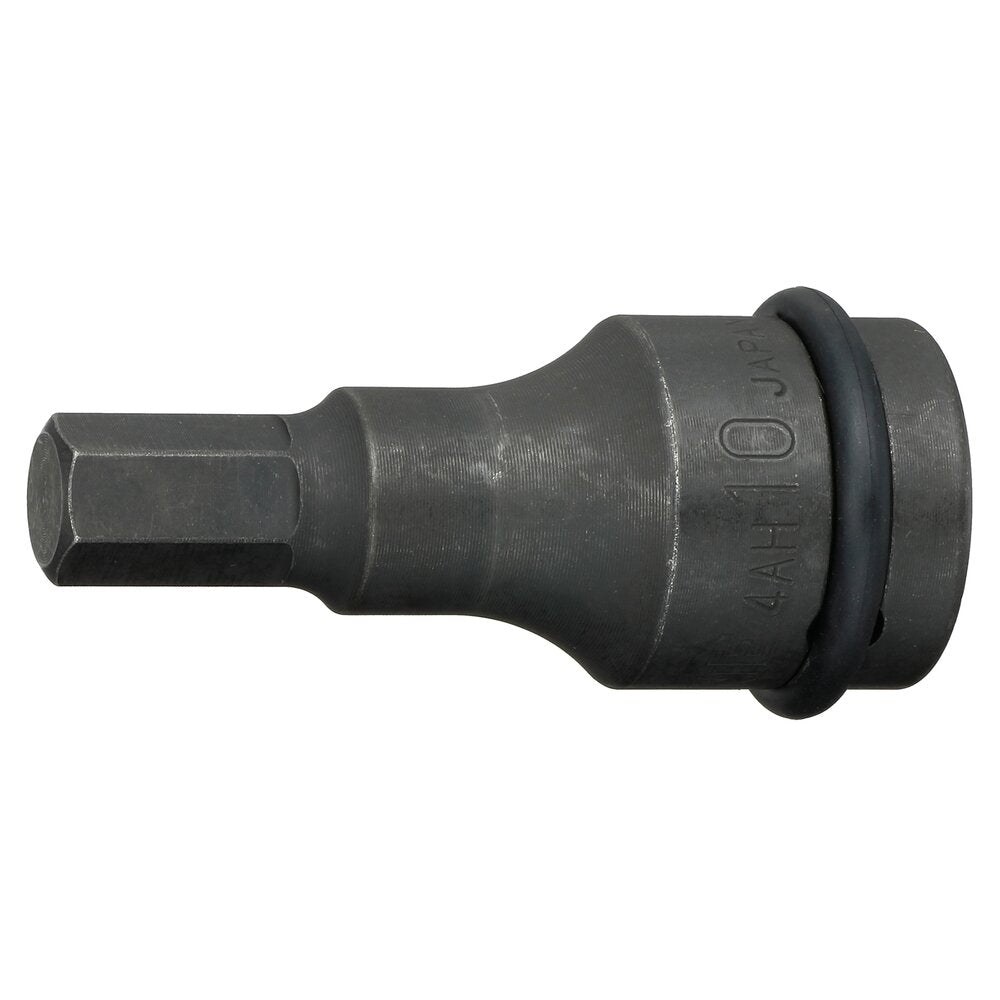

TONE 1/2" Drive Impact Hexagon Socket 4AH Series
Sale price
$16.82
Regular price
$17.70
Lifetime Warranty: hand tools only
Description
A hexagon socket for power tools such as impact wrenches.
Application: For tightening and loosening socket-head cap screws.
Specifications
| Part Number | 4AH-05 to 4AH-22 |
|---|---|
| Drive size | 12.7 mm (1/2") |
| Tip type | Hexagon |
| Size system | Metric |
| Material | Structural steel |
Sizes

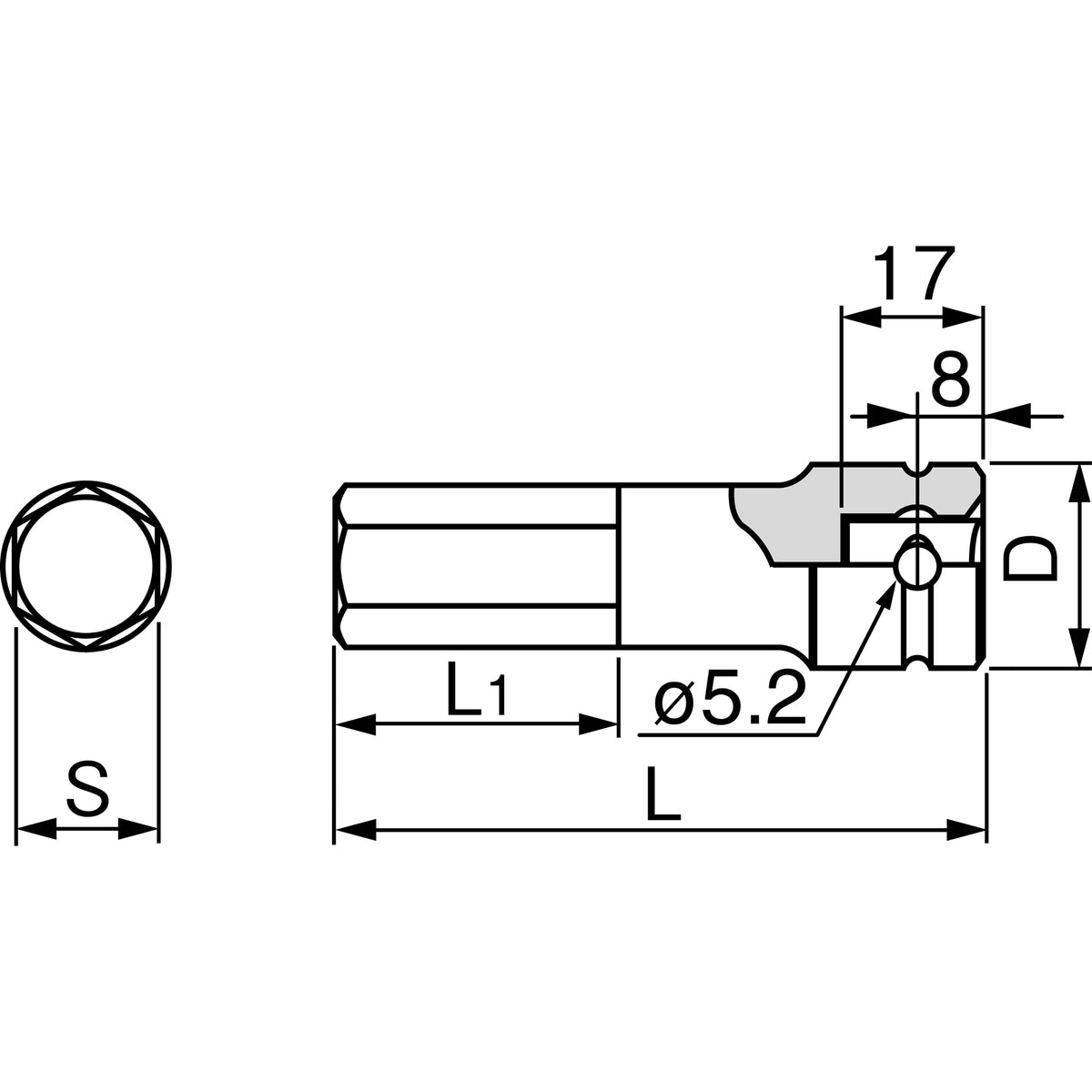

| Part Number | Size | Replacement pin | Replacement O-ring | Weight (g) | W × D × H (mm) |
|---|---|---|---|---|---|
| 4AH-05 | 5 mm | PIN3522S | RP20S | 85 | 25 × 25 × 60 |
| 4AH-06 | 6 mm | PIN3522S | RP20S | 90 | 25 × 25 × 60 |
| 4AH-08 | 8 mm | PIN3522S | RP20S | 90 | 25 × 25 × 60 |
| 4AH-10 | 10 mm | PIN3522S | RP20S | 105 | 25 × 25 × 60 |
| 4AH-12 | 12 mm | PIN3522S | RP20S | 110 | 25 × 25 × 60 |
| 4AH-14 | 14 mm | PIN3522S | RP20S | 120 | 25 × 25 × 60 |
| 4AH-17 | 17 mm | PIN3525S | RINGP22AS | 165 | 28 × 28 × 60 |
| 4AH-19 | 19 mm | PIN3525S | RINGP22AS | 185 | 28 × 28 × 60 |
| 4AH-22 | 22 mm | PIN3525S | RINGP22AS | 225 | 28 × 28 × 60 |
Notes
Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
Warranty: The TONE lifetime warranty applies to hand tools only.
