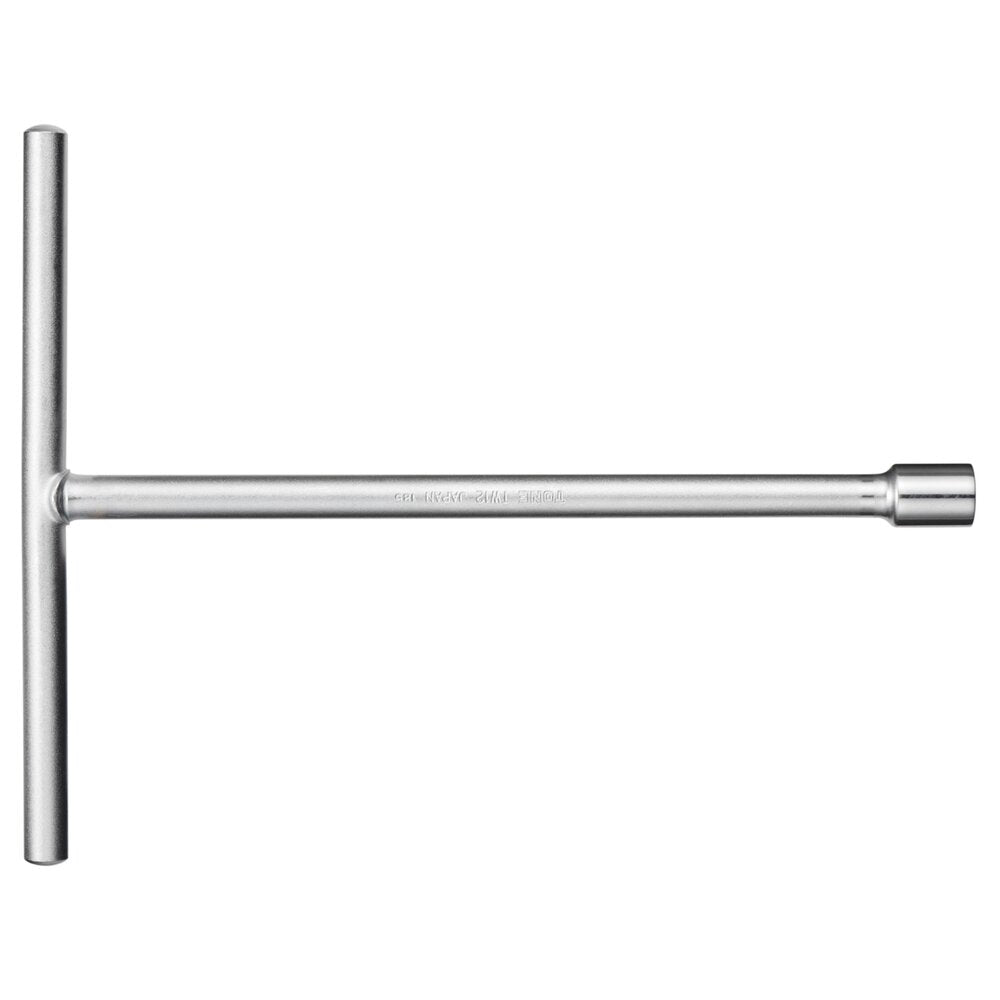

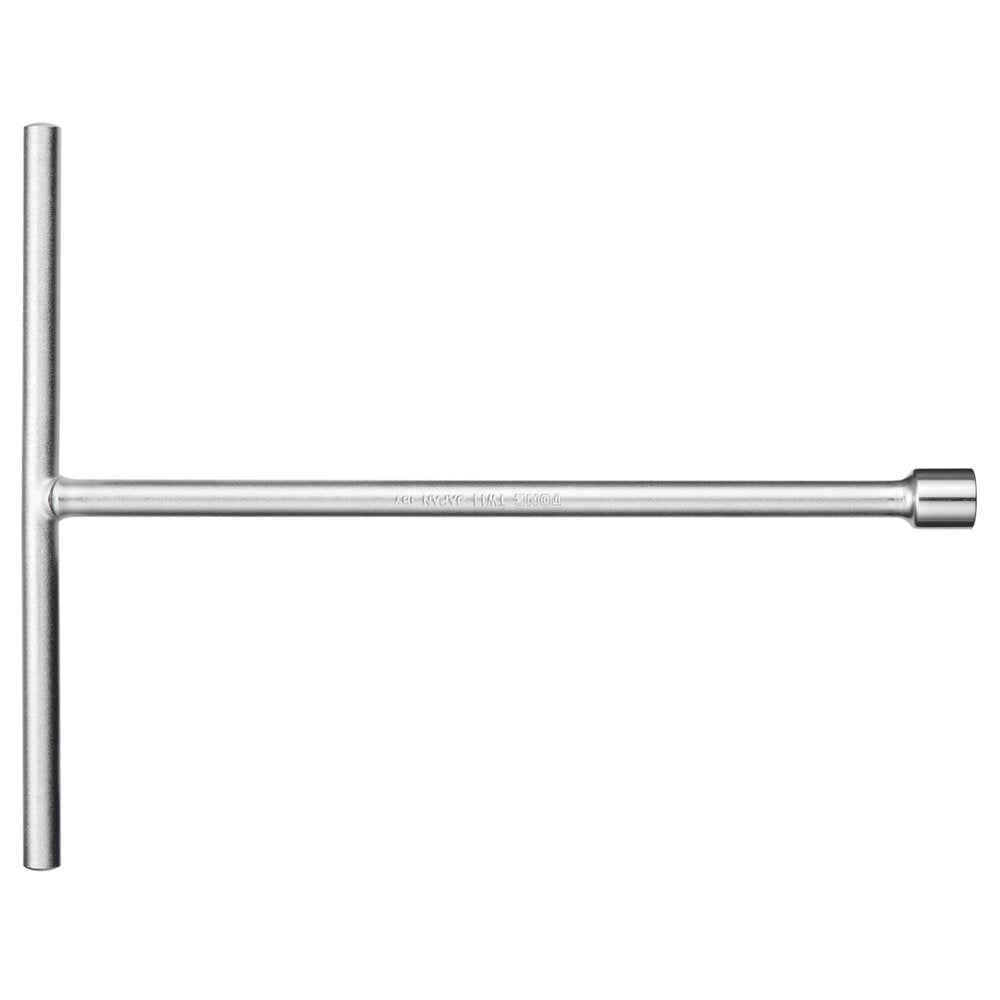

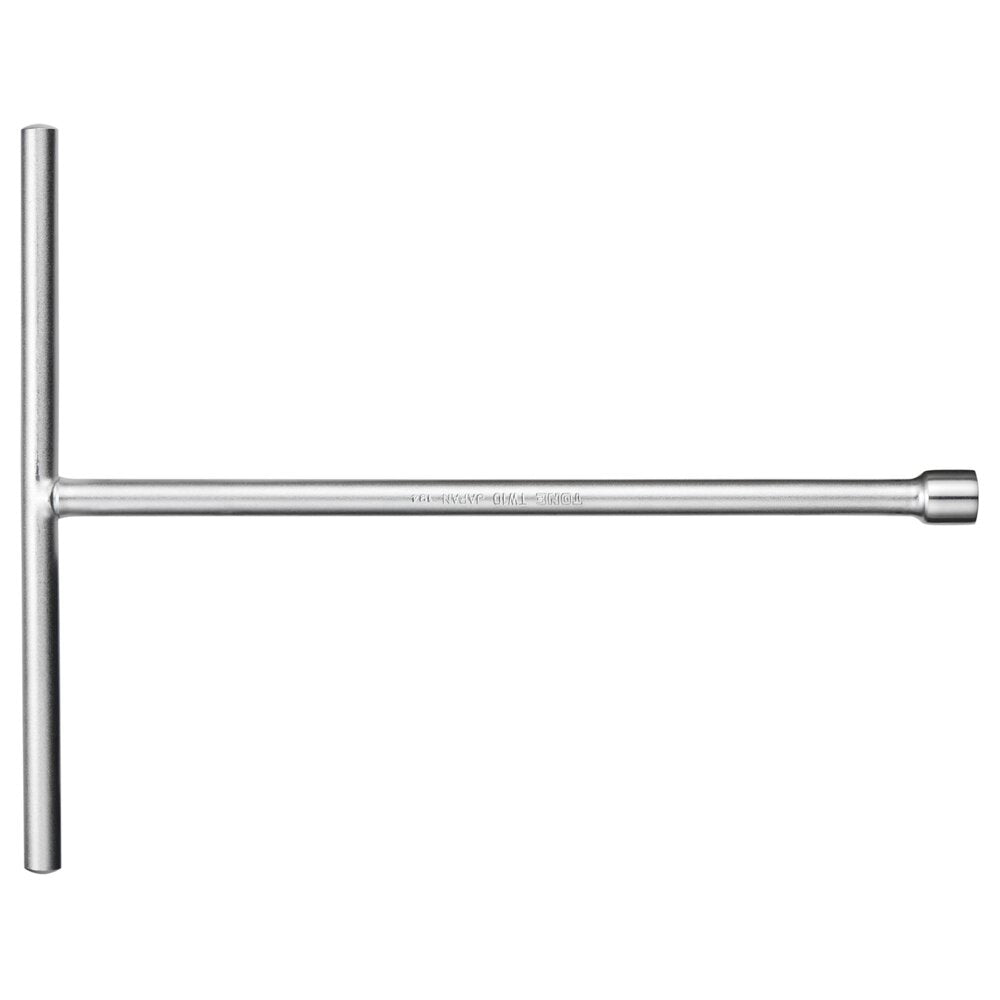

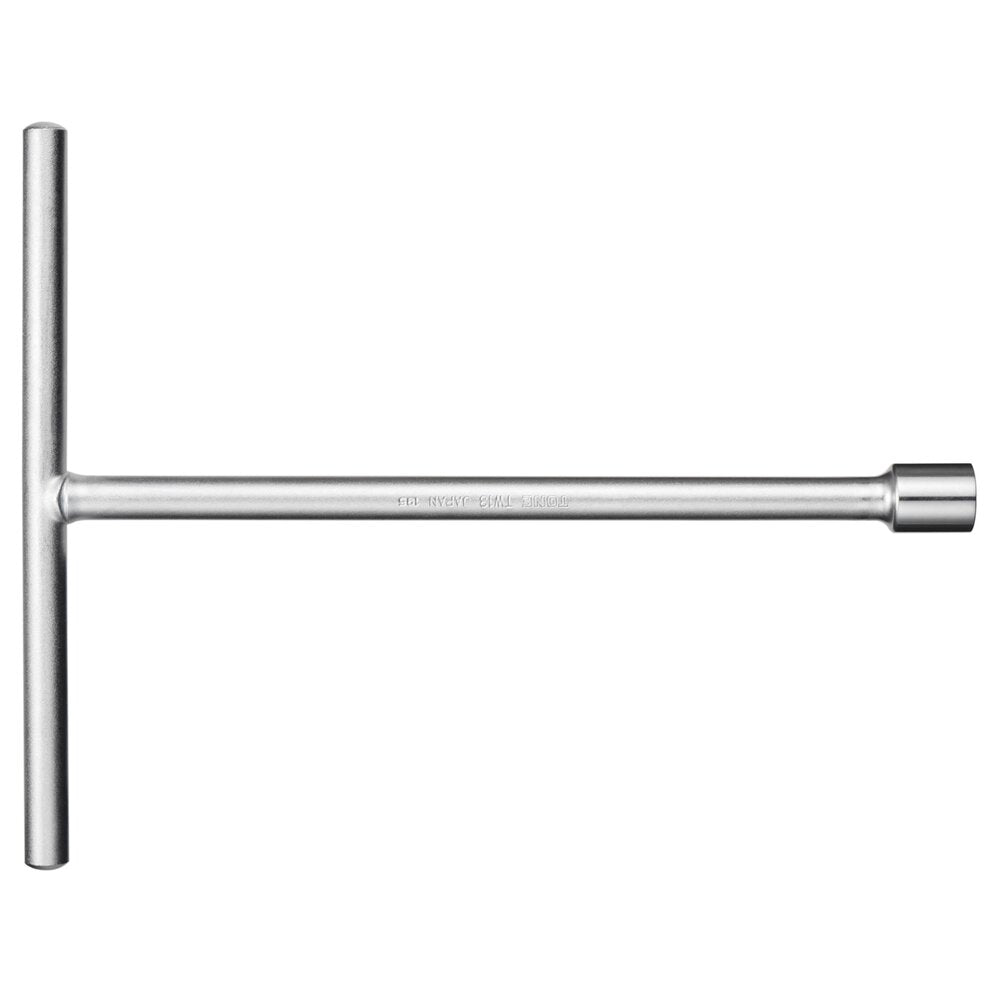

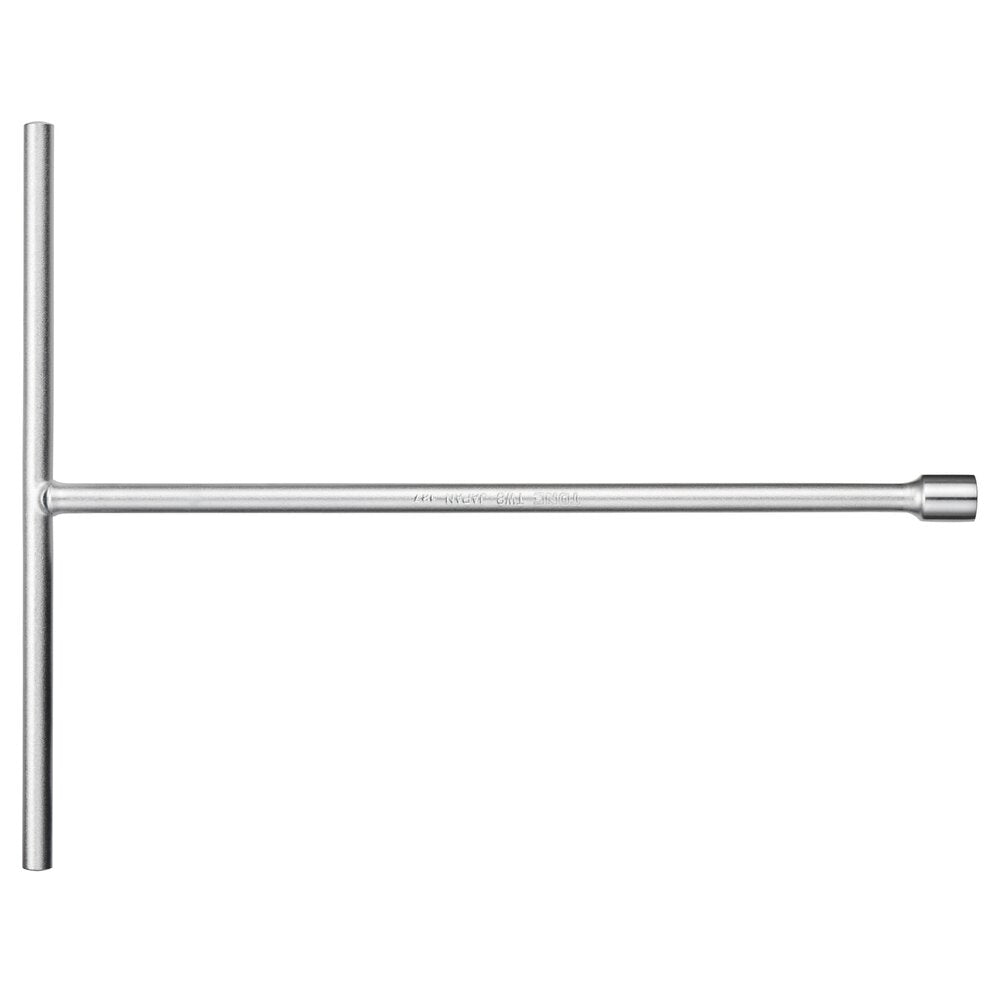

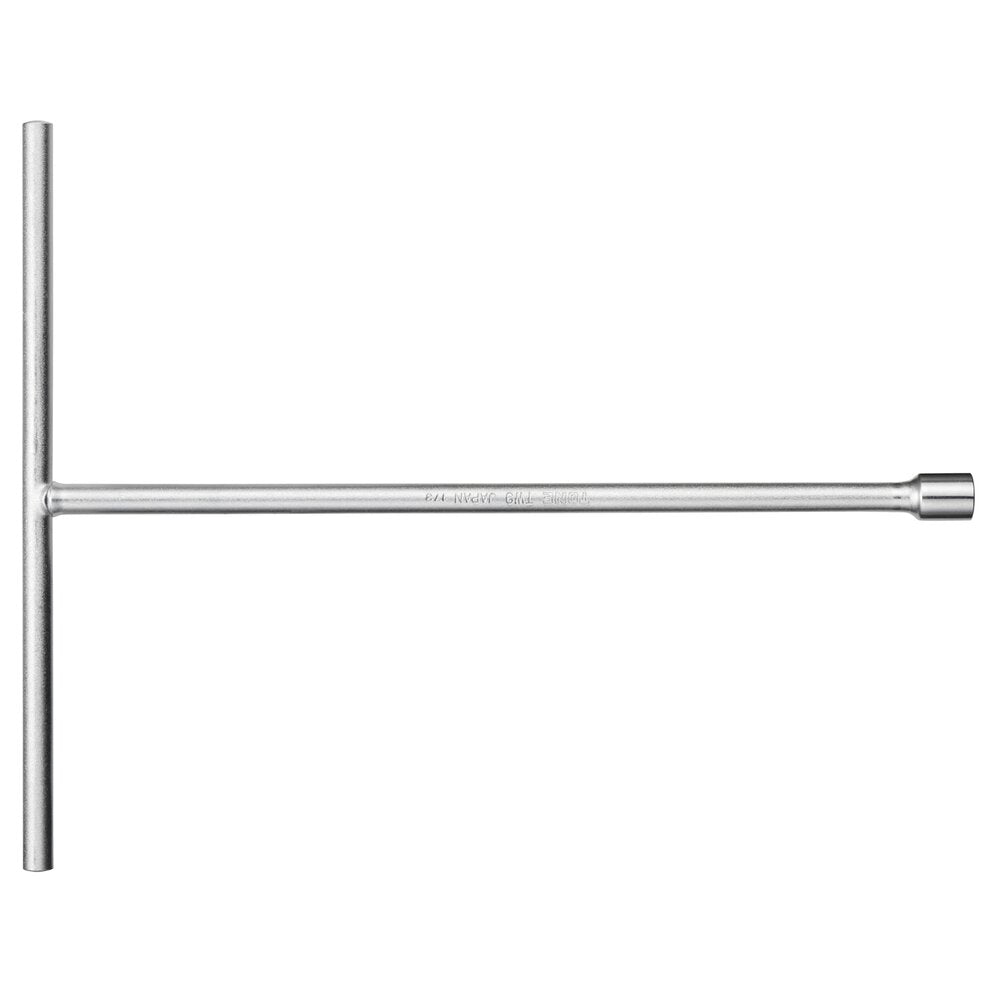

TONE T-Type Wrench (6-Point) TW Series

A T-type wrench with a 6-point socket end.

Application: For tightening and loosening hex bolts and nuts.

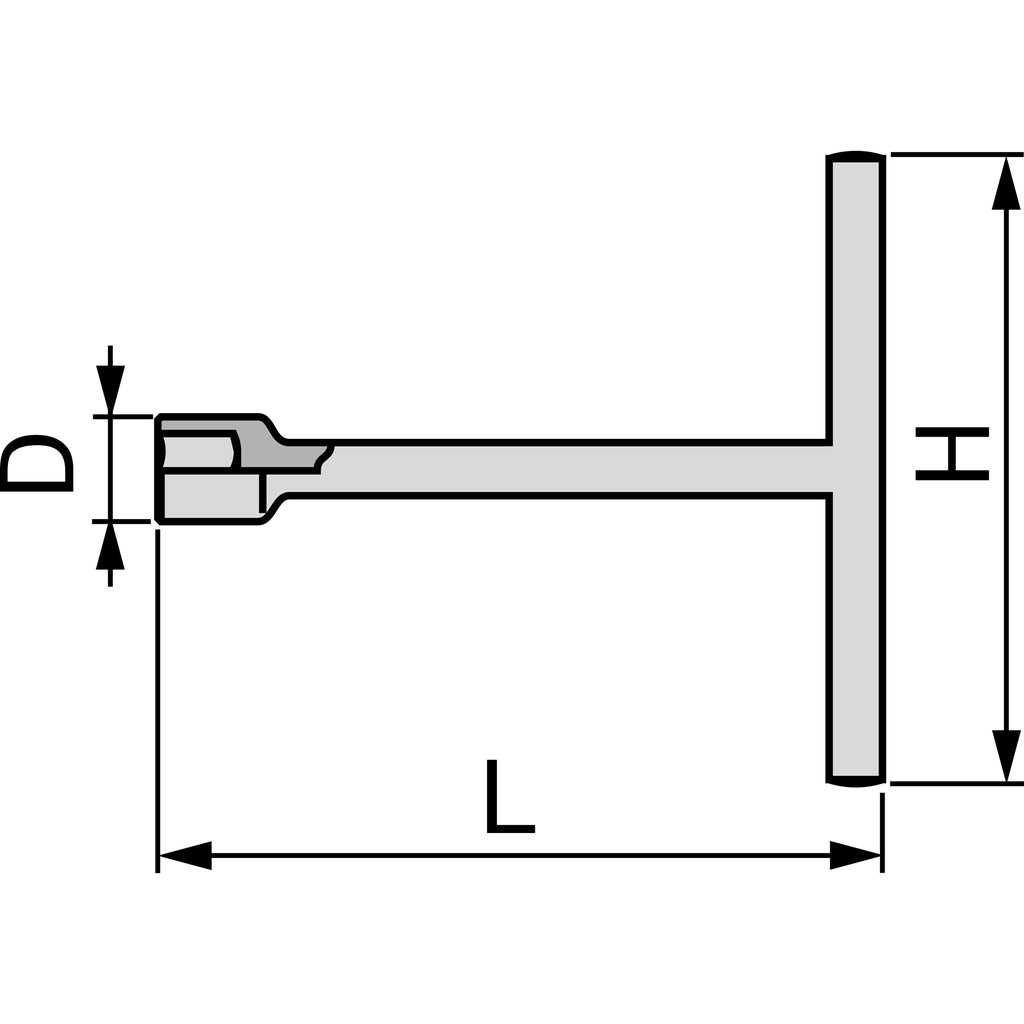

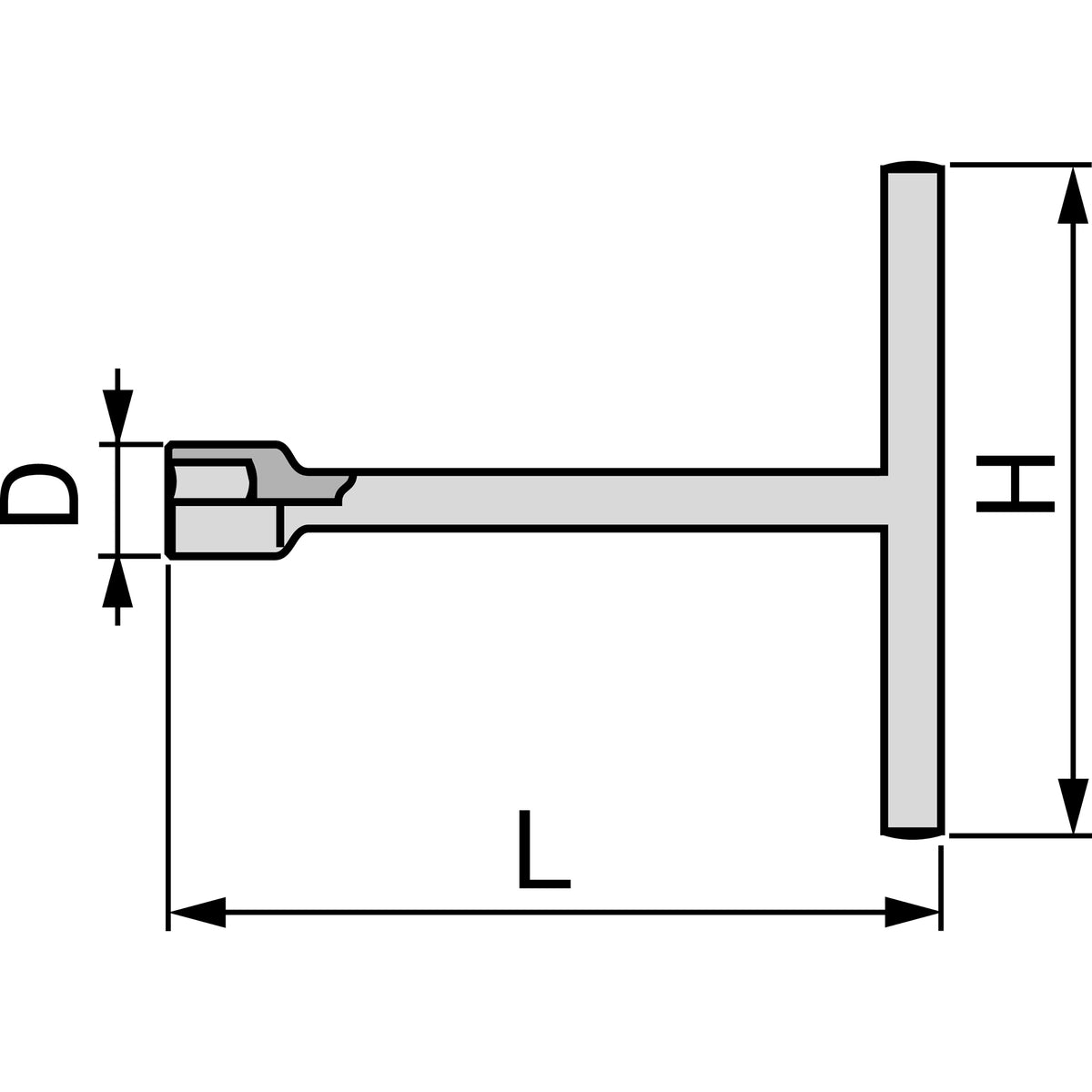

Part Number	Size	Weight (g)	W × D × H (mm)
TW-08	8 mm	180	254 × 45.2 × 13
TW-09	9 mm	180	254 × 45.2 × 13
TW-10	10 mm	280	255 × 45.2 × 15
TW-11	11 mm	280	255 × 36.5 × 16.5
TW-12	12 mm	400	256 × 46.5 × 17.5
TW-13	13 mm	400	256 × 55 × 19
TW-14	14 mm	450	276 × 62 × 20
TW-17	17 mm	530	277 × 49.3 × 24
TW-19	19 mm	700	307 × 49.3 × 26
TW-21	21 mm	710	307 × 66.8 × 29
TW-22	22 mm	920	308 × 49.3 × 30
TW-23	23 mm	930	308 × 66.8 × 32
TW-24	24 mm	980	308 × 49.3 × 33
TW-26	26 mm	980	308 × 66.8 × 35

Insert the socket until the nut is fully covered. Do not add a pipe or other extension to the handle.

Warranty: The TONE lifetime warranty applies to hand tools only.
