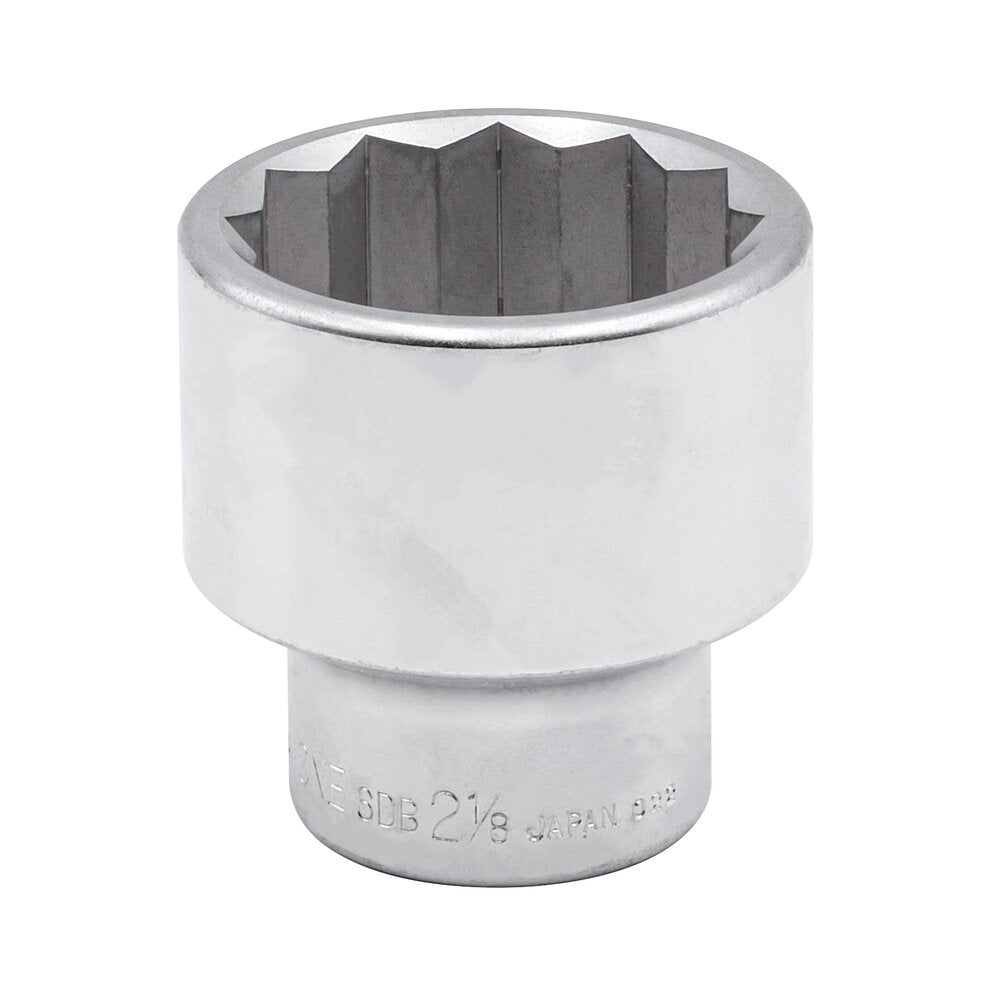

TONE Socket (12-Point, 3/4" Drive, Inch Sizes) 6DB Series
Sale price
$20.33
Regular price
$21.40
Lifetime Warranty: hand tools only
Description
A standard 12-point profile that resists rounding off fasteners even under torque.
Application: For tightening and loosening bolts and nuts.
Specifications
| Part Number | 6DB-24 to 6DB-72 |
|---|---|
| Drive size | 19.0 mm (3/4") |
| Tip type | 12-point |
| Size system | Inch |
| Material | Structural steel |
Sizes

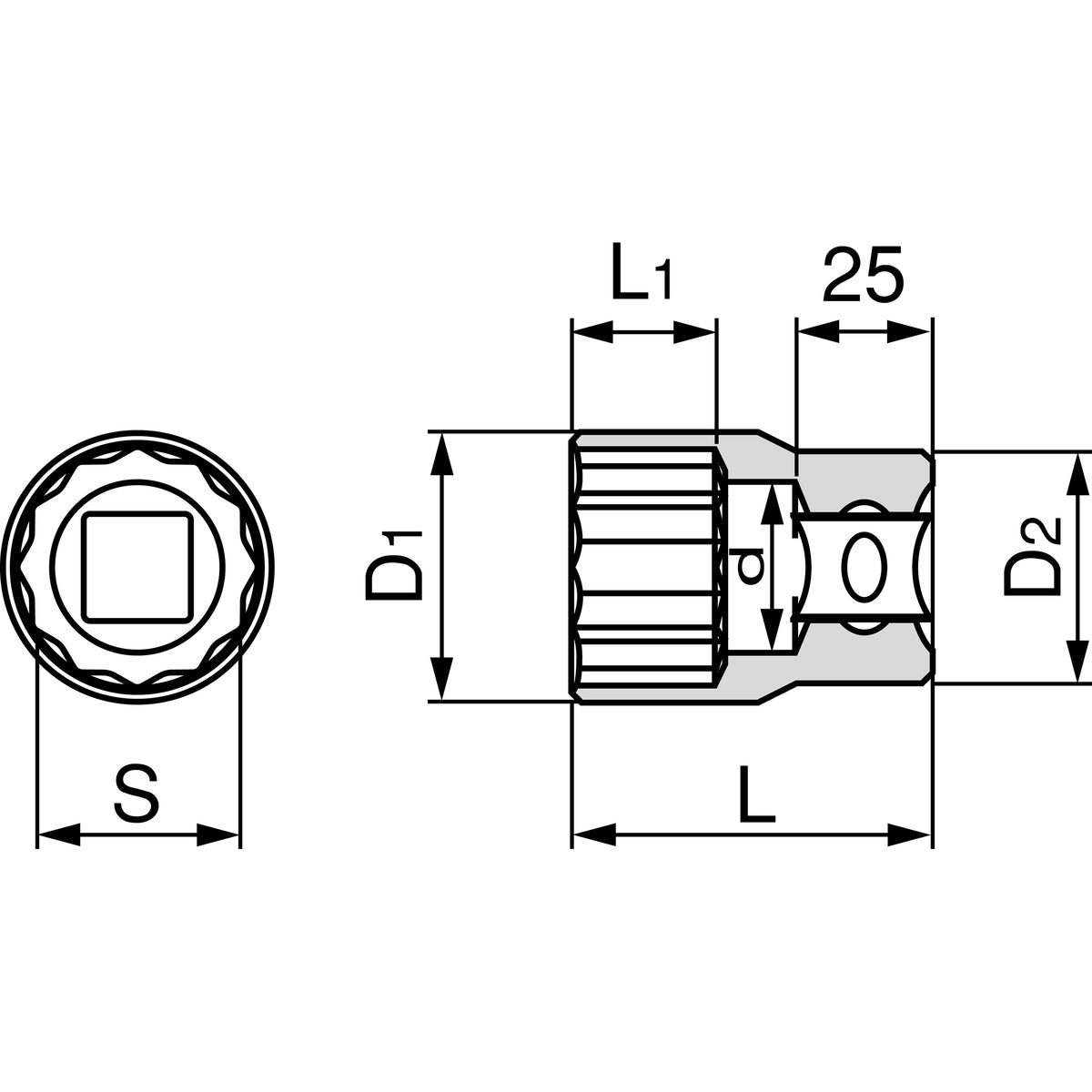

| Part Number | Size | Weight (g) | W × D × H (mm) |
|---|---|---|---|
| 6DB-24 | 3/4" | 170 | 34 × 34 × 50 |
| 6DB-26 | 13/16" | 180 | 34 × 34 × 50 |
| 6DB-28 | 7/8" | 200 | 34 × 34 × 52 |
| 6DB-30 | 15/16" | 200 | 34 × 34 × 52 |
| 6DB-32 | 1" | 200 | 36 × 36 × 52 |
| 6DB-34 | 1-1/16" | 245 | 38 × 38 × 53 |
| 6DB-36 | 1-1/8" | 270 | 40 × 40 × 56 |
| 6DB-38 | 1-3/16" | 310 | 42 × 42 × 56 |
| 6DB-40 | 1-1/4" | 345 | 44 × 44 × 56 |
| 6DB-42 | 1-5/16" | 350 | 46 × 46 × 56 |
| 6DB-44 | 1-3/8" | 400 | 48 × 48 × 58 |
| 6DB-46 | 1-7/16" | 400 | 50 × 50 × 58 |
| 6DB-48 | 1-1/2" | 465 | 52.5 × 52.5 × 60 |
| 6DB-50 | 1-9/16" | 470 | 55.5 × 55.5 × 60 |
| 6DB-52 | 1-5/8" | 480 | 55.5 × 55.5 × 63 |
| 6DB-54 | 1-11/16" | 500 | 57 × 57 × 63 |
| 6DB-56 | 1-3/4" | 550 | 60 × 60 × 65 |
| 6DB-58 | 1-13/16" | 580 | 62 × 62 × 65 |
| 6DB-60 | 1-7/8" | 650 | 65 × 65 × 67 |
| 6DB-64 | 2" | 730 | 68 × 68 × 70 |
| 6DB-68 | 2-1/8" | 925 | 74 × 74 × 76 |
| 6DB-70 | 2-3/16" | 940 | 76 × 76 × 78 |
| 6DB-72 | 2-1/4" | 1140 | 80 × 80 × 80 |
Notes
Do not use with power tools such as impact wrenches.
Warranty: The TONE lifetime warranty applies to hand tools only.
