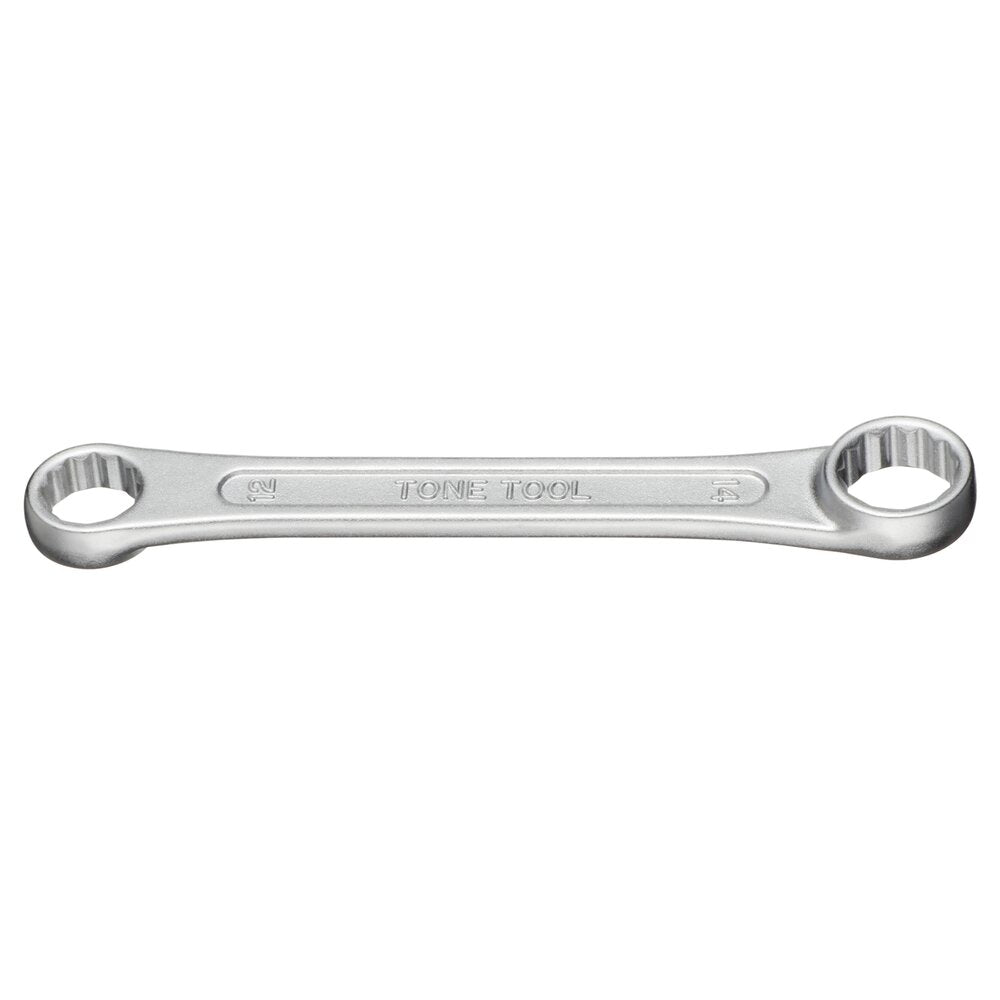

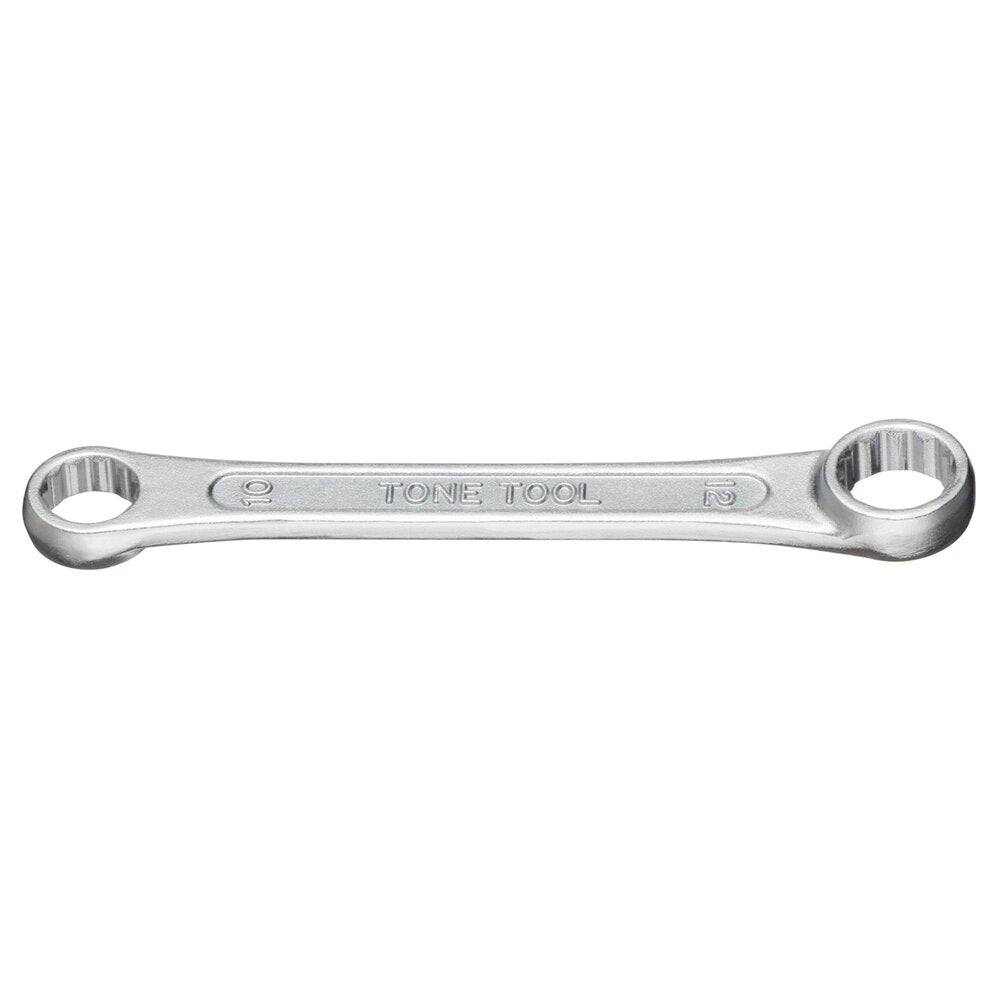

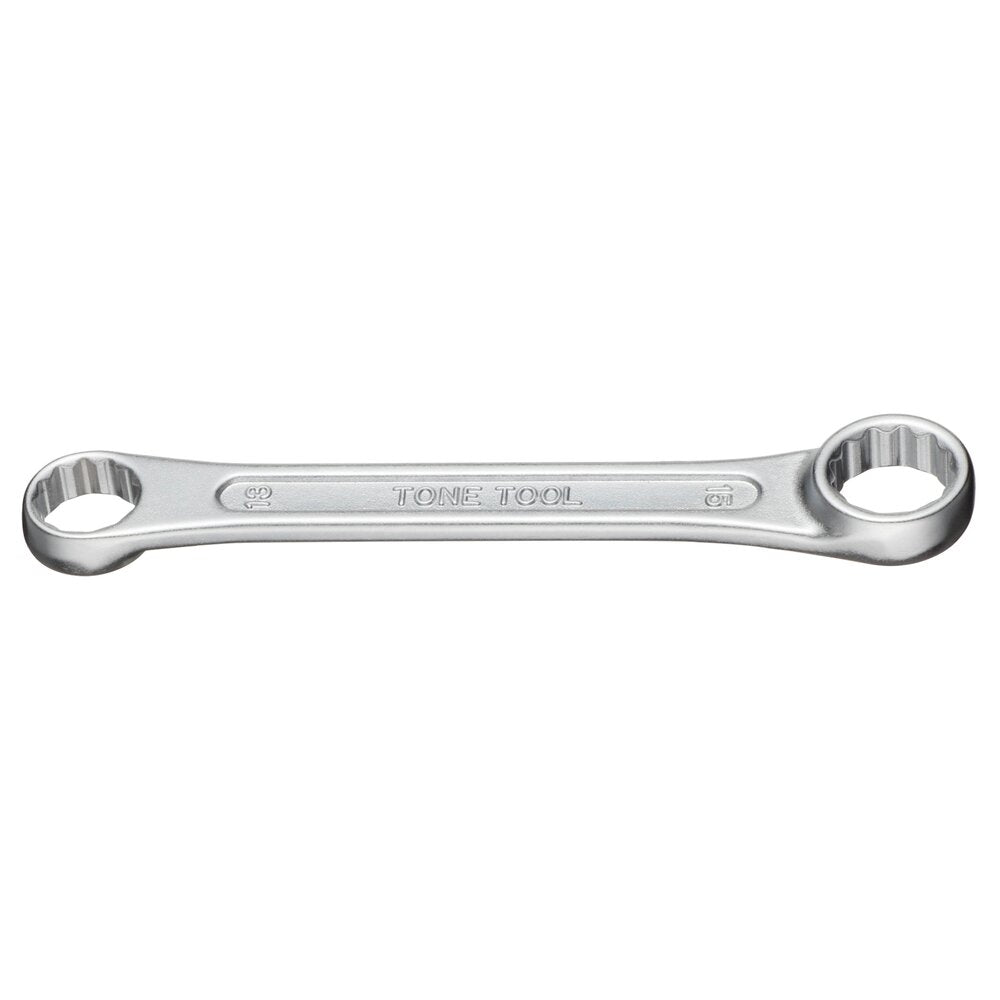

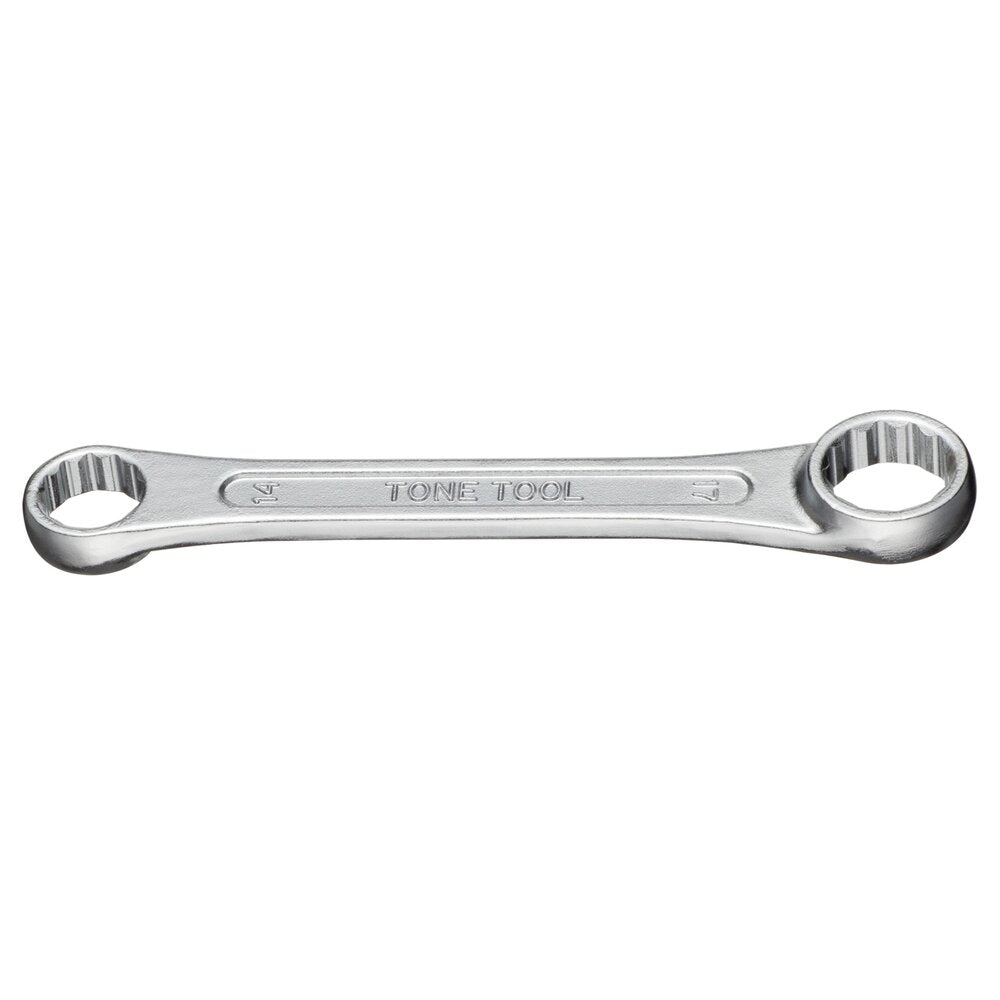

TONE Ring Wrench, Short Type M03 Series

$14.44 $15.20

Size 8 × 10 mm 10 × 12 mm 11 × 13 mm 12 × 14 mm 13 × 15 mm 14 × 17 mm

Lifetime Warranty Included

Ideal for tight spots with limited height or limited working space.

Application: For tightening and loosening hex bolts and nuts.

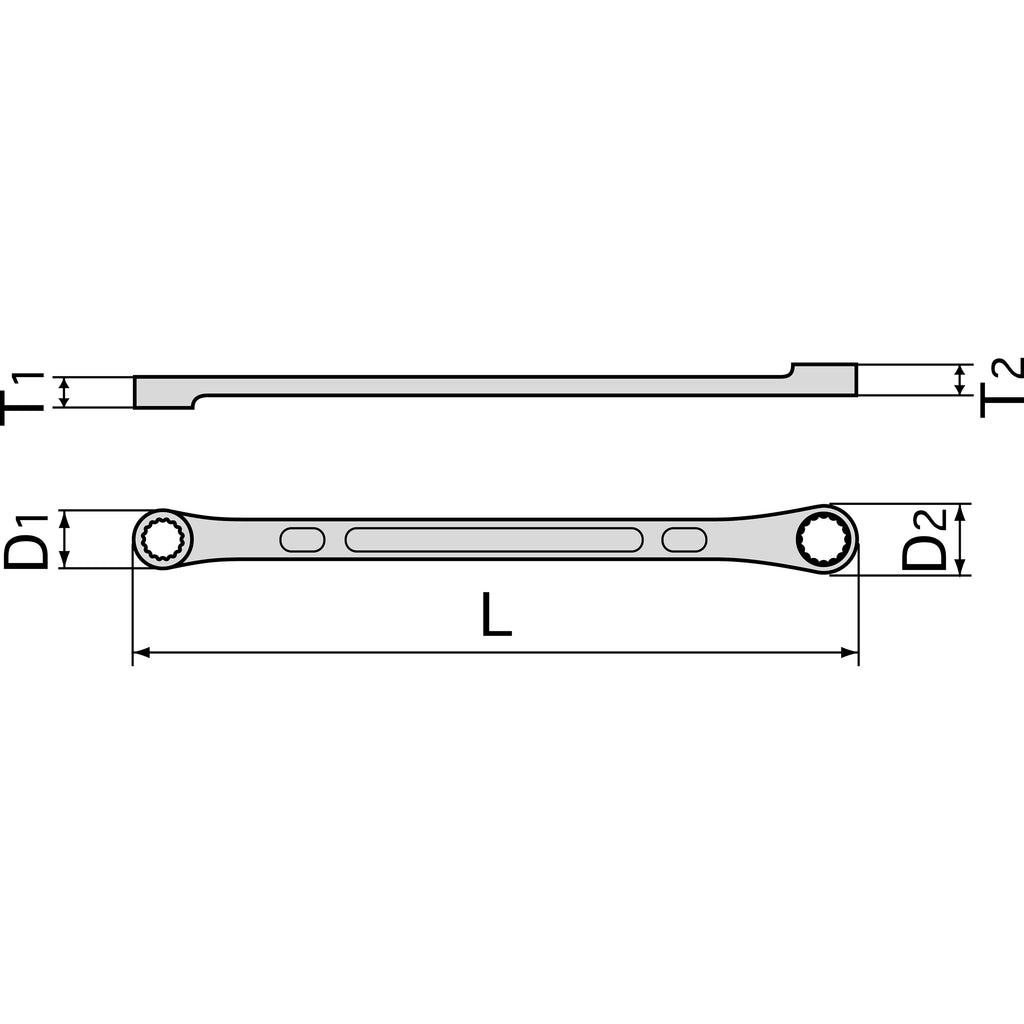

Part Number	Size	Weight (g)	W × D × H (mm)
M03-0810	8 × 10 mm	25	108 × 16 × 6.5
M03-1012	10 × 12 mm	40	115 × 18.5 × 7.5
M03-1113	11 × 13 mm	40	115 × 19 × 8
M03-1214	12 × 14 mm	60	130 × 21 × 8.5
M03-1315	13 × 15 mm	80	135 × 23 × 9
M03-1417	14 × 17 mm	80	145 × 22.5 × 9.5

Use the size that matches the bolt or nut. Do not add a pipe or other extension to the handle. Do not strike with a hammer or apply impact.
