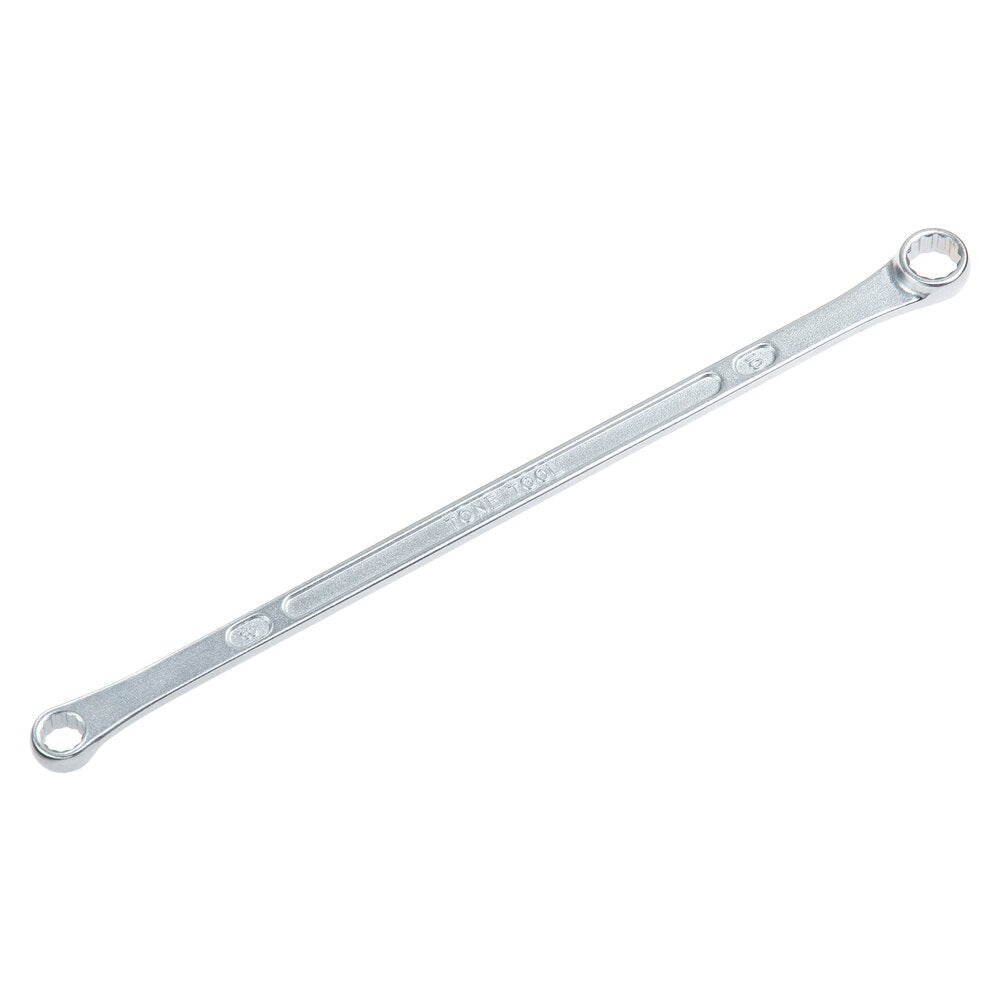

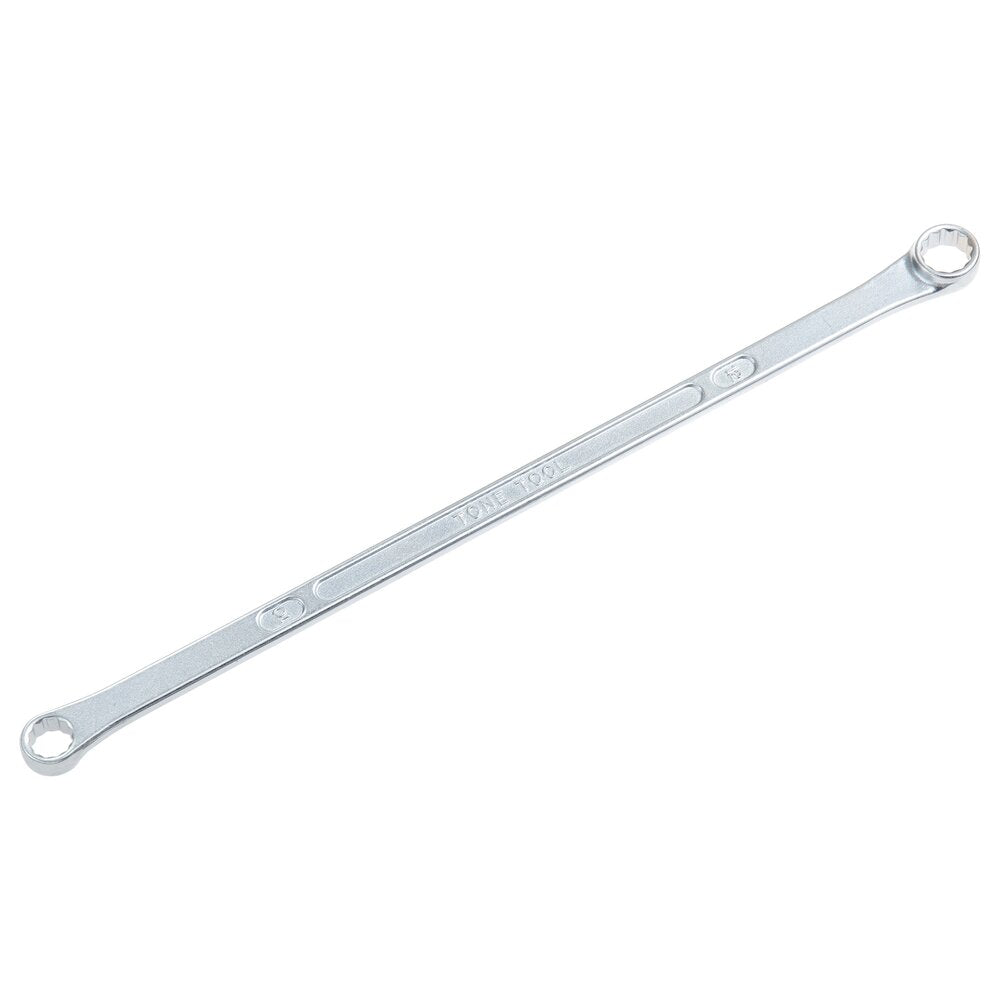

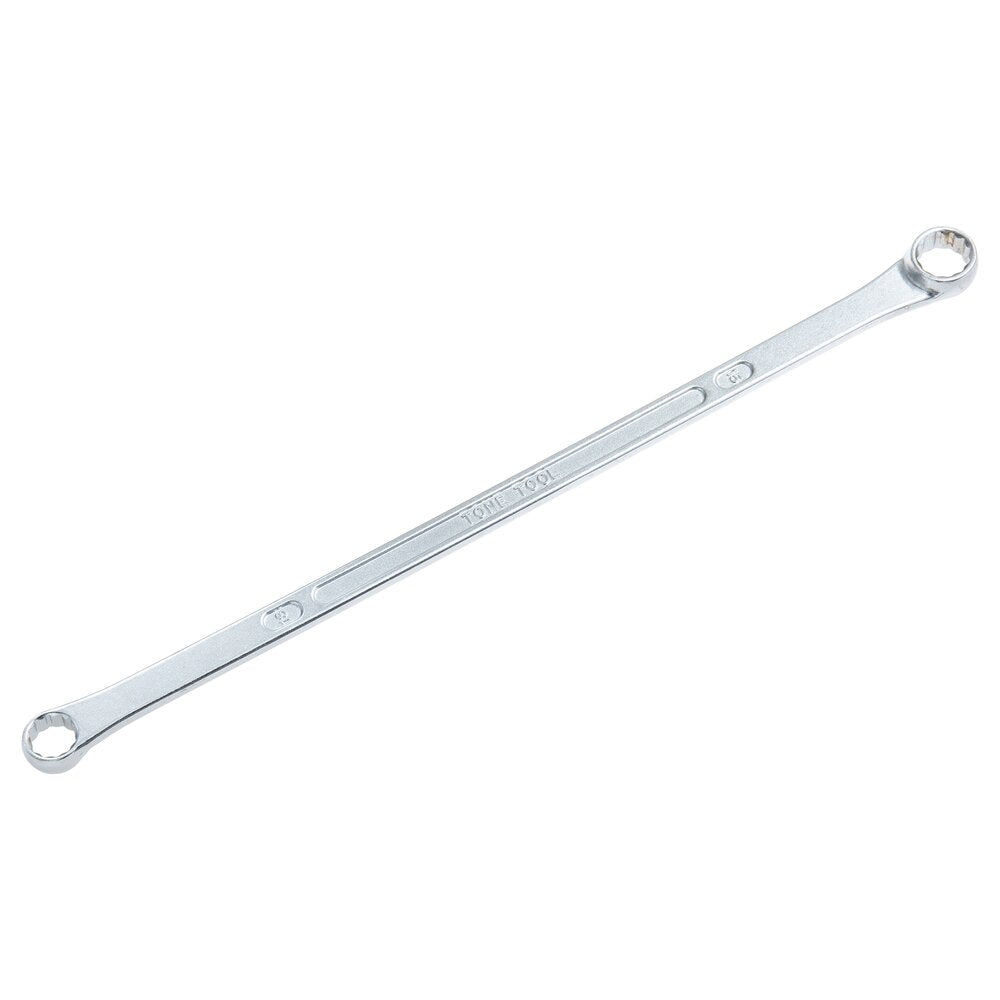

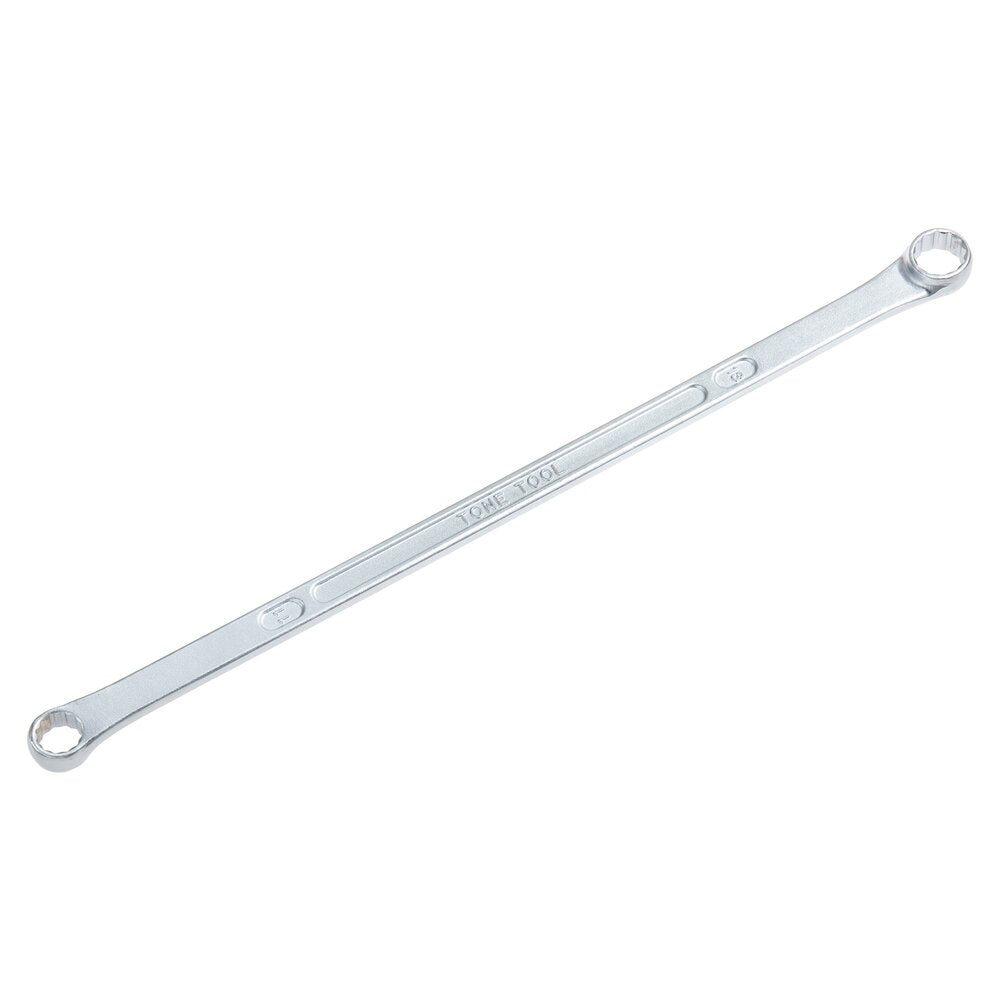

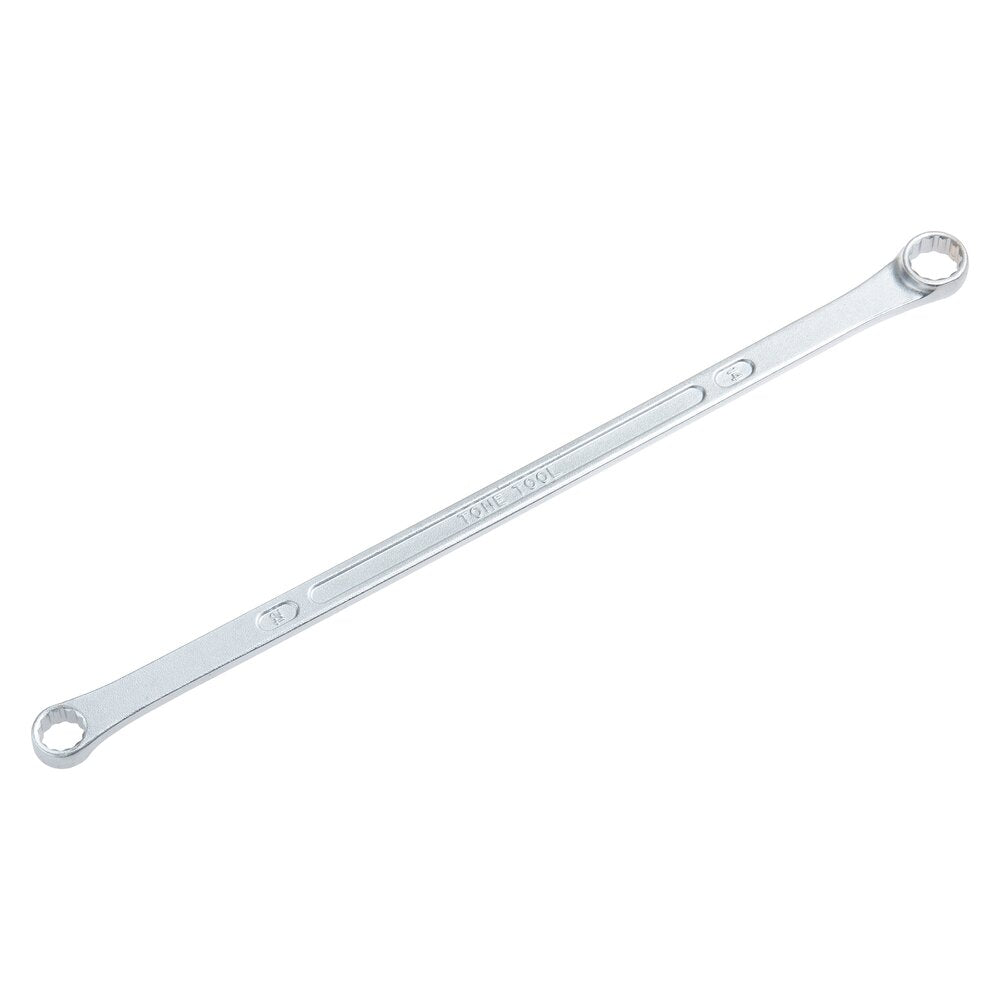

TONE Ring Wrench, Long Type M05 Series

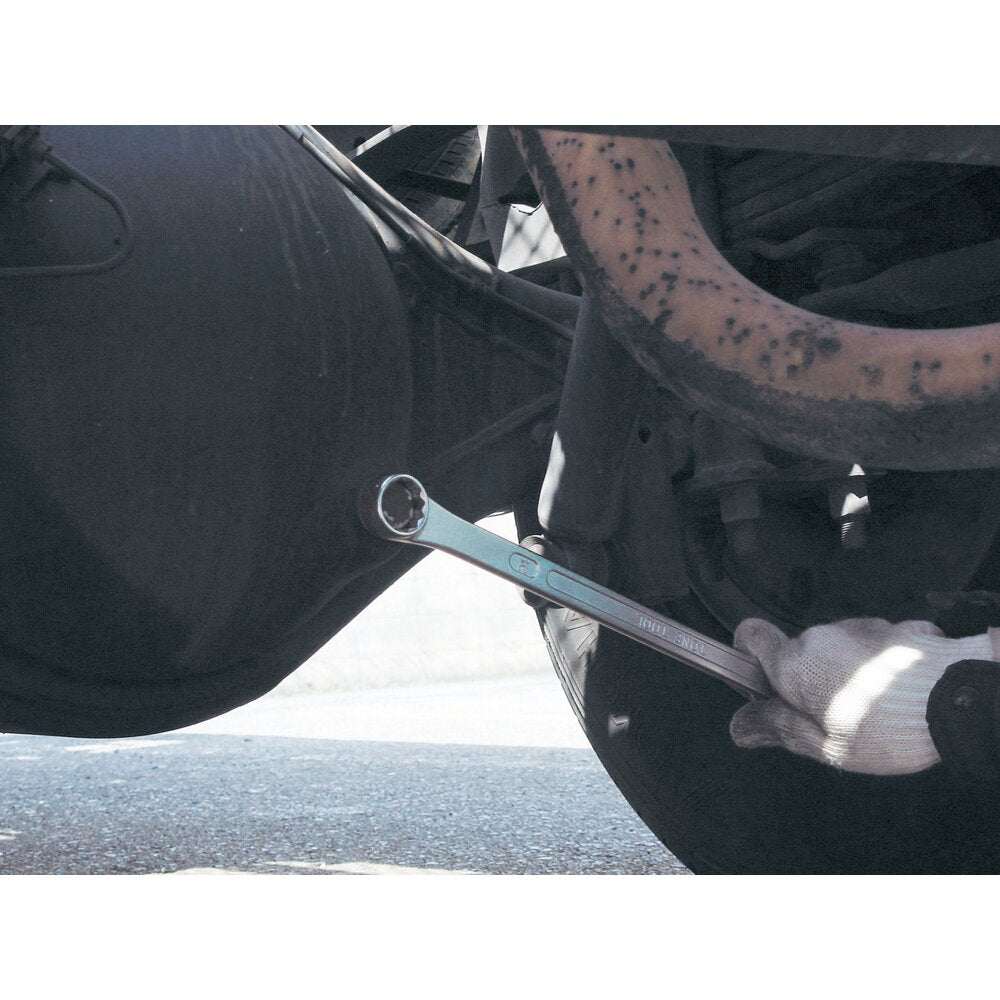

Ideal for work in tight spots with limited height and in deep recesses. The long overall length lets you tighten and loosen with little effort.

Application: For tightening and loosening hex bolts and nuts.

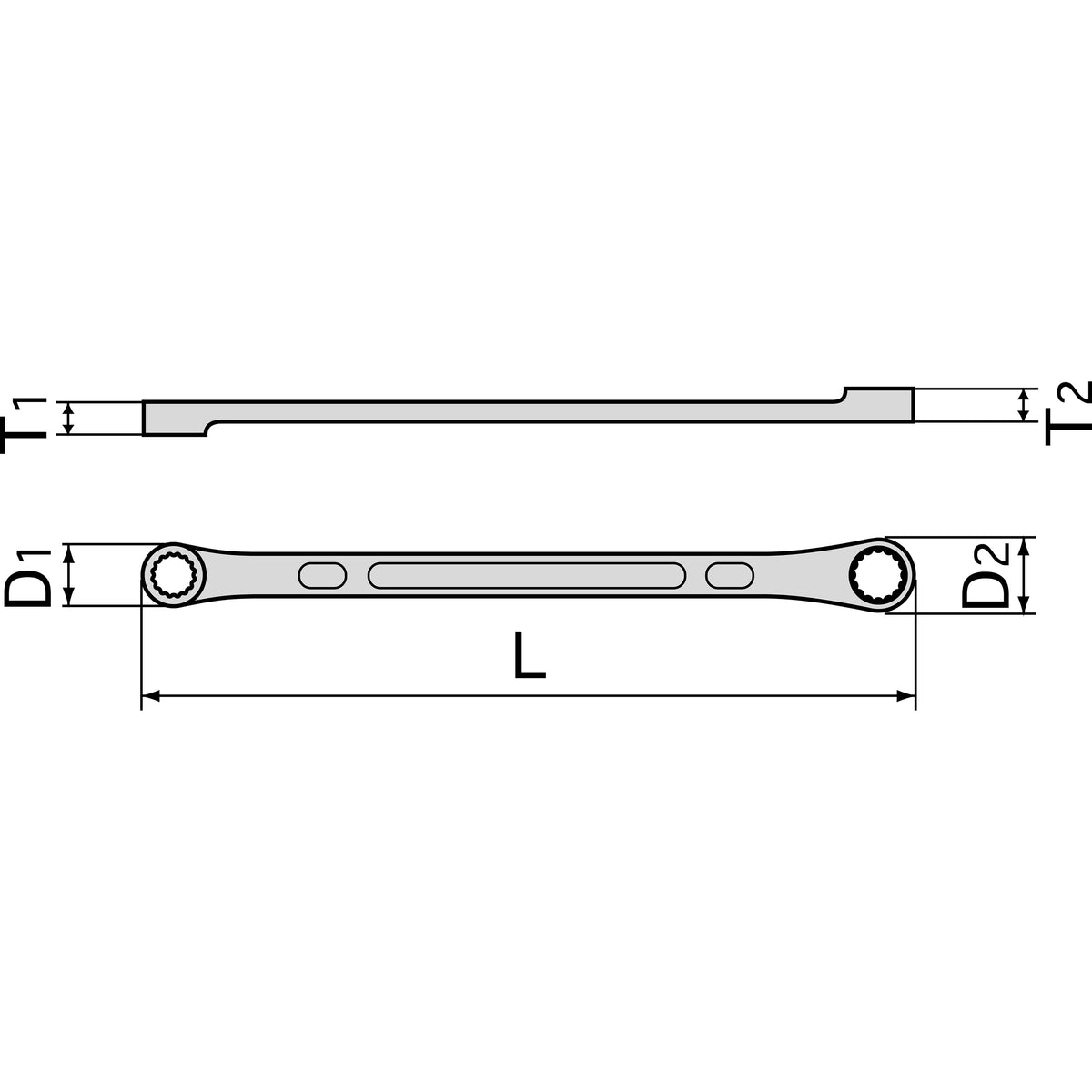

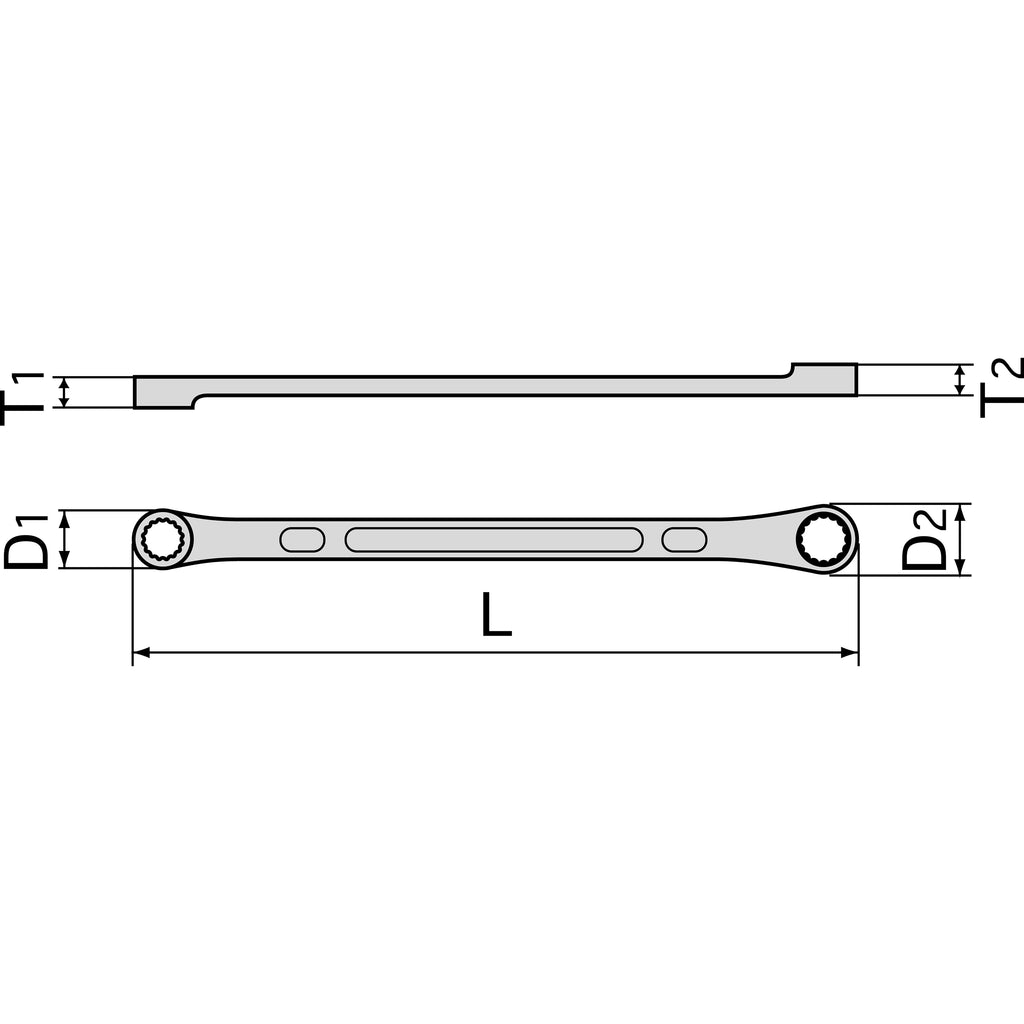

Part Number	Size	Weight (g)	W × D × H (mm)
M05-0810	8 × 10 mm	60	235 × 16 × 8
M05-1012	10 × 12 mm	110	295 × 18.5 × 9
M05-1113	11 × 13 mm	130	310 × 19 × 9.5
M05-1214	12 × 14 mm	170	330 × 21 × 10
M05-1315	13 × 15 mm	180	350 × 23 × 11
M05-1417	14 × 17 mm	200	370 × 25.5 × 12
M05-1618	16 × 18 mm	220	390 × 27 × 13
M05-1719	17 × 19 mm	340	405 × 28 × 13.5
M05-1921	19 × 21 mm	520	420 × 31 × 15
M05-2224	22 × 24 mm	570	435 × 35 × 16
M05-2730	27 × 30 mm	960	500 × 43 × 22
M05-3236	32 × 36 mm	1420	550 × 53 × 24

Use the size that matches the bolt or nut. Do not add a pipe or other extension to the handle. Do not strike with a hammer or apply impact.

Warranty: The TONE lifetime warranty applies to hand tools only.
