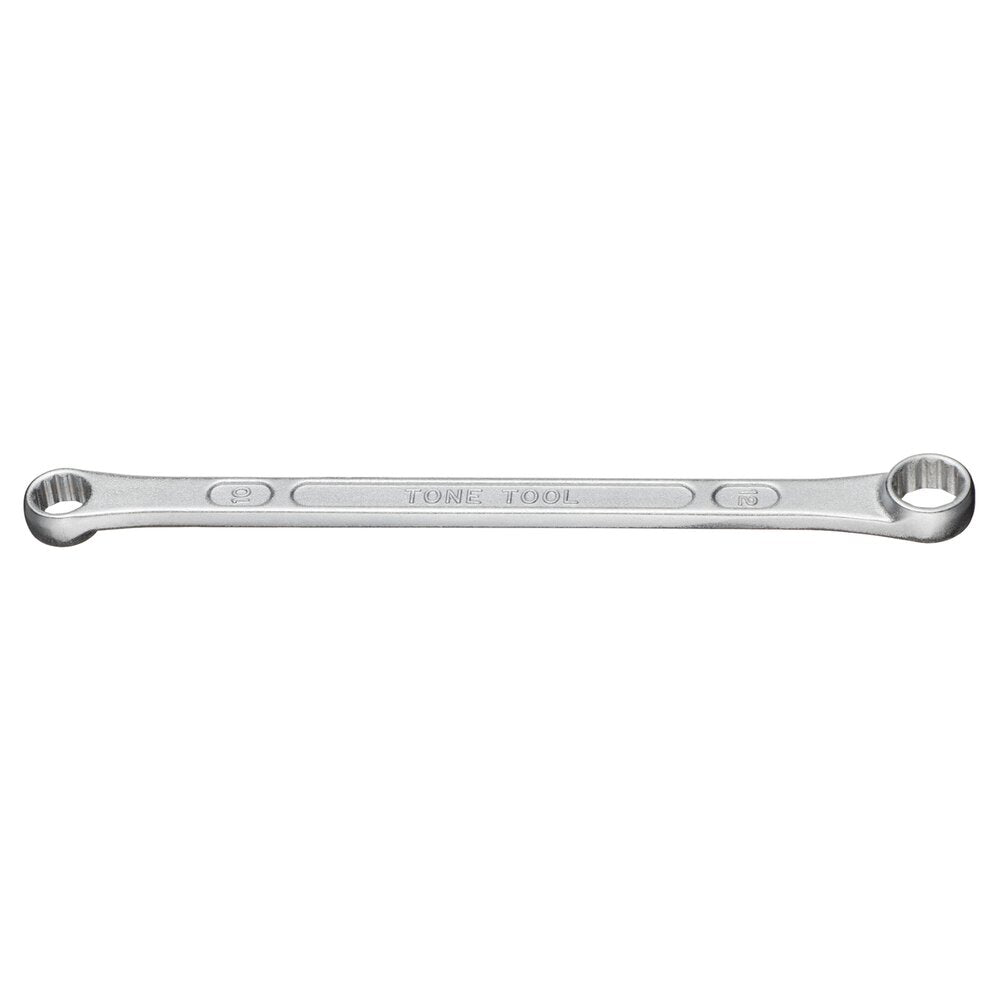

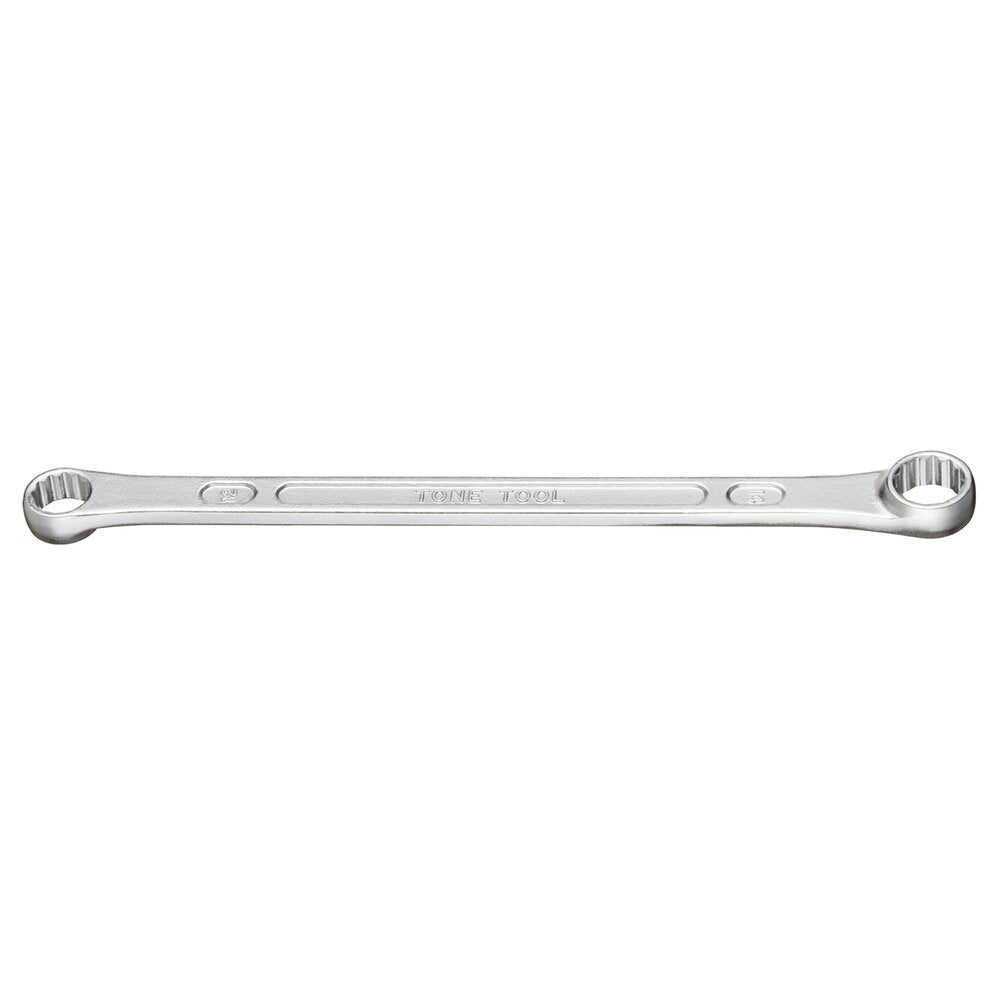

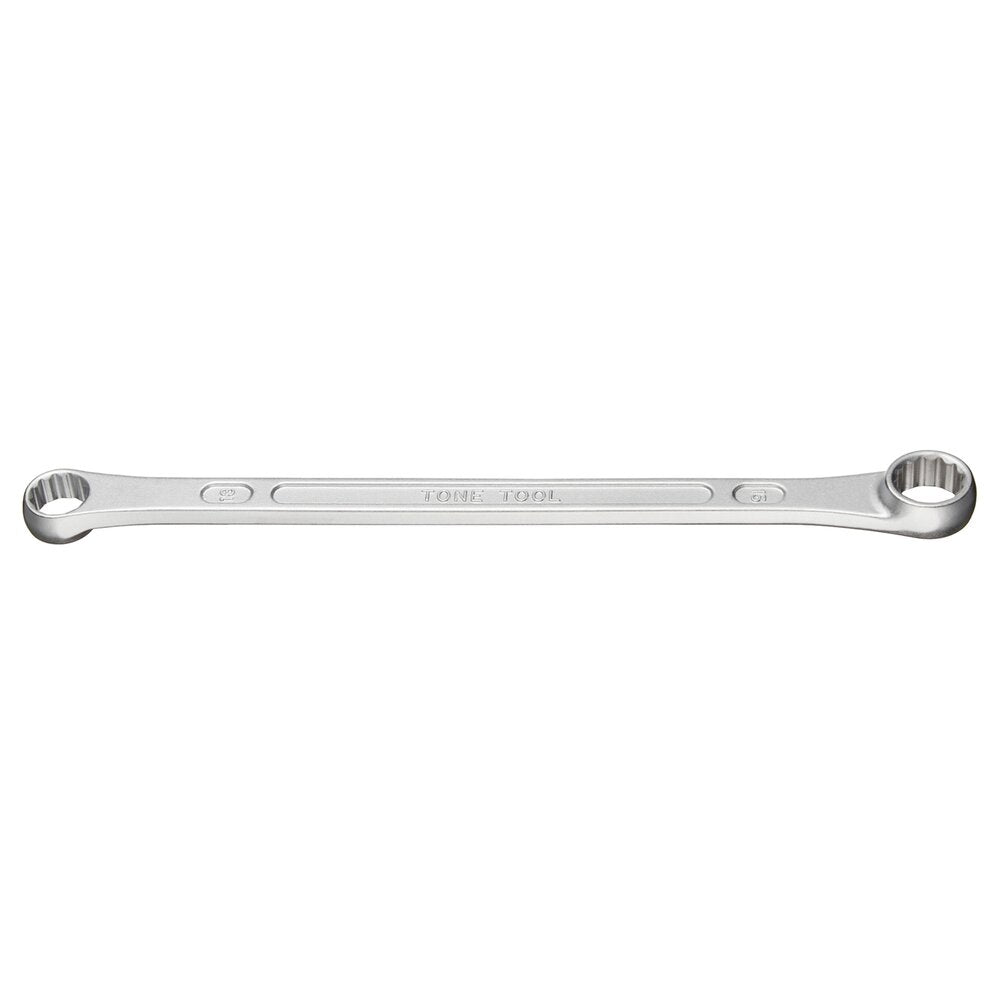

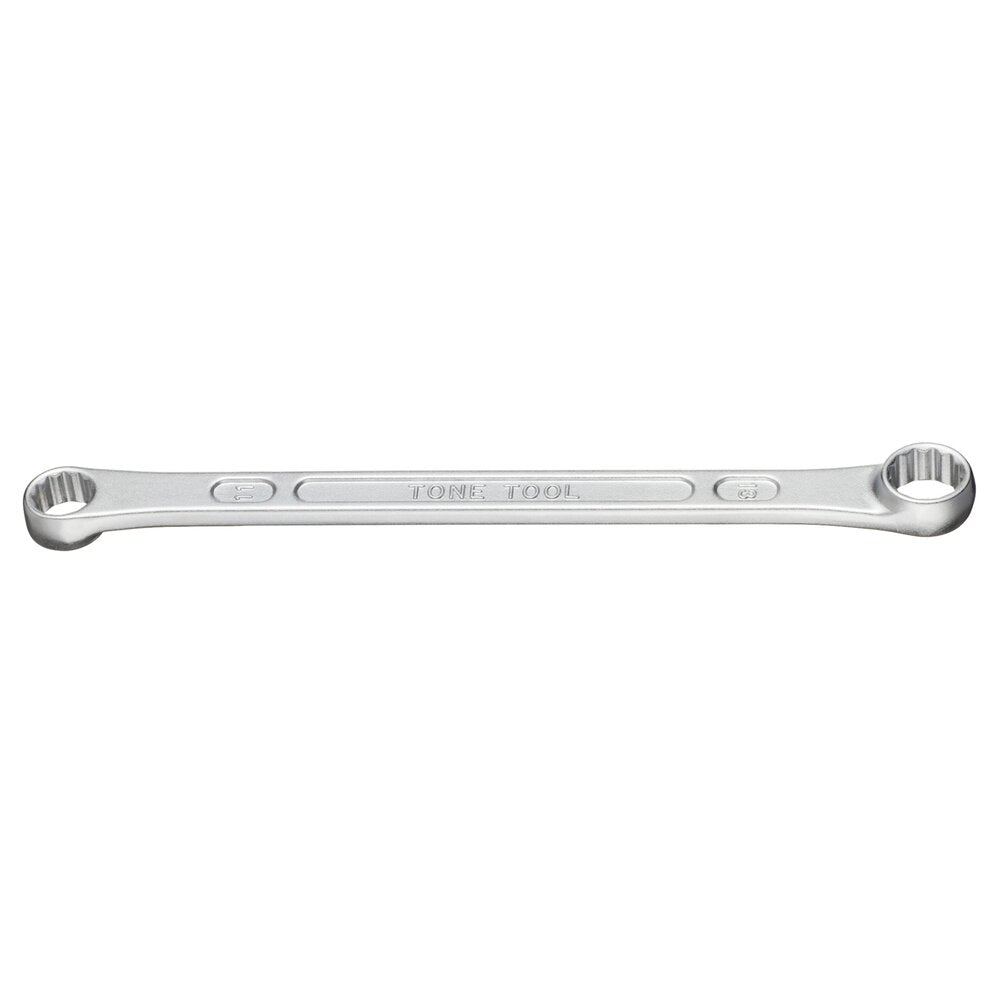

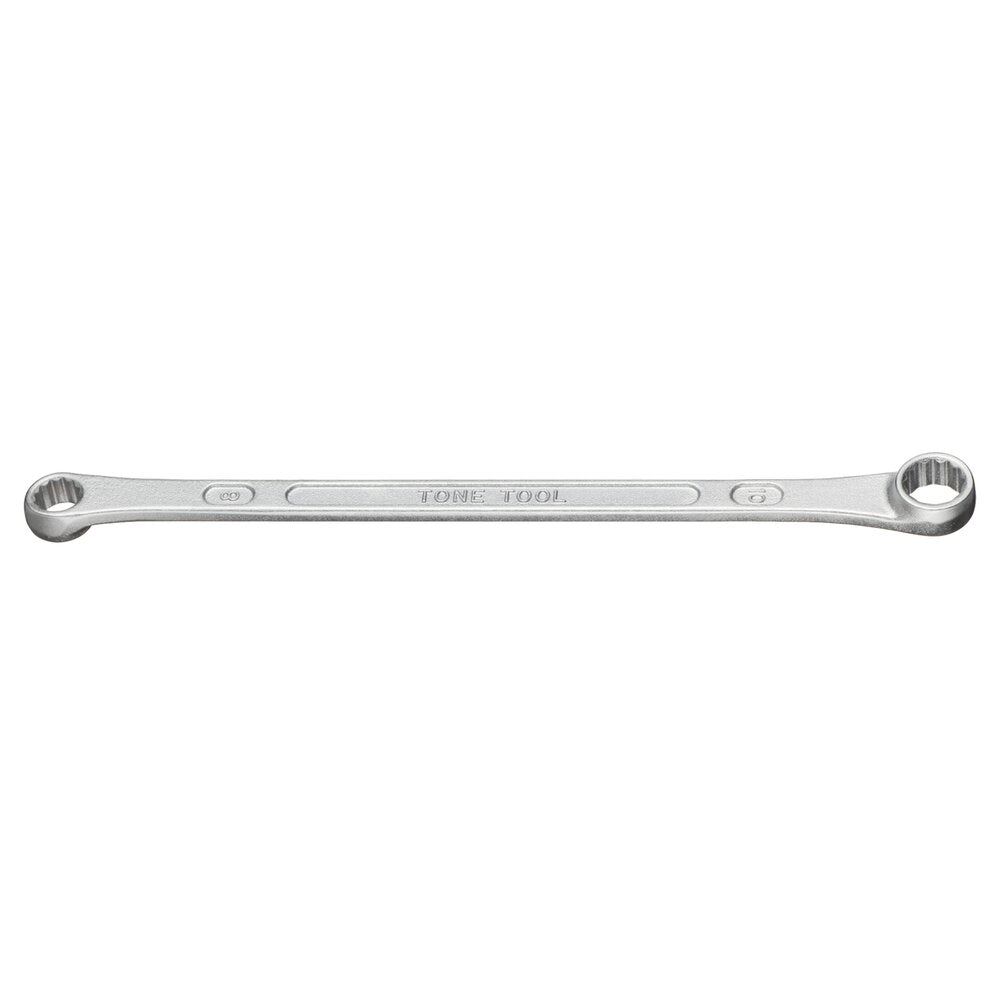

TONE Ring Wrench, Long Type M04 Series

$16.44 $17.30

Size 8 × 10 mm 10 × 12 mm 11 × 13 mm 12 × 14 mm 13 × 15 mm 14 × 17 mm

Lifetime Warranty Included

Ideal for tight spots with limited height or limited working space.

Application: For tightening and loosening hex bolts and nuts.

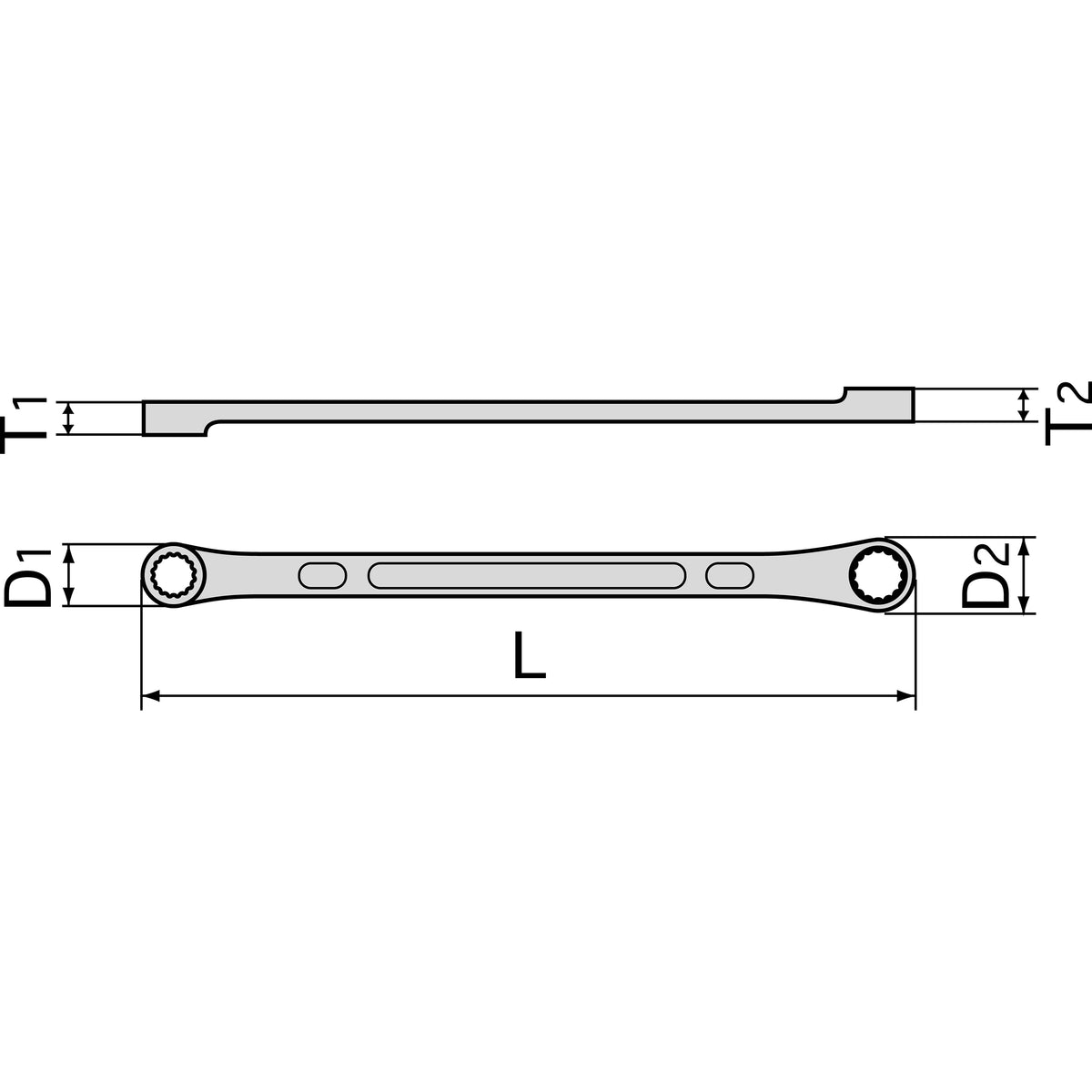

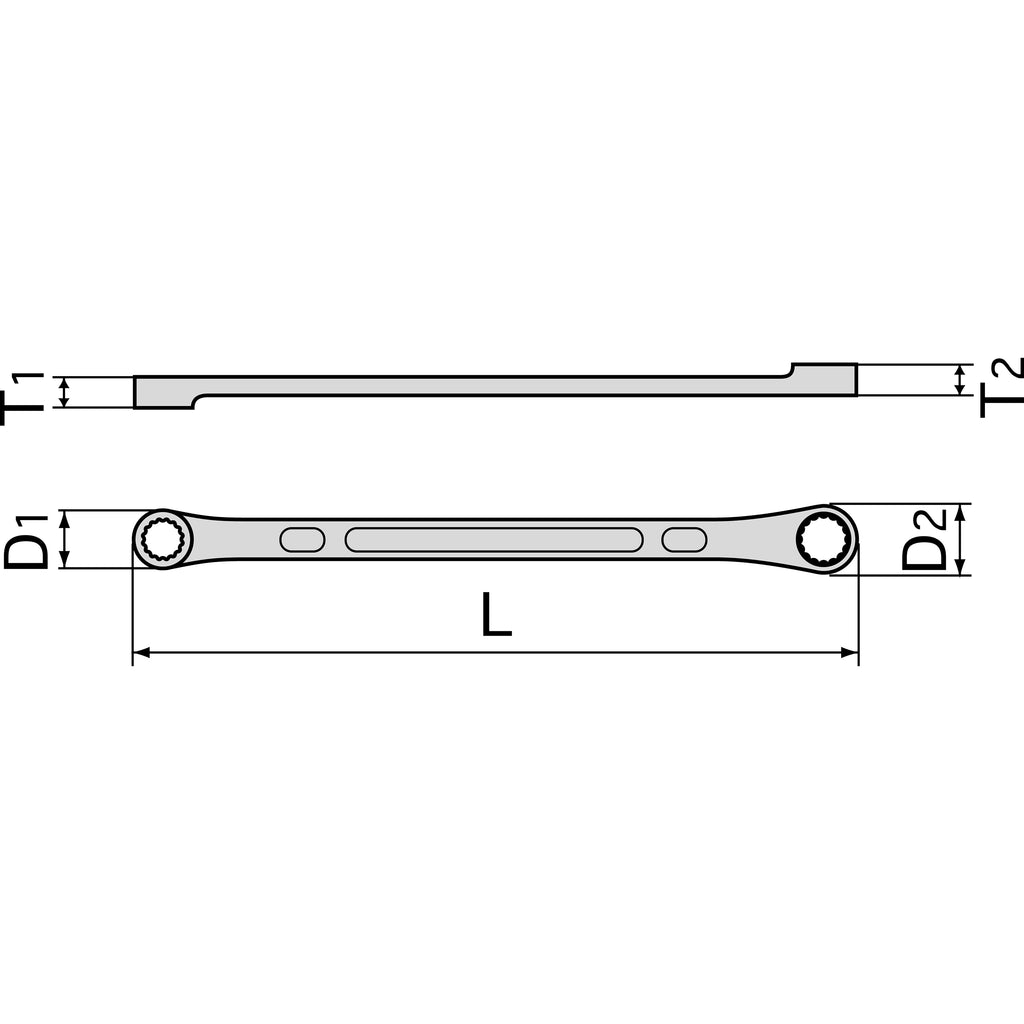

Part Number	Size	Weight (g)	W × D × H (mm)
M04-0810	8 × 10 mm	50	184 × 16 × 8
M04-1012	10 × 12 mm	70	192 × 18.5 × 9
M04-1113	11 × 13 mm	75	193 × 19 × 9.5
M04-1214	12 × 14 mm	105	224 × 21 × 10
M04-1315	13 × 15 mm	120	240 × 23 × 11
M04-1417	14 × 17 mm	135	252 × 25.5 × 12

Use the size that matches the bolt or nut. Do not add a pipe or other extension to the handle. Do not strike with a hammer or apply impact.
