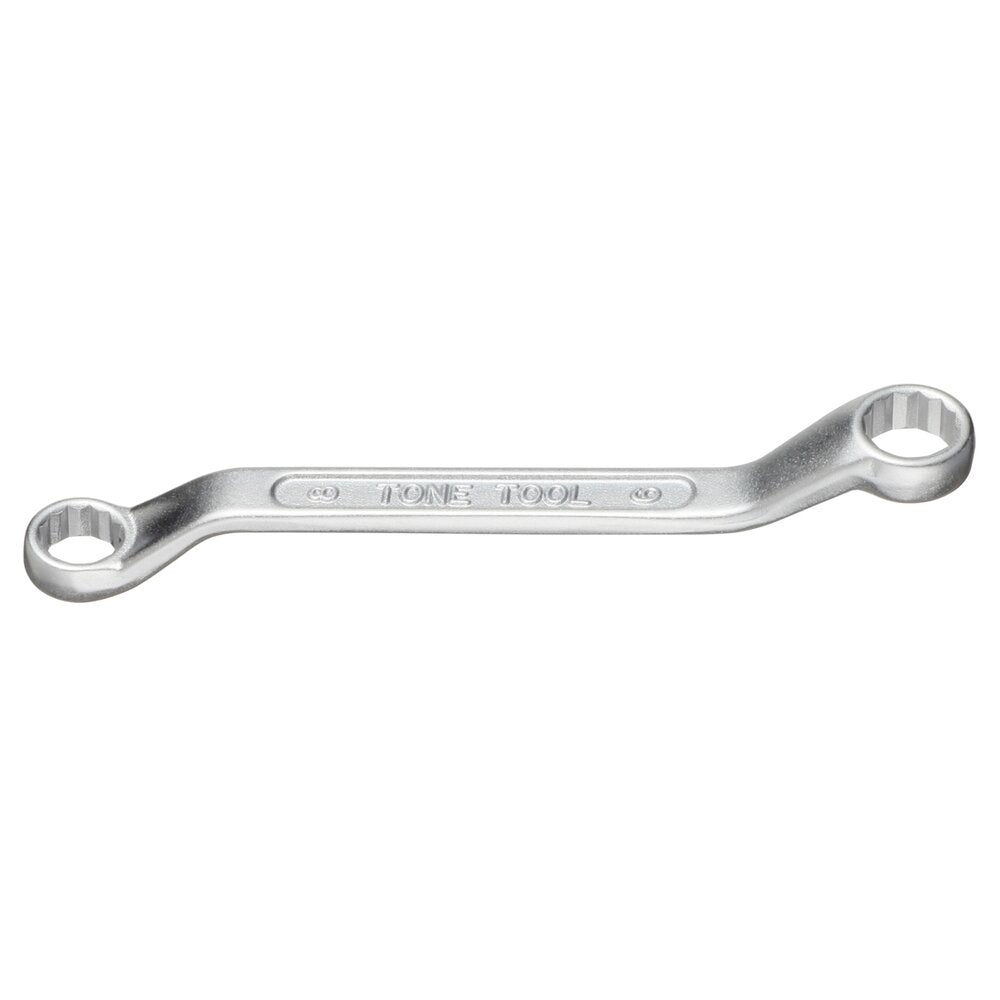

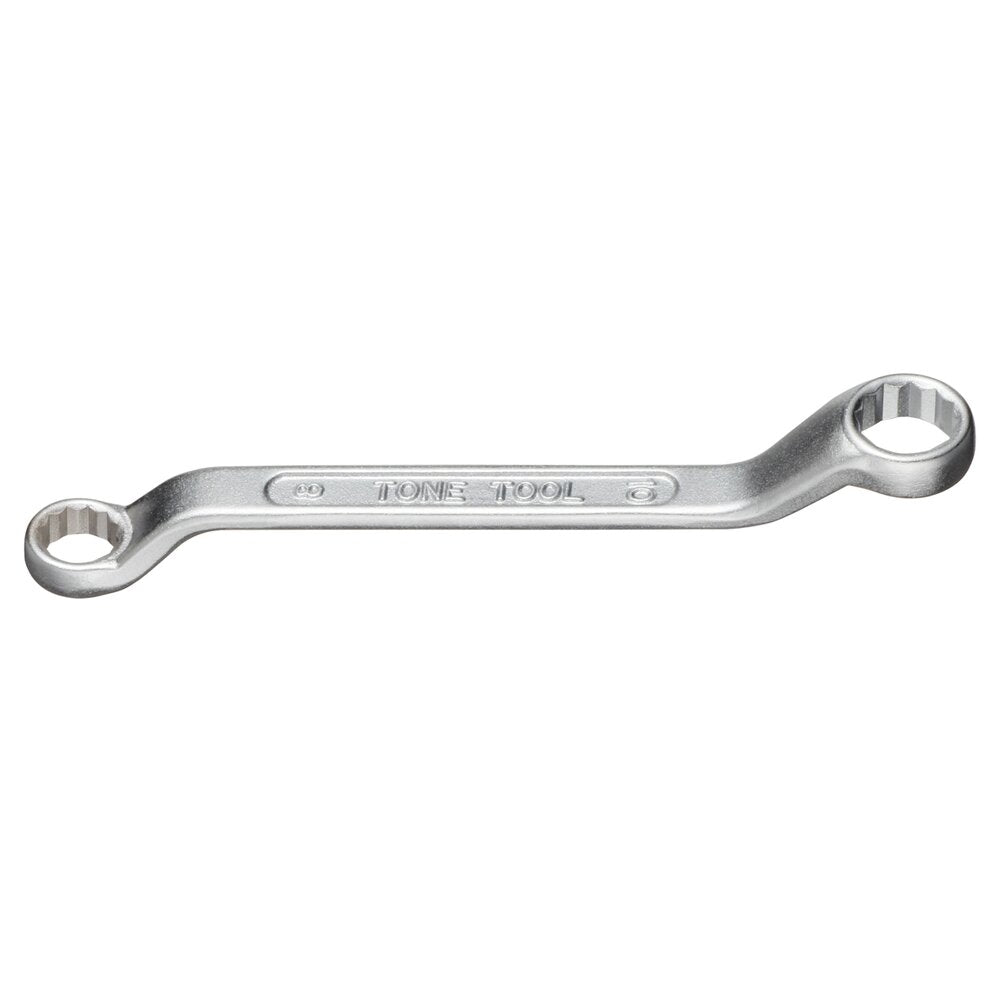

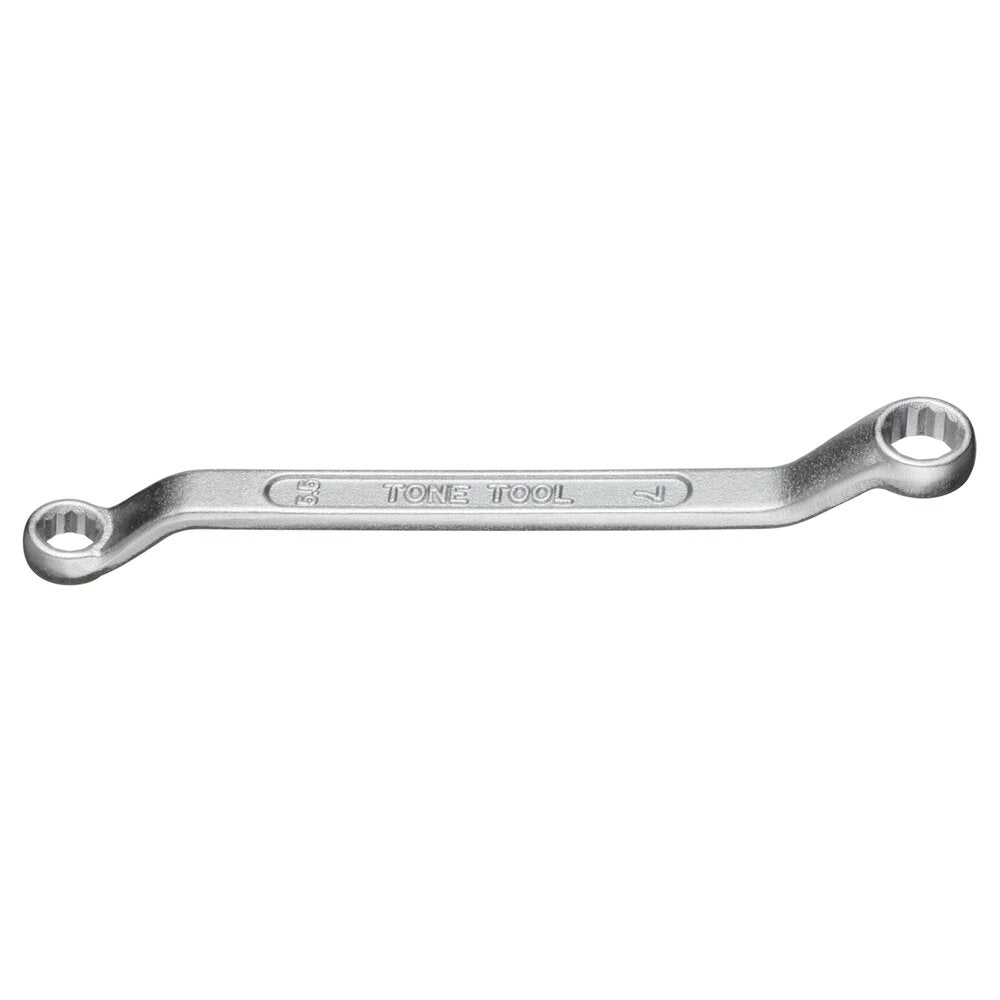

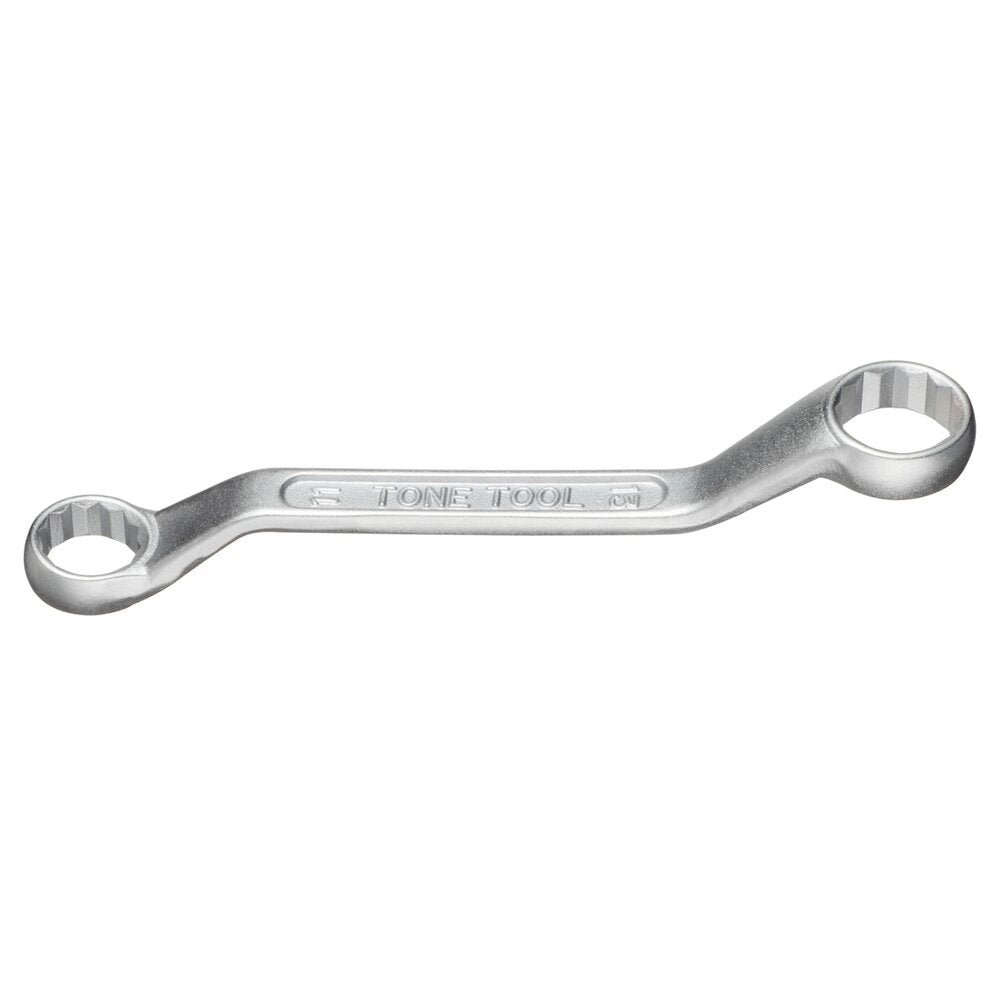

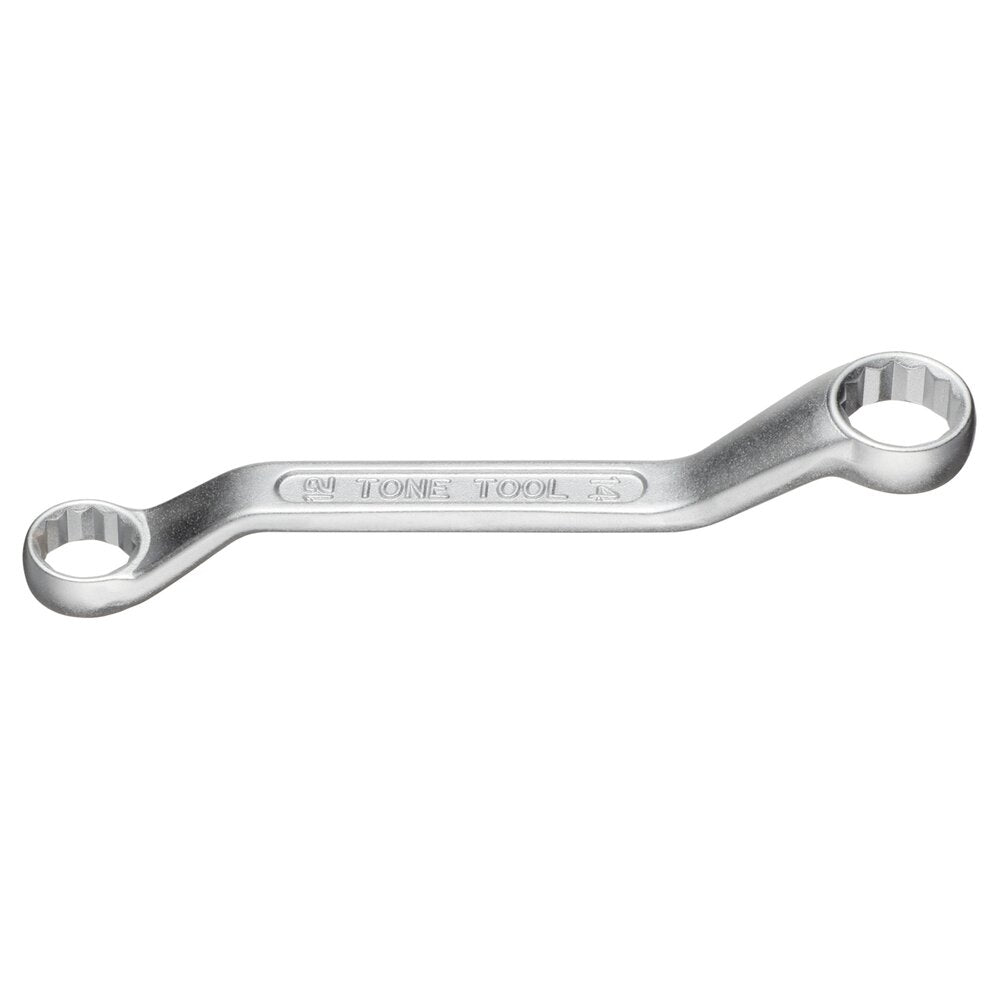

TONE Offset Wrench, Short Type (45°) M46 Series

$13.73 $14.45

Size 5.5 × 7 mm 8 × 9 mm 8 × 10 mm 10 × 12 mm 11 × 13 mm 12 × 14 mm 14 × 17 mm 19 × 21 mm

Lifetime Warranty: hand tools only

The handle is bent at 45° and short overall, so you can work around obstacles in tight spots.

Application: For tightening and loosening hex bolts and nuts.

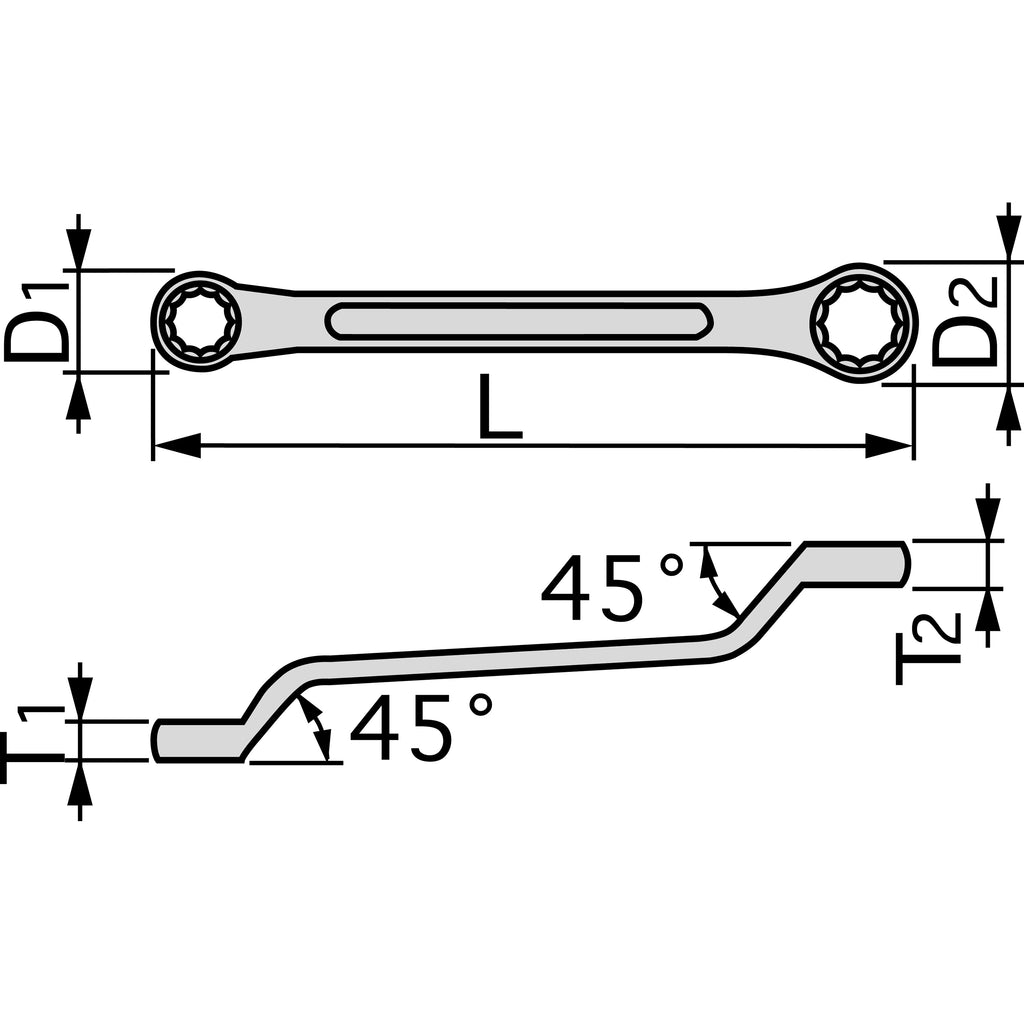

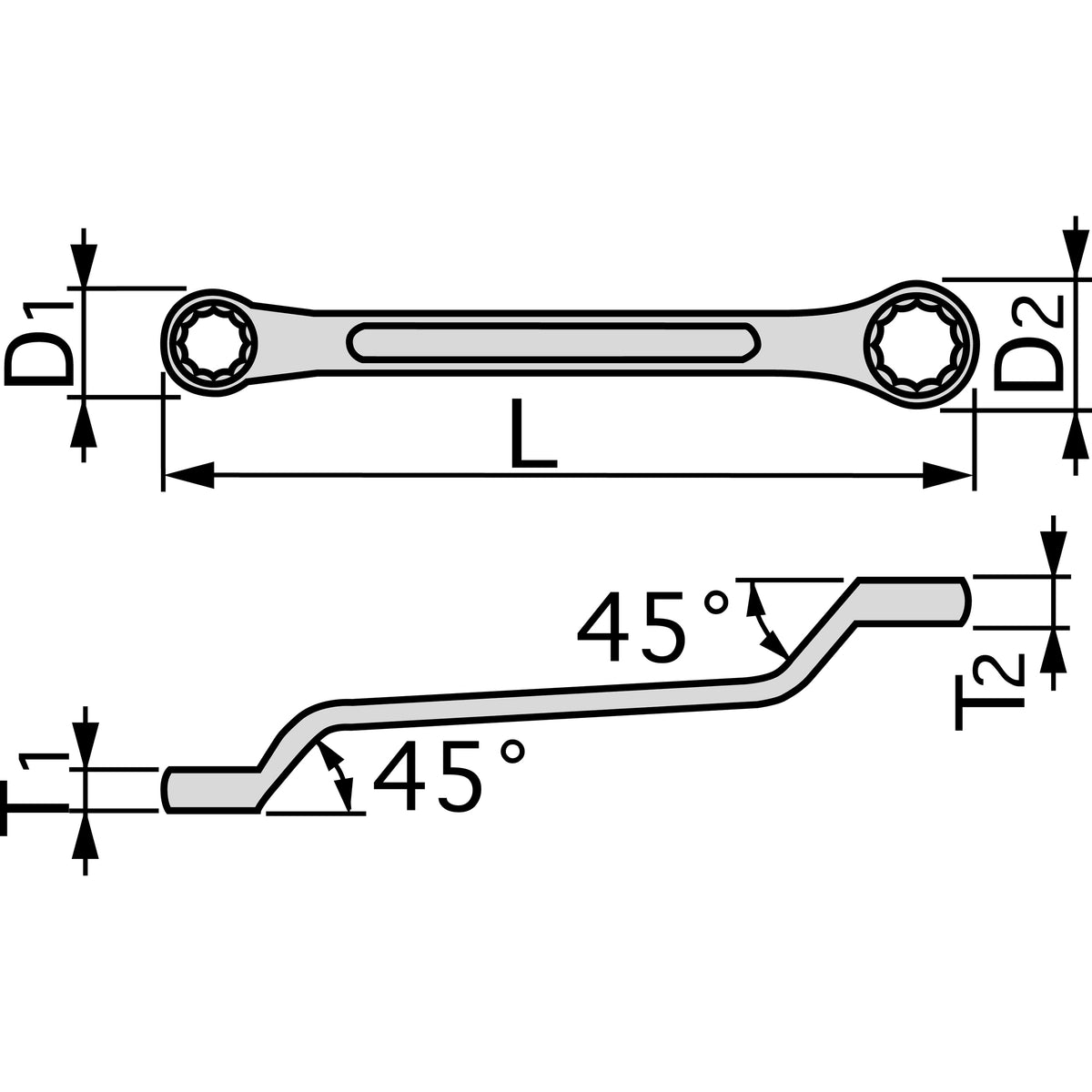

Part Number	Size	Weight (g)	W × D × H (mm)
M46-5.507	5.5 × 7 mm	20	104 × 11.5 × 5.5
M46-0809	8 × 9 mm	20	105 × 14.5 × 6
M46-0810	8 × 10 mm	20	108 × 15.5 × 6.5
M46-1012	10 × 12 mm	35	115 × 18 × 7.5
M46-1113	11 × 13 mm	40	115 × 19 × 7.5
M46-1214	12 × 14 mm	55	130 × 21 × 8.5
M46-1417	14 × 17 mm	80	147 × 22.5 × 9.5
M46-1921	19 × 21 mm	150	175 × 30 × 11.5

Use the size that matches the bolt or nut. Do not add a pipe or other extension to the handle. Do not strike with a hammer or apply impact.

Warranty: The TONE lifetime warranty applies to hand tools only.
