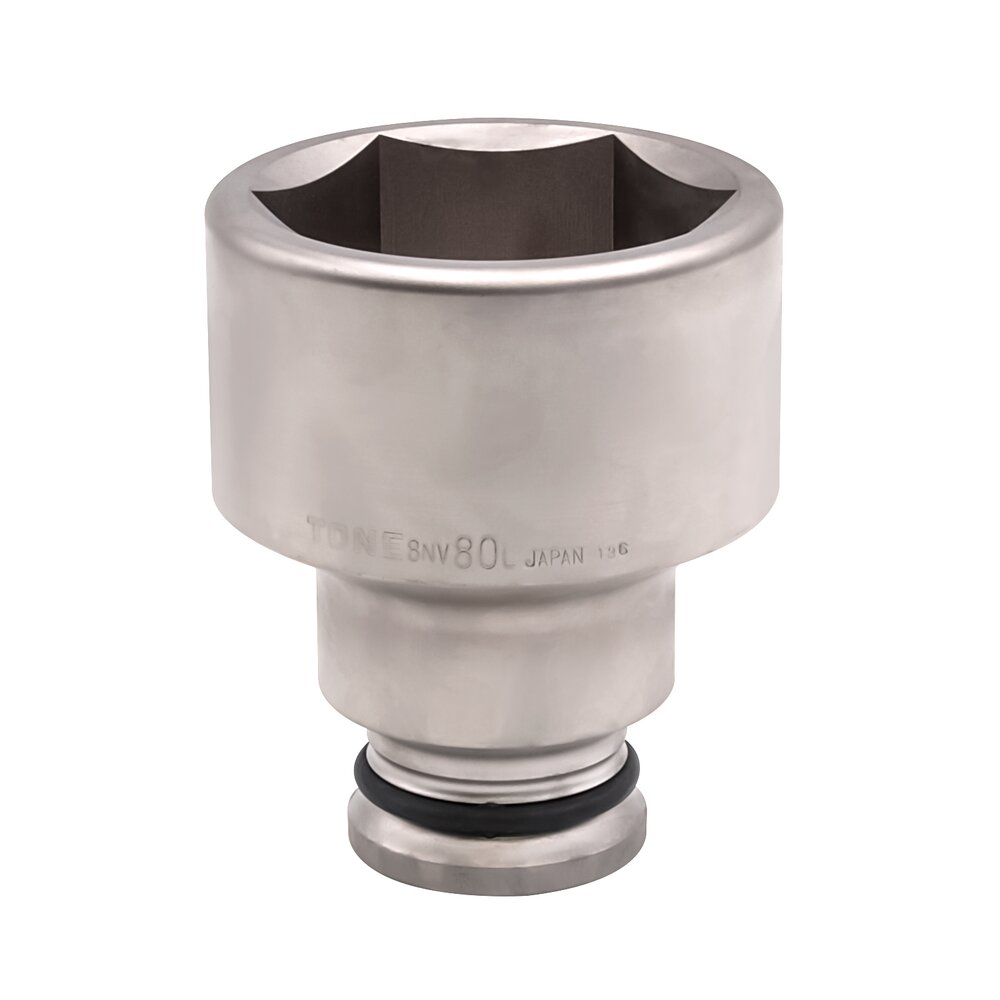

TONE Long Impact Socket (6-Point, 1" Drive) 8NV-L Series

A long impact socket with an electroless-plated finish for better appearance and rust resistance. The O-ring parking groove lets you park the O-ring temporarily while fitting or removing the socket on the wrench, making the job easier.

Application: For tightening and loosening bolts and nuts.

Patented.

Specifications

Part Number	8NV-19L to 8NV-95L
Drive size	25.4 mm (1")
Tip type	6-point
Size system	Metric
Replacement pin	P4040S
Replacement O-ring	RAS326S
Finish	Electroless plating
Material	Structural steel

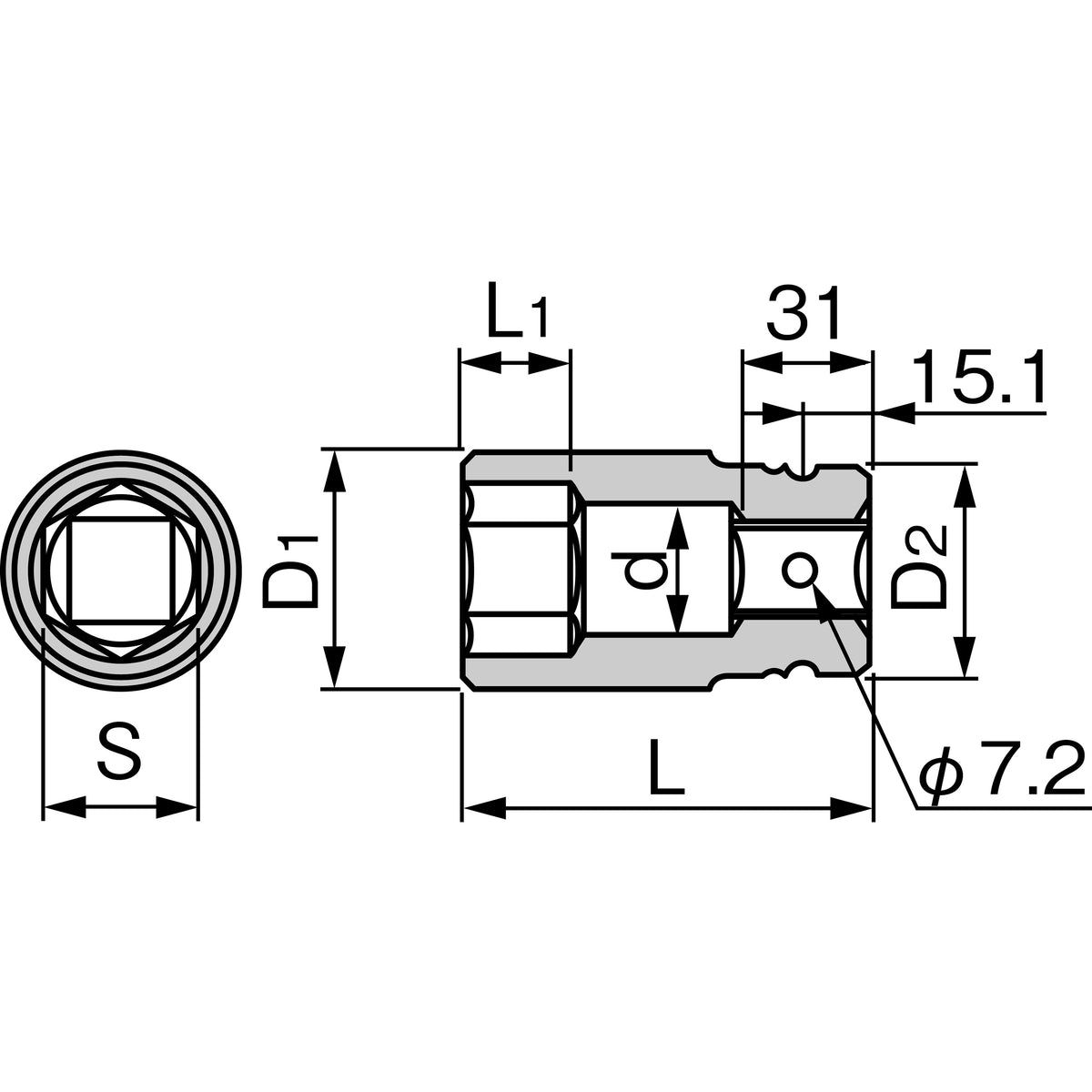

Sizes

Part Number	Size	Weight (g)	W × D × H (mm)
8NV-19L	19 mm	639	48 × 48 × 100
8NV-22L	22 mm	681	48 × 48 × 100
8NV-24L	24 mm	699	48 × 48 × 100
8NV-26L	26 mm	749	48 × 48 × 100
8NV-27L	27 mm	791	48 × 48 × 100
8NV-30L	30 mm	860	50 × 50 × 100
8NV-32L	32 mm	923	50 × 50 × 100
8NV-35L	35 mm	946	52 × 52 × 100
8NV-36L	36 mm	908	54 × 54 × 100
8NV-38L	38 mm	941	56 × 56 × 100
8NV-41L	41 mm	958	59 × 59 × 100
8NV-46L	46 mm	1098	66 × 66 × 100
8NV-50L	50 mm	1451	74 × 74 × 135
8NV-55L	55 mm	1668	80 × 80 × 135
8NV-60L	60 mm	1709	86 × 86 × 135
8NV-65L	65 mm	2251	93 × 93 × 135
8NV-70L	70 mm	2405	100 × 100 × 135
8NV-75L	75 mm	2428	104 × 104 × 135
8NV-77L	77 mm	2445	107 × 107 × 135
8NV-80L	80 mm	2556	111 × 111 × 135
8NV-85L	85 mm	2879	118 × 118 × 135
8NV-90L	90 mm	3074	124 × 124 × 135
8NV-95L	95 mm	3109	130 × 130 × 135

Notes

Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
