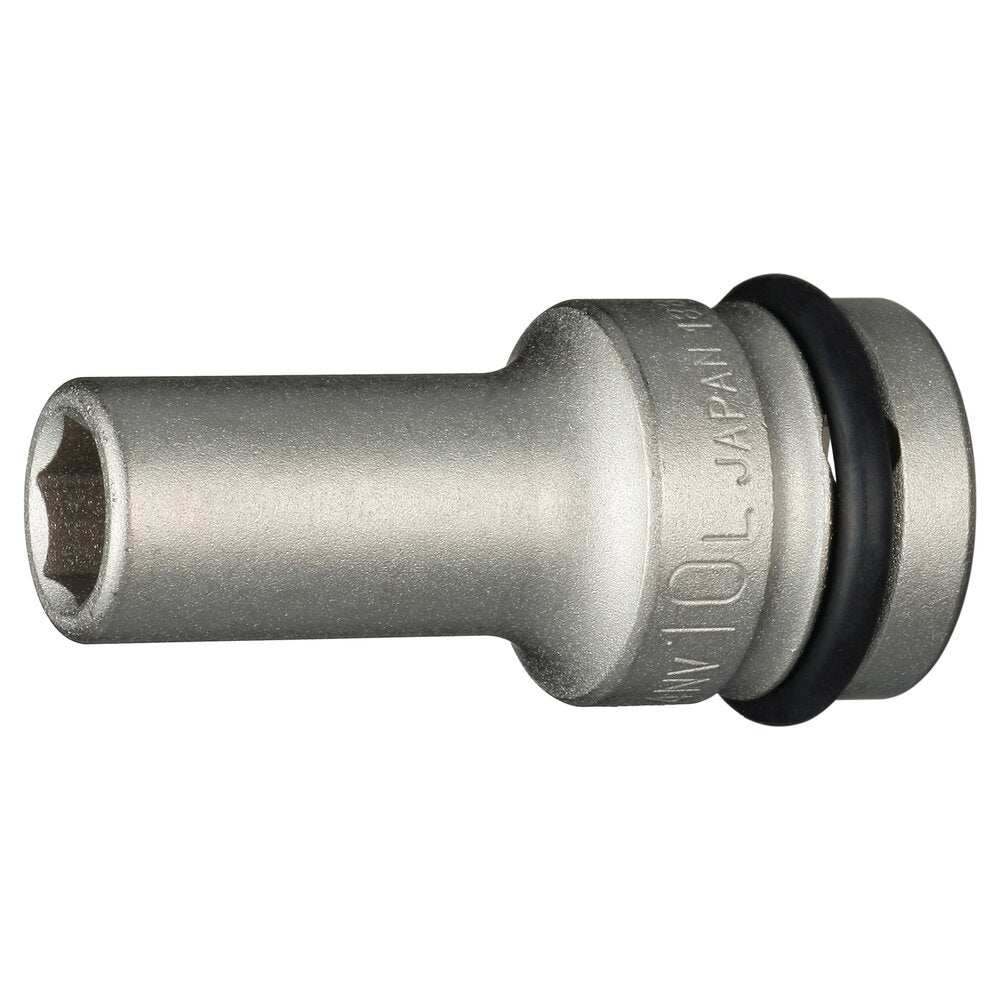

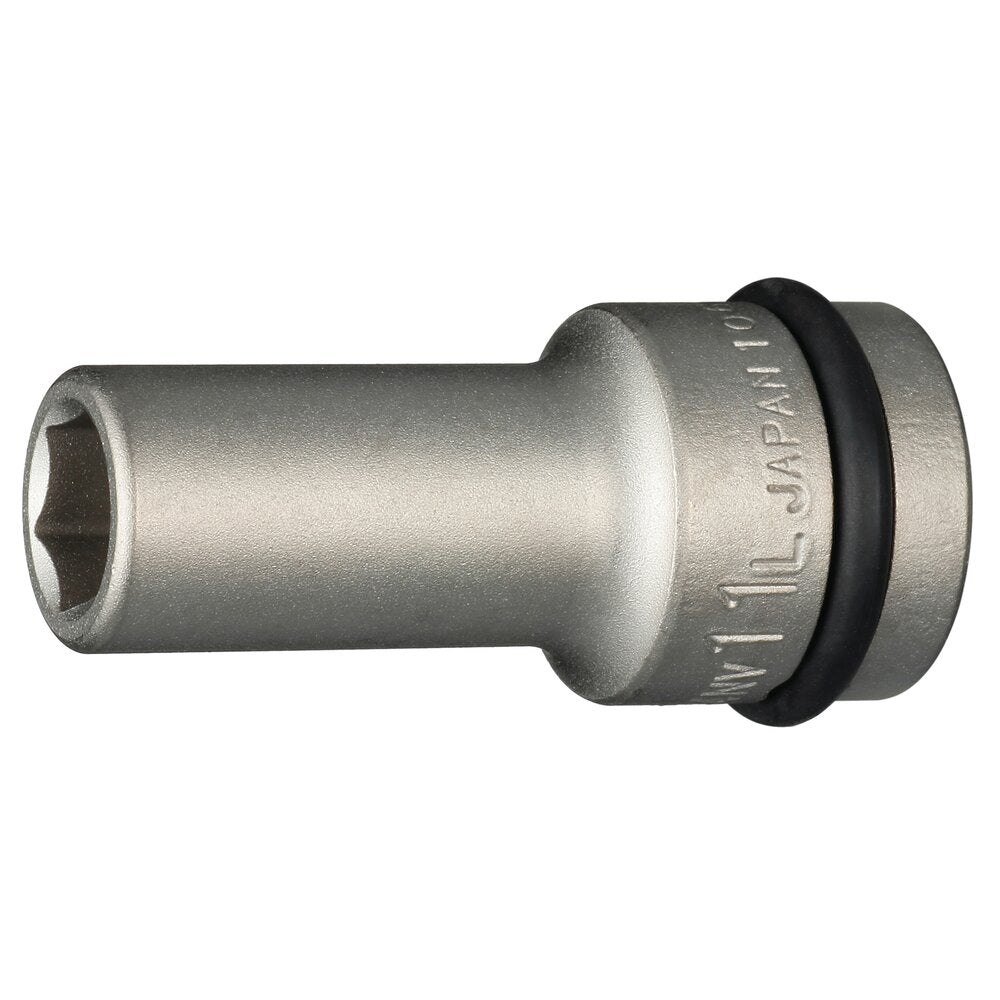

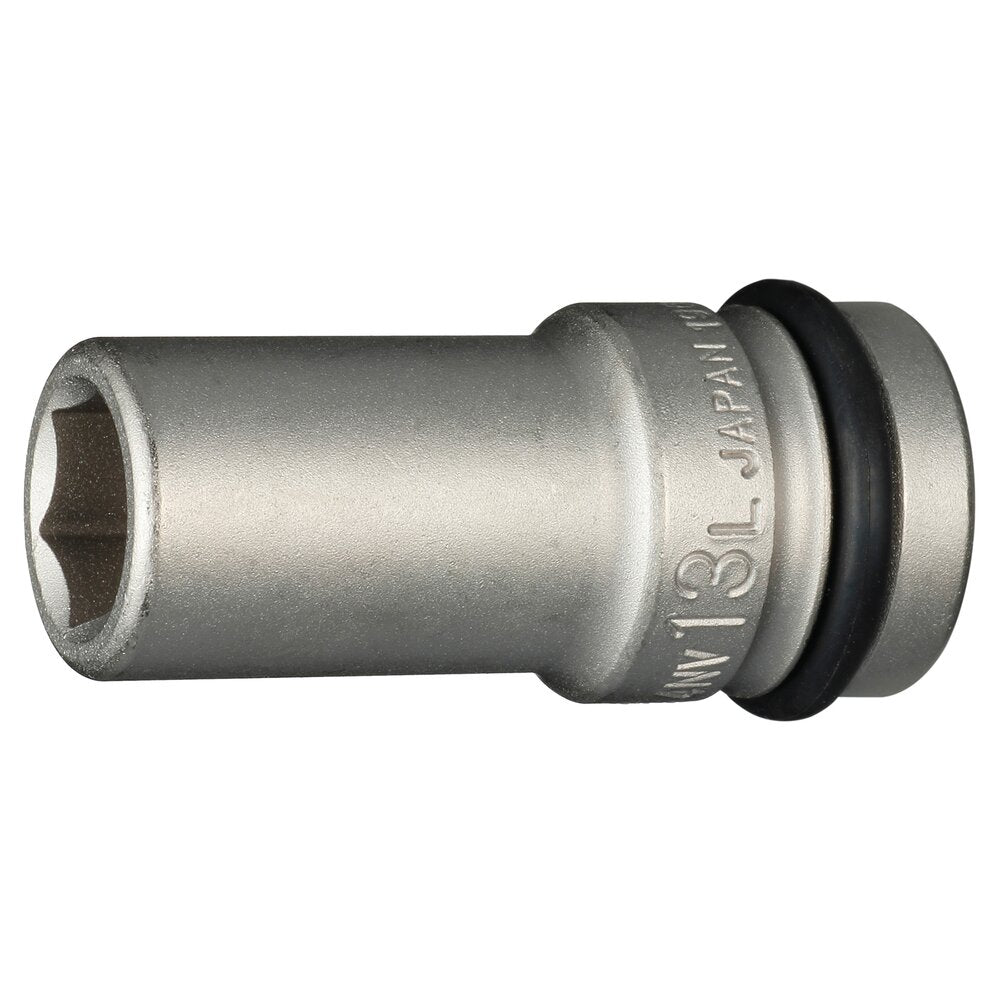

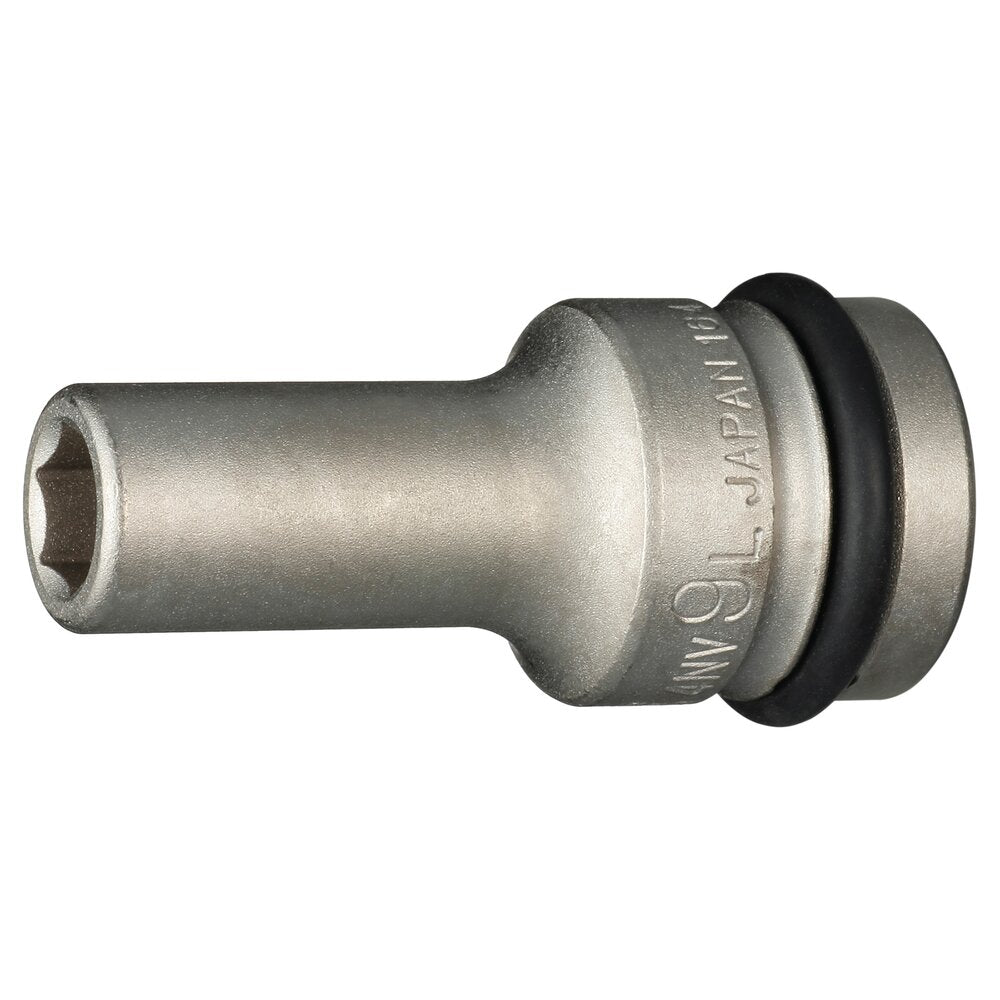

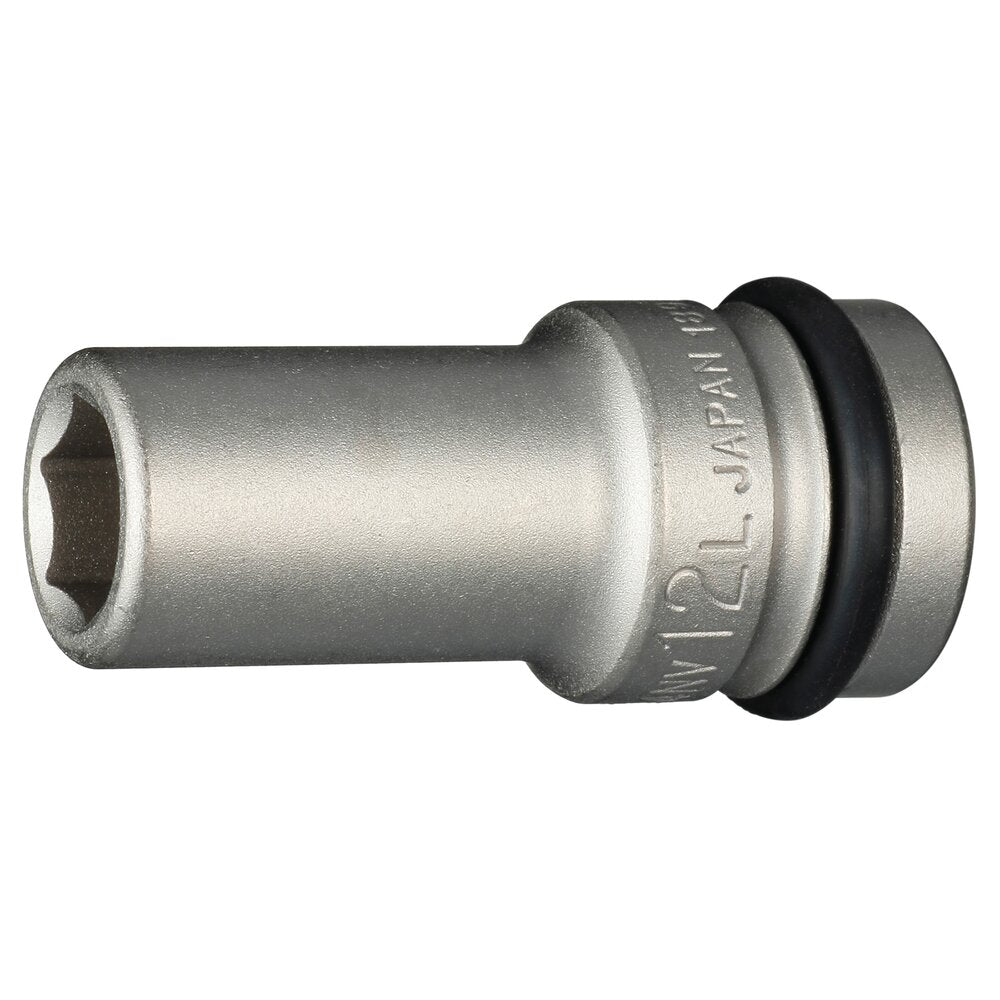

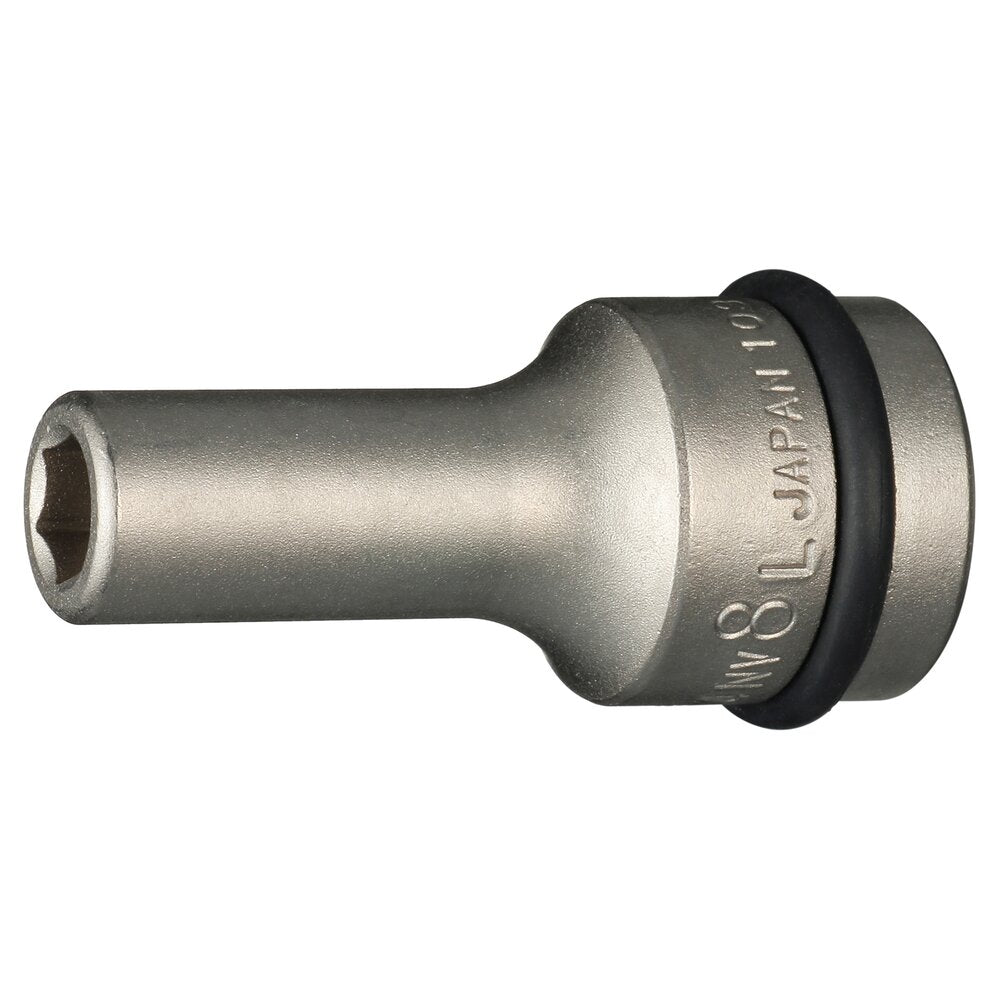

TONE Long Impact Socket (6-Point, 1/2" Drive) 4NV-L Series

A long impact socket with an electroless-plated finish for better appearance and rust resistance. The O-ring parking groove lets you park the O-ring temporarily while fitting or removing the socket on the wrench, making the job easier.

Application: For tightening and loosening bolts and nuts.

Strong Drive 6-point profile. Patented.

Specifications

Part Number	4NV-08L to 4NV-36L
Drive size	12.7 mm (1/2")
Tip type	6-point
Size system	Metric
Replacement pin	P3020S
Replacement O-ring	RP20S
Finish	Electroless plating
Material	Structural steel

Sizes

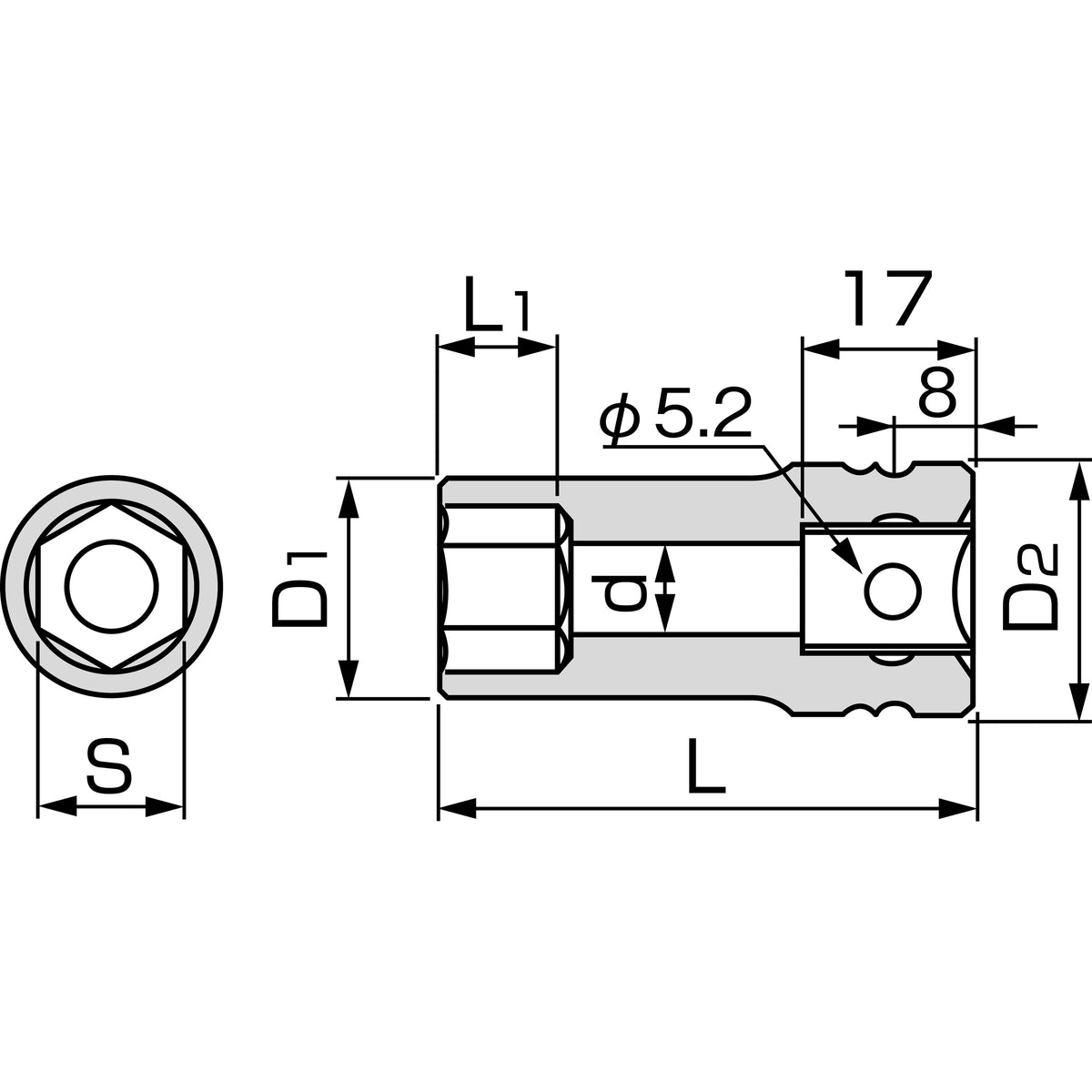

Part Number	Size	Weight (g)	W × D × H (mm)
4NV-08L	8 mm	90	25 × 25 × 55
4NV-09L	9 mm	94	25 × 25 × 55
4NV-10L	10 mm	96	25 × 25 × 55
4NV-11L	11 mm	102	25 × 25 × 55
4NV-12L	12 mm	112	25 × 25 × 55
4NV-13L	13 mm	122	25 × 25 × 55
4NV-14L	14 mm	125	25 × 25 × 55
4NV-15L	15 mm	131	25 × 25 × 55
4NV-16L	16 mm	126	25 × 25 × 55
4NV-17L	17 mm	150	26 × 26 × 55
4NV-18L	18 mm	150	27 × 27 × 55
4NV-19L	19 mm	166	29 × 29 × 55
4NV-20L	20 mm	181	30 × 30 × 55
4NV-21L	21 mm	174	31 × 31 × 55
4NV-22L	22 mm	176	32 × 32 × 55
4NV-23L	23 mm	170	33 × 33 × 55
4NV-24L	24 mm	181	35 × 35 × 55
4NV-25L	25 mm	184	37 × 37 × 55
4NV-26L	26 mm	237	38 × 38 × 75
4NV-27L	27 mm	242	39 × 39 × 75
4NV-28L	28 mm	309	40 × 40 × 80
4NV-29L	29 mm	310	41 × 41 × 80
4NV-30L	30 mm	362	42 × 42 × 85
4NV-32L	32 mm	415	45 × 45 × 85
4NV-33L	33 mm	418	46 × 46 × 85
4NV-34L	34 mm	422	47 × 47 × 85
4NV-35L	35 mm	438	48.5 × 48.5 × 85
4NV-36L	36 mm	500	50 × 50 × 85

Notes

Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
