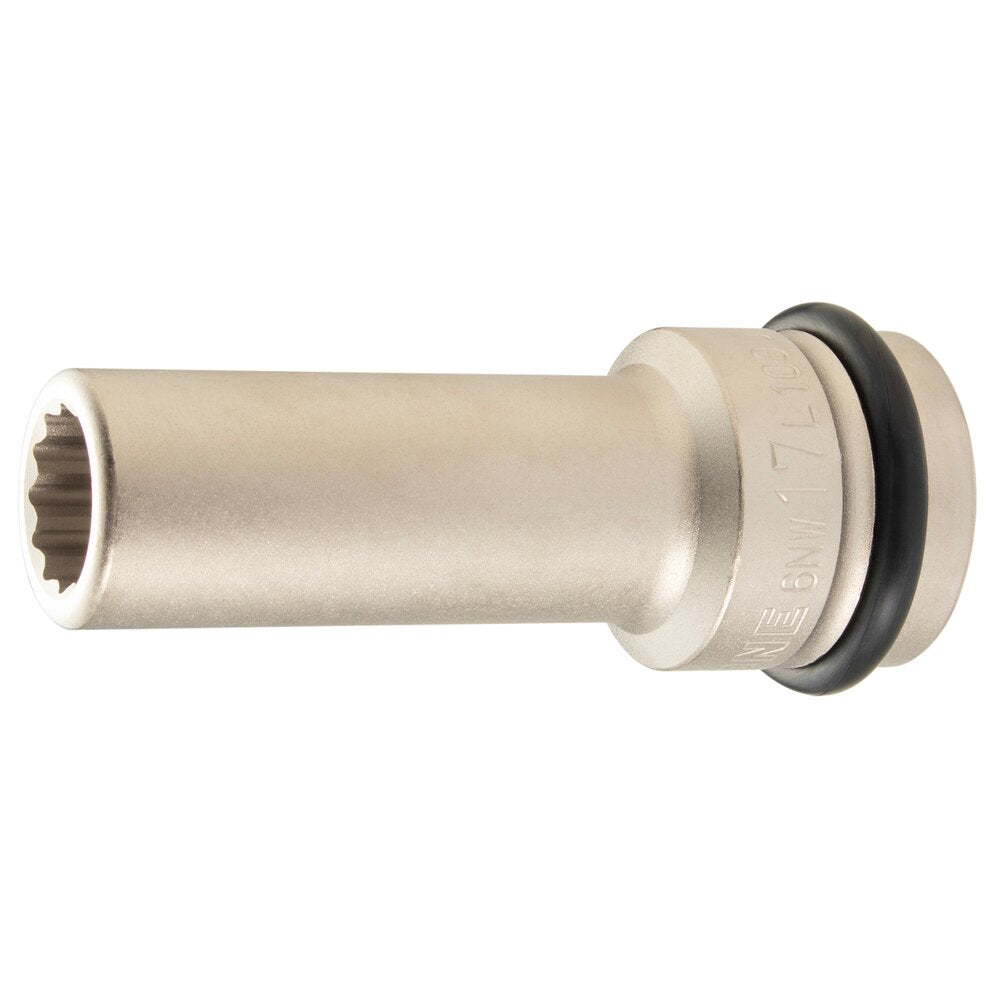

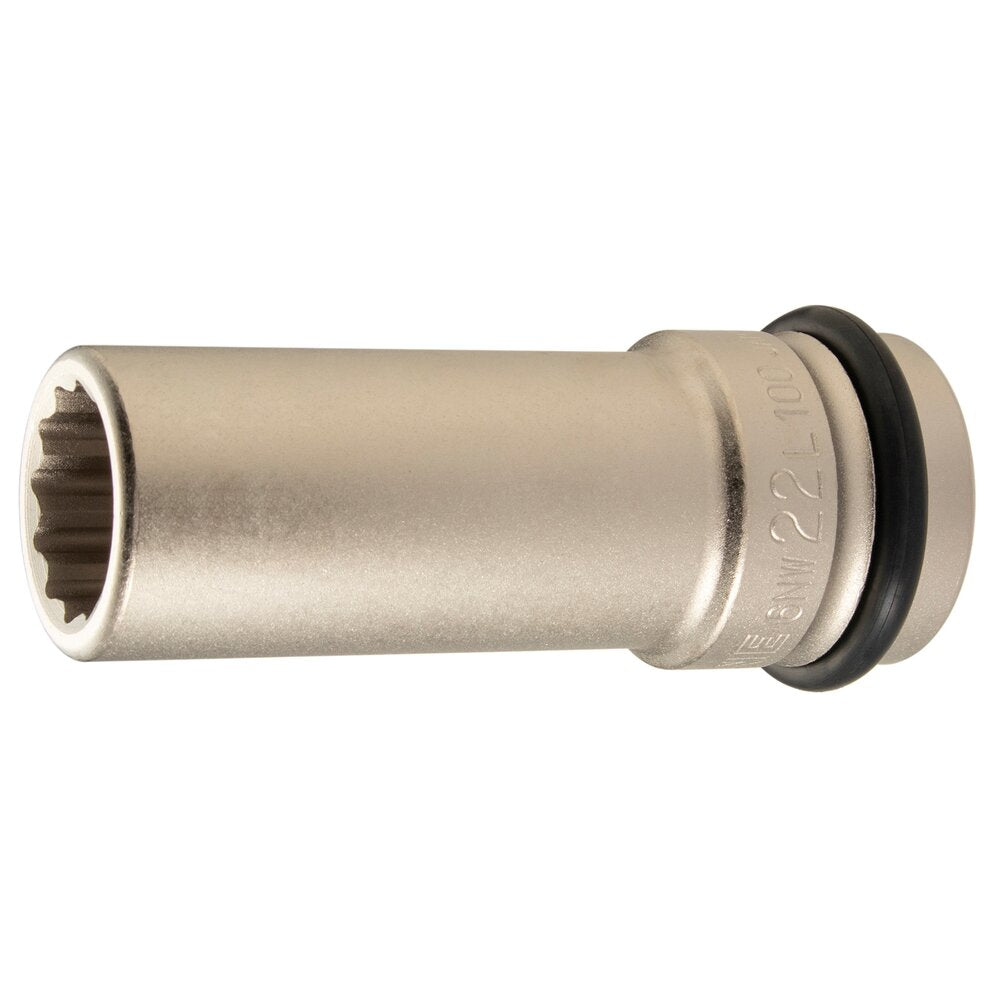

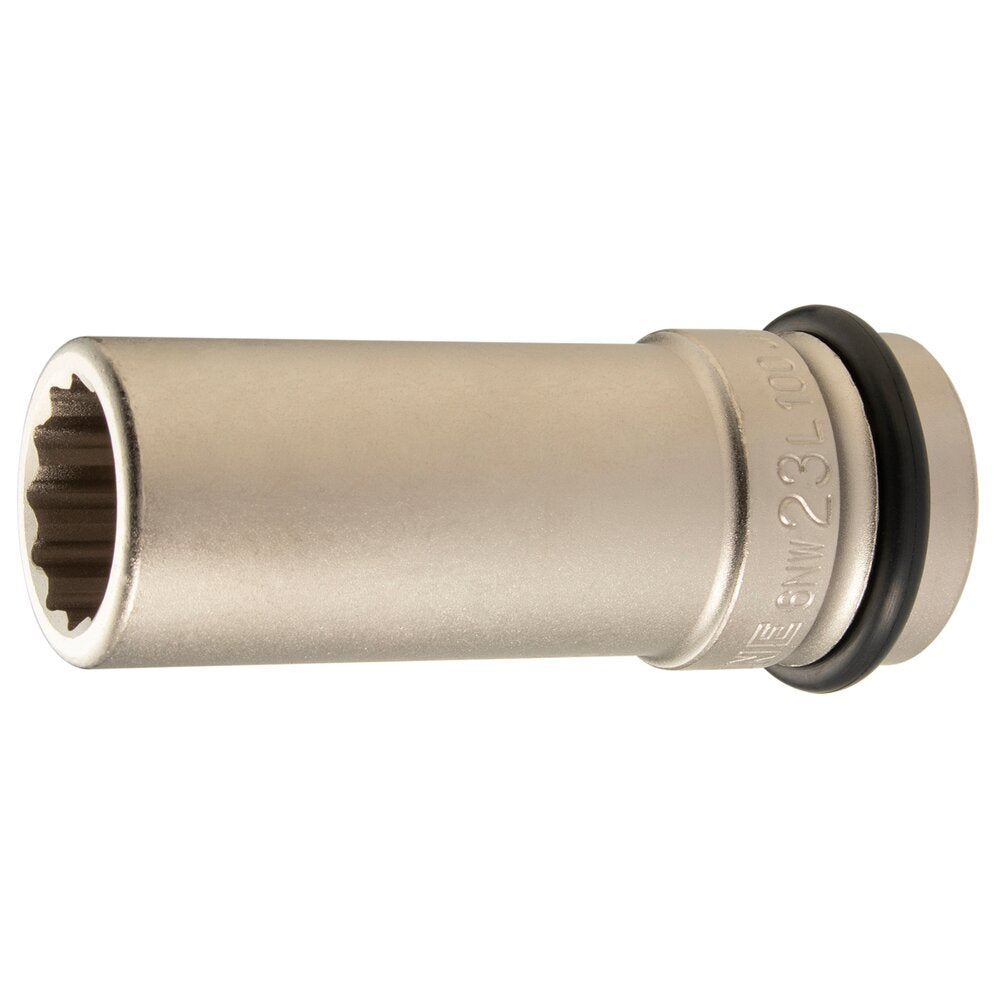

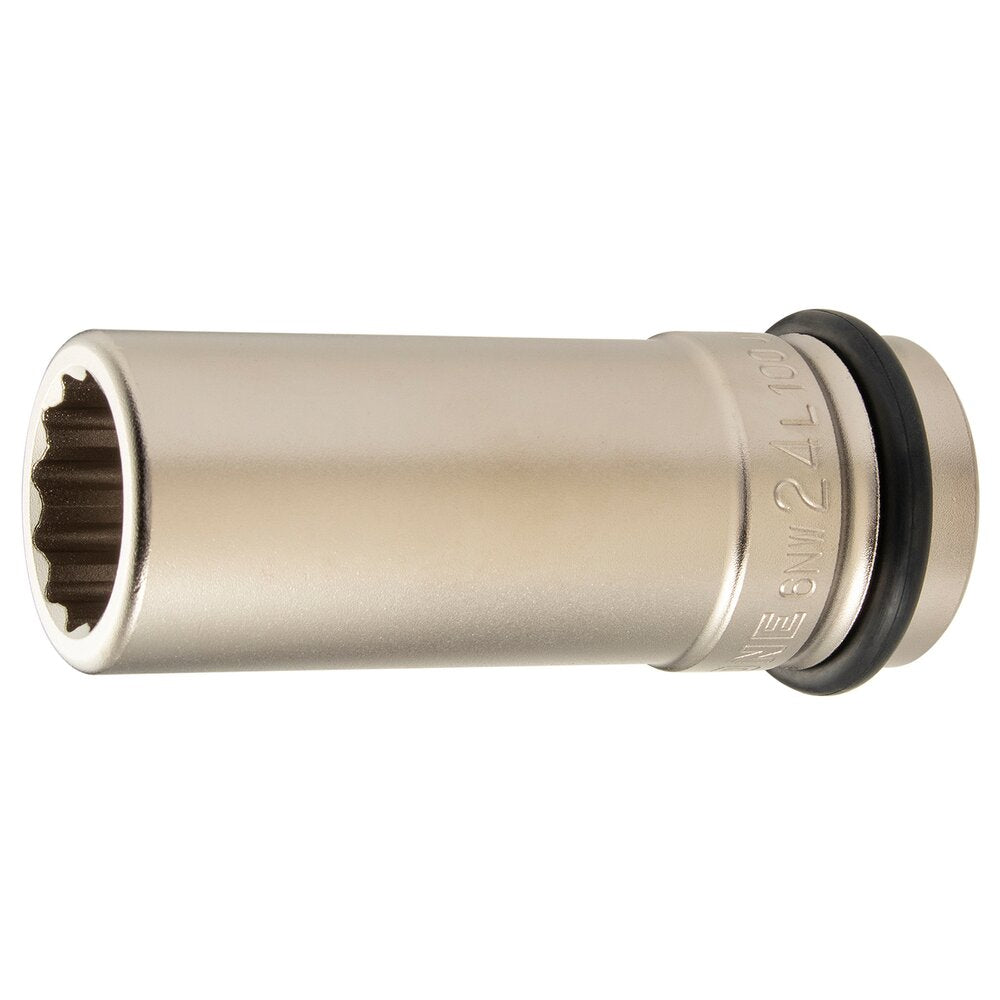

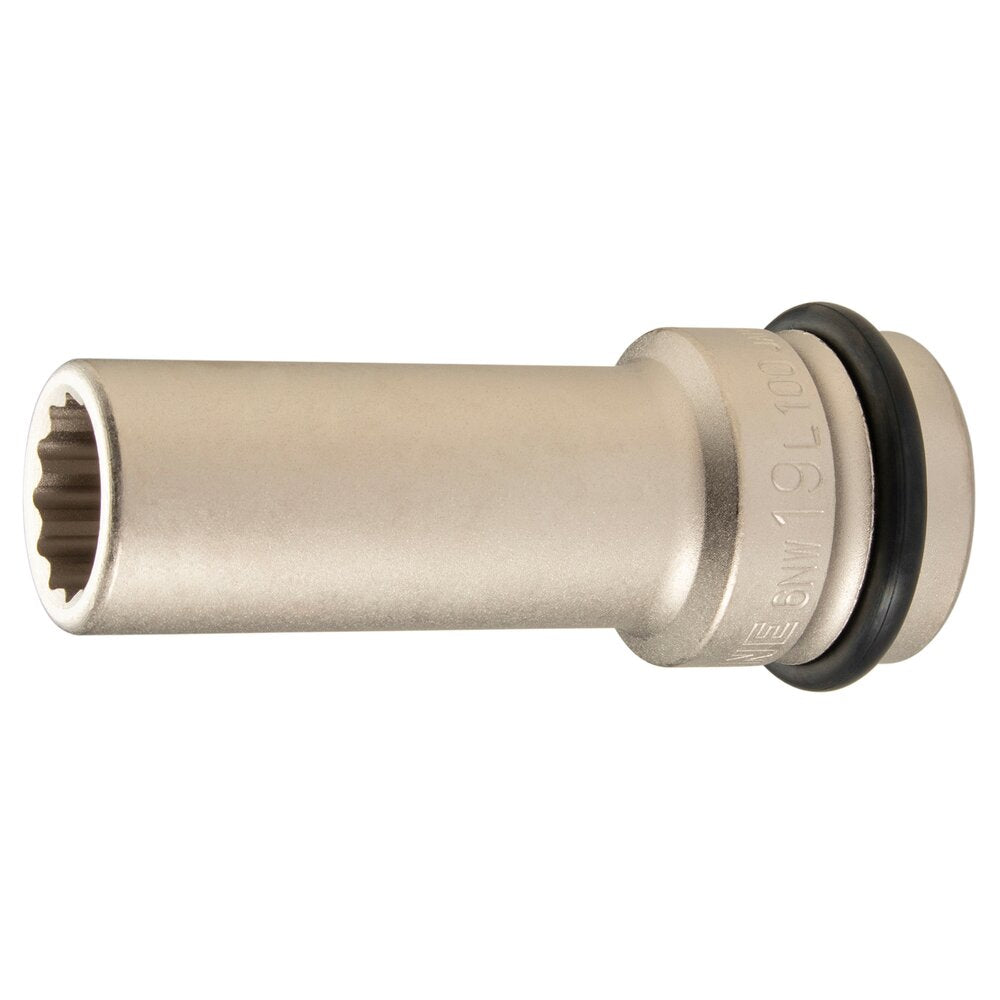

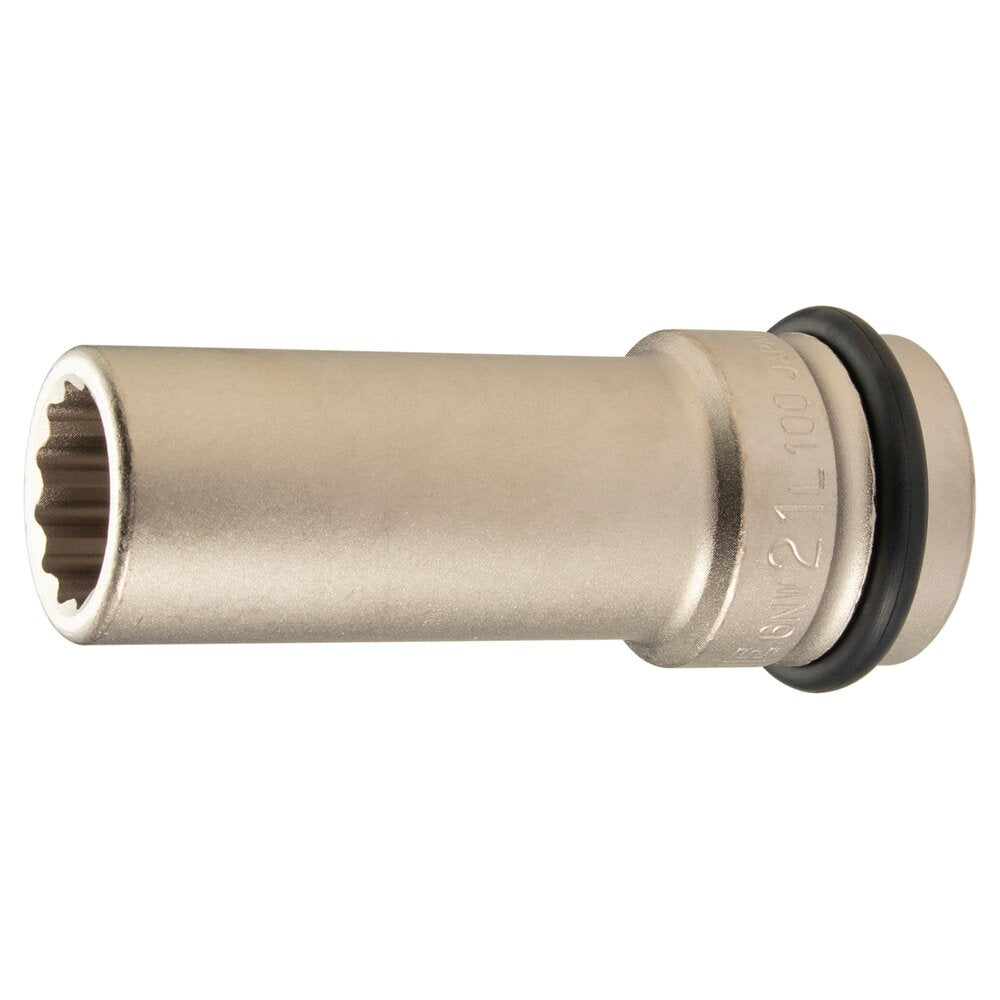

TONE Long Impact Socket (12-Point, 3/4" Drive) 6NW-L100 Series
Sale price
$39.95
Regular price
$42.05
Lifetime Warranty Included
Description
A 12-point long impact socket with an electroless-plated finish for better appearance and rust resistance. The O-ring parking groove lets you park the O-ring temporarily while fitting or removing the socket on the wrench, making the job easier.
Application: For tightening and loosening bolts and nuts.
Patented.
Specifications
| Part Number | 6NW-17L100 to 6NW-46L100 |
|---|---|
| Drive size | 19.0 mm (3/4") |
| Tip type | 12-point |
| Size system | Metric |
| Replacement pin | P4033S |
| Replacement O-ring | RAS322S |
| Finish | Electroless plating |
| Material | Structural steel |
Sizes

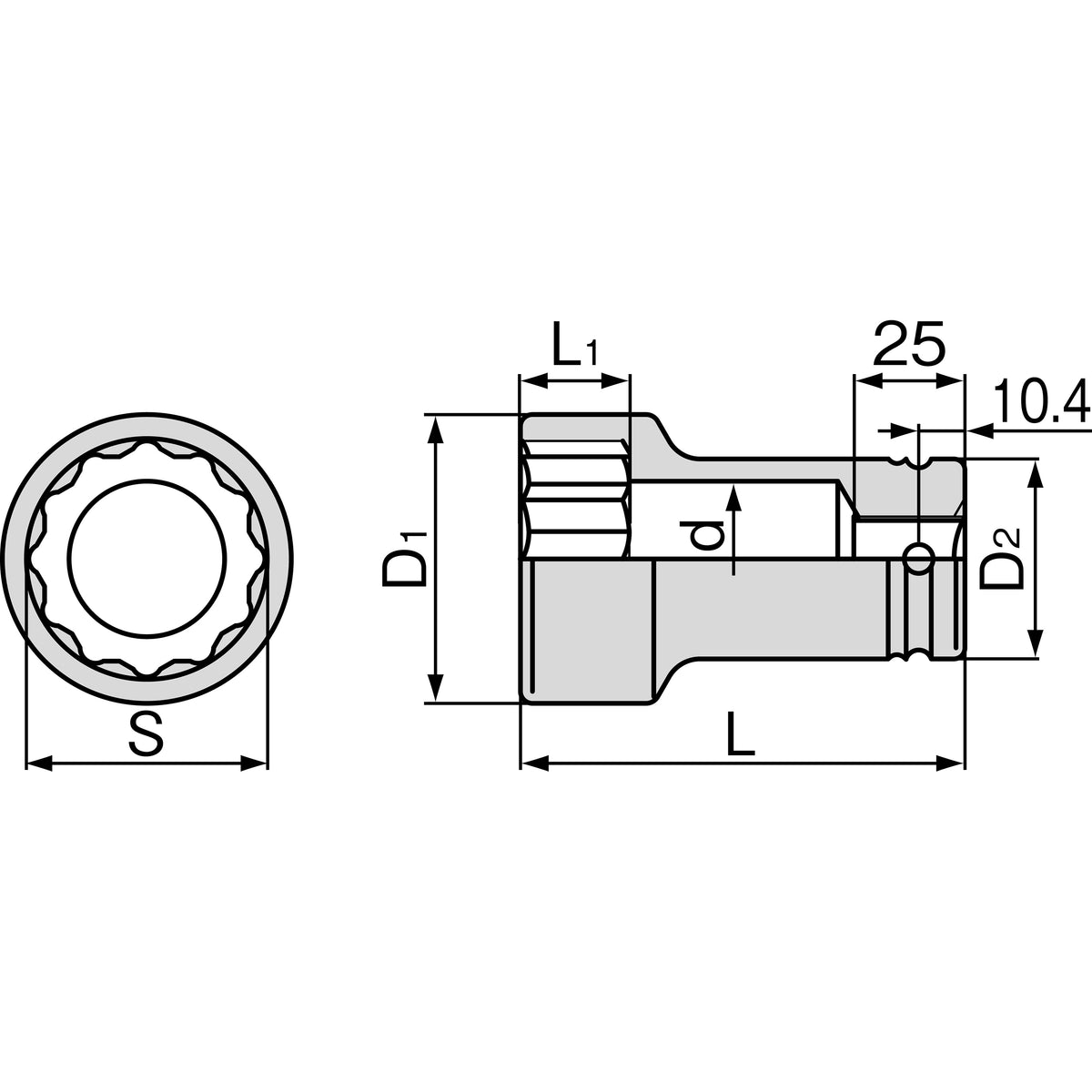

| Part Number | Size | Weight (g) | W × D × H (mm) |
|---|---|---|---|
| 6NW-17L100 | 17 mm | 379 | 38 × 38 × 100 |
| 6NW-19L100 | 19 mm | 362 | 38 × 38 × 100 |
| 6NW-21L100 | 21 mm | 401 | 38 × 38 × 100 |
| 6NW-22L100 | 22 mm | 428 | 38 × 38 × 100 |
| 6NW-23L100 | 23 mm | 411 | 38 × 38 × 100 |
| 6NW-24L100 | 24 mm | 514 | 40 × 40 × 100 |
| 6NW-26L100 | 26 mm | 558 | 42 × 42 × 100 |
| 6NW-27L100 | 27 mm | 532 | 42 × 42 × 100 |
| 6NW-28L100 | 28 mm | 539 | 42 × 42 × 100 |
| 6NW-29L100 | 29 mm | 547 | 42 × 42 × 100 |
| 6NW-30L100 | 30 mm | 569 | 44 × 44 × 100 |
| 6NW-32L100 | 32 mm | 593 | 46.5 × 46.5 × 100 |
| 6NW-35L100 | 35 mm | 617 | 50 × 50 × 100 |
| 6NW-36L100 | 36 mm | 644 | 52 × 52 × 100 |
| 6NW-38L100 | 38 mm | 773 | 56 × 56 × 100 |
| 6NW-41L100 | 41 mm | 801 | 59 × 59 × 100 |
| 6NW-46L100 | 46 mm | 852 | 65 × 65 × 100 |
Notes
Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
