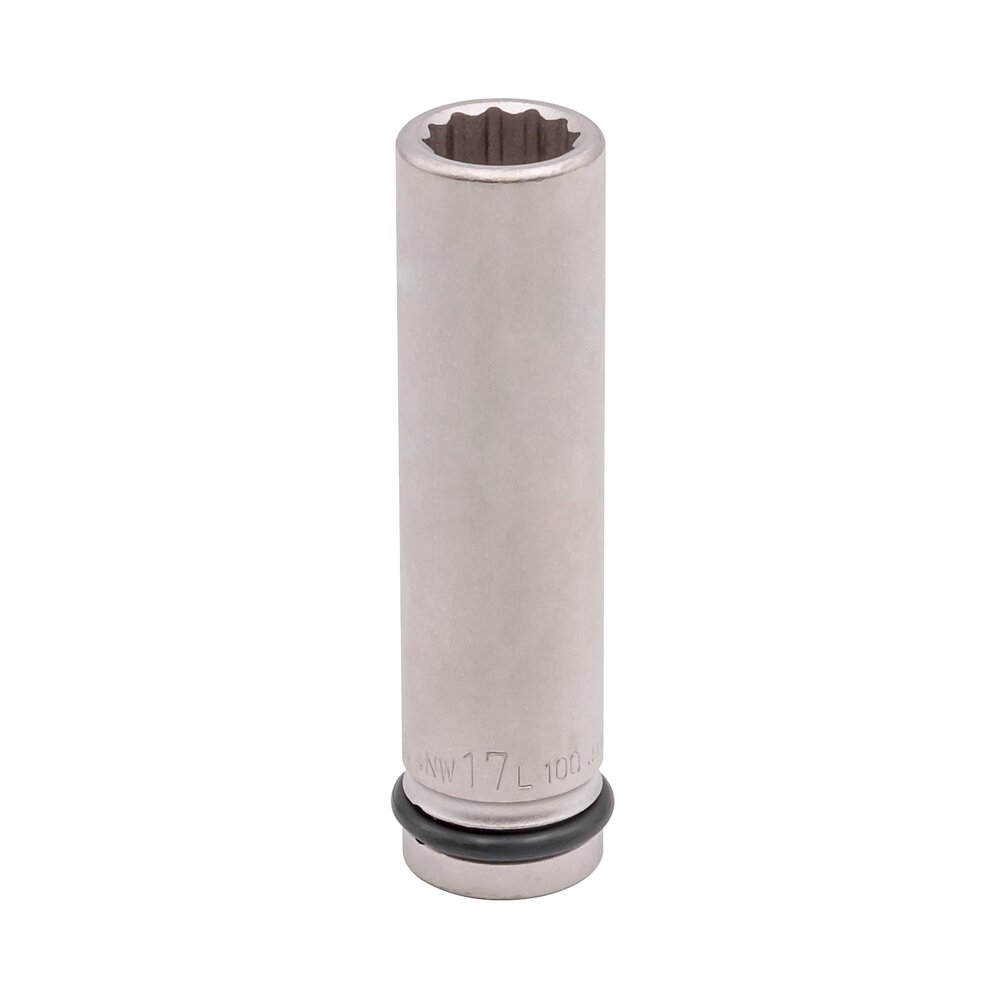

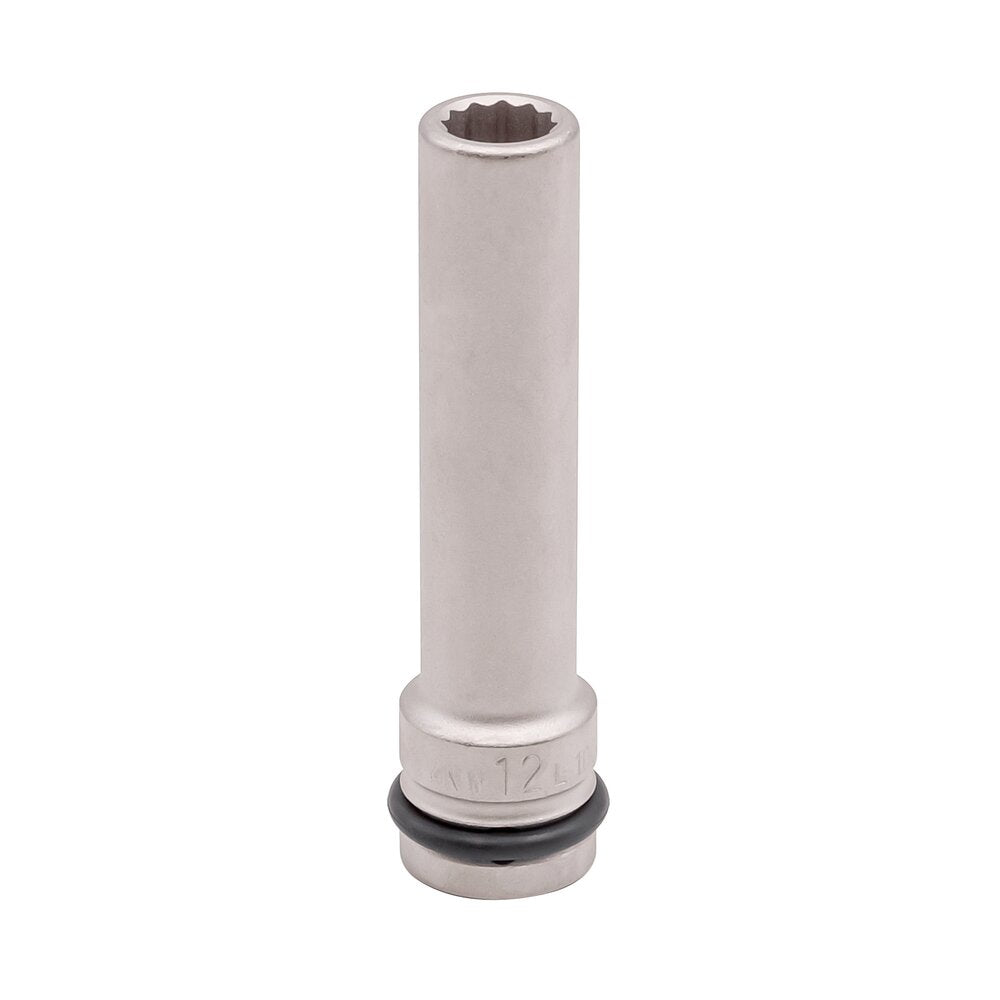

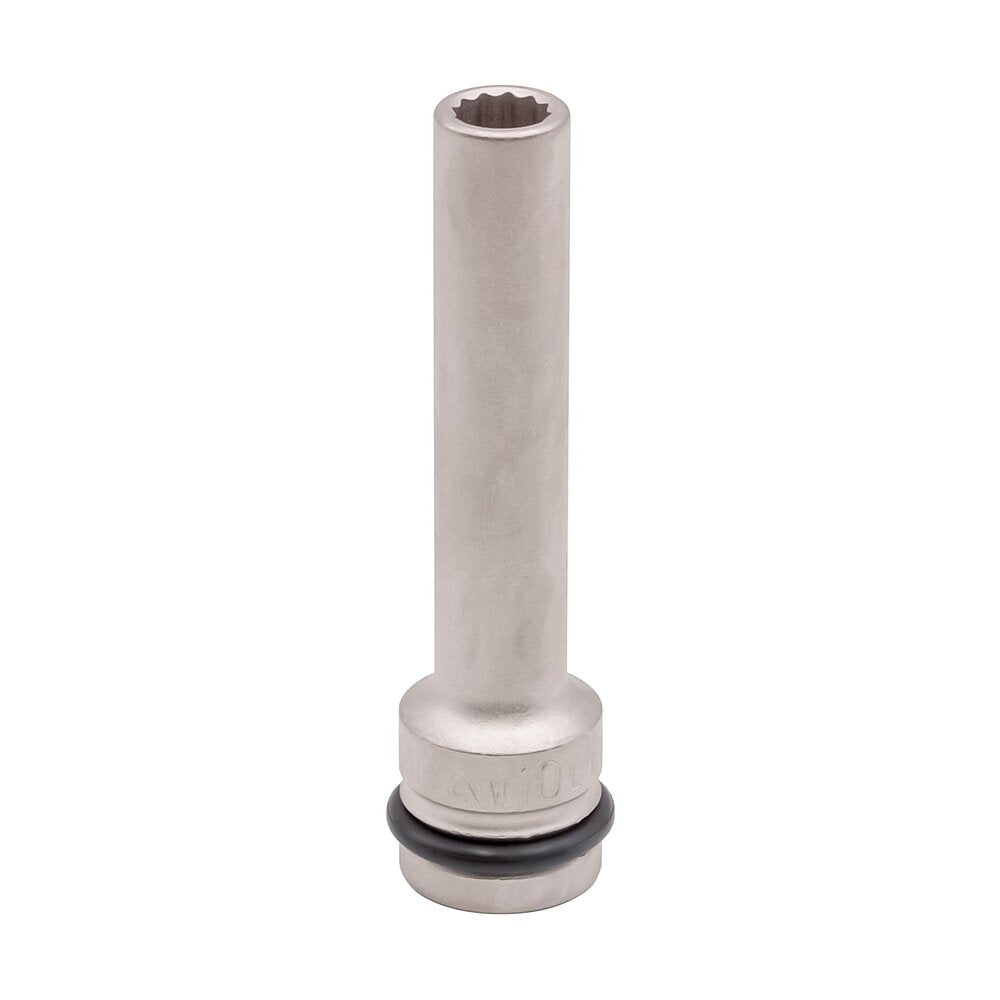

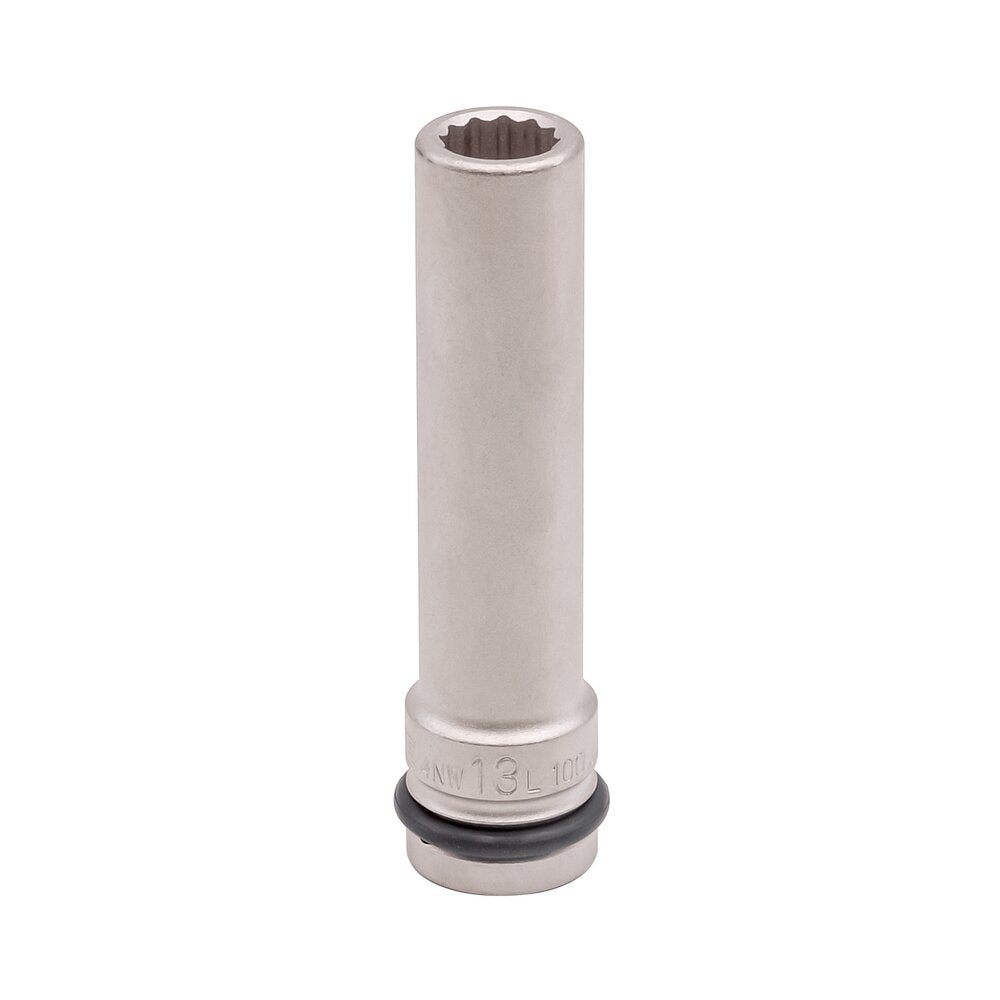

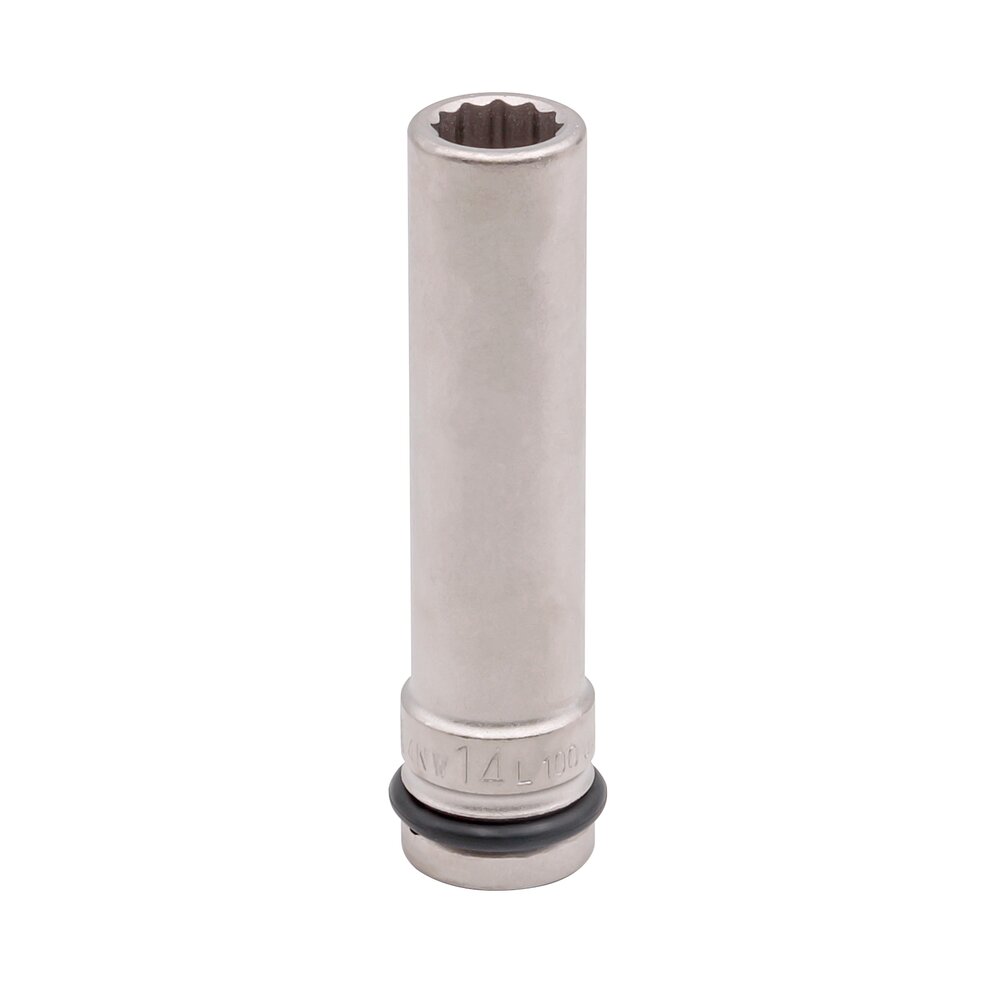

TONE Long Impact Socket (12-Point, 1/2" Drive) 4NW-L100 Series
Sale price
$21.85
Regular price
$23.00
Lifetime Warranty Included
Description
An extra-long impact socket with an electroless-plated finish for better appearance and rust resistance. The O-ring parking groove lets you park the O-ring temporarily while fitting or removing the socket on the wrench, making the job easier.
Application: For tightening and loosening bolts and nuts.
Strong Drive 12-point profile. Patented.
Specifications
| Part Number | 4NW-10L100 to 4NW-17L100 |
|---|---|
| Drive size | 12.7 mm (1/2") |
| Tip type | 12-point |
| Size system | Metric |
| Replacement pin | P3020S |
| Replacement O-ring | RP20S |
| Finish | Electroless plating |
| Material | Structural steel |
Sizes

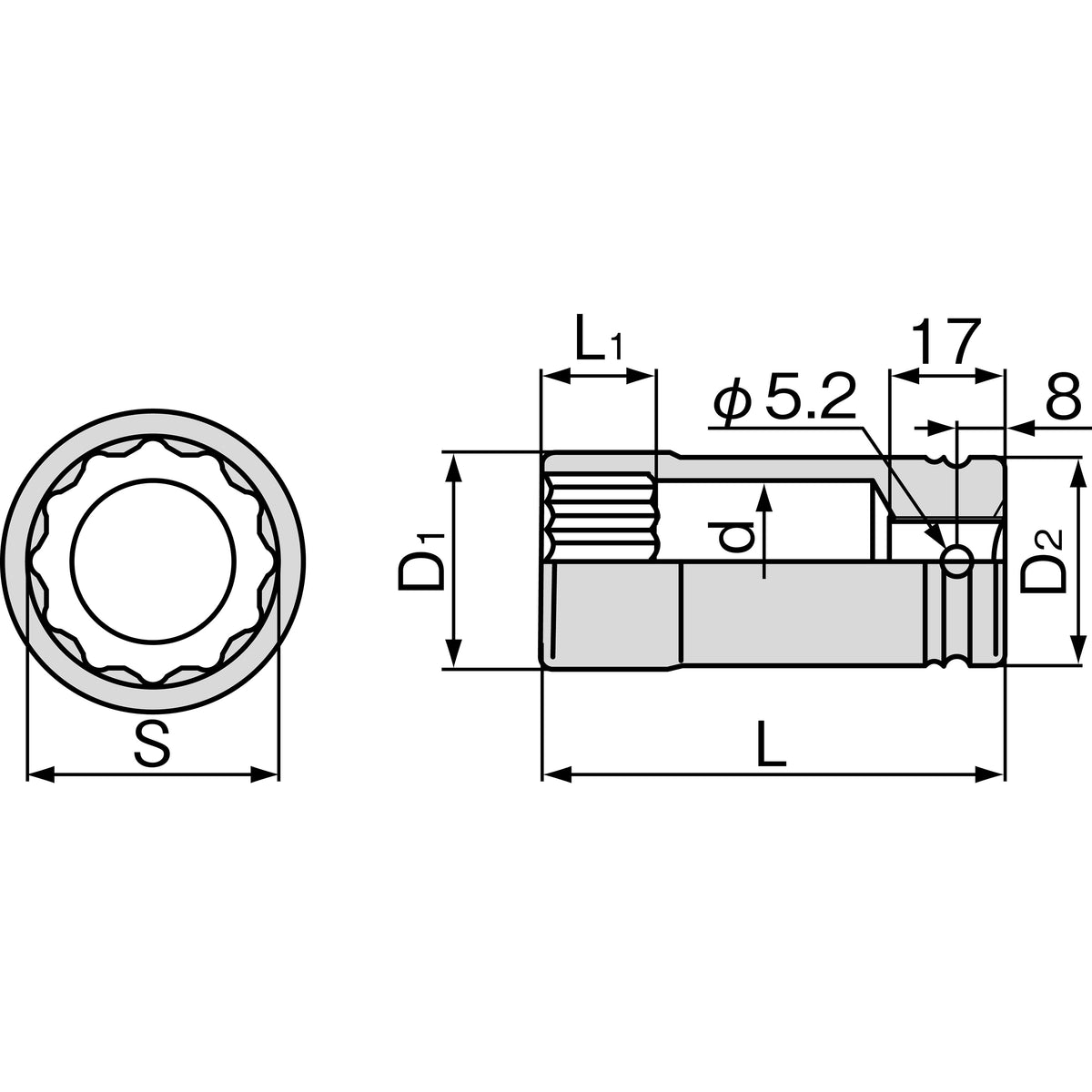

| Part Number | Size | Weight (g) | W × D × H (mm) |
|---|---|---|---|
| 4NW-10L100 | 10 mm | 130 | 25 × 25 × 100 |
| 4NW-12L100 | 12 mm | 150 | 25 × 25 × 100 |
| 4NW-13L100 | 13 mm | 150 | 25 × 25 × 100 |
| 4NW-14L100 | 14 mm | 160 | 25 × 25 × 100 |
| 4NW-16L100 | 16 mm | 160 | 25 × 25 × 100 |
| 4NW-17L100 | 17 mm | 180 | 26 × 26 × 100 |
Notes
Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
