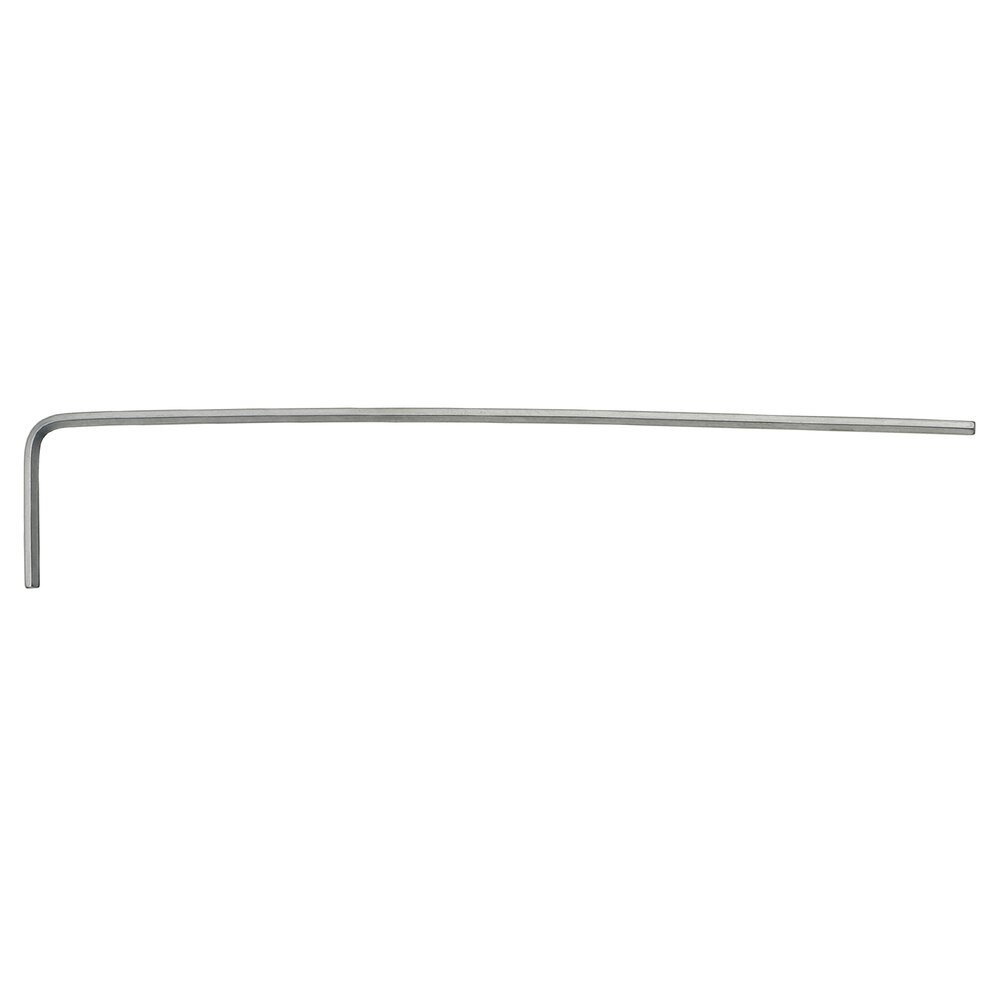

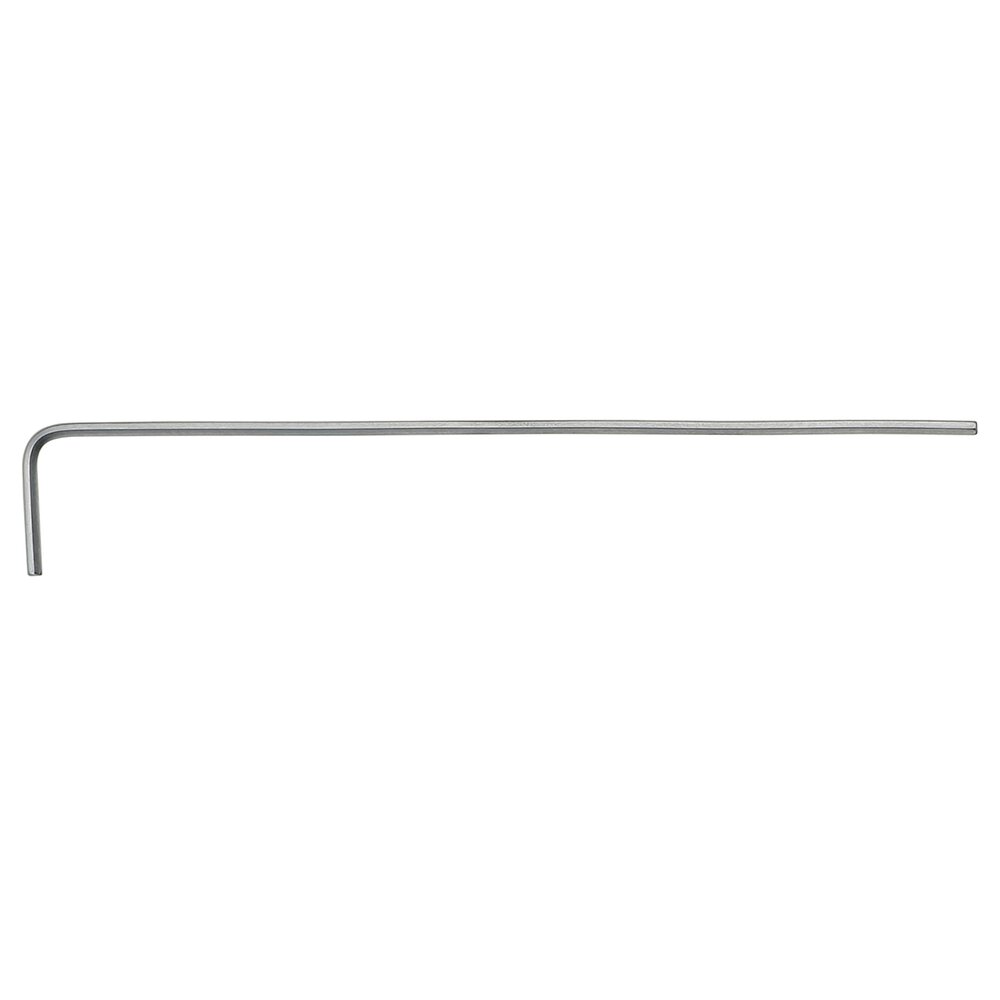

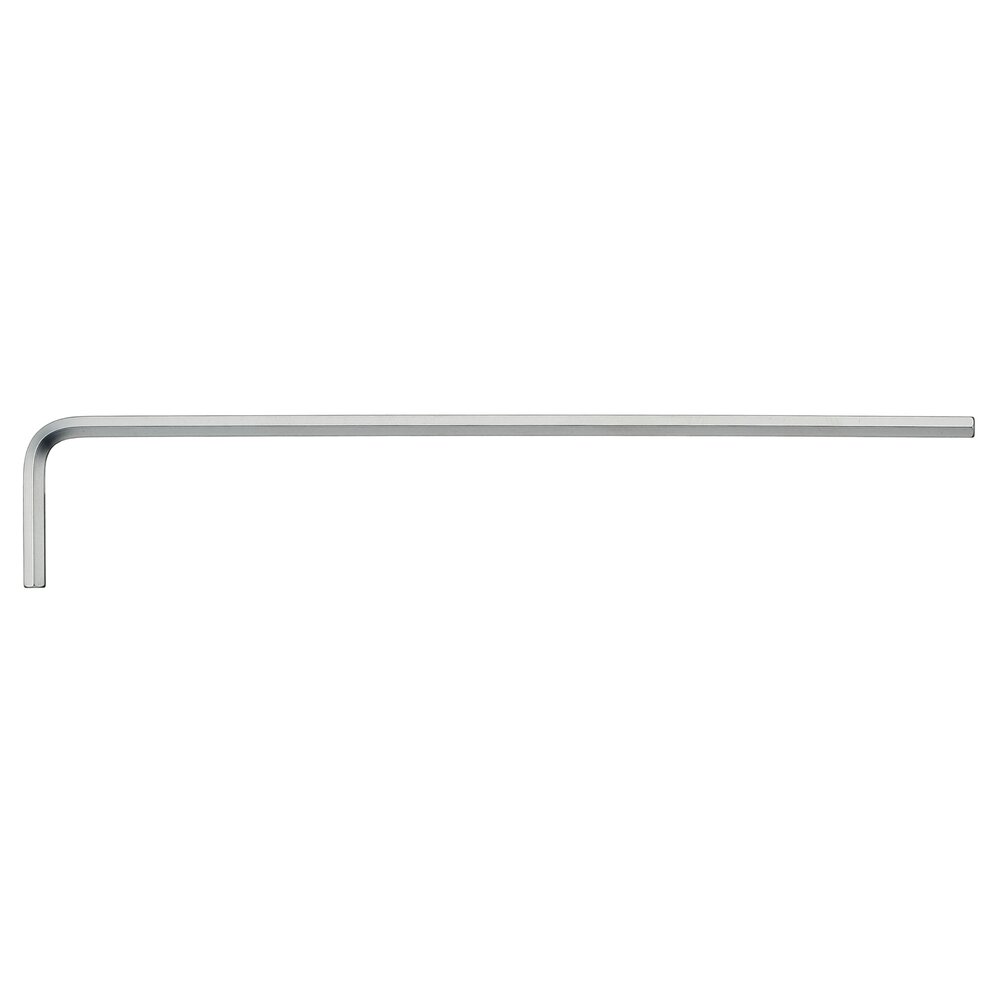

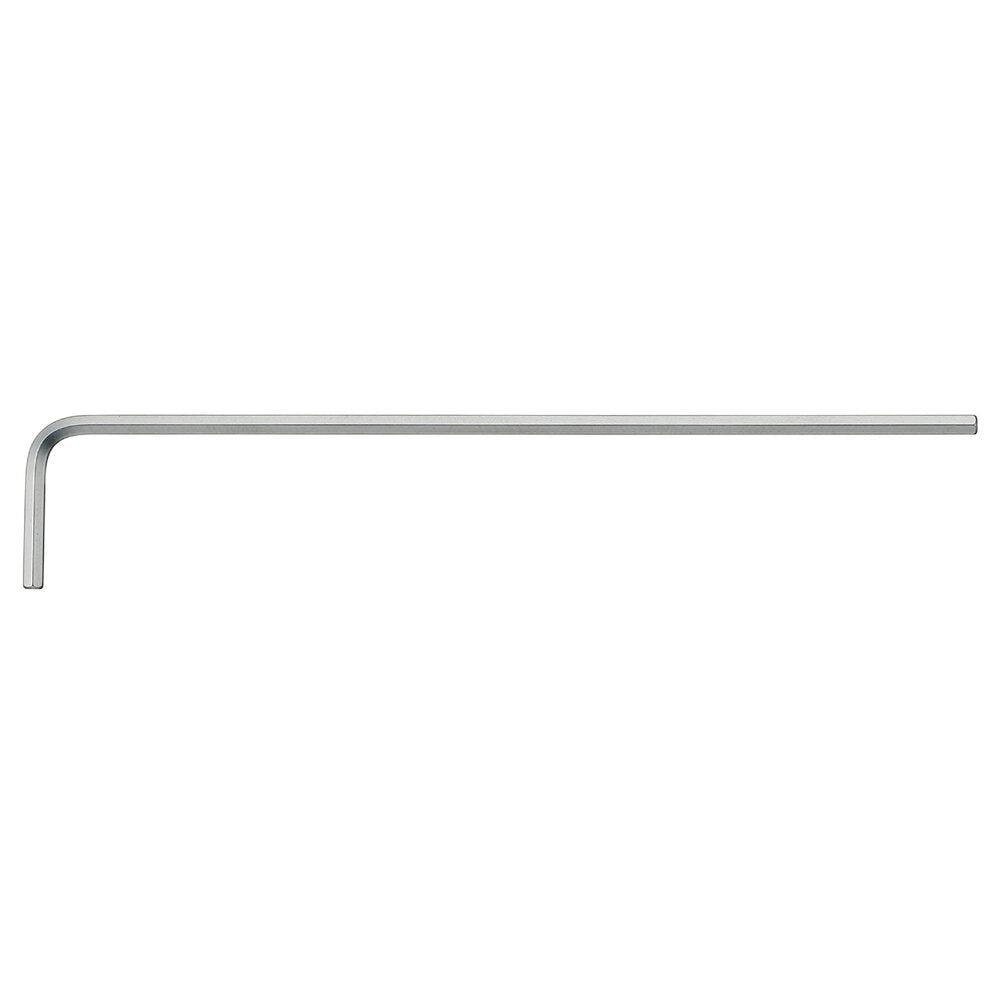

TONE Long Hex Key Wrench L-Type AL Series

Made from a special alloy steel for higher torque, durability and wear resistance.

Application: For tightening and loosening socket-head cap screws.

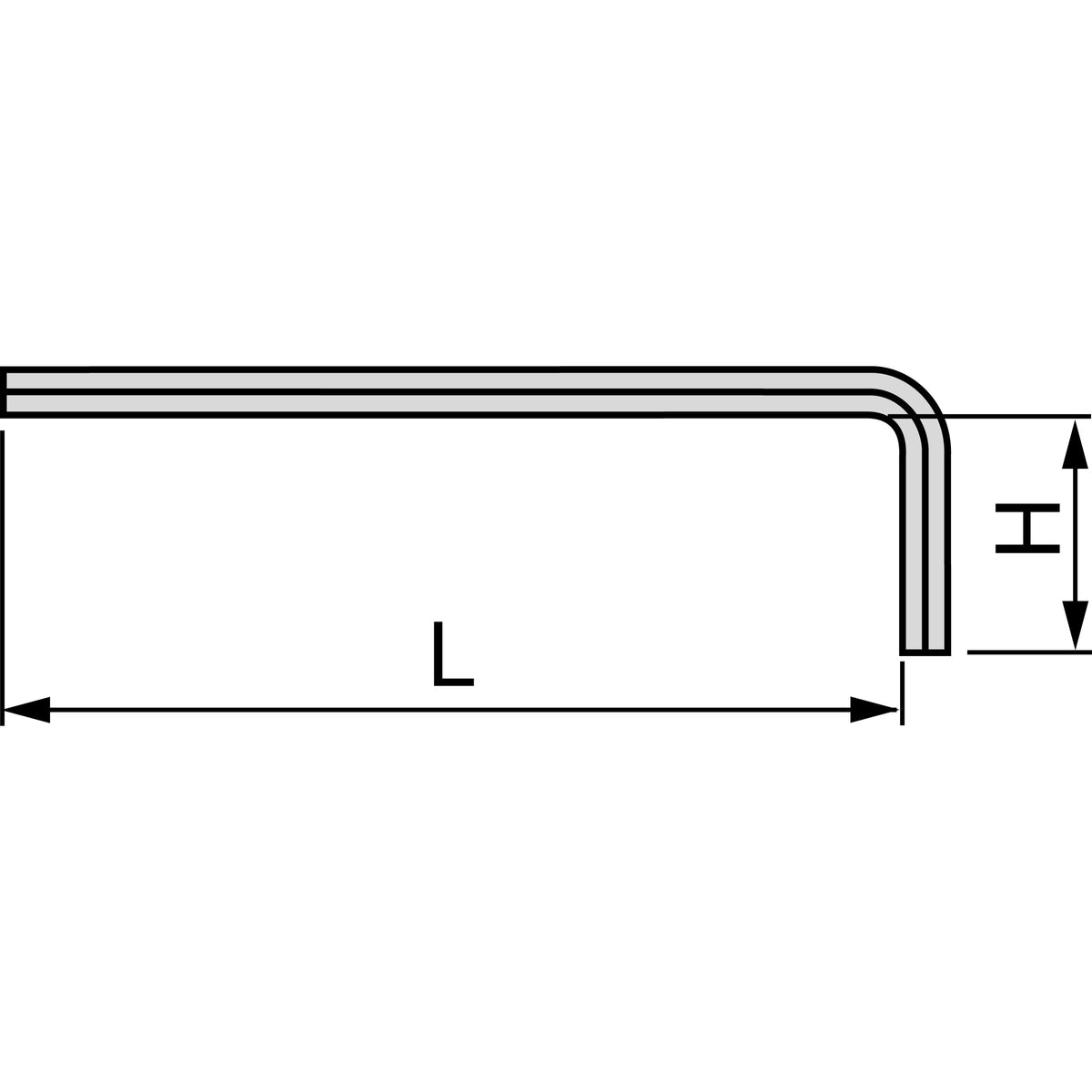

Part Number	Size	Weight (g)	W × D × H (mm)
AL-0.71	0.71 mm	0.2	49 × 7.3 × 0.71
AL-0.89	0.89 mm	0.4	59 × 10.1 × 0.89
AL-1.27	1.27 mm	0.8	69 × 11.7 × 1.27
AL-1.5	1.5 mm	1	81 × 14 × 1.5
AL-02	2 mm	3	96 × 16 × 2
AL-2.5	2.5 mm	5	111 × 18 × 2.5
AL-03	3 mm	9	127 × 20 × 3
AL-04	4 mm	18	142 × 25 × 4
AL-05	5 mm	30	160 × 28 × 5
AL-06	6 mm	50	180 × 32 × 6
AL-08	8 mm	100	198 × 36 × 8
AL-10	10 mm	175	225 × 40 × 10
AL-12	12 mm	290	238 × 45 × 12
AL-14	14 mm	460	266 × 56 × 14

Do not strike with a hammer or apply impact.
