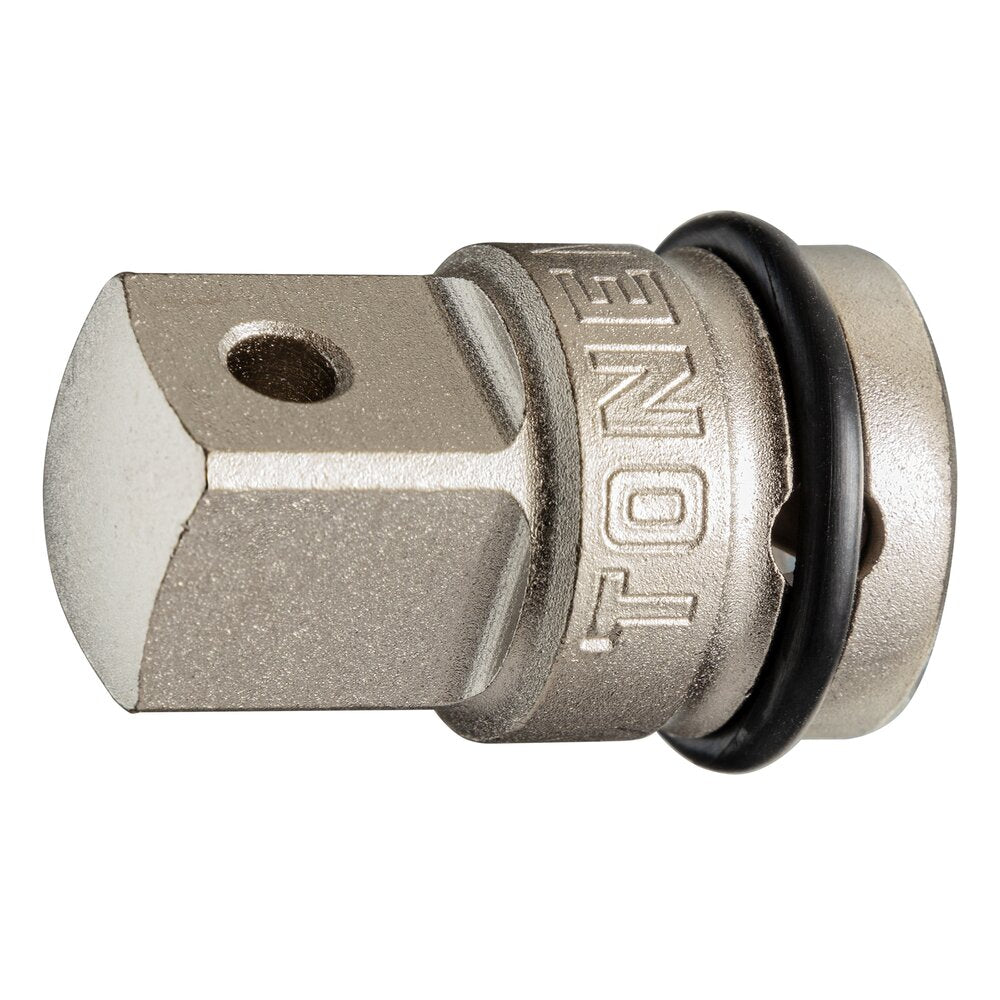

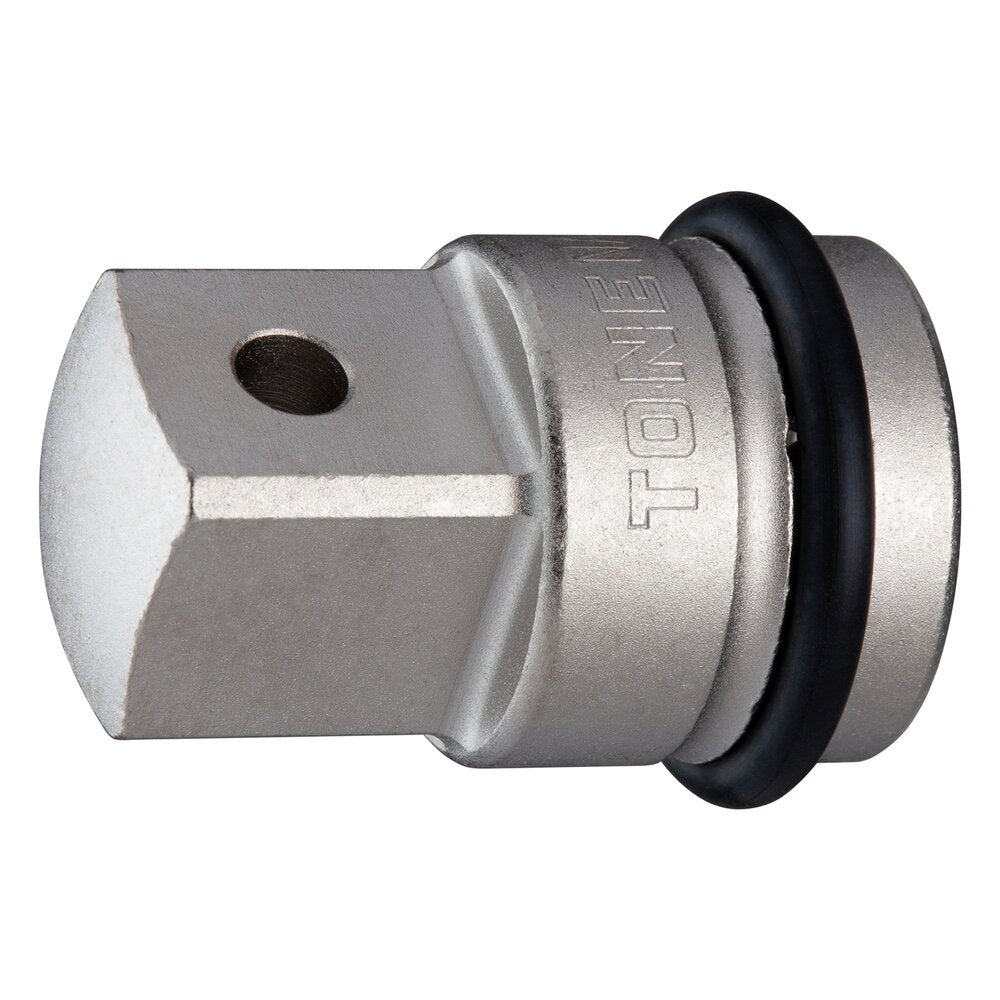

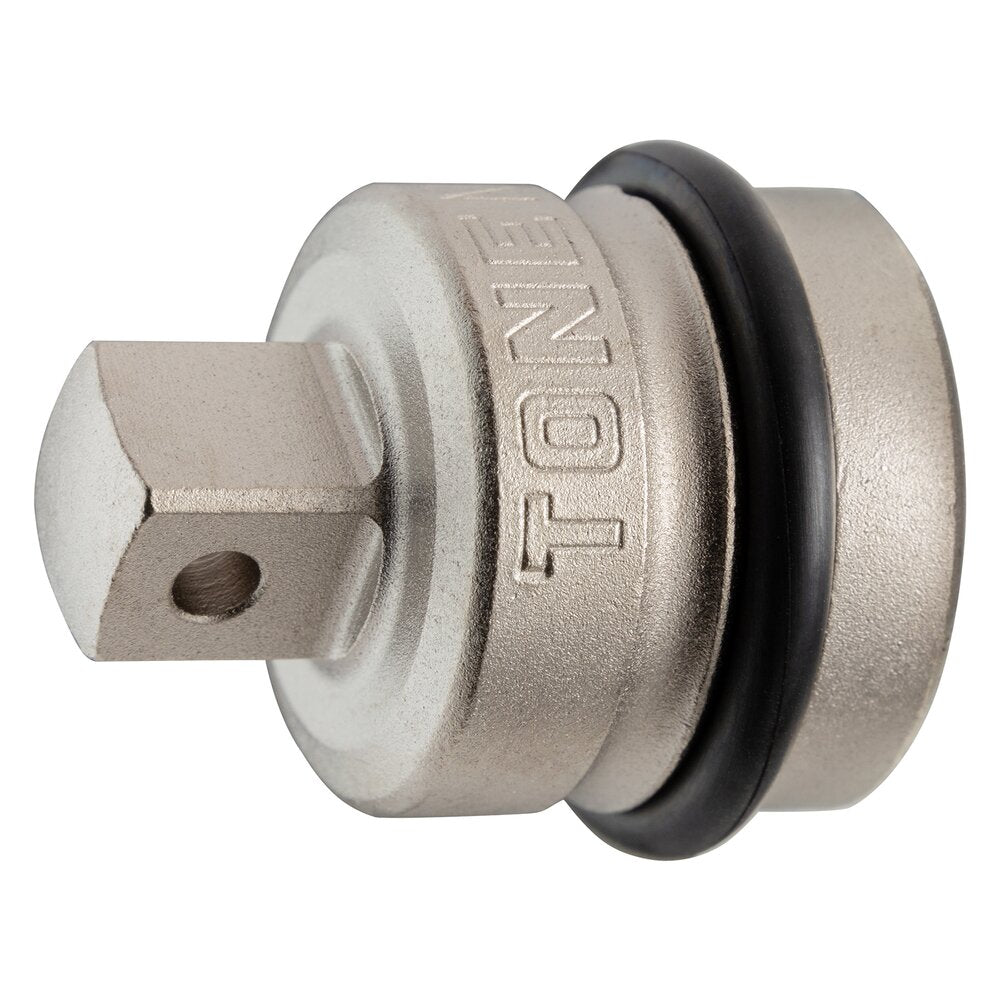

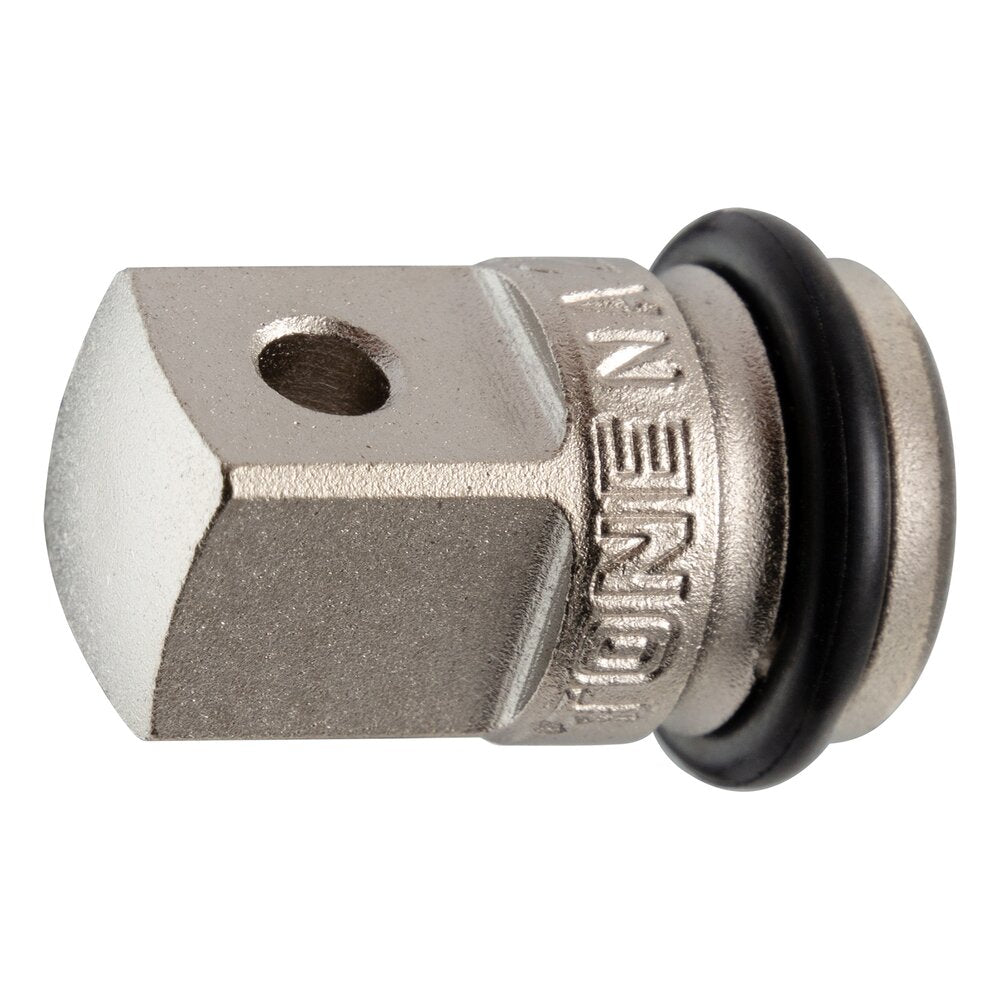

TONE Impact Socket Adaptor NA Series
Sale price
$20.24
Regular price
$21.30
Lifetime Warranty Included
Description
An adapter for connecting a socket and a handle with different drive sizes. Electroless-plated finish for better appearance and rust resistance.
Application: Connects a socket and a handle with different drive sizes.
Specifications
| Part Number | NA23 to NA128 |
|---|---|
| Tip type | Square drive (pin & O-ring) |
| Finish | Electroless plating |
| Material | Structural steel |
Sizes

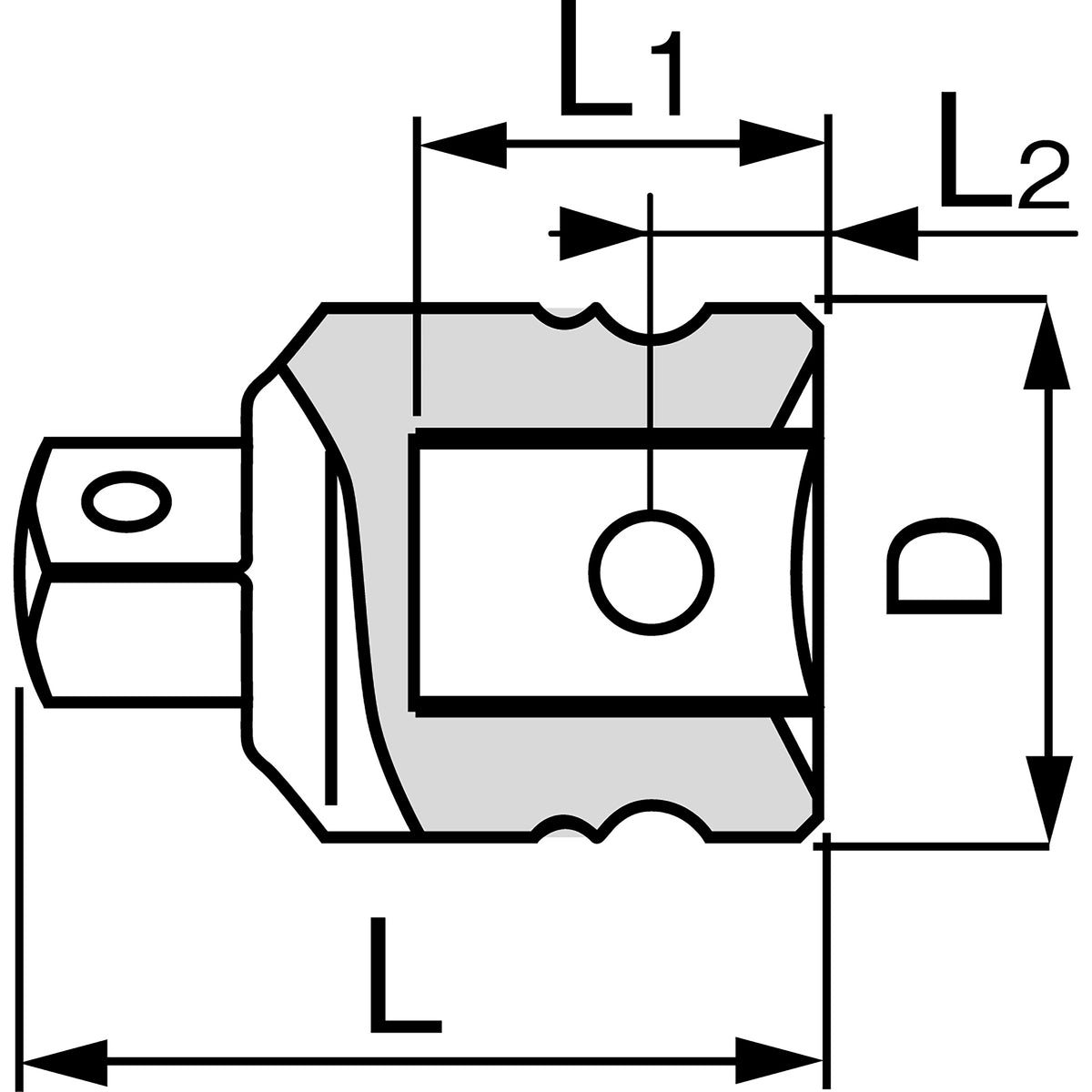

| Part Number | Drive | Drive size | Output drive | Replacement pin | Replacement O-ring | Weight (g) | W × D × H (mm) |
|---|---|---|---|---|---|---|---|
| NA23 | 1/4" F × 3/8" M | 6.35 mm (1/4") | 9.5 mm (3/8") | P2009S | RINGP10AS | 15 | 13 × 13 × 22 |
| NA34 | 3/8" F × 1/2" M | 9.5 mm (3/8") | 12.7 mm (1/2") | P3016S | RINGP16S | 50 | 19 × 19 × 32 |
| NA43 | 1/2" F × 3/8" M | 12.7 mm (1/2") | 9.5 mm (3/8") | P3020S | RP20S | 80 | 25 × 25 × 33 |

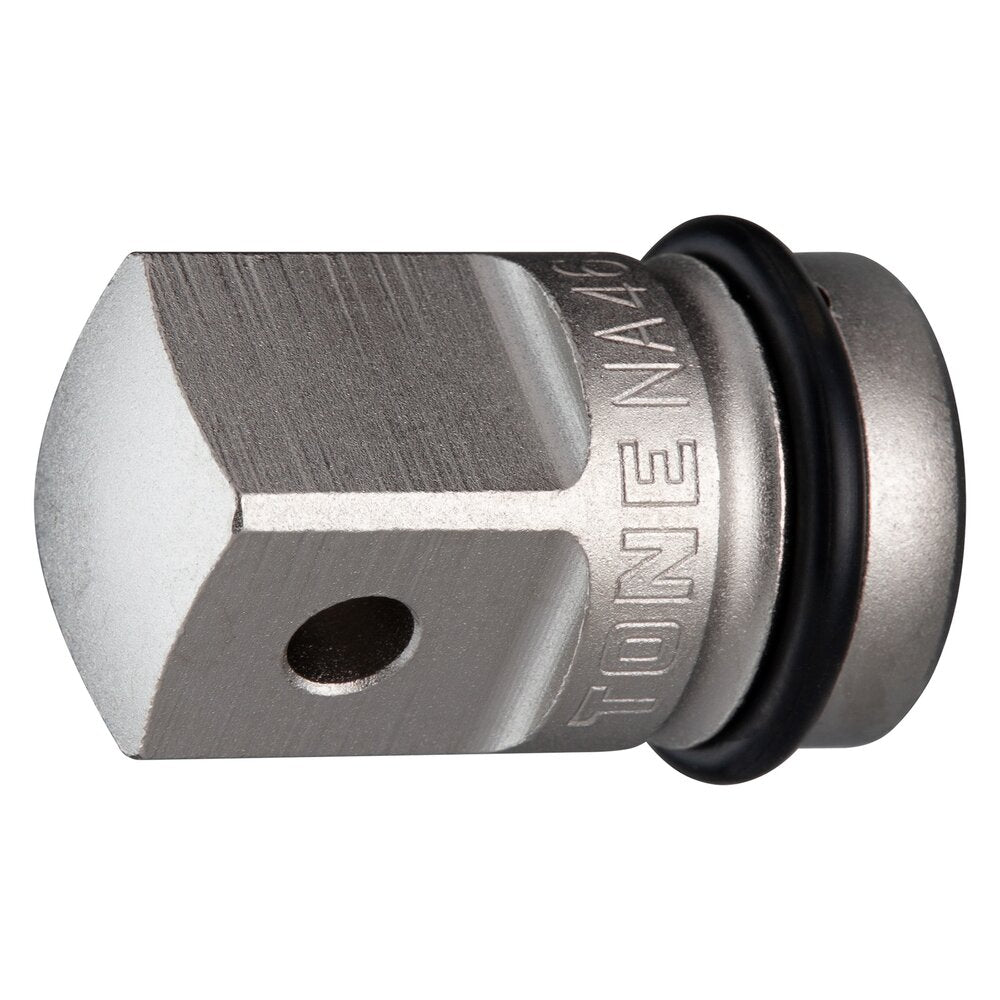

| NA46 | 1/2" F × 3/4" M | 12.7 mm (1/2") | 19.0 mm (3/4") | P3020S | RP20S | 110 | 25 × 25 × 42 |

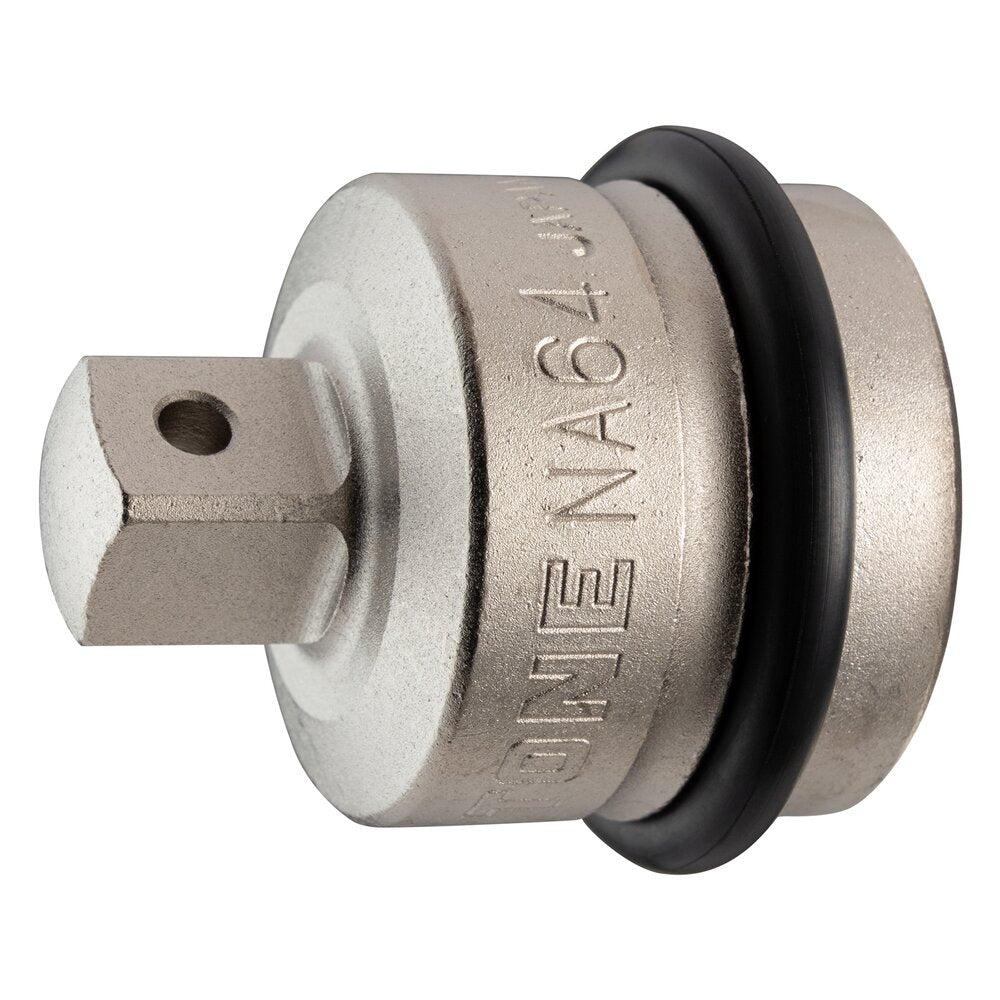

| NA64 | 3/4" F × 1/2" M | 19.0 mm (3/4") | 12.7 mm (1/2") | P4033S | RAS322S | 216 | 38 × 38 × 48 |
| NA68 | 3/4" F × 1" M | 19.0 mm (3/4") | 25.4 mm (1") | P4033S | RAS322S | 330 | 38 × 38 × 60 |
| NA86 | 1" F × 3/4" M | 25.4 mm (1") | 19.0 mm (3/4") | P4040S | RAS326S | 380 | 48 × 48 × 62 |
| NA812 | 1" F × 1-1/2" M | 25.4 mm (1") | 38.1 mm (1-1/2") | P4040S | RAS326S | 825 | 49 × 49 × 80 |
| NA128 | 1-1/2" F × 1" M | 38.1 mm (1-1/2") | 25.4 mm (1") | P4064 | RP60 | 1395 | 71 × 71 × 83.5 |
Notes
Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
