TONE Impact Socket (6-Point, 1/2" Drive) 4NV Series

An impact socket with an electroless-plated finish for better appearance and rust resistance. The O-ring parking groove lets you park the O-ring temporarily while fitting or removing the socket on the wrench, making the job easier.

Application: For tightening and loosening bolts and nuts.

Strong Drive 6-point profile. Patented.

Specifications

Part Number	4NV-08 to 4NV-36
Drive size	12.7 mm (1/2")
Tip type	6-point
Size system	Metric
Replacement pin	P3020S
Replacement O-ring	RP20S
Finish	Electroless plating
Material	Structural steel

Sizes

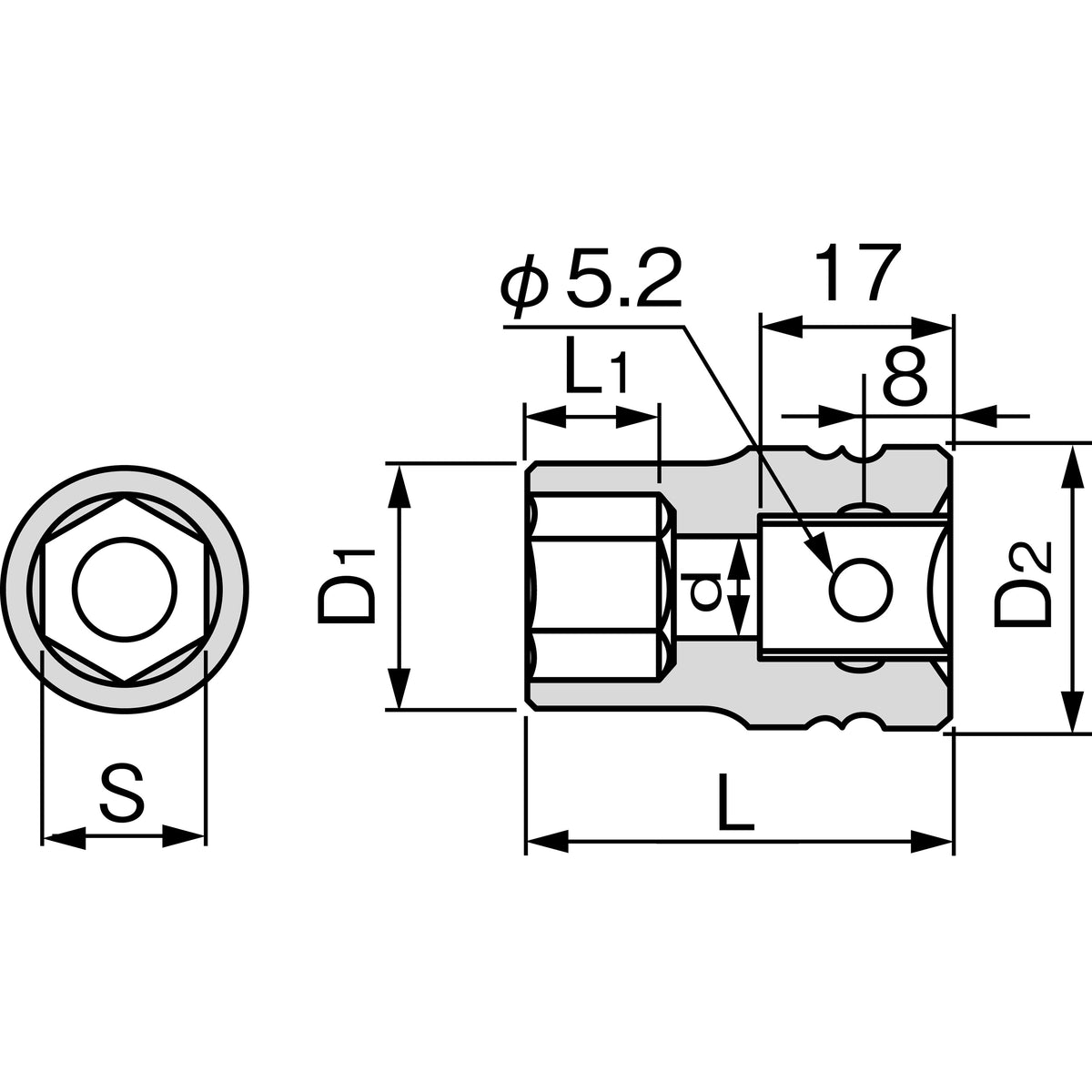

Part Number	Size	Weight (g)	W × D × H (mm)

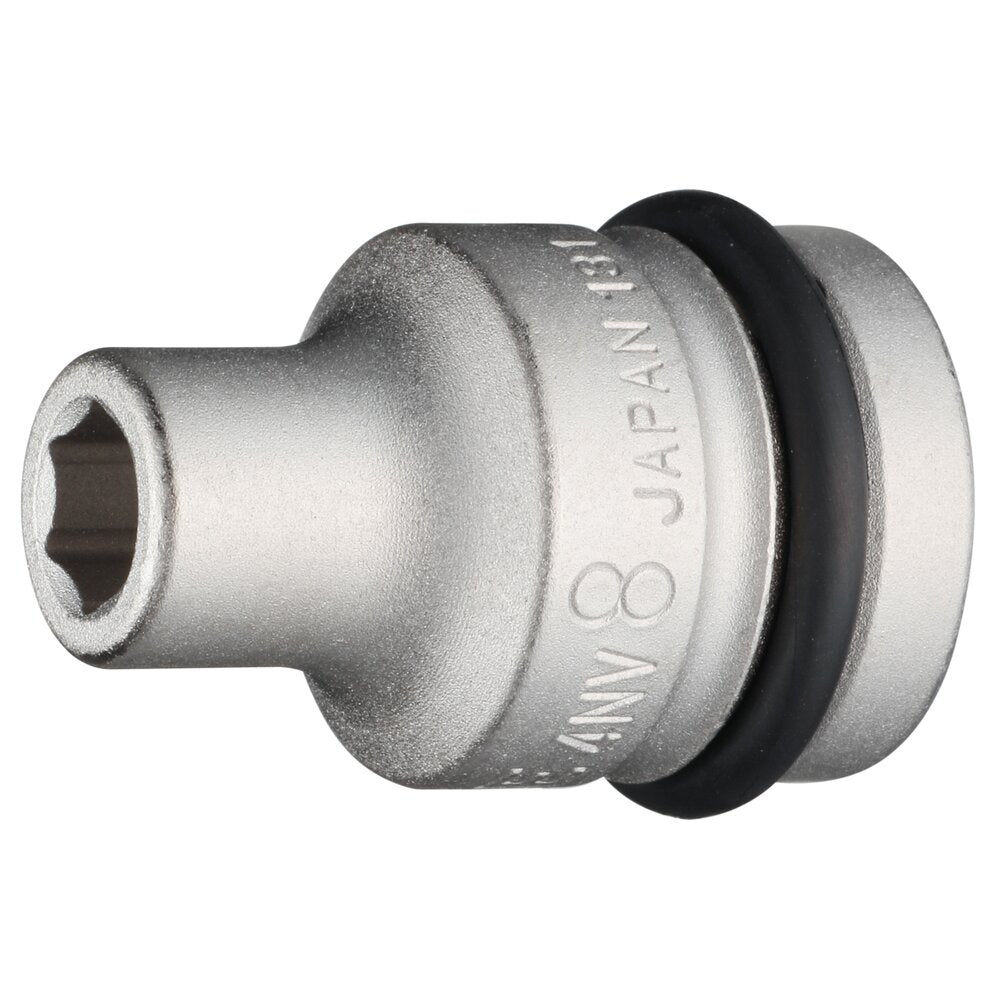

4NV-08	8 mm	64	25 × 25 × 38

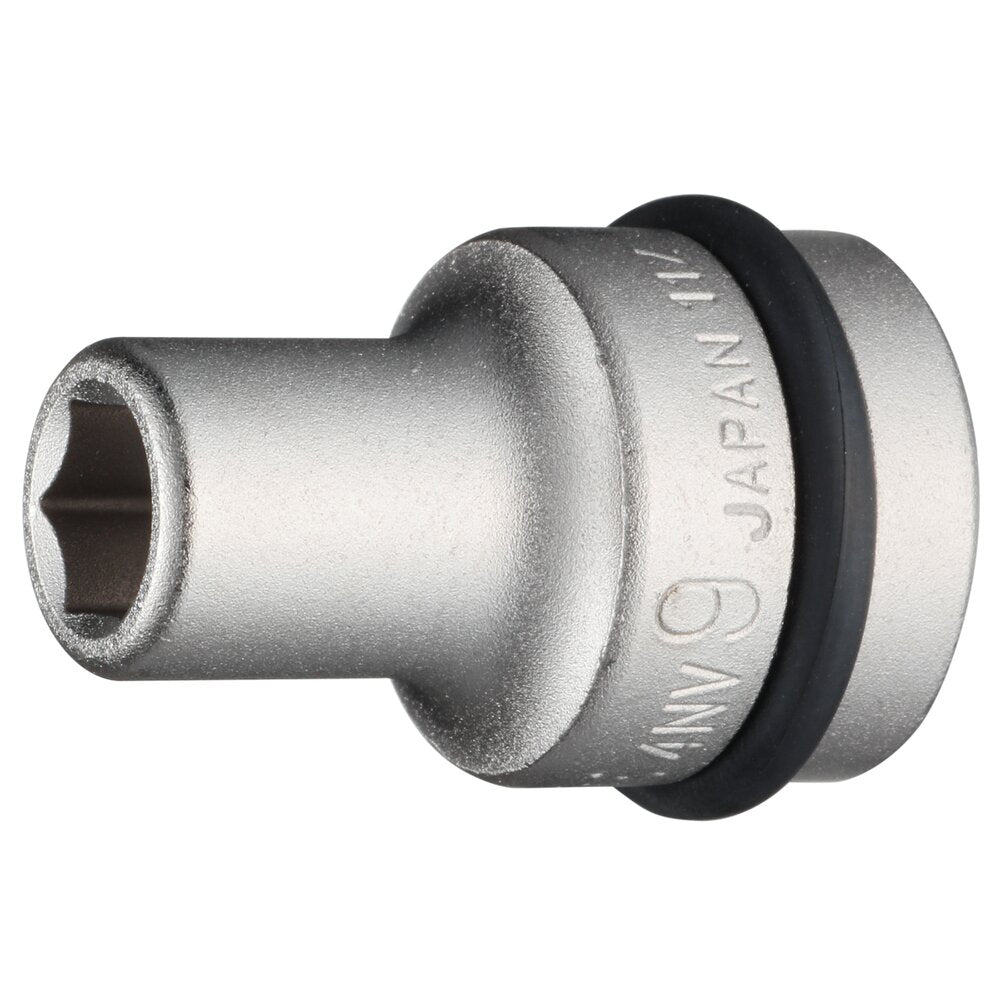

4NV-09	9 mm	66	25 × 25 × 38

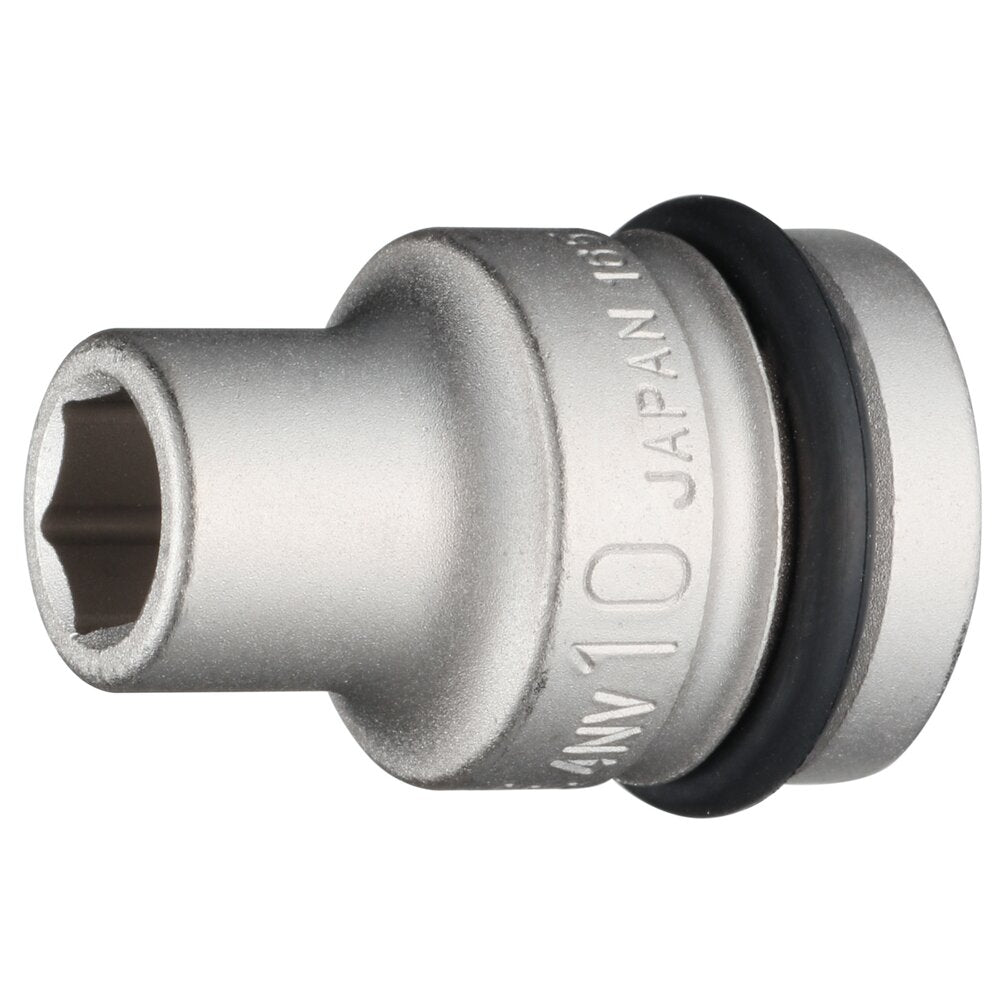

4NV-10	10 mm	67	25 × 25 × 38

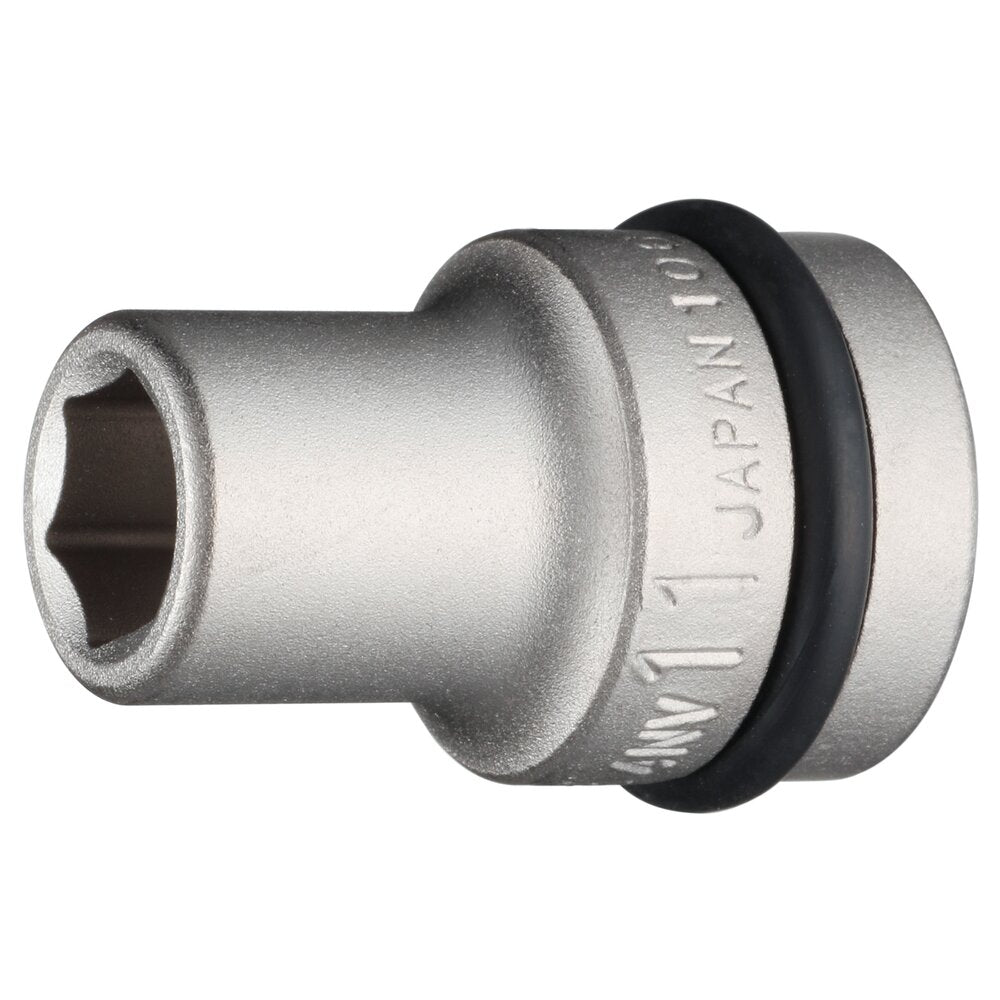

4NV-11	11 mm	71	25 × 25 × 38

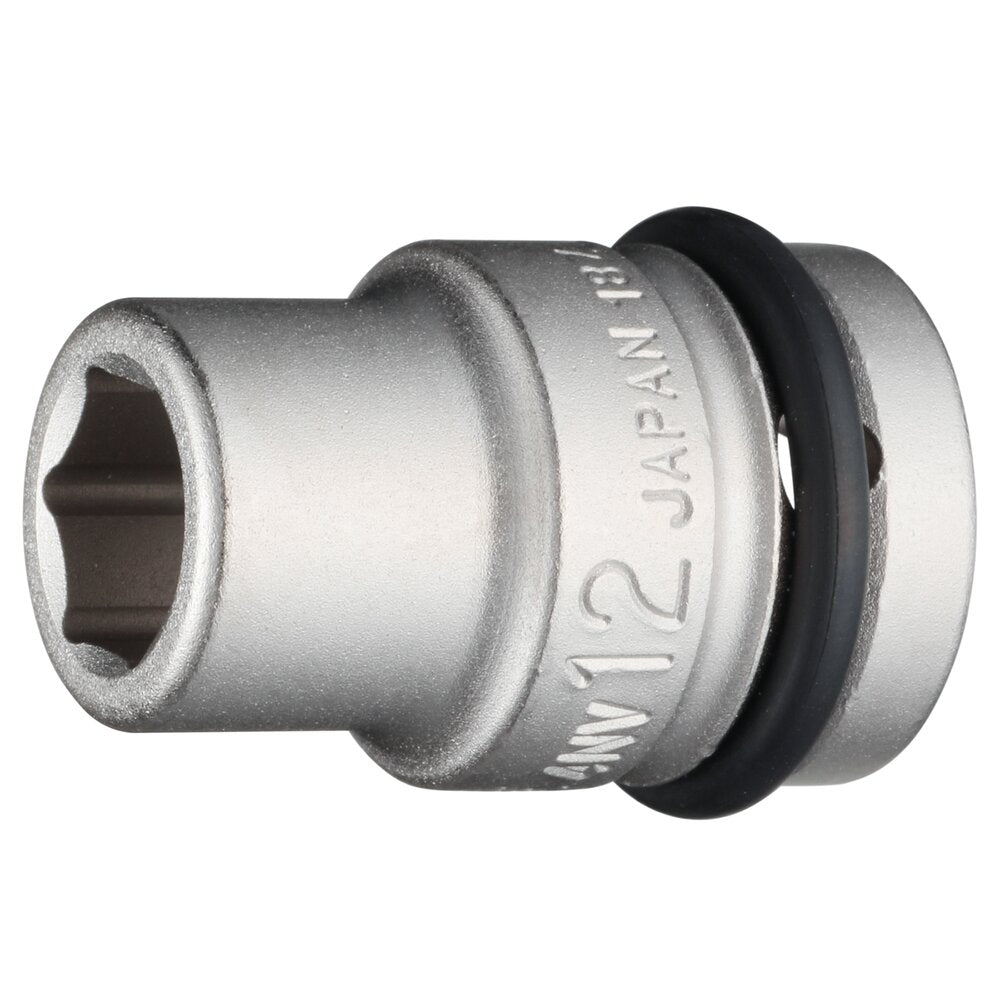

4NV-12	12 mm	76	25 × 25 × 38

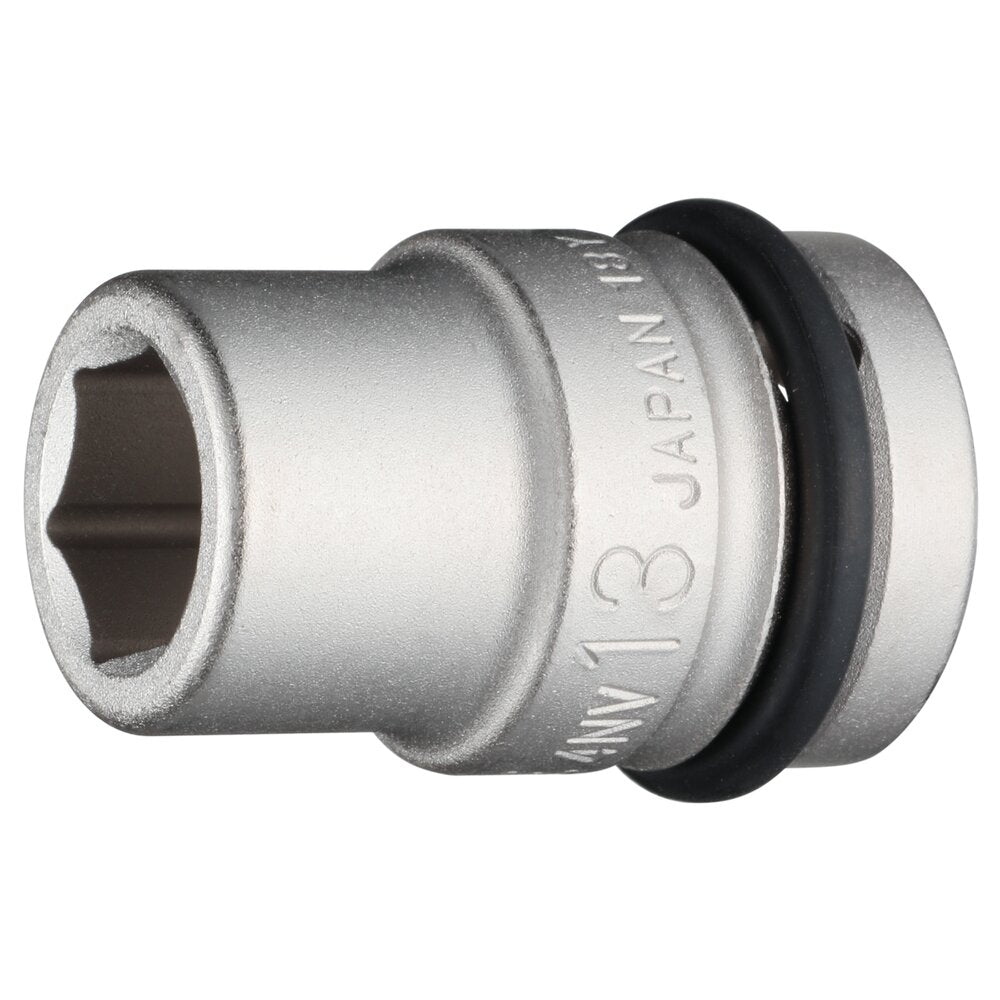

4NV-13	13 mm	82	25 × 25 × 38
4NV-14	14 mm	83	25 × 25 × 38
4NV-15	15 mm	86	25 × 25 × 38
4NV-16	16 mm	85	25 × 25 × 38
4NV-17	17 mm	100	26 × 26 × 38
4NV-18	18 mm	103	27 × 27 × 40
4NV-19	19 mm	112	29 × 29 × 40
4NV-20	20 mm	116	30 × 30 × 40
4NV-21	21 mm	115	31 × 31 × 40
4NV-22	22 mm	119	32 × 32 × 40
4NV-23	23 mm	122	33 × 33 × 40
4NV-24	24 mm	134	35 × 35 × 42
4NV-25	25 mm	151	37 × 37 × 44
4NV-26	26 mm	156	38 × 38 × 44
4NV-27	27 mm	160	39 × 39 × 44
4NV-28	28 mm	172	40 × 40 × 45
4NV-29	29 mm	171	41 × 41 × 45
4NV-30	30 mm	176	42 × 42 × 46
4NV-32	32 mm	201	45 × 45 × 46
4NV-33	33 mm	207	46 × 46 × 48
4NV-34	34 mm	217	47 × 47 × 48
4NV-35	35 mm	225	48.5 × 48.5 × 48
4NV-36	36 mm	258	50 × 50 × 51

Notes

Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.

Warranty: The TONE lifetime warranty applies to hand tools only.
