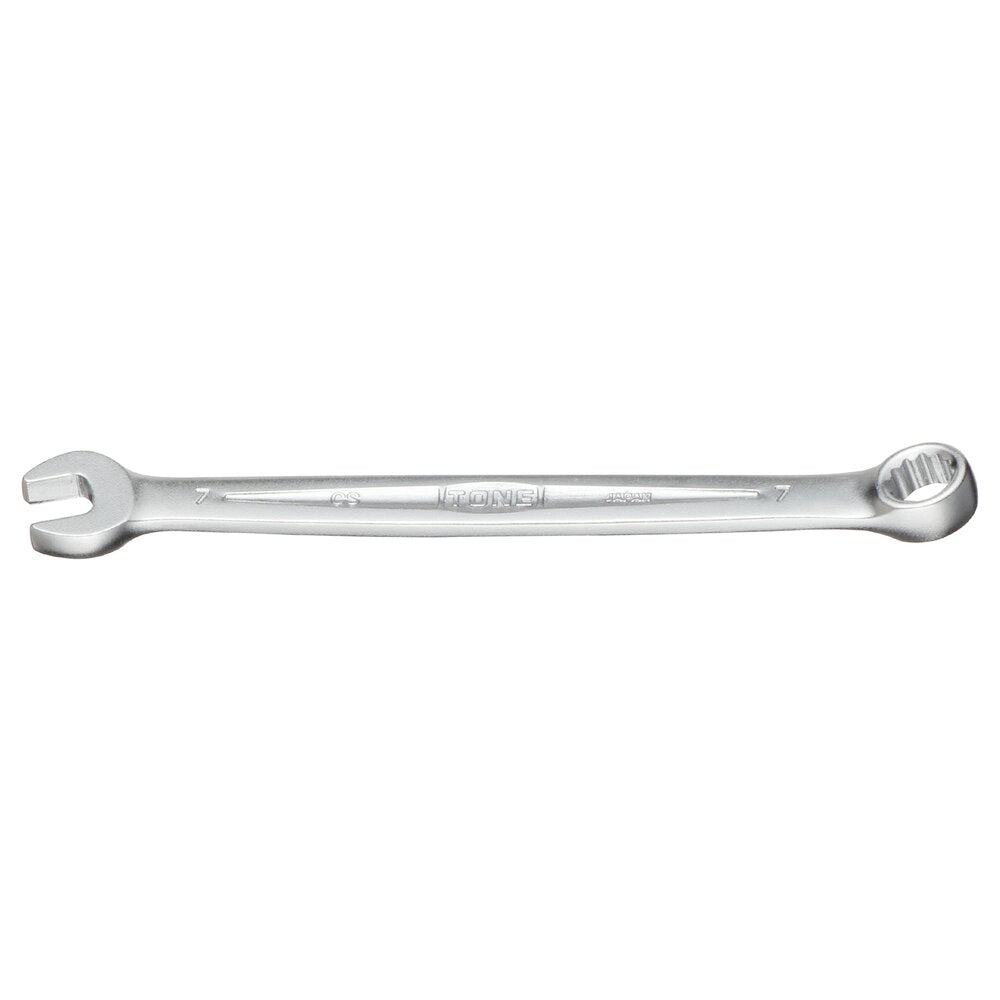

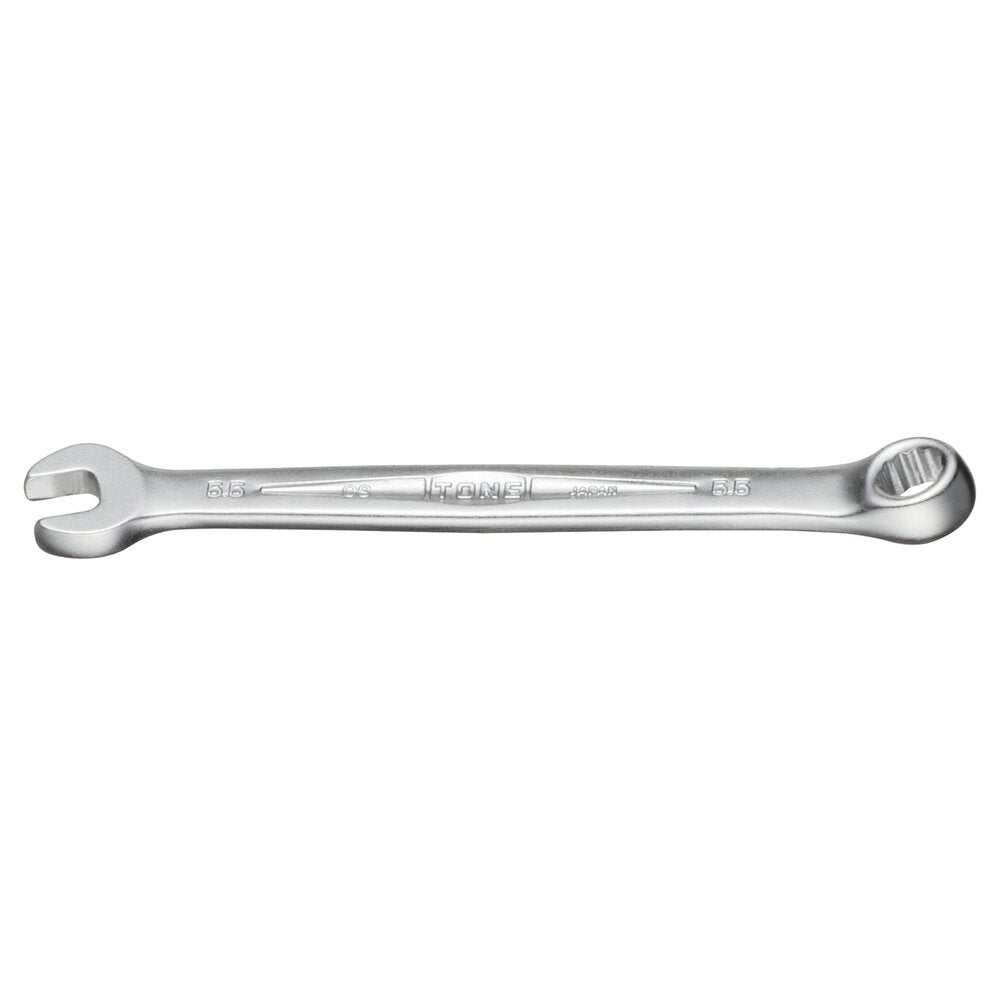

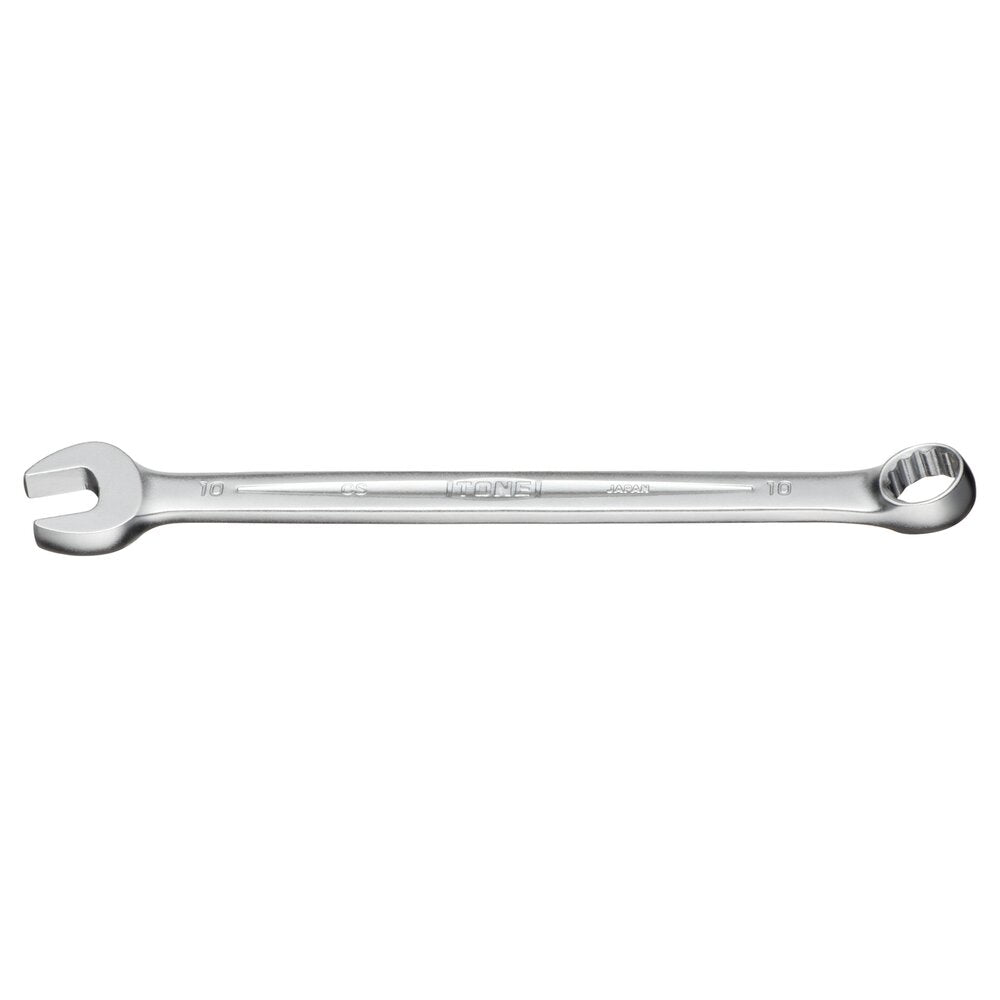

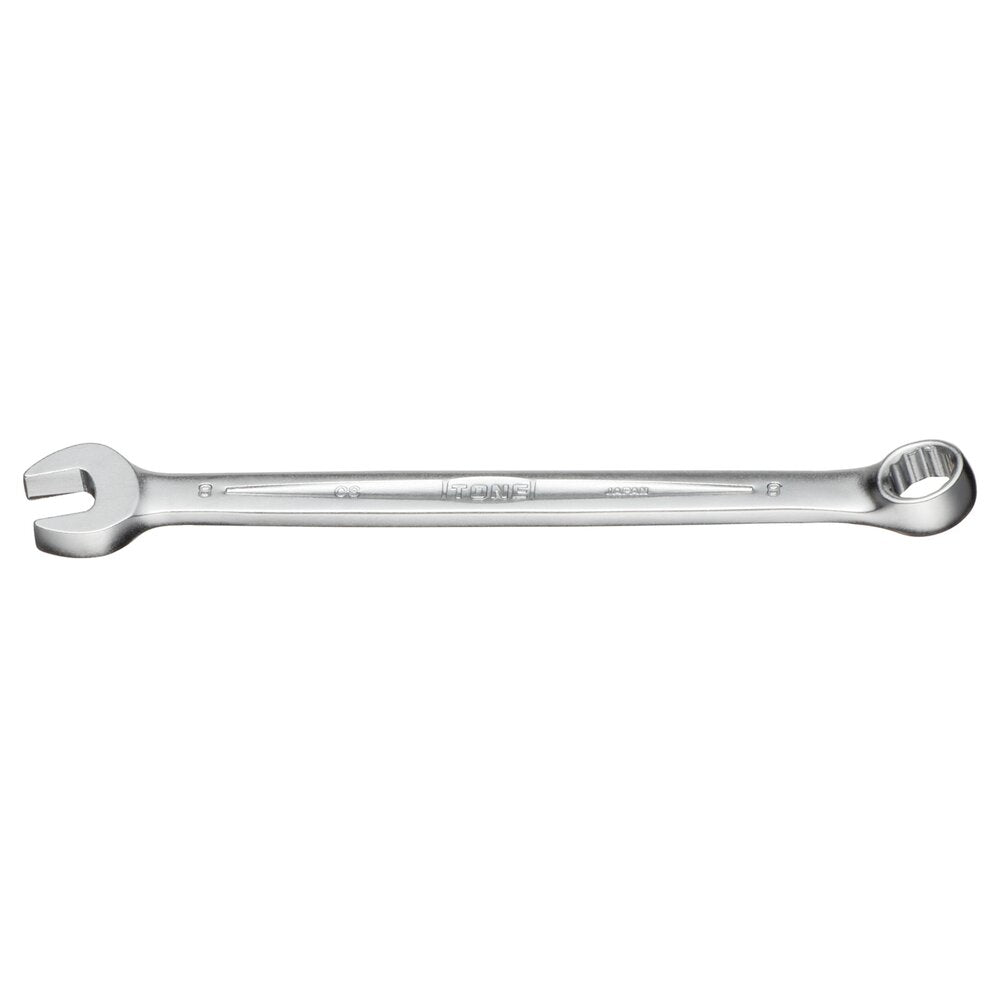

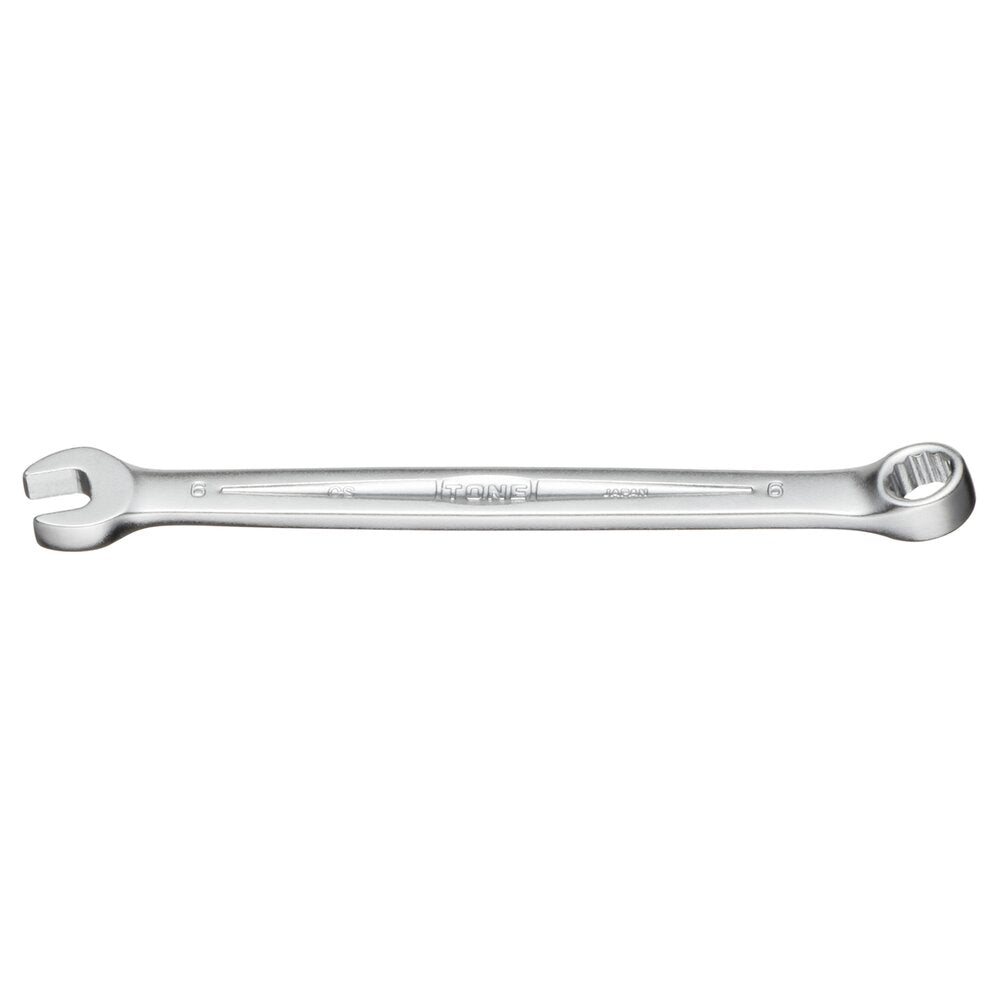

TONE Combination Wrench CS Series

Combines the speed of an open-end spanner with the strength of a box-end wrench. Snug with the open end and do the final tightening with the box end: one tool, two jobs.

Application: For tightening and loosening hex bolts and nuts.

Specifications

Part Number	CS-5.5 to CS-50
Tip type	Open end, 12-point box end
Size system	Metric
Finish	Satin finish
Material	Structural steel

Sizes

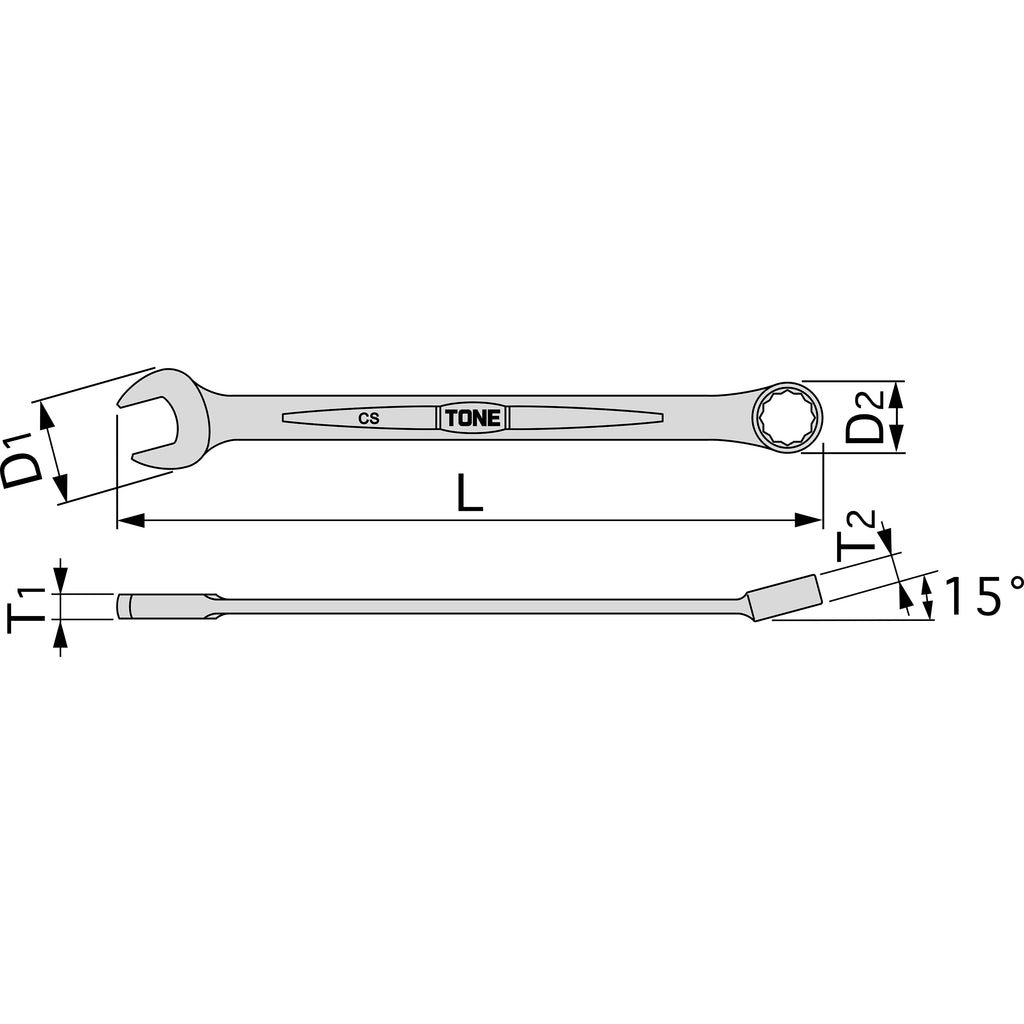

Part Number	Size	Weight (g)	W × D × H (mm)
CS-5.5	5.5 mm	11	88 × 12 × 5.5
CS-06	6 mm	12	101 × 12 × 5
CS-07	7 mm	19	113 × 15 × 5.5
CS-08	8 mm	26	126 × 17 × 6
CS-09	9 mm	33	138 × 19 × 6.5
CS-10	10 mm	41	151 × 21 × 6.5
CS-11	11 mm	54	164 × 23 × 7
CS-12	12 mm	71	176 × 25 × 7.5
CS-13	13 mm	83	189 × 27 × 8
CS-14	14 mm	106	201 × 28.5 × 8.5
CS-15	15 mm	117	214 × 31 × 9
CS-16	16 mm	131	227 × 33 × 9.5
CS-17	17 mm	145	239 × 35 × 9.5
CS-18	18 mm	177	252 × 37 × 10.5
CS-19	19 mm	182	264 × 39 × 10.5
CS-20	20 mm	222	277 × 41 × 11.5
CS-21	21 mm	242	290 × 43 × 11.5
CS-22	22 mm	253	302 × 45 × 12
CS-23	23 mm	288	315 × 47 × 13
CS-24	24 mm	304	327 × 49 × 13.5
CS-25	25 mm	382	340 × 52 × 14
CS-26	26 mm	370	353 × 52 × 14
CS-27	27 mm	431	365 × 55.5 × 15
CS-28	28 mm	494	378 × 57.5 × 17
CS-29	29 mm	591	390 × 60 × 18.5
CS-30	30 mm	639	403 × 60 × 18.5
CS-32	32 mm	744	428 × 65 × 18.5
CS-33	33 mm	784	441 × 67.5 × 19
CS-34	34 mm	841	453 × 69.5 × 19
CS-35	35 mm	1016	466 × 72 × 20
CS-36	36 mm	1044	479 × 73 × 20
CS-38	38 mm	1232	504 × 77 × 22
CS-41	41 mm	1404	542 × 84 × 22
CS-46	46 mm	1996	605 × 94 × 24
CS-50	50 mm	2648	605 × 98 × 26

Notes

Use the size that matches the bolt or nut. Do not add a pipe or other extension to the handle. Do not strike with a hammer or apply impact.
