TONE Adaptor for Gear Wrench RA Series
Sale price
$6.65
Regular price
$7.00
Lifetime Warranty Included
Description
Simply fit it to a ratchet ring wrench to drive sockets and similar.

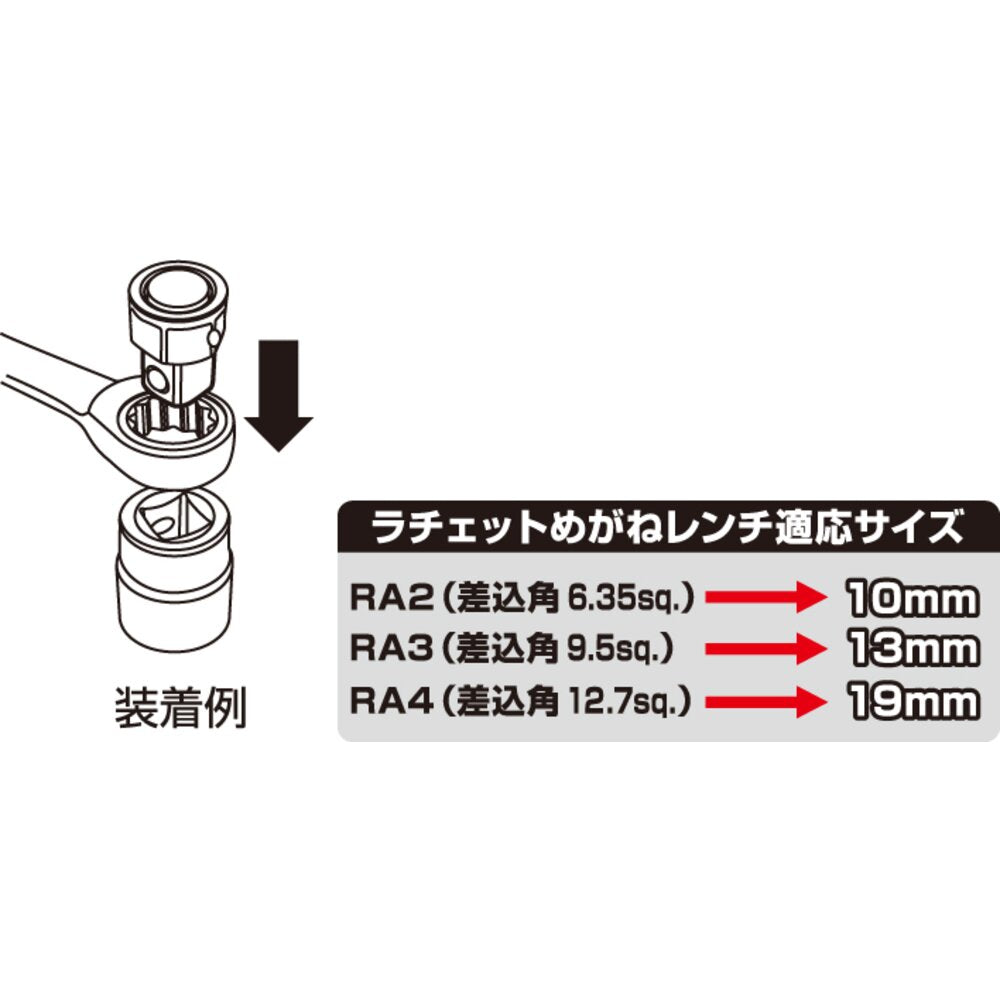

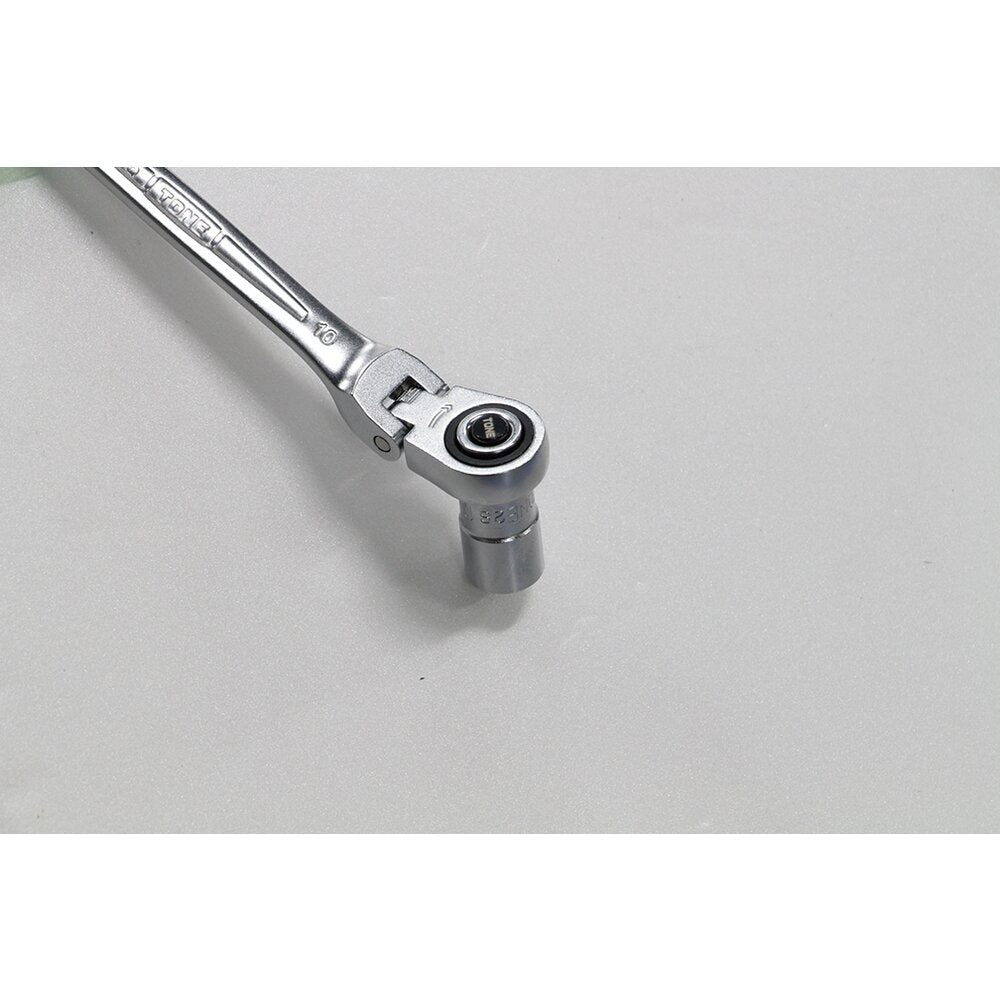

Application: Fit to a ratchet ring wrench so it can drive sockets.
Cannot be fitted to the extra-long flex-head ratchet ring wrench, the 75° double-ended ratchet ring wrench or the 4-way ratchet ring wrench.
Specifications
| Part Number | RA2 to RA4 |
|---|---|
| Tip type | Square drive |
| Material | Structural steel |
Sizes

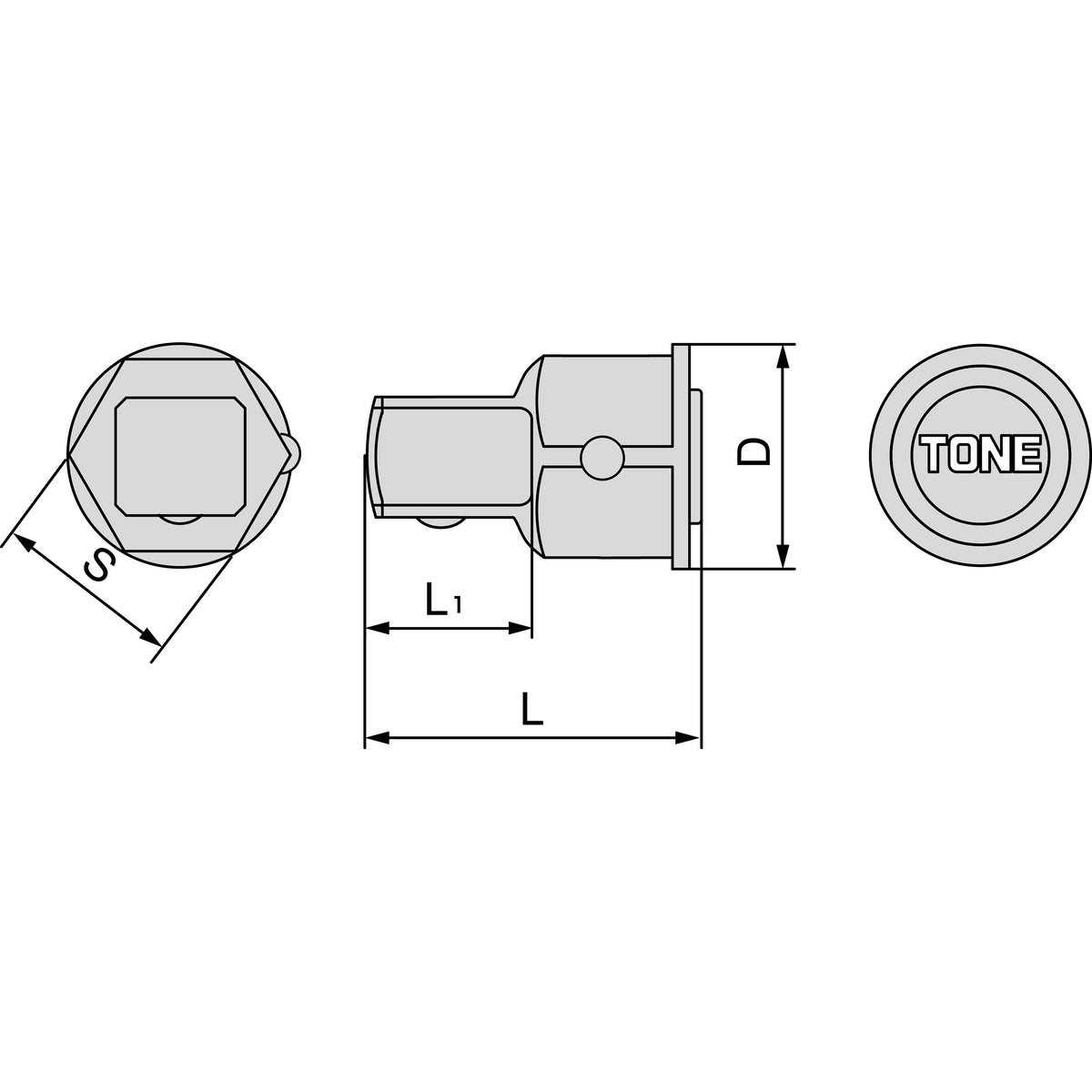

| Part Number | Drive | Drive size | Output drive | Weight (g) | W × D × H (mm) |
|---|---|---|---|---|---|

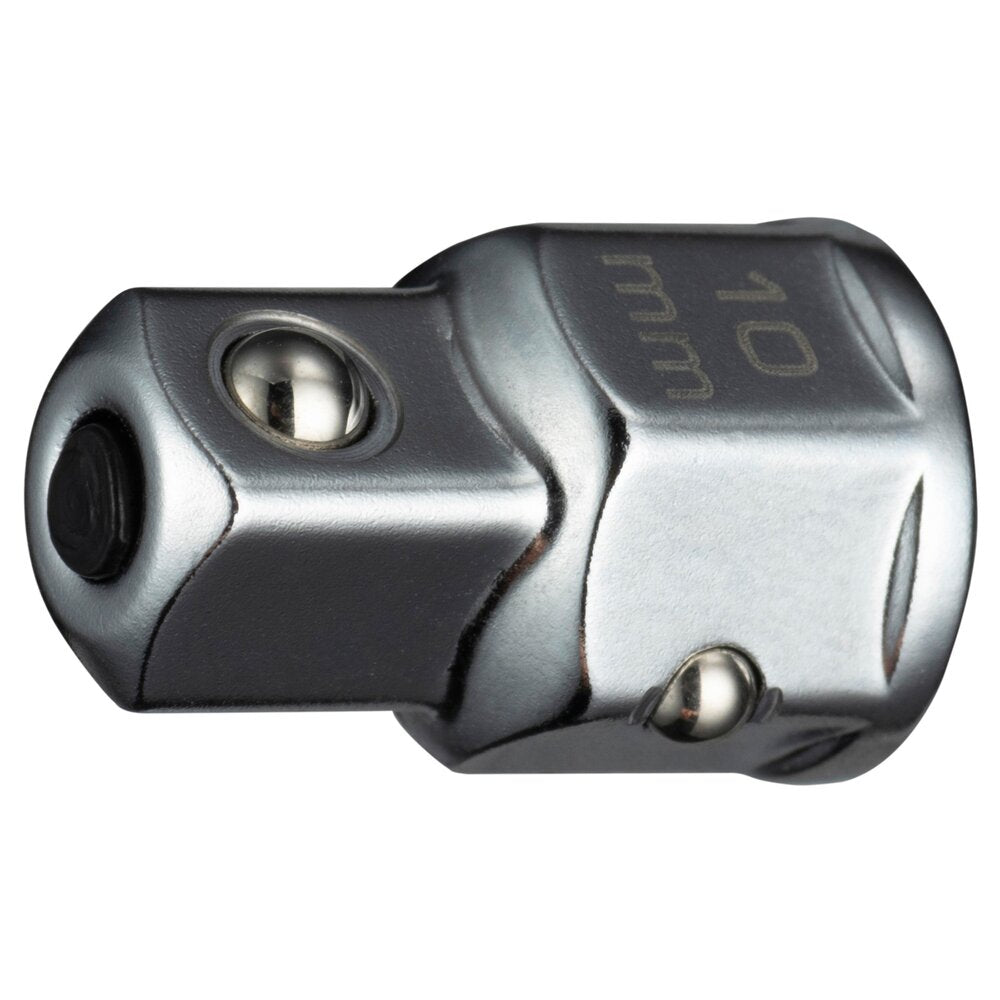

| RA2 | 1/4" output | 10 mm hex | 6.35 mm (1/4") | 7 | 11 × 11 × 18 |

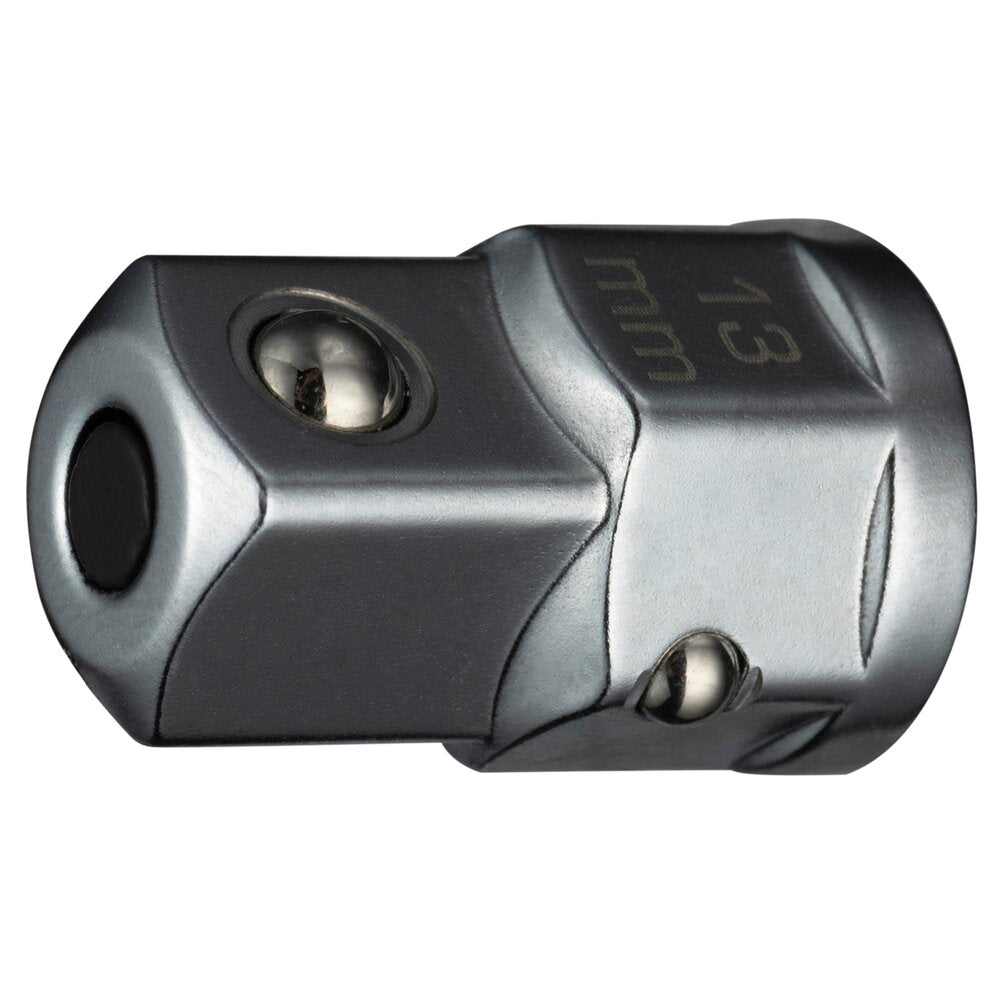

| RA3 | 3/8" output | 13 mm hex | 9.5 mm (3/8") | 17 | 14.5 × 14.5 × 23 |

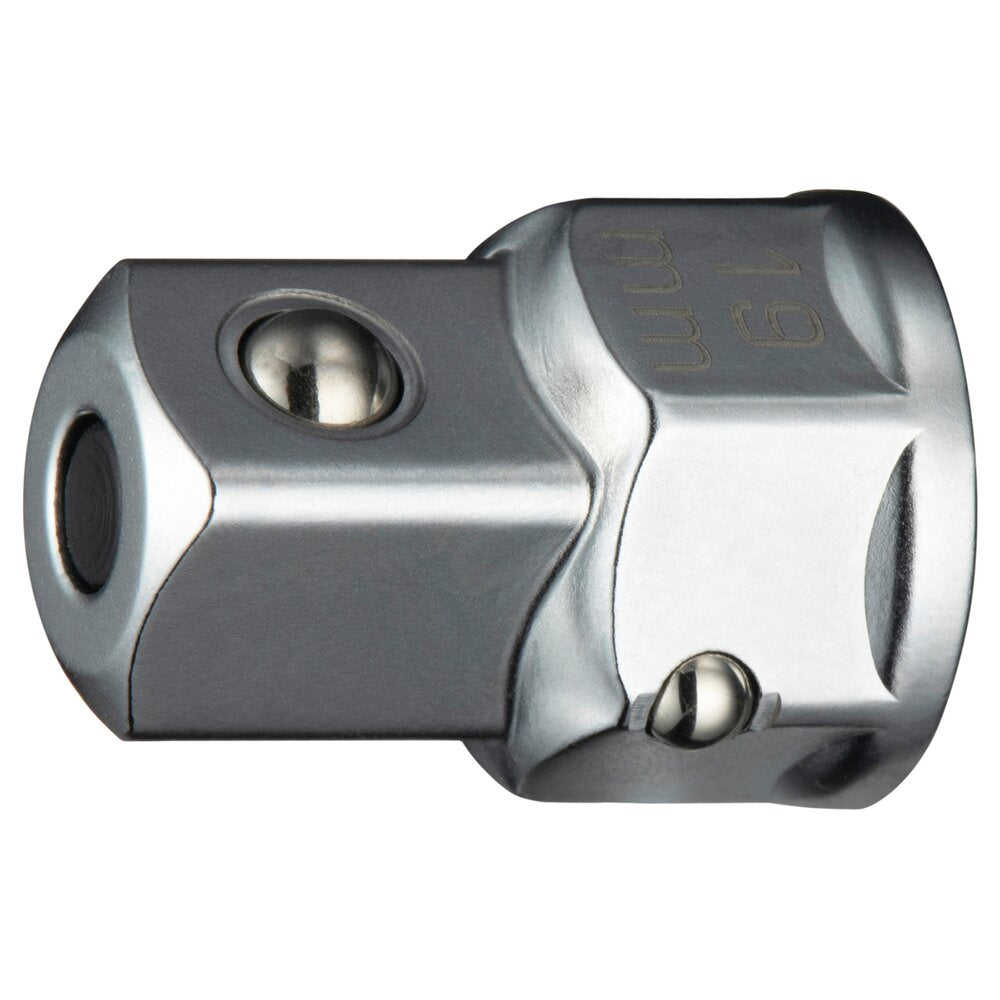

| RA4 | 1/2" output | 19 mm hex | 12.7 mm (1/2") | 44 | 21 × 21 × 30.5 |
Notes
Do not use the tool for anything other than its intended purpose.
