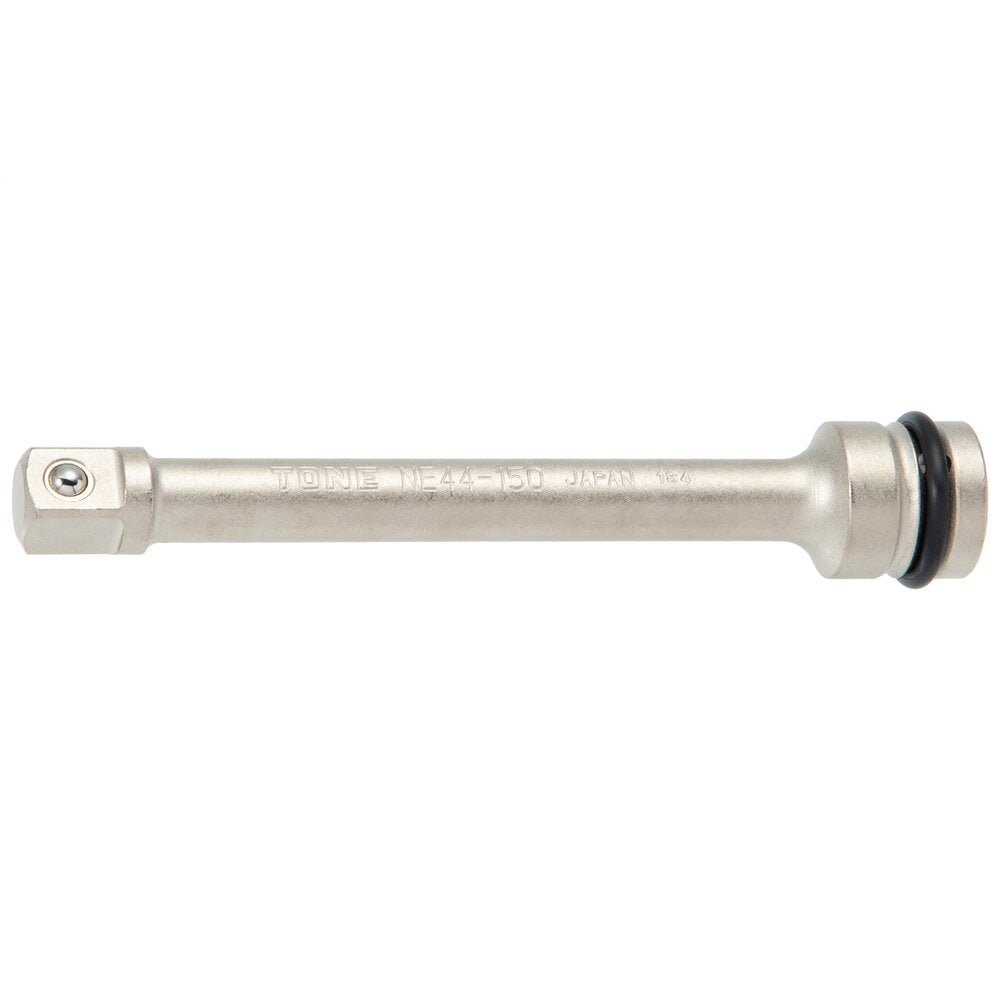

TONE 1/2" Drive Impact Extension Bar (Ball Type) NE44 Series
Sale price
$23.75
Regular price
$25.00
Lifetime Warranty Included
Description
Extends the socket when the handle is hard to operate, such as in deep, narrow spots. Electroless-plated finish for better appearance and rust resistance.
Application: Extends the socket when the impact wrench is hard to operate.
Patented.
Specifications
| Part Number | NE44-075 to NE44-300 |
|---|---|
| Drive size | 12.7 mm (1/2") |
| Output drive | 12.7 mm (1/2") |
| Tip type | Square drive (pin & O-ring) |
| Replacement pin | P3020S |
| Replacement O-ring | RP20S |
| Finish | Electroless plating |
| Material | Structural steel |
Sizes

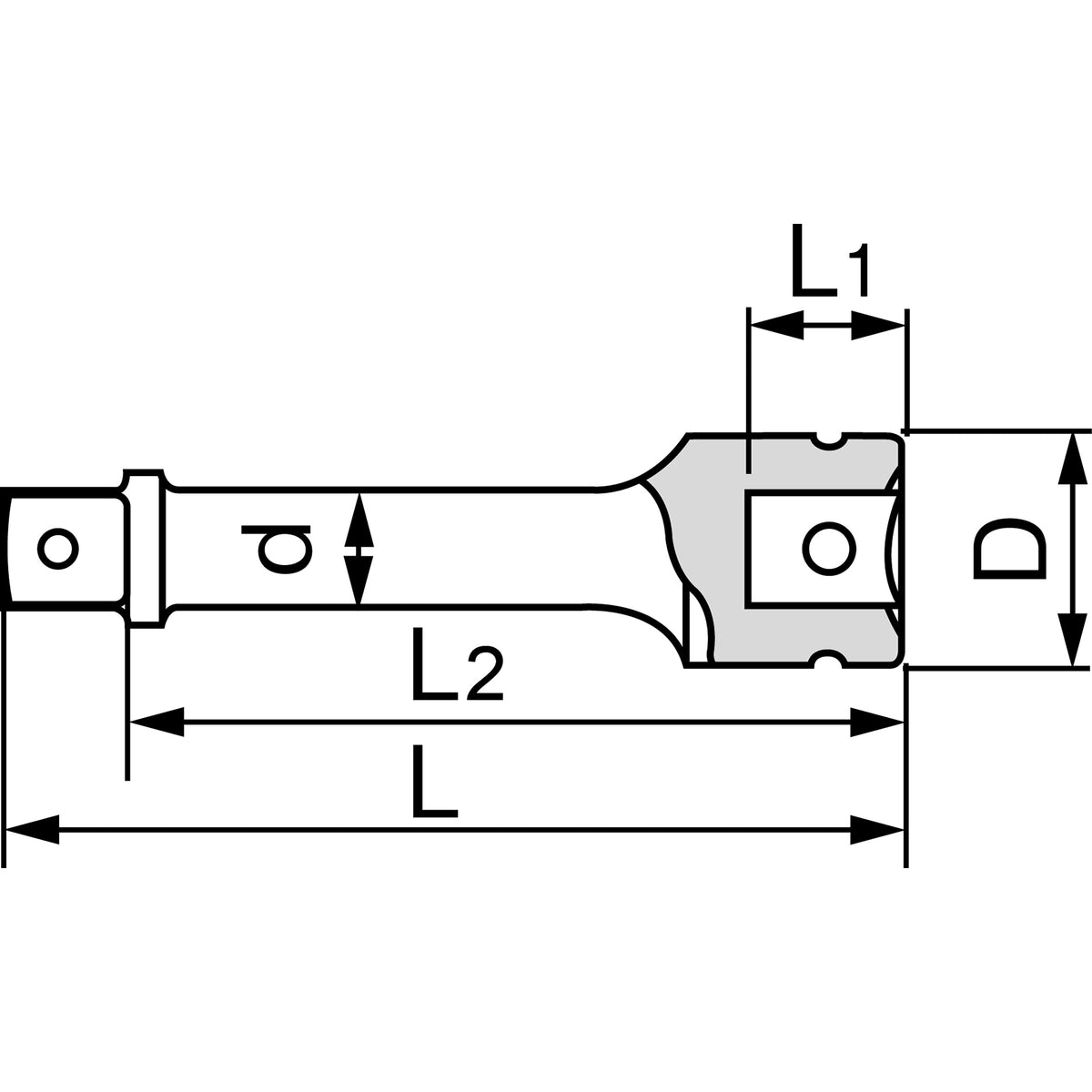

| Part Number | Length | Weight (g) | W × D × H (mm) |
|---|---|---|---|
| NE44-075 | 75 mm | 140 | 25 × 25 × 75 |
| NE44-100 | 100 mm | 160 | 25 × 25 × 100 |
| NE44-125 | 125 mm | 190 | 25 × 25 × 125 |
| NE44-150 | 150 mm | 215 | 25 × 25 × 150 |
| NE44-200 | 200 mm | 345 | 25 × 25 × 200 |
| NE44-250 | 250 mm | 425 | 25 × 25 × 250 |
| NE44-300 | 300 mm | 530 | 25 × 25 × 300 |
Notes
Fit the correct size O-ring and pin securely before use. O-rings and pins are consumables; replace them when worn or deteriorated.
