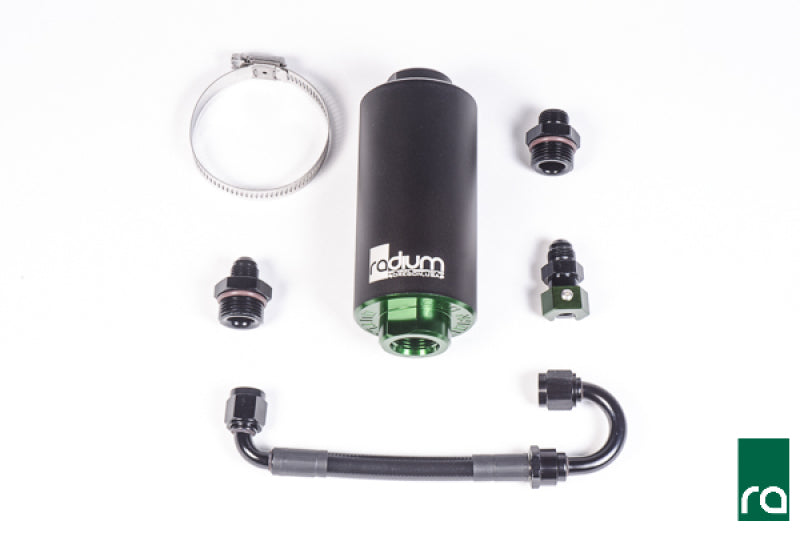

Radium Engineering Porsche 996/997.1 AWD Fuel Filter Kit w/ 10 Micron Stainless Filter (rad20-0347-03)

This is the Radium Engineering Porsche 996/997.1 AWD Fuel Filter Kit w/ 10 Micron Stainless Filter. Part rad20-0347-03. Fuel rails, lines and regulators feed and control fuel pressure to the injectors.

The Radium Engineering high flow fuel filter has a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. Both removable end caps feature large -10AN ORB female threaded ports for high flow plumbing.

The fuel filter comes preassembled with Viton O-ring seals for all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop.

The filter features a large 4.2"x1.75" element maximizing flow without sacrificing filtration. The filter design allows for flexibility when selecting element material. Because of this, the filter can be use in any part of the fuel system. Please select the element that matches the specific application.

MOUNTING OPTIONS

20-0221 1pc Clamp, 60mm, Heat Exchanger

With engine power levels globally increasing, pump heat is fast becoming an issue in fuel systems. This custom extrusion includes cooling fins that help dissipate heat. The conductive 6063 aluminum design directly clamps to the fuel filter body with 2 countersink stainless steel screws. For maximum efficiency, this unit must be mounted in a location where cool air can pass through the cooling fins, such as underneath the vehicle. Four M6x1mm stainless steel screws are included for mounting to the chassis. The unit is bright-dip anodized black with a laser engraved design.

20-0122 2pc Clamp, 60mm, Dual

This 6061 billet aluminum clamp is designed specifically for 2 filters (or 1 filter and 1 Bosch 044 pump). A stainless steel M8 bolt and lock nut is included. This clamp must be mounted to a flat surface. The clamps are bright-dip anodized Radium green with laser engraved logos.

Product details

• Part type: Fuel Rails & Regulators
• Brand: Radium Engineering
• Add-On Part: 18-0025-01; 18-0025-02; 18-0025-03
• Radium Engineering part number: rad20-0347-03

Fitment

• Vehicle: Porsche 911 (996)
• Years and trims on file: 2001-2004 Porsche 911 Turbo
• Application listing: Radium Engineering Porsche 996/997.1 AWD Fuel Filter Kit w/ 10 Micron Stainless Filter
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.

Shipping & returns

• Orders are processed within 1–3 business days; standard delivery is 3–7 business days within the United States.
• Radium Engineering parts are supplied through our distributor. We confirm availability and lead time with you after you order.
• We currently ship within the U.S. only. See our Shipping Policy.
• 30-day returns on unused parts in original packaging — see our Return Policy.

Installation at Team ANBD

Team ANBD is a performance shop in Andover, New Jersey. We can align or corner-balance the car, and prep track cars. Book an appointment or ask us about installation and fitment before you order.
