PCI Racing Slider Seat Mount - Scion FR-S / Subaru BRZ / Toyota 86 & GR86

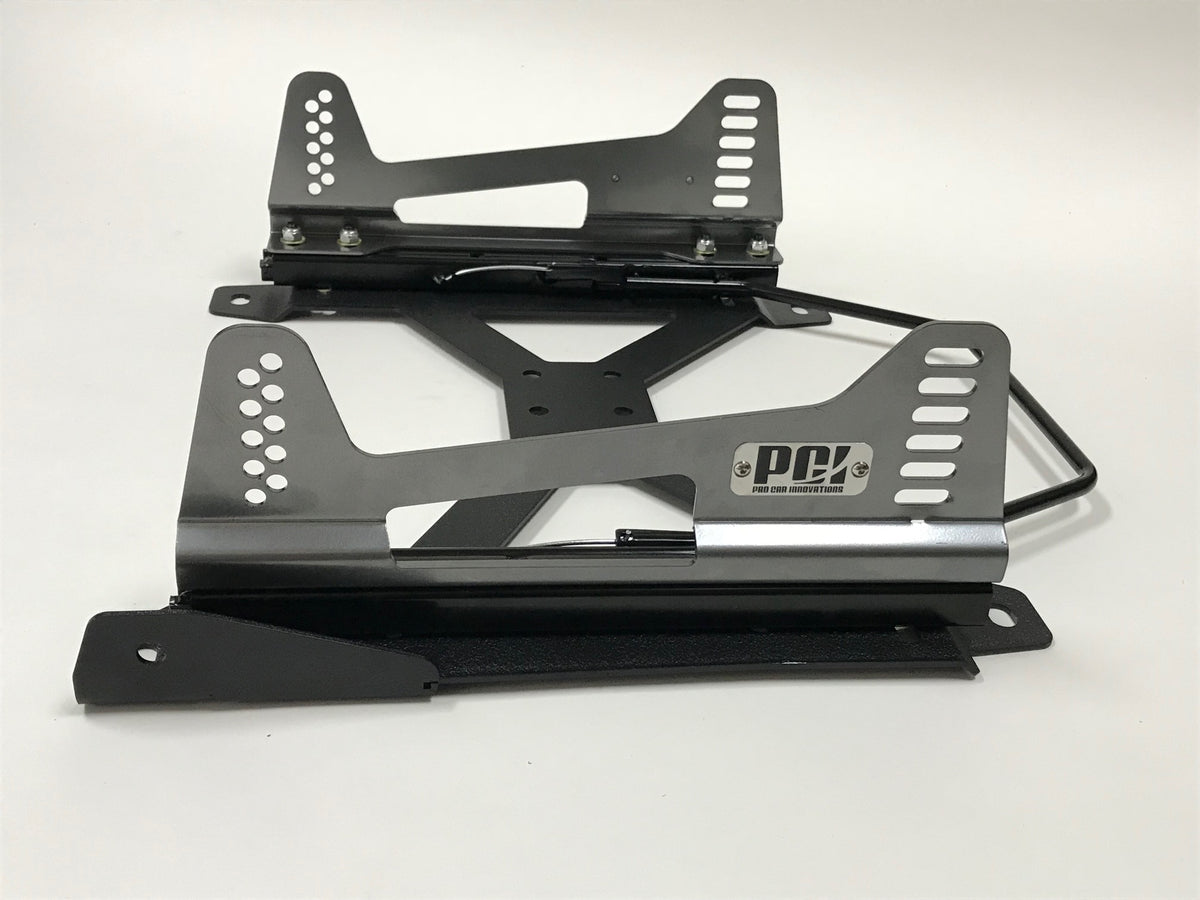

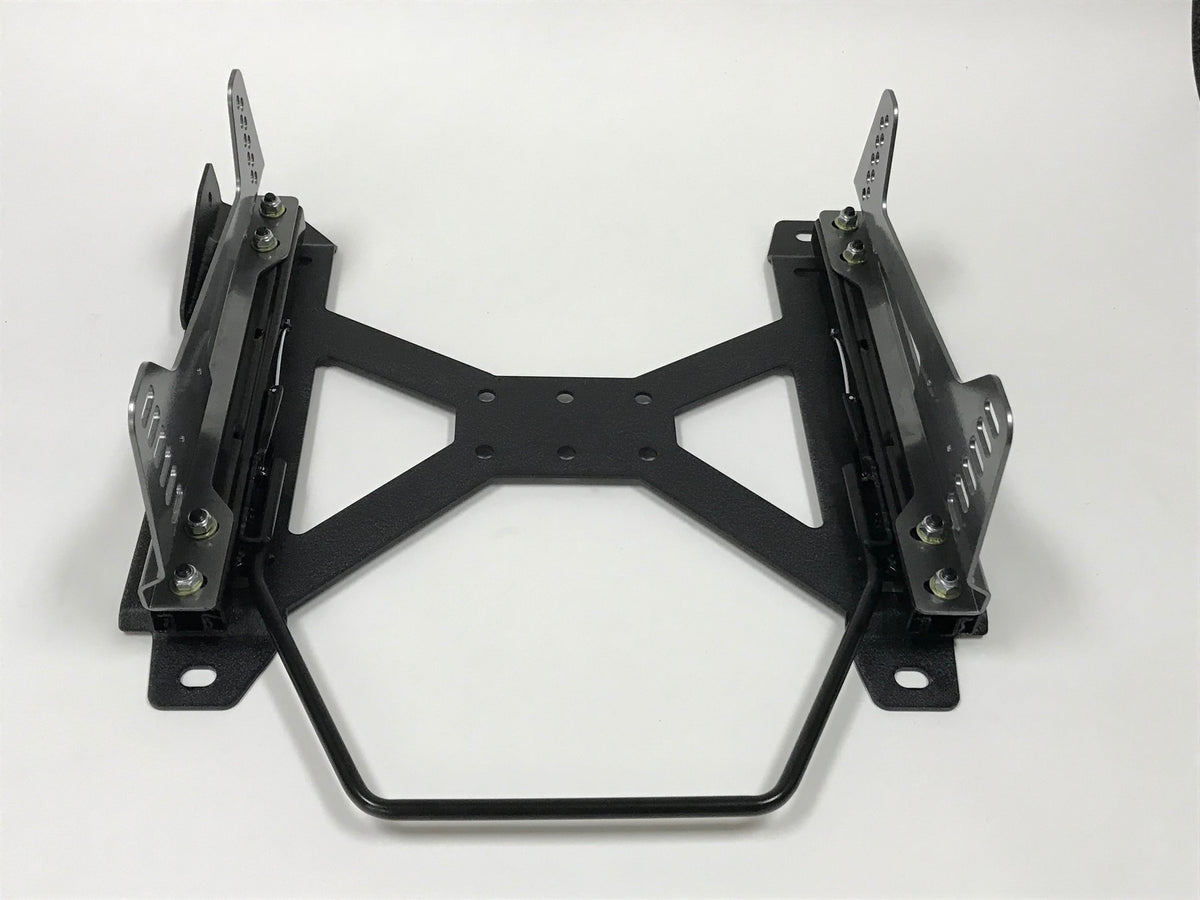

The PCI Racing Slider Seat Mount puts a side-mount racing seat on PCI S1 high-strength sliders and bolts to the factory seat mounting points of the Scion FR-S / Subaru BRZ / Toyota 86 & GR86. Each slider bolts to the base with four bolts, so the seat can slide fore and aft for different drivers.

Details

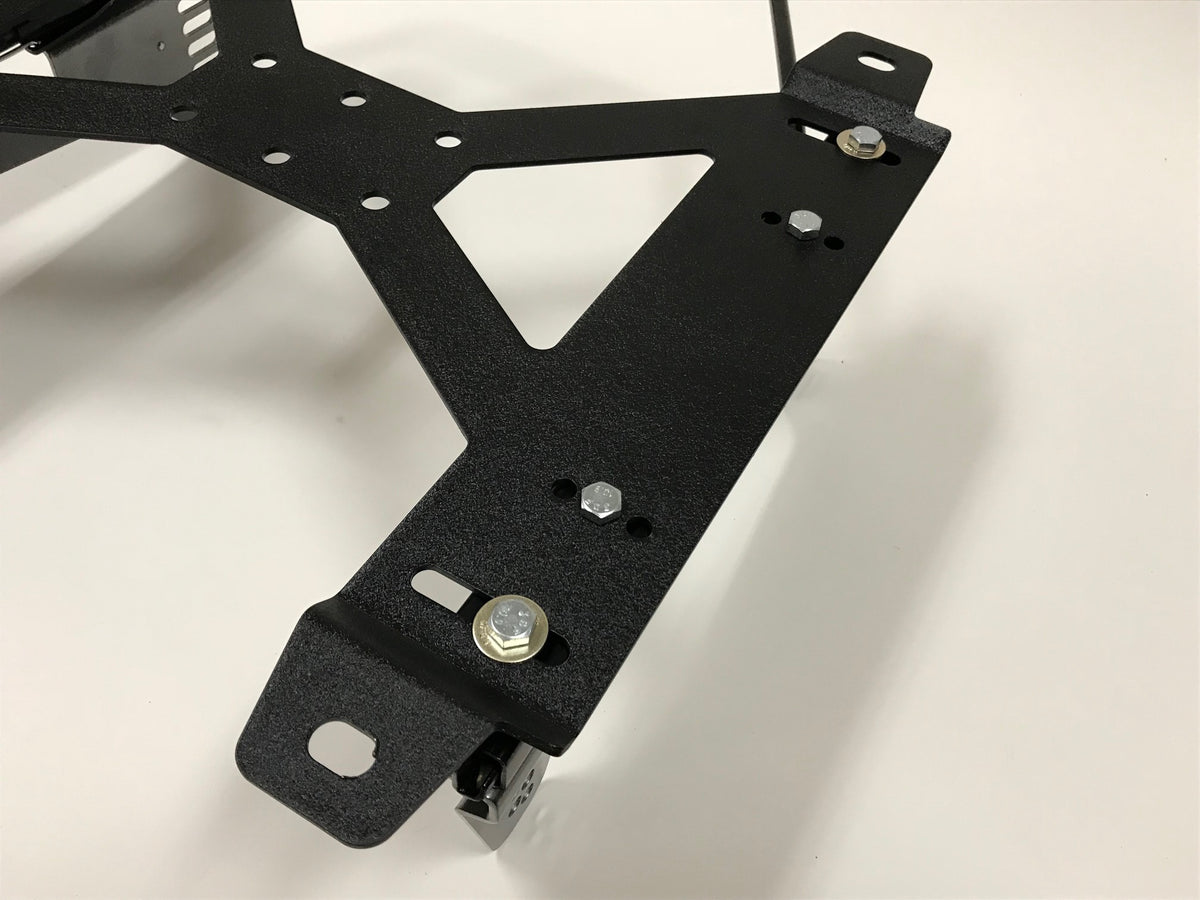

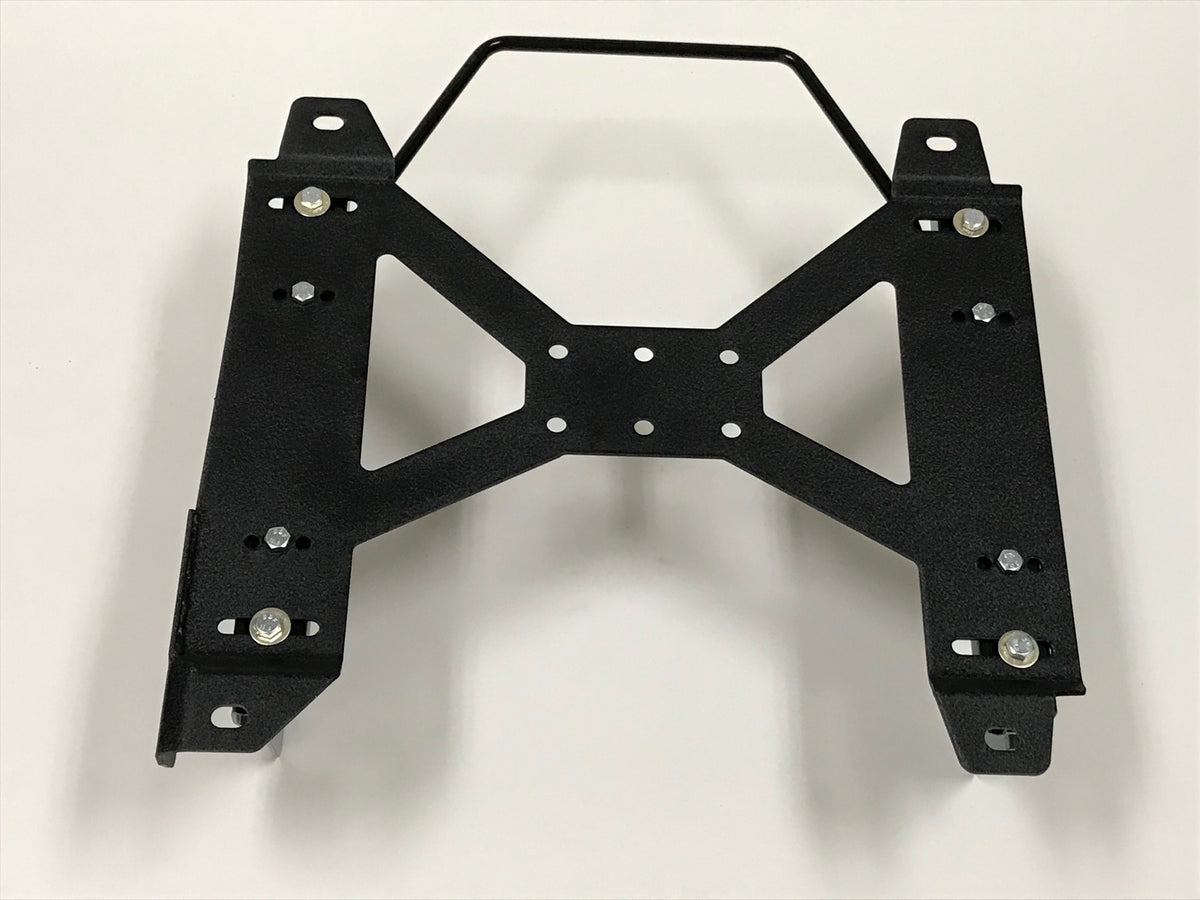

• Base: one piece, laser cut and CNC bent from 1/8 in. (3 mm) carbon steel, powder coated
• Sliders: PCI S1 high-strength sliders, 4 bolts per slider to the base

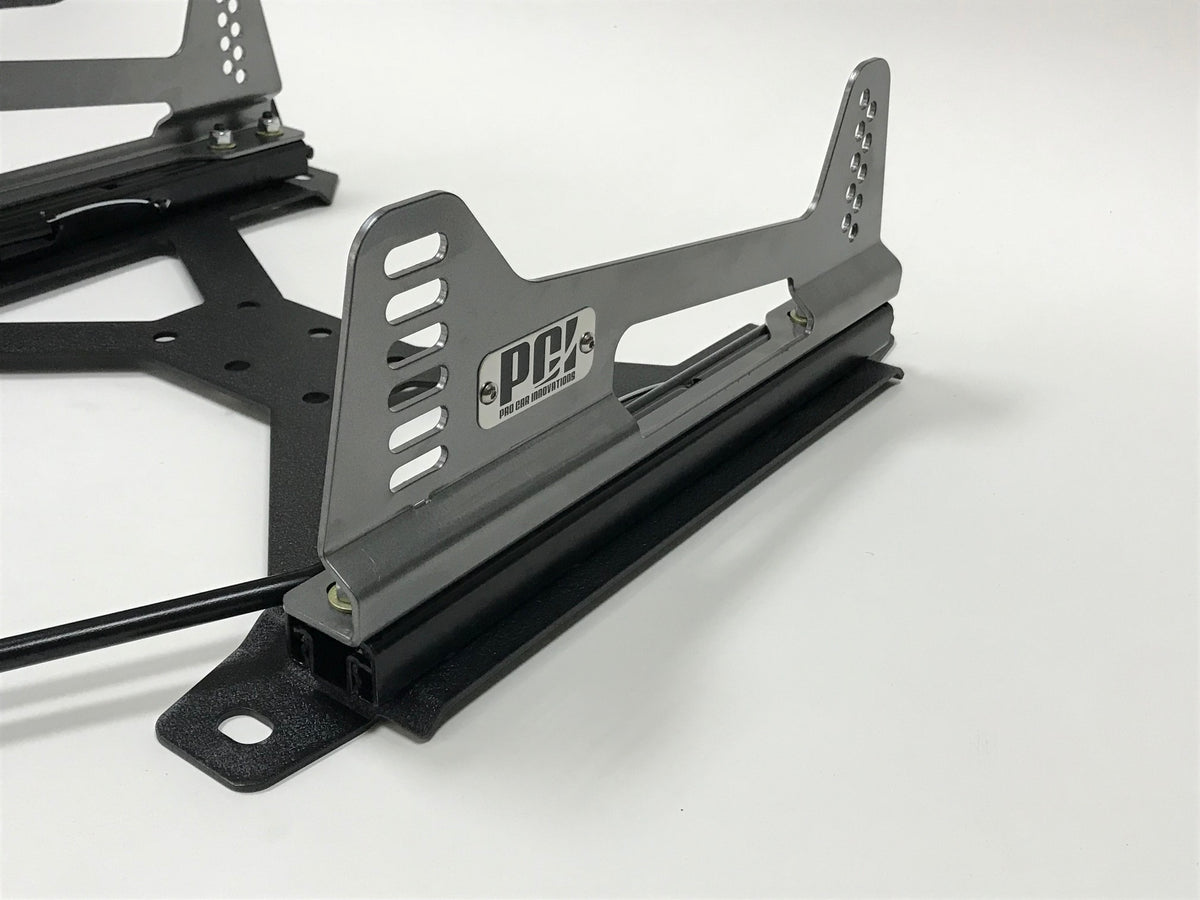

• Side mounts: PCI SM-SIDE-S1 side mounts in gloss black metallic included
• Width range: about 14-3/4 in. to 17-1/2 in. (375-445 mm) with standard side mounts; Miata mounts are 1 in. narrower
• Fore-aft range: about 9-5/8 in. (245 mm)
• Harness: 5- and 6-point sub belt mounting locations
• Hardware: grade 10.9 M8 hardware, adjusted with a single tool; 1/4 in. nylon side mount spacers included
• Sold as: one seat mount (choose driver or passenger side)

Part numbers

• 2013-2021 (FR-S / BRZ / 86) / Left (Driver): SM-FRS-L-S1
• 2013-2021 (FR-S / BRZ / 86) / Right (Passenger): SM-FRS-R-S1
• 2022+ (GR86 / BRZ) / Left (Driver): SM-GR86-L-S1
• 2022+ (GR86 / BRZ) / Right (Passenger): SM-GR86-R-S1

Fitment

• Vehicle: Scion FR-S / Subaru BRZ / Toyota 86 & GR86
• Bolts to the factory seat mounting points.
• Fitment can vary by trim and model year. Not sure? Ask us before you order.

Before you order

This mount is for side-mount racing seats. If you need the seat as low as possible, PCI's low profile slider hardware (sold separately) gives more clearance under the seat. Questions? Ask us.

About PCI Racing

PCI Racing (Pro Car Innovations) makes vehicle-specific seat mounts, sliders and harness mounts for racing seats. Its seat bases are laser cut and CNC bent from one piece of steel and bolt to the factory seat mounting points.
