Mishimoto 22+ WRX TMIC Kit Black Core Black Pipes (misMMTMIC-WRX-22KBKBK)

OFF-ROAD OR MOTORSPORTS USE ONLY. This part is not CARB legal. It is not legal for sale or use on pollution-controlled motor vehicles in California or in other states that follow California emissions rules. It is sold for off-road or motorsports use only.

This is the Mishimoto 22+ WRX TMIC Kit Black Core Black Pipes. Part misMMTMIC-WRX-22KBKBK. An intercooler cools the charge air from the turbo or supercharger for denser air and more consistent power.

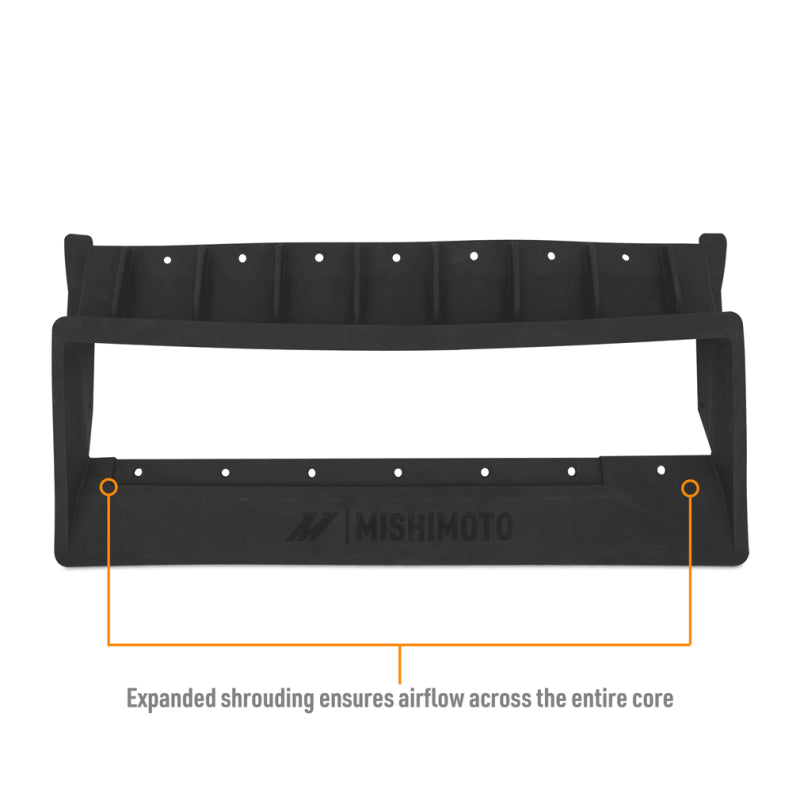

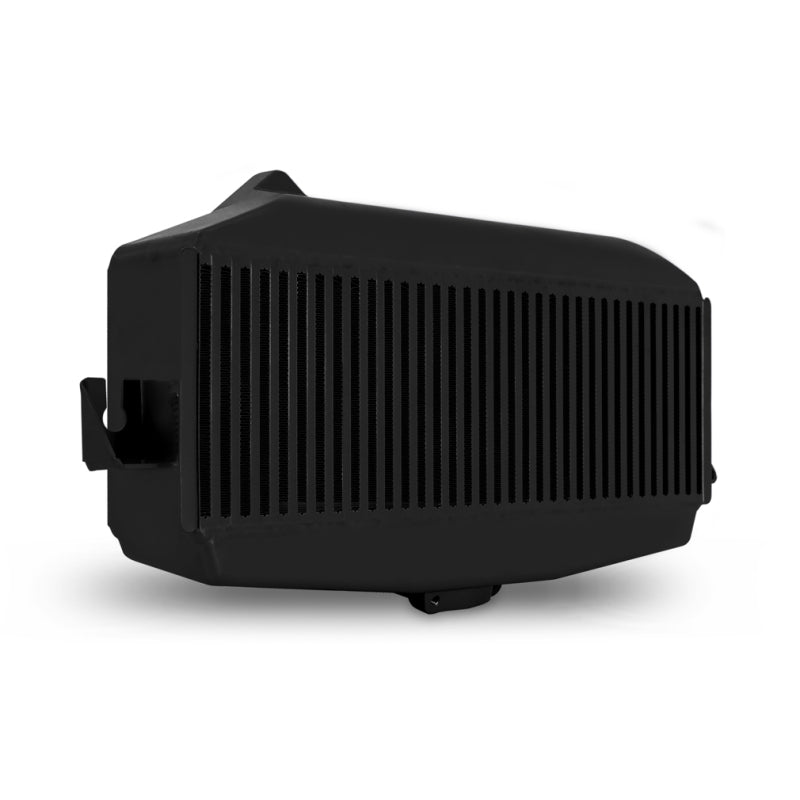

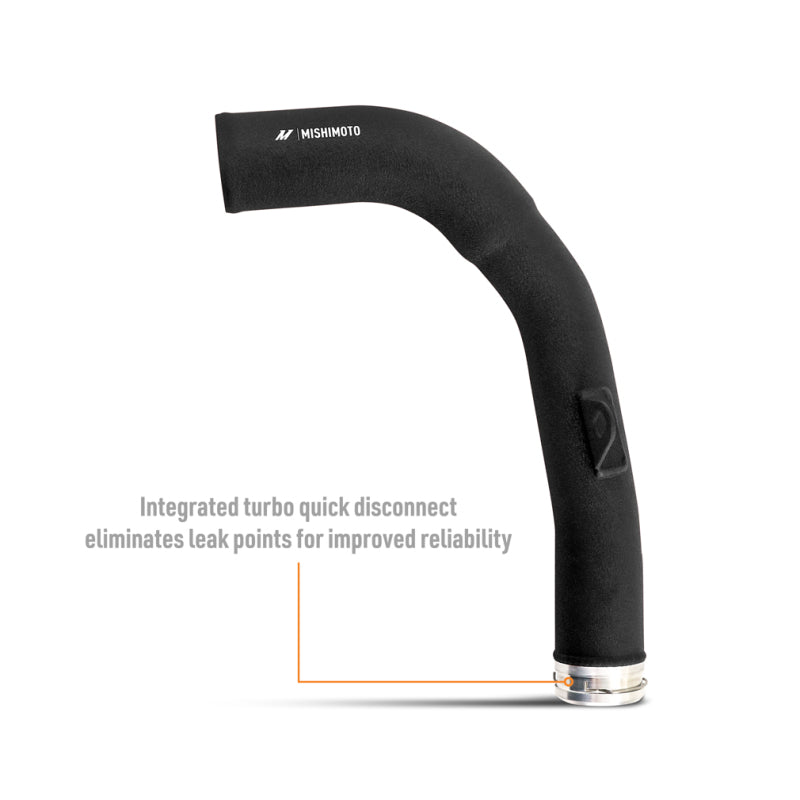

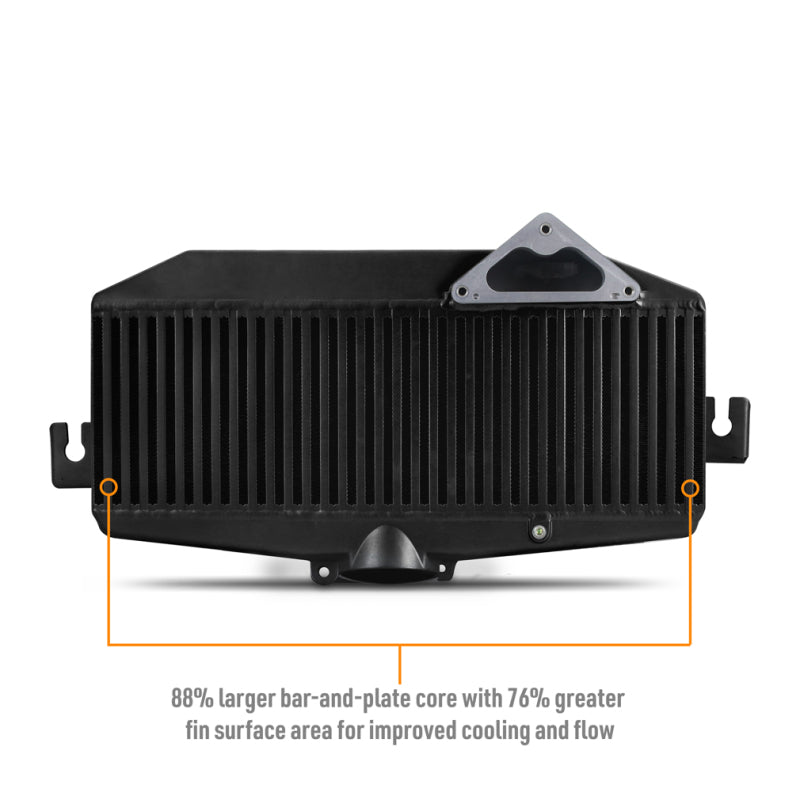

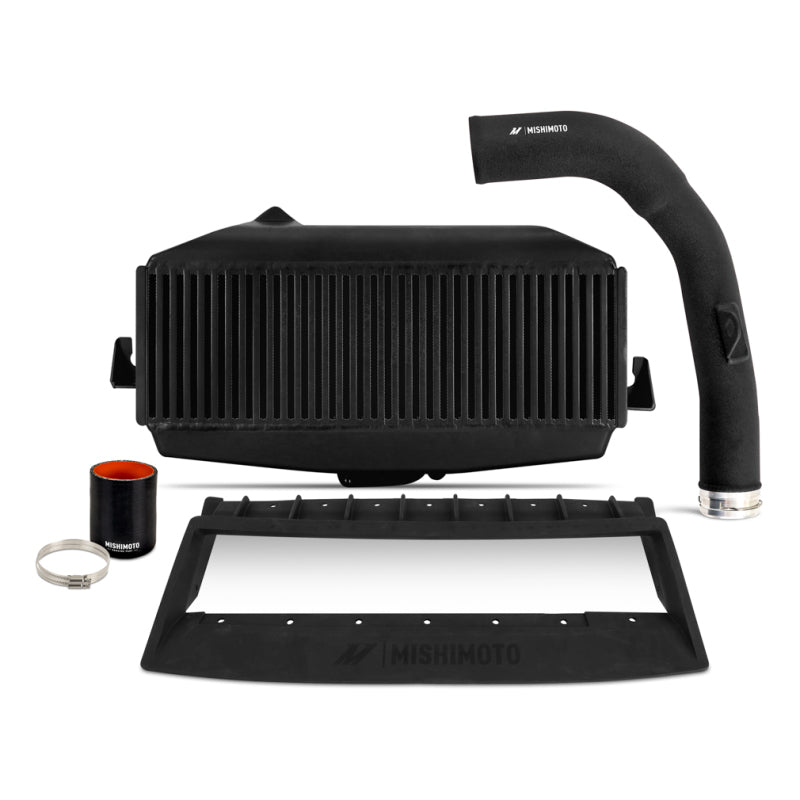

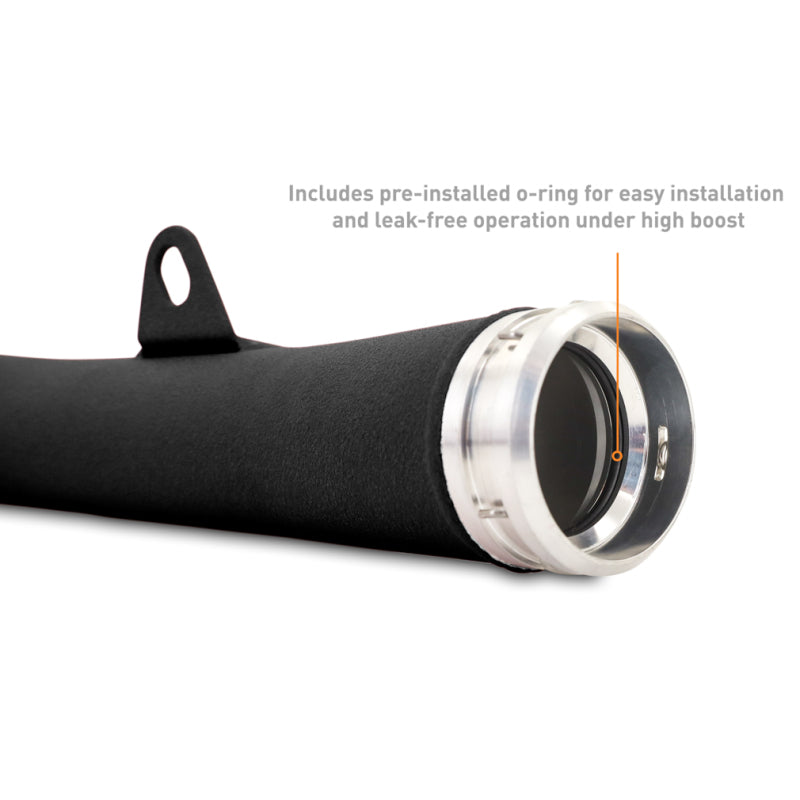

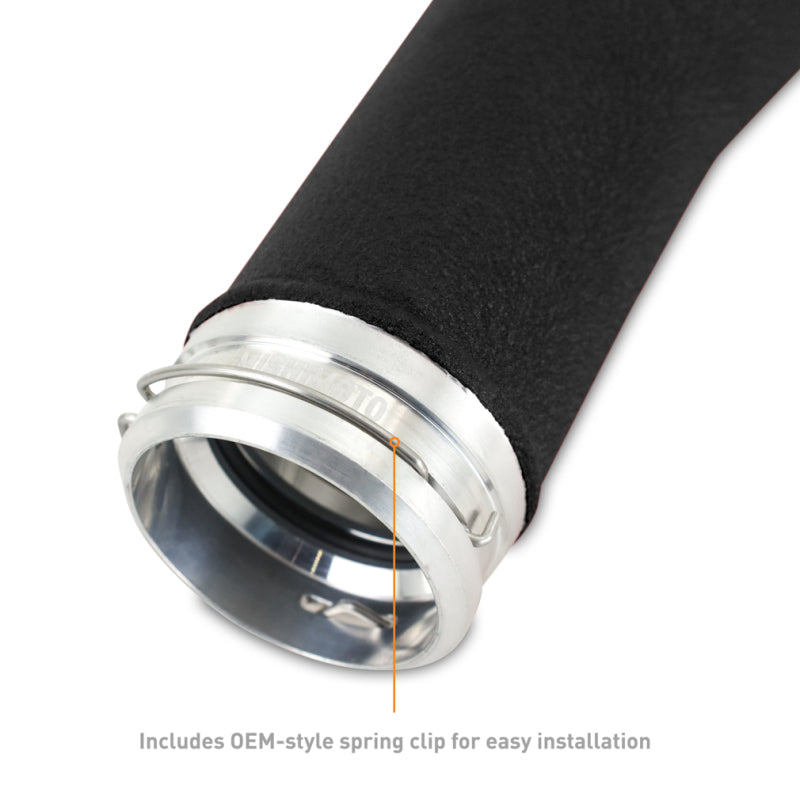

The Subaru WRX is a car that begs to be driven at ten-tenths, and as enthusiasts, we're happy to oblige. At the same time, we know the WRX is capable of much more with a few well-designed upgrades. One upgrade that's sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler kit. This kit includes everything you need to let your FA24 breathe all the cool boost it could ever want.----Starting at the turbo, we've upgraded the stock plastic charge pipe with mandrel-bent and CNC-machined aluminum. Smooth bends and transitions improve flow by 20 percent over stock. The integrated turbo quick disconnect reduces failure points, so you never have to worry about a hard-to-access coupler popping off during a pull, and the all-aluminum construction resists high boost pressures better than the stock plastic pipe.----The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not, though, if we didn't have a way to get cool outside air over the intercooler. To do that, we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop.----This kit includes everything needed for installation, including new shroud hardware. It's available with a black or silver intercooler and black or red pipes to match any color scheme and, with our Mishimoto Lifetime Warranty, you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.

Features and benefits

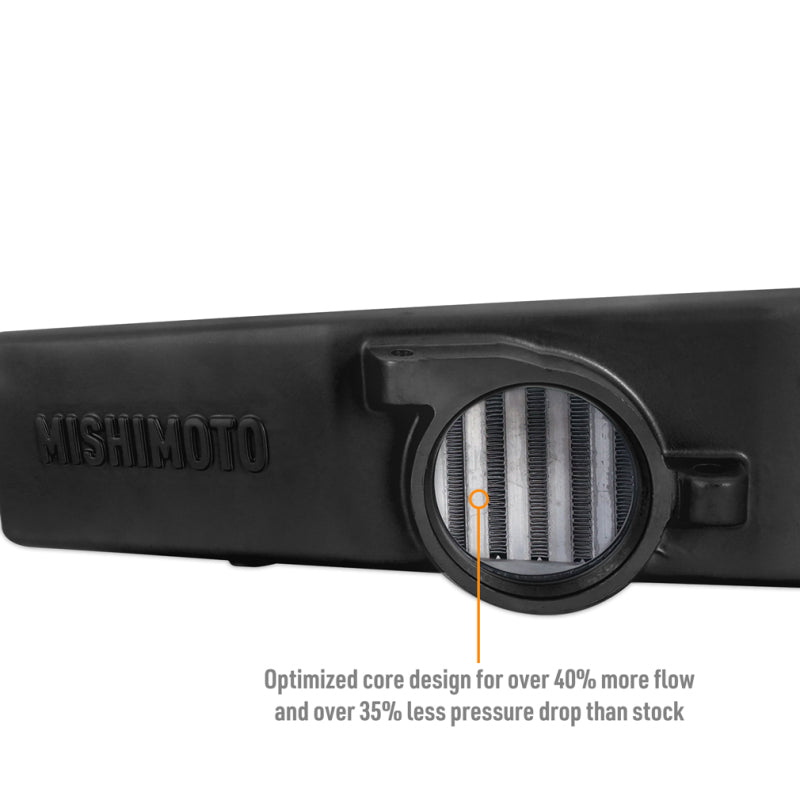

• Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
• 35.7 percent less pressure drop than stock means more boost makes it into the engine
• Lowers outlet temps to less than 10 degrees over ambient for safe performance

Product details

• Part type: Intercoolers
• Brand: Mishimoto
• TechSpec Engine Codes: FA24DIT
• TechSpec Chassis Codes: VB
• TechSpec Maximum Recommended Boost Pressure (PSI): 100
• TechSpec Maximum Recommended Horsepower: 600
• TechSpec Overall Length (in): 24.51
• TechSpec Overall Height (in): 12.96
• TechSpec Overall Width (in): 4.38
• TechSpec Core Type: Bar-And-Plate
• TechSpec Core Thickness (in): 4
• TechSpec Core Length (in): 20.5
• TechSpec Core Height (in): 7
• Install Difficulty: 1
• Cold Side Pipe Inside Diameter: 0
• Core Thickness: 4
• Mishimoto part number: misMMTMIC-WRX-22KBKBK

Fitment

• Vehicle: Subaru WRX (VB)
• Years and trims on file: 2022-2024 Subaru WRX Base; 2022-2026 Subaru WRX GT; 2022-2026 Subaru WRX Limited; 2022-2026 Subaru WRX Premium; 2026 Subaru WRX Series.Yellow; 2026 Subaru WRX TS
• Application listing: Mishimoto 22+ WRX TMIC Kit Black Core Black Pipes
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.

Emissions: off-road or motorsports use only

This part is not CARB legal and is sold for off-road or motorsports use only. It is not intended for use on vehicles driven on public roads. By ordering, the buyer accepts responsibility for checking and following federal, state and local emissions laws where the vehicle is used. Questions? Ask us before you order.
