Mishimoto 2018+ Kia Stinger GT 3.3T Performance Intercooler Kit - Black (misMMINT-STNGR-18BK)

This is the Mishimoto 2018+ Kia Stinger GT 3.3T Performance Intercooler Kit - Black. Part misMMINT-STNGR-18BK. An intercooler cools the charge air from the turbo or supercharger for denser air and more consistent power.

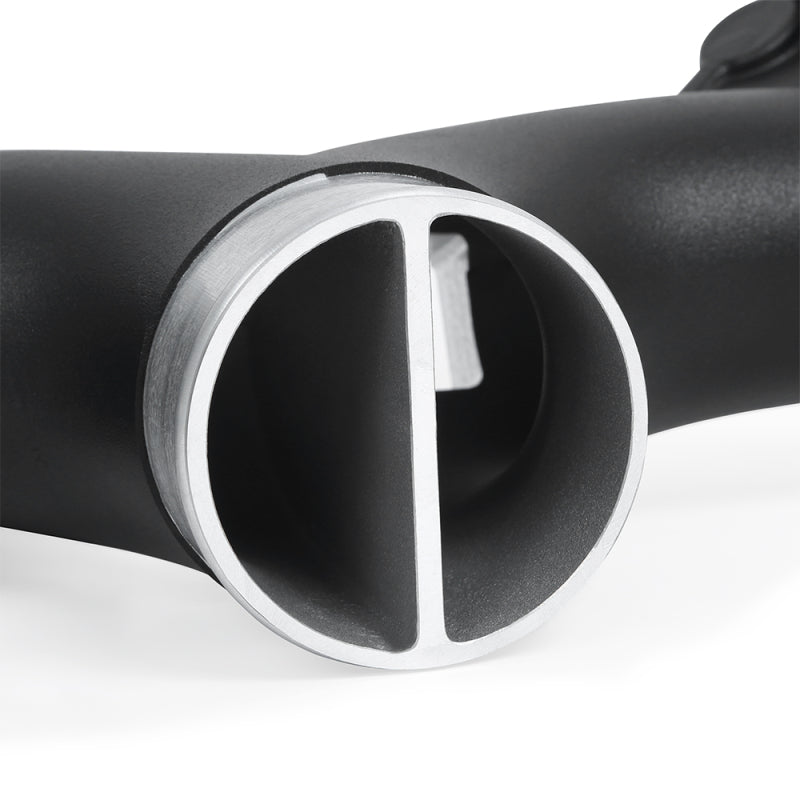

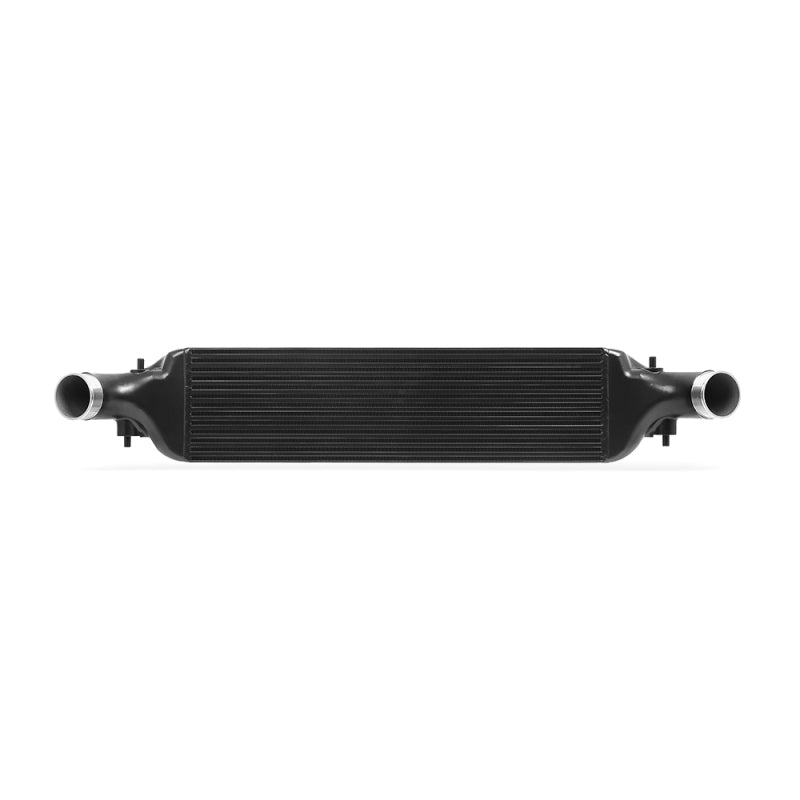

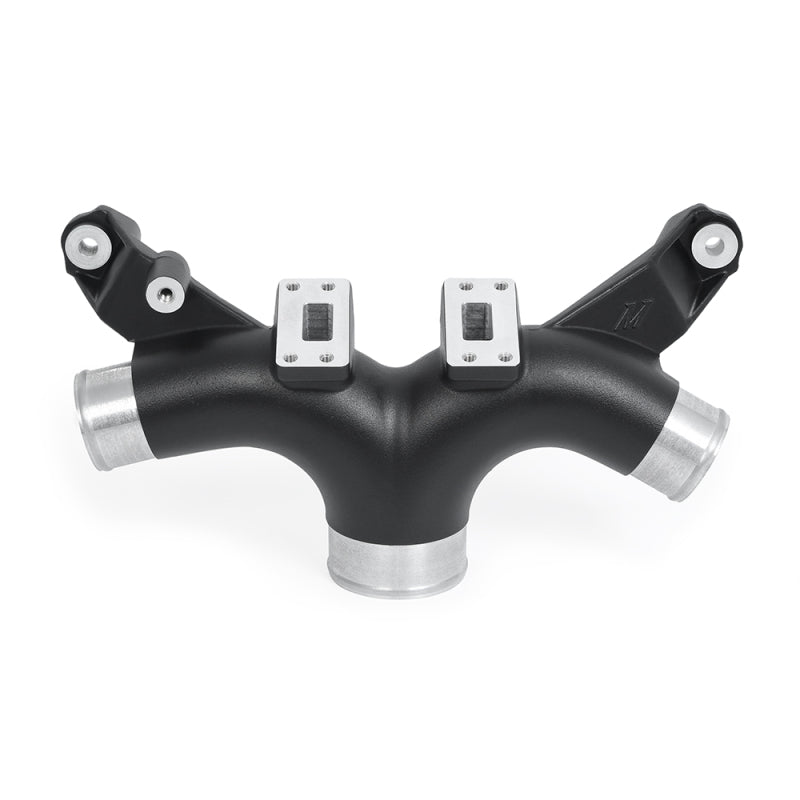

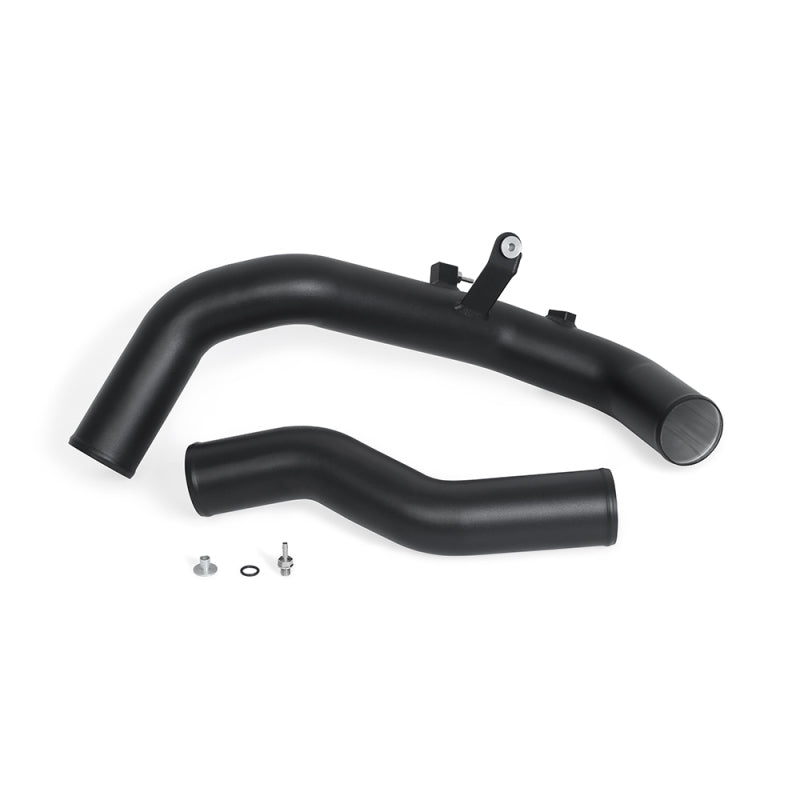

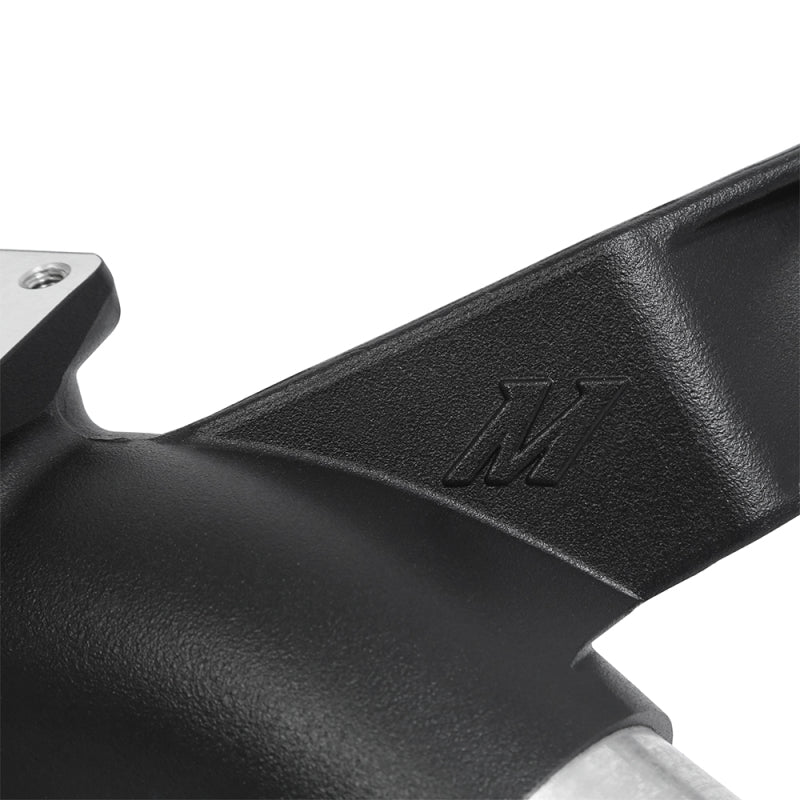

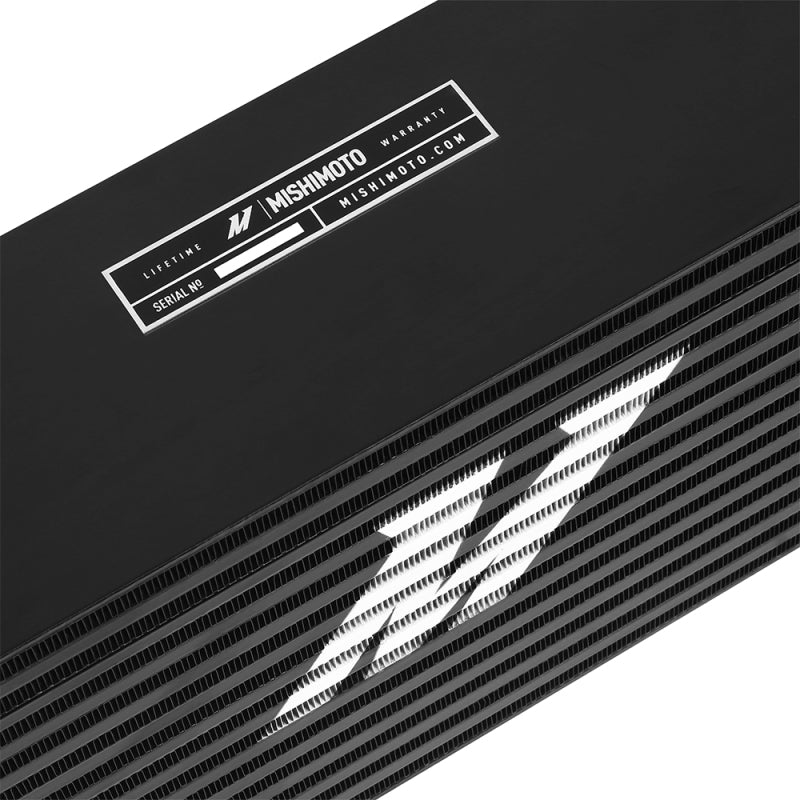

Give your 2018-2023 Kia Stinger GT extra cooling power with the Mishimoto Performance Intercooler Kit. The Stinger made quite the splash upon its release and shook up the mid-sized sports sedan segment. While the Lambda II GDI 3.3T provides one of the best platforms out there today, the intercooling system has the potential to hold the Stinger back. We've replaced the entire intercooling system, from turbo to throttle body to provide optimized airflow. The Mishimoto Performance Intercooler replaces the tube and fin core coupled to plastic end tanks with a robust bar and plate core, TIG-welded to cast aluminum end tanks for vastly improved heat dissipation and flow. We also expanded our core for a 94-percent increase in core volume and a 74-percent increase in external fin surface area.We kept the aluminum construction of the stock pipes, but increased the inner diameter to 3in for increased flow through the system with minimal pressure drop. We also made sure to overhaul the piping merger manifold, increasing the inlets to 2in and outlet to 3in for a 51-percent boost in flow straight out of the turbos, while retaining compatibility with the stock recirculation valves. Our piping kit is finished in a sleek micro-wrinkle black powder coat to retain the OEM+ look under the hood and is linked together with our 5-layer silicone couplers.Our intercooler kit isn't just about a new look but will perform. Once on the dyno, the combination of the larger piping diameters, and increased intercooler size equated to a 29 degree F drop in outlet temperatures with a gain of 8whp and 8wtq on stock tuning. We also made sure to turn up the boost with our testing and installed a stage 1 map tune on our Stinger and recorded a 41 degree F drop in outlet temperature with a 6whp and 8wtq gain on top of the tune.

Features and benefits

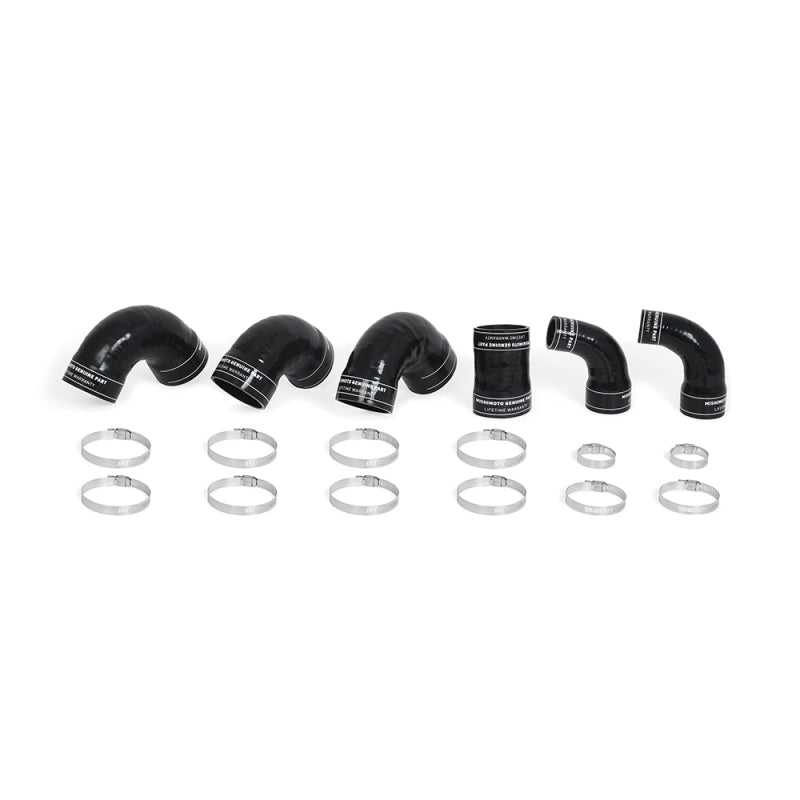

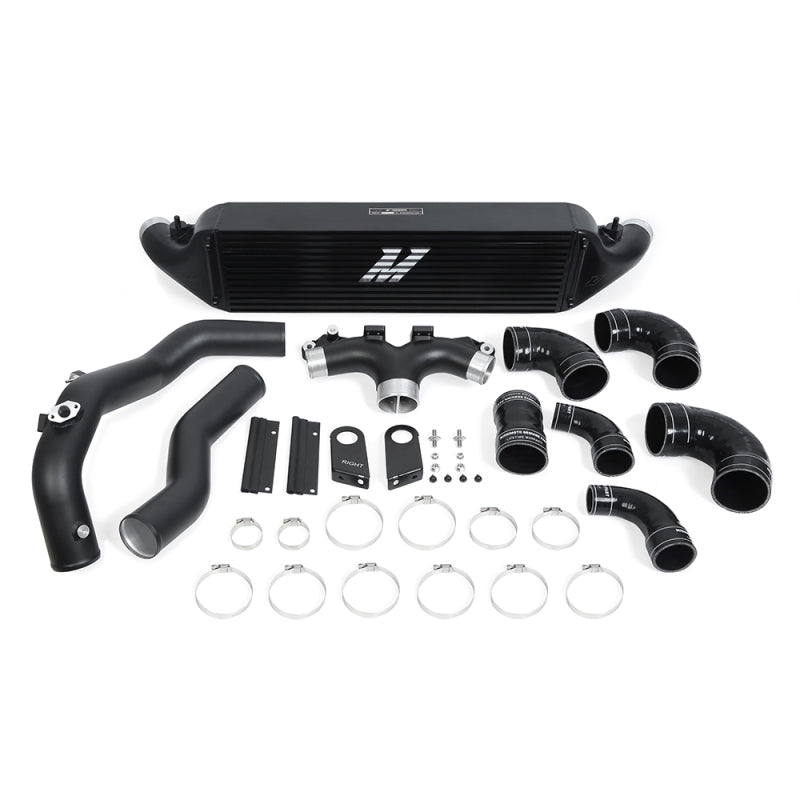

• Includes performance intercooler, piping, cast aluminum merge manifold, and couplers for optimal flow and performance
• Drops intercooler outlet temperature by 29F on stock tune and 41F on stage 1 tune
• Max power gains of 8 whp and 8 wtq on stock tune with an additional 6 whp and 8 wtq on top of stage 1 tuning

Product details

• Part type: Intercoolers
• Brand: Mishimoto
• TechSpec Engine Codes: Lambda II GDI
• TechSpec Chassis Codes: CK
• TechSpec Overall Length (in): 38.7
• TechSpec Overall Height (in): 7.9
• TechSpec Overall Width (in): 8.1
• TechSpec Core Type: Bar-and-Plate
• TechSpec Inlet (in): 3
• TechSpec Outlet (in): 3
• TechSpec Weight (lbs): 31
• TechSpec Note: Installation of this kit requires permanent modification to the front air guide shrouding, part number 29135-J5000.
• Install Difficulty: 3
• Cold Side Pipe Inside Diameter: 3
• Core Thickness: 0
• Core Length: 0
• CARB EO number: D-759-24
• Mishimoto part number: misMMINT-STNGR-18BK

Fitment

• Vehicle: Kia Stinger
• Years and trims on file: 2018-2021 Kia Stinger GT; 2018-2022 Kia Stinger GT1; 2018-2023 Kia Stinger GT2; 2019 Kia Stinger GTS; 2023 Kia Stinger Tribute Edition
• Application listing: Mishimoto 2018+ Kia Stinger GT 3.3T Performance Intercooler Kit - Black
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.
