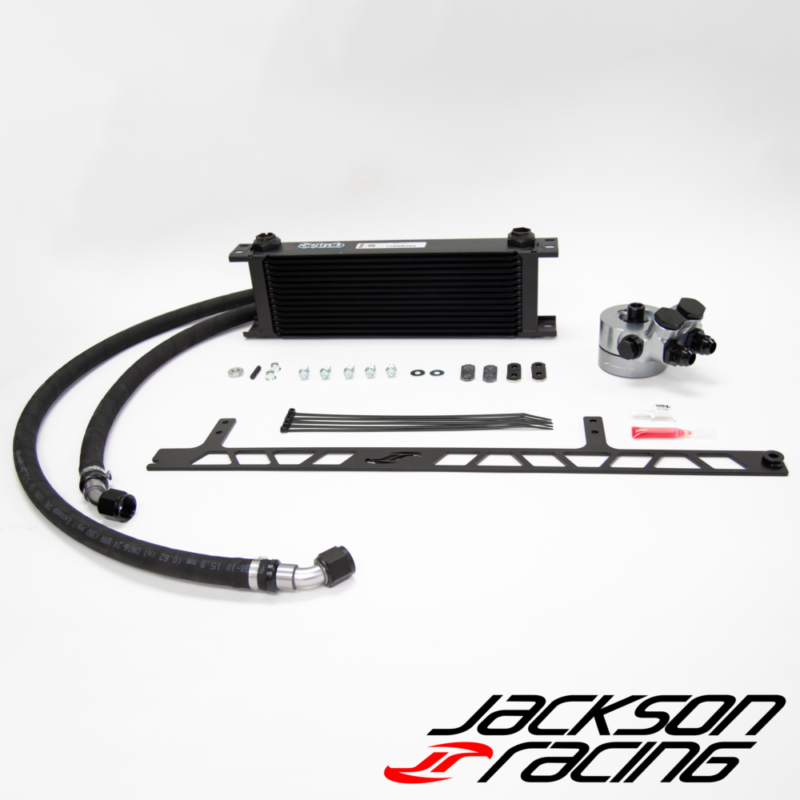

Jackson Racing Track Engine Oil Cooler Kit — Toyota 86/GR86/Subaru BRZ/Scion FR-S

An engine oil cooler is a must-have for any track or hot-climate FA20-powered 86/BRZ. Even stock cars can see oil temperatures spike to dangerous levels on track — the FA20 is a finely tuned, high-compression engine.

Developed in-house with multiple race wins and championships behind it. Keeps oil below 240–250°F in extreme conditions, using a Setrab 9-Series 15-row core paired with the Jackson Racing Oil Cooler Adapter — a proprietary design with an integrated thermostat for proper oil warm-up when cold, four M22 ports with two -10AN fittings, and an improved O-ring seal.

System Features

• Jackson Racing Engine Oil Cooler Bracket — mounts using factory locations, no drilling or cutting, powder coated
• Setrab 9-Series 15-Row Oil Cooler — factory pressure tested to 10 bar, black epoxy finish
• Jackson Racing Oil Cooler Adapter — titanium grey finish, optional 1/8" NPT sensor ports
• Pre-assembled -10AN oil cooler lines with Aeroquip OE-quality hose and Oetiker clamps
• Full color installation manual

Choosing Your Configuration

NA version uses a front-mount cooler positioned in the bumper area for direct outside air. JRSC version uses the Dual Oil Cooler mount system to sit the track cooler alongside the Rotrex oil cooler behind the Jackson Racing intercooler, for cars already running the Jackson Racing supercharger. Shroud options improve airflow direction over the core.

Note: an additional quart of engine oil is required at install.

Fits Toyota 86/GR86, Subaru BRZ, and Scion FR-S, 2013–2020.
