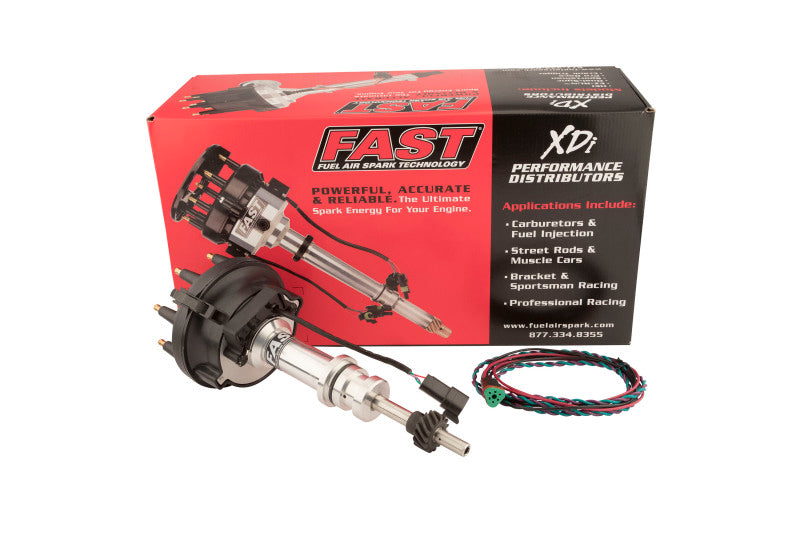

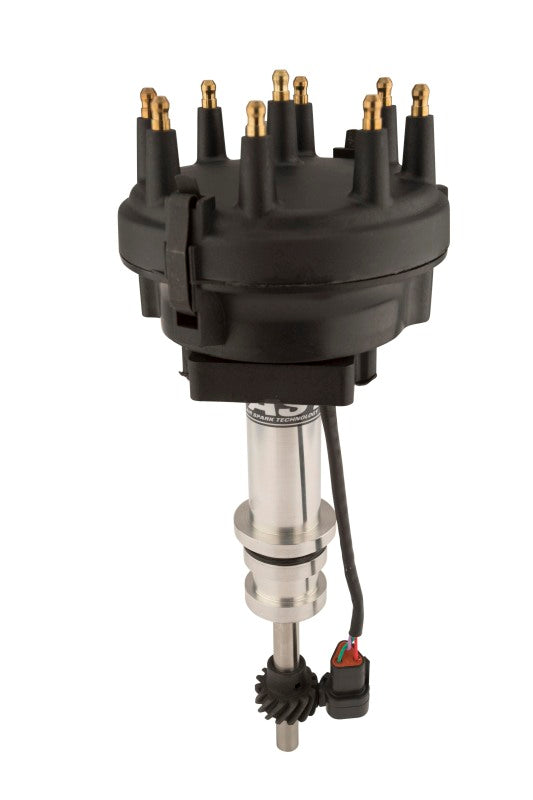

FAST Distributor, XDI Sportsman, Large Cap, Small Block Ford (fst1000-1610)

This is the FAST Distributor, XDI Sportsman, Large Cap, Small Block Ford. Part fst1000-1610. Ignition parts (coils, plugs and wires) deliver a strong, consistent spark.

The FAST XDi Sportsman Distributors were designed to deliver the most accurate trigger signal possible throughout the entire RPM range of your race engine. This is accomplished through the use of an advanced Hall-effect style pickup which is then converted to a signal that most CD ignition controls accept. The benefit of a Hall-effect pickup is there is no retard, commonly called magnetic pickup compensation, so you can ensure your timing remains stable from idle to race RPM. Inside the CNC-machined billet housing is a polished stainless steel shaft that is supported with sealed ball bearing on the top and a long bushing on the bottom. FAST also has gone through great strides to reduce end play in the distributor to take out any timing variations and damage to the gear. Each distributor is supplied with a high-quality rotor and distributor cap. A FAST Ignition Control (E6 or E7 series) must be used. Note that there is no mechanical advance, the timing is locked out. XDi Sportsman Distributors are available with a large diameter Ford style cap or smaller diameter GM points size cap with HEI terminals.

Product details

• Part type: Ignition
• Brand: FAST
• Advance Type: None, Locked-Out
• Housing Material: Billet Aluminum
• Slip Collar: No
• Shaft Material: Stainless Steel
• Shaft Diameter: 0.5
• Mechanical Tach Drive: No
• Ignition Box Required: Yes
• Housing Finish: Natural
• Gear Material: Steel
• Distributor Height: 7.5
• Distributor Gear Rotation: CounterClockwise
• Computer-Controlled Compatible: Yes
• Cap Style: Male/HEI
• Cap Diameter: 5.375
• FAST part number: fst1000-1610

Fitment

• Vehicle: Ford Mustang (Fox), Ford Mustang (SN95)
• Years and trims on file: 1979 Ford Mustang Base; 1979 Ford Mustang Ghia; 1982 Ford Mustang GL; 1982 Ford Mustang GLX; 1982-1995 Ford Mustang GT; 1984 Ford Mustang GT-350 20th Anniversary; 1995 Ford Mustang GTS; 1982 Ford Mustang L; 1984 Ford Mustang L; 1984-1993 Ford Mustang LX; 1993-1995 Ford Mustang SVT Cobra; 1993 Ford Mustang SVT Cobra R
• Application listing: FAST Distributor, XDI Sportsman, Large Cap, Small Block Ford
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.
