Edelbrock Supercharger Stage 2 - 15-17 Ford Mustang Modular Nose 5.0L V8 (ede15839)

OFF-ROAD OR MOTORSPORTS USE ONLY. This part is not CARB legal. It is not legal for sale or use on pollution-controlled motor vehicles in California or in other states that follow California emissions rules. It is sold for off-road or motorsports use only.

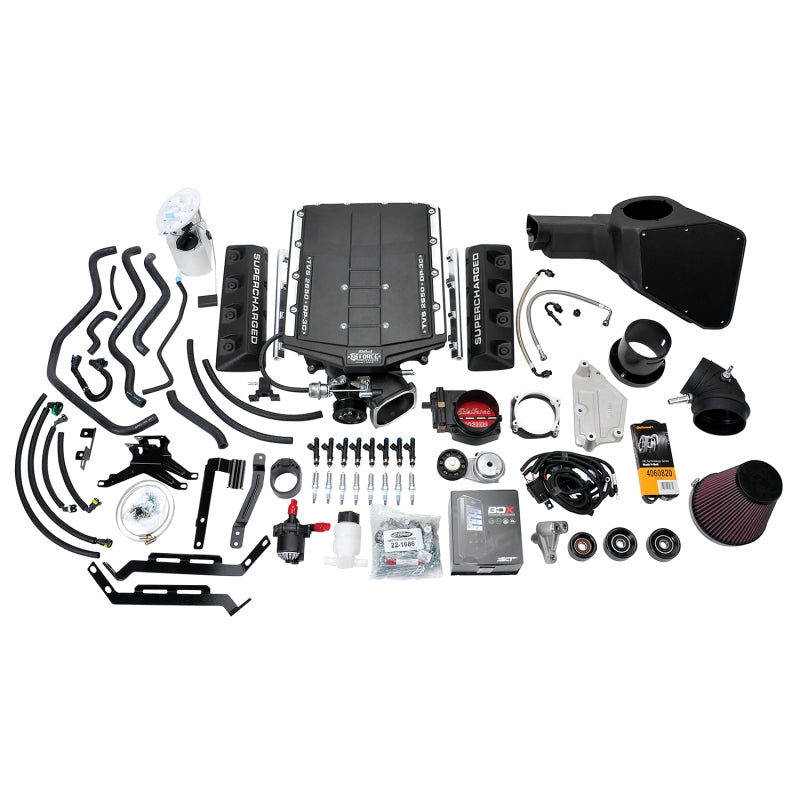

This is the Edelbrock Supercharger Stage 2 - 15-17 Ford Mustang Modular Nose 5.0L V8. Part ede15839. A turbo or supercharger kit adds forced induction for a large increase in power.

If you own a 2015-17 Mustang and want max performance from a bolt-on power adder; jump right into our Stage 2 Supercharger System #15839 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance; all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass; three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase; we?ve upgraded fuel system components in this kit to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. You?ll also get a dramatic increase in airflow over the Stage 1 kit from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang; the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware; hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock s industry-leading 3-Year/36;000-mile Powertrain Warranty.

Features and benefits

• E-Force Stage-2 Supercharger System

Product details

• Part type: Turbo & Supercharger Kits
• Brand: Edelbrock
• Air Filter Included: Yes
• Calibration: Yes
• Finish: Black Powder Coated
• Fuel Injector Type: 78
• Fuel Pump Included: Yes
• Harmonic Balancer Diameter: 6.67
• Hose Included: Yes
• Outside Pulley Diameter: 3.25
• Pulley Belt Width: 6-Rib
• Rotor Type: Eaton TVS 2650
• Spark Plugs Included: Yes
• System Type: Stage 2 - Street/Strip System
• Maximum Horsepower: 610RW
• Maximum Torque: 499RW
• Edelbrock part number: ede15839

Fitment

• Vehicle: Ford Mustang (Fox), Ford Mustang (S197), Ford Mustang (S550), Ford Mustang (SN95)
• Years and trims on file: 1979-1981 Ford Mustang Base; 1979 Ford Mustang Base; 1994-2010 Ford Mustang Base; 2011-2014 Ford Mustang Base; 2012-2013 Ford Mustang Boss 302; 2008-2009 Ford Mustang Bullitt; 2019-2020 Ford Mustang Bullitt; 1981 Ford Mustang Cobra; 2015-2020 Ford Mustang EcoBoost; 2015-2020 Ford Mustang EcoBoost Premium; 1979-1981 Ford Mustang Ghia; 1979 Ford Mustang Ghia; plus 40 more on file
• Application listing: Edelbrock Supercharger Stage 2 - 15-17 Ford Mustang Modular Nose 5.0L V8
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.

Emissions: off-road or motorsports use only

This part is not CARB legal and is sold for off-road or motorsports use only. It is not intended for use on vehicles driven on public roads. By ordering, the buyer accepts responsibility for checking and following federal, state and local emissions laws where the vehicle is used. Questions? Ask us before you order.
