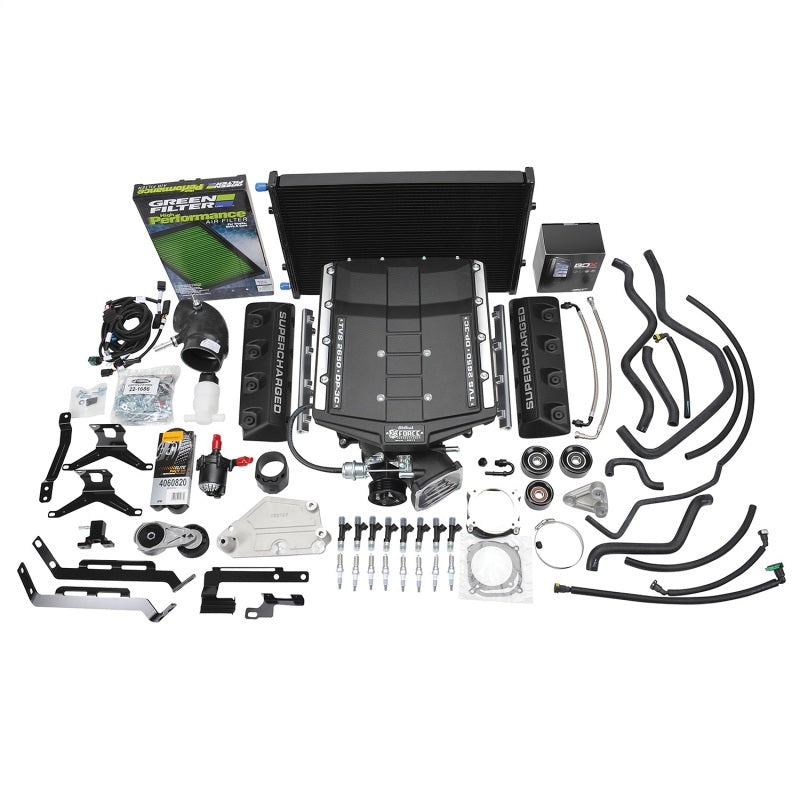

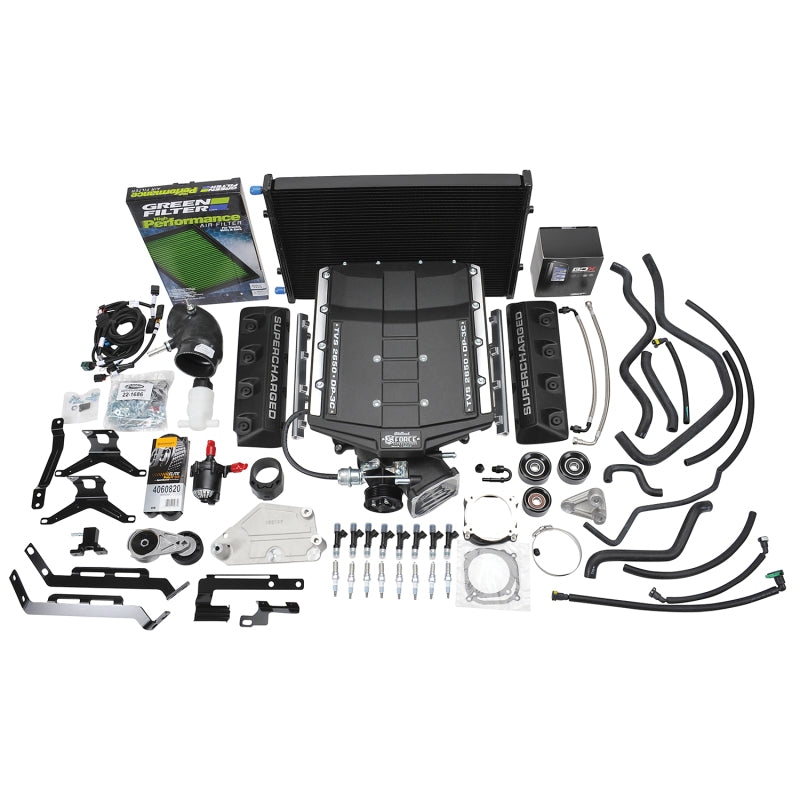

Edelbrock Supercharger Stage 1 - 15-17 Ford Mustang Modular Nose 5.0L V8 (ede15838)

OFF-ROAD OR MOTORSPORTS USE ONLY. This part is not CARB legal. It is not legal for sale or use on pollution-controlled motor vehicles in California or in other states that follow California emissions rules. It is sold for off-road or motorsports use only.

This is the Edelbrock Supercharger Stage 1 - 15-17 Ford Mustang Modular Nose 5.0L V8. Part ede15838. A turbo or supercharger kit adds forced induction for a large increase in power.

The performance-proven Edelbrock modular-inlet supercharger system is now available for owners of 2015-2017 Ford Mustangs with the 5.0L Coyote engine. Our new Edelbrock supercharger #15838 is a complete bolt-on kit that produces an impressive 690 horsepower with 588 ft-lbs of torque. At the heart of this system is Eaton?s biggest R2650 TVS rotor assembly housed in a new manifold with an integrated high-capacity DP3C (dual-pass; three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. The 170-degree high-twist lobes; bigger bearings and beefier timing gears ensure maximum reliability with smooth acceleration throughout the powerband. The Edelbrock supercharger for the 5.0L V8 fits under the stock hood with absolutely no cutting or modifications required. And if you?re concerned about the effect on MPG; the increase in power comes with little to no loss in fuel economy thanks to the supercharger?s integrated bypass valve that mitigates parasitic power loss during normal driving. Our new kit is a true bolt-on that requires no additional modifications to the stock engine. For those who want more power; we?ve got an Edelbrock Stage 2 Upgrade Kit #15884 that can be added to transform your Mustang into a track-ready beast! The Edelbrock supercharger for the 2015-17 Mustang has a self-contained lubrication system with a 100;000-mile service interval and comes finished in a durable black powder-coating that blends nicely into the engine compartment. Each kit includes a complete set of preformed hoses; hardware and a full-color manual that provides clear step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by our industry-leading 3-year/36;000-mile warranty.

Features and benefits

• E-Force Stage-1 Supercharger System

Product details

• Part type: Turbo & Supercharger Kits
• Brand: Edelbrock
• System Type: Stage 1 - Street System
• Tensioner Included: Yes
• Air Filter Included: Yes
• Calibration: Yes
• Finish: Black Powder Coated
• Fuel Injector Type: 50
• Harmonic Balancer Diameter: 6.67
• Hose Included: Yes
• Maximum Horsepower: 690
• Maximum Torque: 588
• Outside Pulley Diameter: 3.25
• Pulley Belt Width: 6-Rib
• Rotor Type: Eaton TVS 2650
• Spark Plugs Included: Yes
• Edelbrock part number: ede15838

Fitment

• Vehicle: Ford Mustang (S550)
• Years and trims on file: 2015-2017 Ford Mustang GT; 2015 Ford Mustang GT 50 Years Limited Edition; 2015-2017 Ford Mustang GT Premium
• Application listing: Edelbrock Supercharger Stage 1 - 15-17 Ford Mustang Modular Nose 5.0L V8
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.

Emissions: off-road or motorsports use only

This part is not CARB legal and is sold for off-road or motorsports use only. It is not intended for use on vehicles driven on public roads. By ordering, the buyer accepts responsibility for checking and following federal, state and local emissions laws where the vehicle is used. Questions? Ask us before you order.
