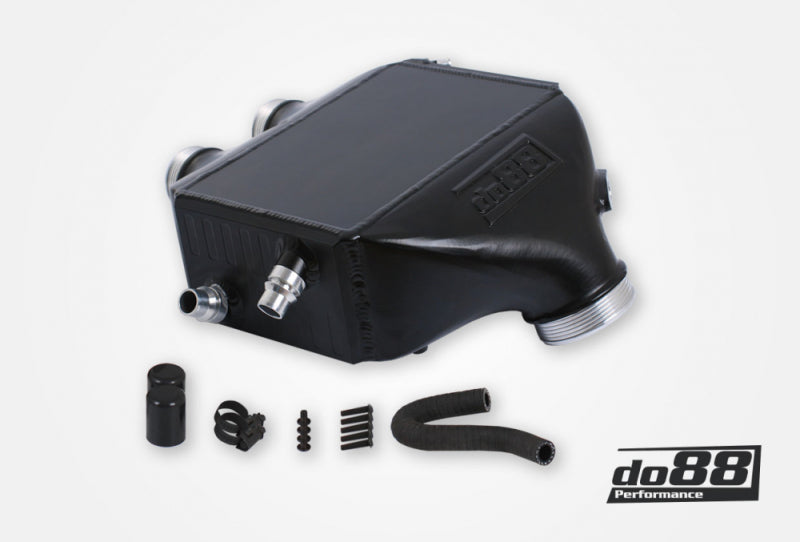

do88 Performance Intercooler — BMW F8X M2C/M3/M4

The S55 twin-turbo engine uses a top-mounted water-cooled intercooler rather than a conventional air-cooled unit. The factory core is Tube & Fin with clamped plastic end tanks — a design prone to cracking and leaking coolant into the engine or boost pressure out through the tank seals.

Specification

• 85% larger core volume than OEM — 5,657 cm³ vs 3,052 cm³
• 16% higher airflow at the same pressure drop — 298 CFM vs 256 CFM
• 9°C lower post-intercooler air temperature in do88's own testing — 39°C vs 48°C
• Bar-and-plate core with TIG-welded aluminum casting end tanks
• Dual-pass coolant flow, versus OEM single-pass
• Drop-in installation, no modification required

Measured Gains

+13hp peak, +25hp midrange, +52Nm torque — measured on a BootMod3 Stage 1 tune.
