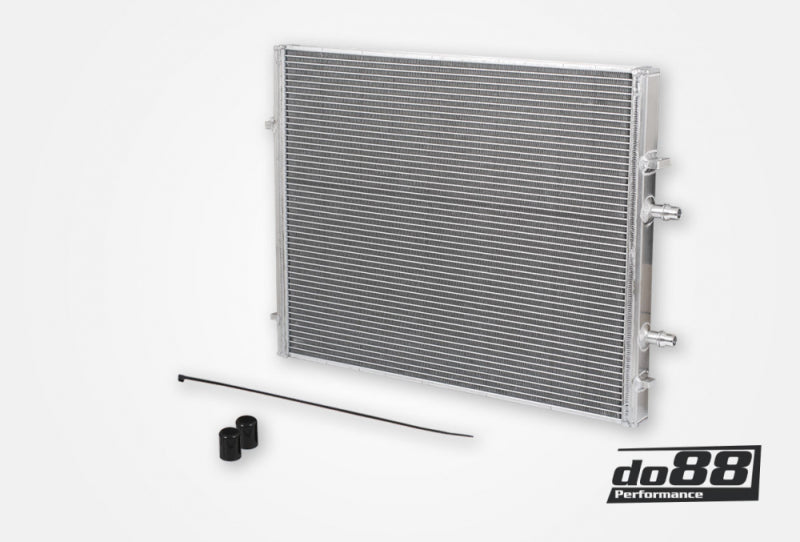

do88 Front Intercooler Radiator — BMW F8X M2C/M3/M4

Part of a two-radiator system that cools the S55's water-to-air intercooler circuit. This is the larger of the pair, mounted in the front of the center cooling module.

⚠ Works as a Pair

The S55's intercooler coolant circuit uses two parallel radiators — this front unit and a separate side-mounted radiator. do88's tested temperature figures reflect both installed together. Fitting this alone will still help, but the full benefit assumes both radiators are upgraded.

Specification

• 75% larger core volume than OEM — 8,498 cm³ vs 4,843 cm³
• 48% larger frontal surface area — 2,656 cm² vs 1,794 cm²
• 5°C lower post-intercooler air temperature in do88's testing, measured with the side-mounted radiator also installed
• 32mm thick single-row core, multi-channel tubes, OE-style dual-pass flow
• Drop-in installation, no modification required
