CSF 2020+ Porsche 992 Turbo/S and 992.2 Carrera 3.0T High Performance Intercooler System (csf8188)

OFF-ROAD OR MOTORSPORTS USE ONLY. This part is not CARB legal. It is not legal for sale or use on pollution-controlled motor vehicles in California or in other states that follow California emissions rules. It is sold for off-road or motorsports use only.

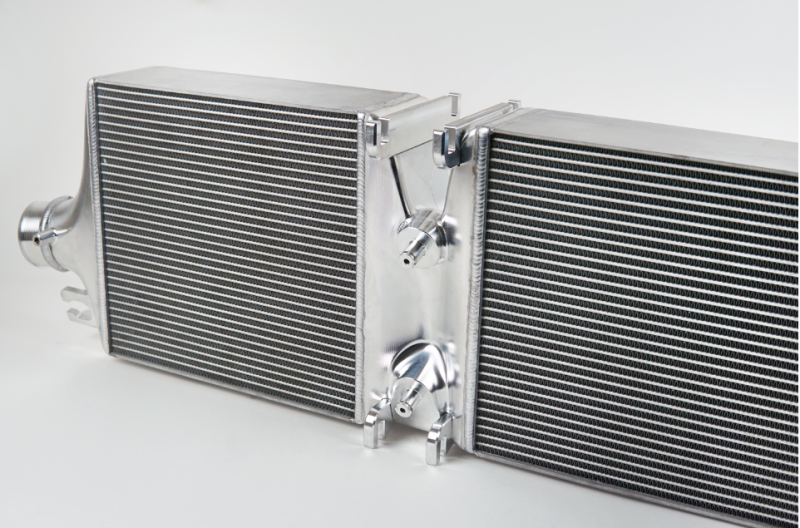

This is the CSF 2020+ Porsche 992 Turbo/S and 992.2 Carrera 3.0T High Performance Intercooler System. Part csf8188. An intercooler cools the charge air from the turbo or supercharger for denser air and more consistent power.

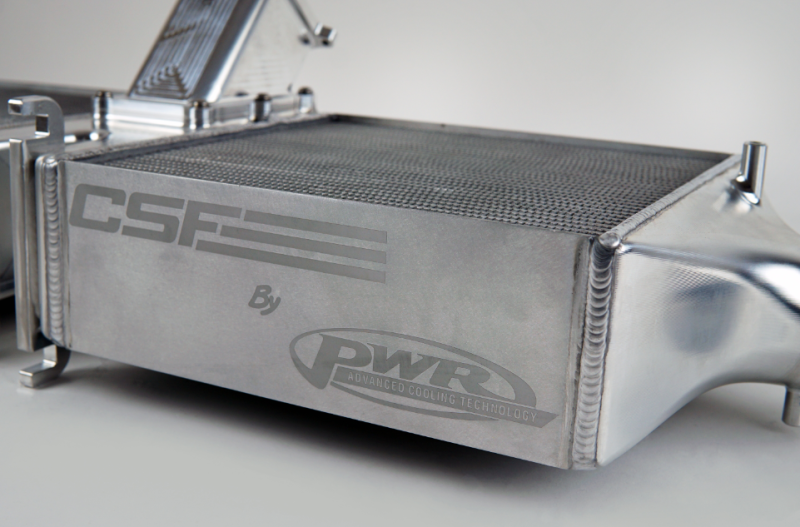

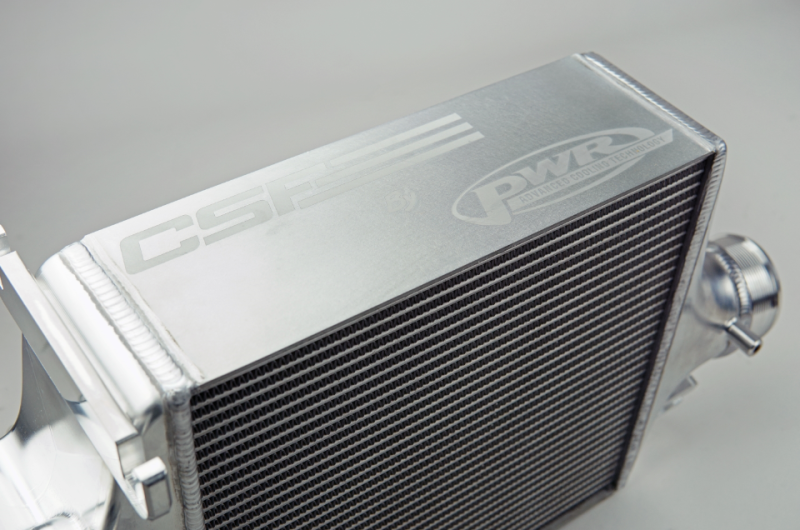

The most important feature of the CSF by PWR 992 Turbo/S Intercooler System is the Formula-1 grade intercooler cores. CSF's strategic relationship with PWR has allowed the inclusion of these cores, which are unlike any other available in the performance aftermarket. The intercooler cores are spec'd out by CSF and custom built by PWR. Featuring two rows of rolled cooling tubes with inner fins, these cores make for the most efficient intercoolers available. Because of this, they are able to eliminate heat soak and lower IATs much more efficiently than traditional Bar & Plate or Tube & Fin designs. This gives us maximum performance for extended periods of time under demanding driving conditions and for vehicles with increased power levels through modifications and tuning. The most apparent difference of the high-performance intercooler system from CSF is the beautiful 100% TIG-welded all billet aluminum construction, compared to the OEM crimped-on plastic tank design. This feature is not only aesthetically pleasing, but also offers improved longevity and durability.

Features and benefits

• Eliminates Heat Soak and Lowers Air Intake Temperatures (IATs) for Maximum Performance in Race Conditions - Especially Critical Due to Intercooler Placement in Engine Compartment

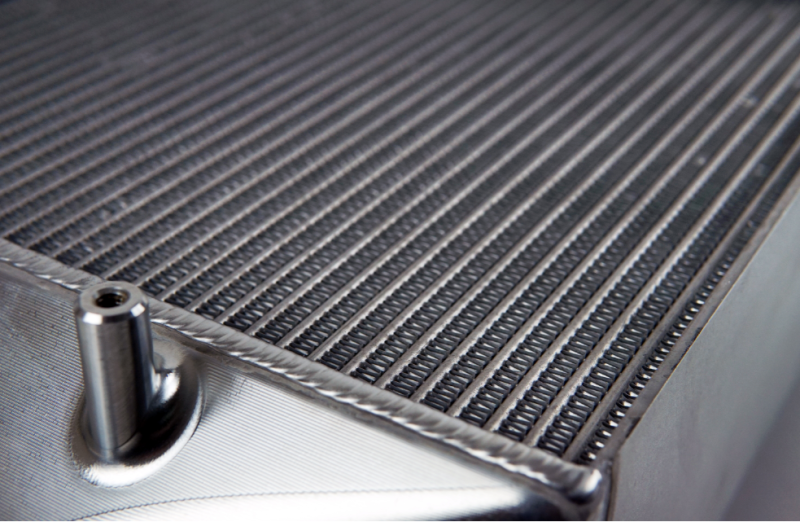

• Formula-1 Performance Grade Core by PWR (2-Row Core Featuring Rolled Tubes w/ Inner Fins) - 33 Tubes vs. OEM 17 - 3mm Rolled Tube vs. OEM 7mm - 4.85mm Fin Height vs. OEM 8mm

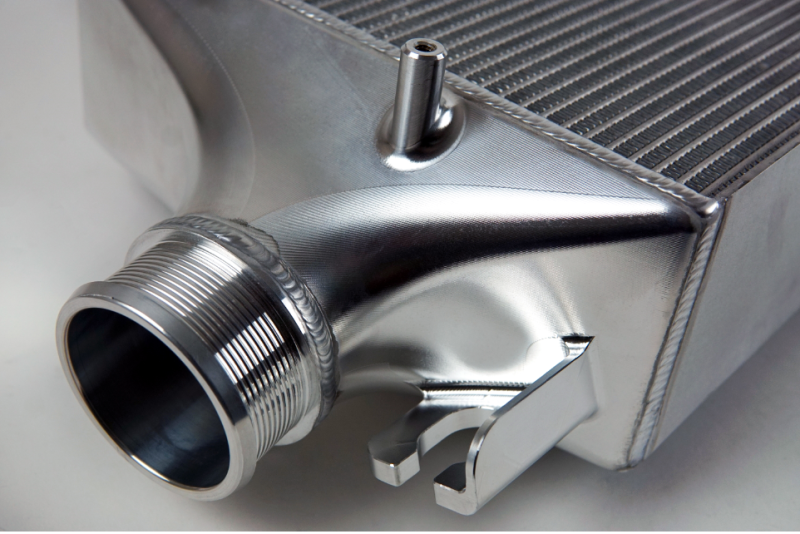

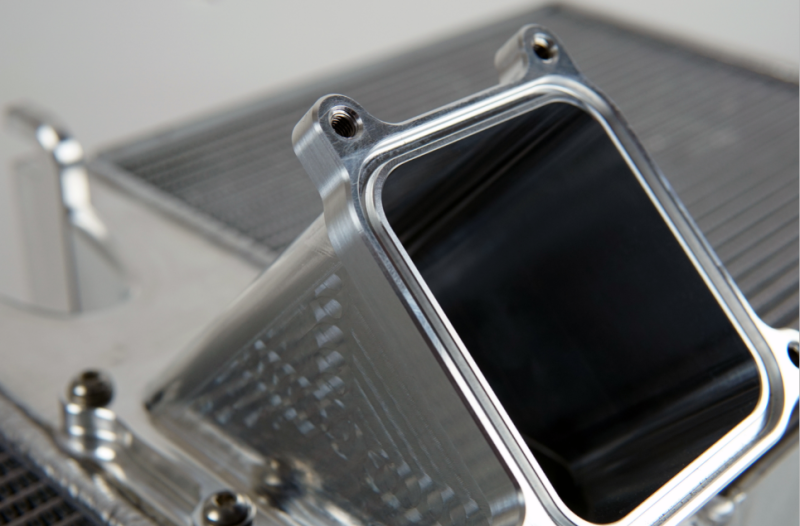

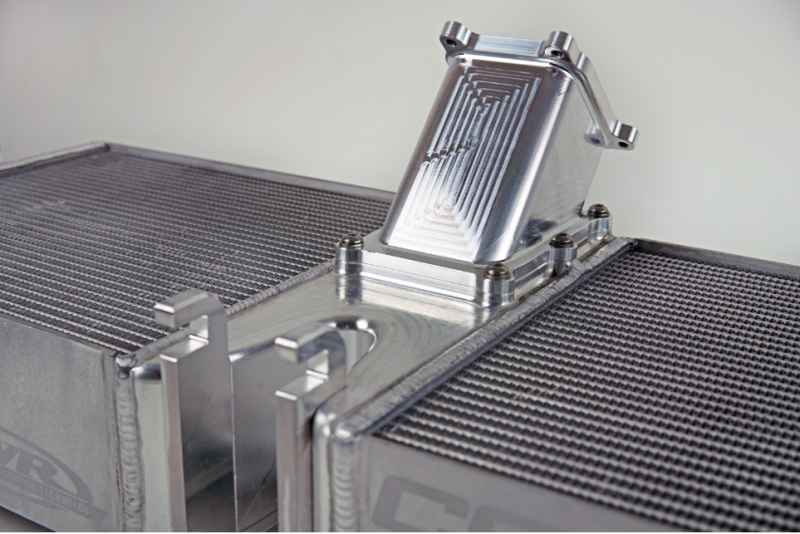

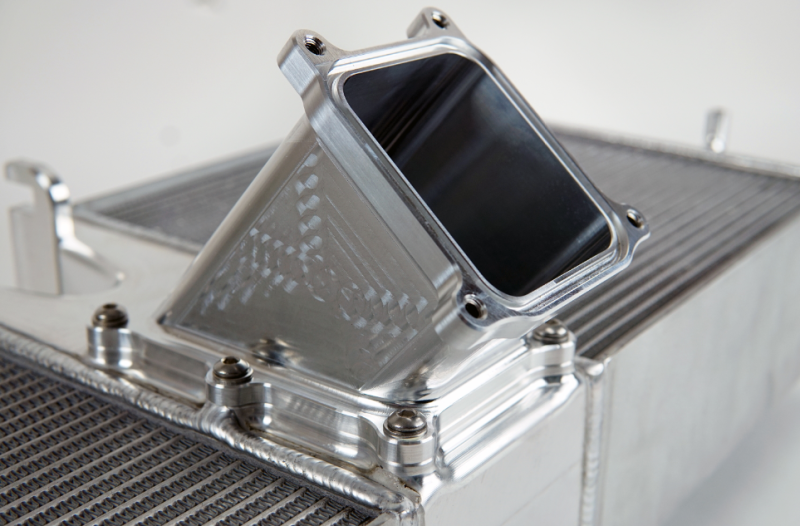

• CNC Machined Billet End Tanks With Integrated Y-Pipe Connection to Throttle Body
• 100% TIG Welded vs. OEM Style Gasket and Crimped Plastic End Tanks for Maximum Durability in High Boost Applications

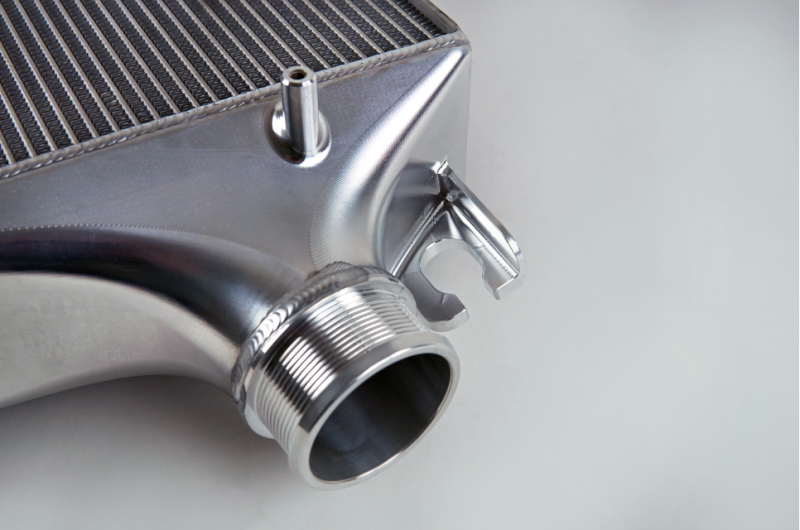

• OEM Style CNC Machined Inlet/Outlet Connections for Precise Fitment with All OEM Components

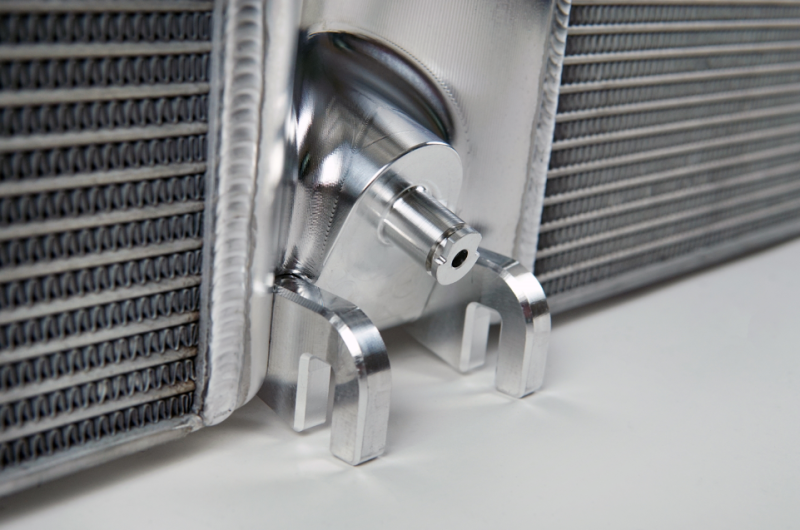

• Three 1/8 NPT Ports for Methanol Injection, Boost monitoring, Etc
• Highly Engineered, Lightweight Design - Weighing Only 20 lbs. Total (9.07 kg)
• True Plug-and-Play "Drop-in Fit" Installation
• R&D and Performance Testing by Industry-Leading Porsche Tuning Companies - M-Engineering, World Motorsports, GMG Racing, and Gosha Turbo Tech
• Made in the USA at PWR North America

Product details

• Part type: Intercoolers
• Brand: CSF
• Core Material: Aluminum
• Installation Type: Drop-In Fit Installation
• Color: Raw Billet Aluminum
• Core Color: Raw Aluminum
• Core Row Quantity: 2
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Tank Material: Billet Aluminum
• Mounting Hardware Included: No
• Outlet Fitting Gender: Male
• Core Length: 275mm
• Core Thickness: 87mm
• Core Width: 260mm
• Outlet Type: Threaded
• CSF part number: csf8188

Fitment

• Vehicle: Porsche 911 (992)
• Years and trims on file: 2025-2026 Porsche 911 Carrera; 2025-2026 Porsche 911 Carrera S; 2025-2026 Porsche 911 Carrera T; 2023 Porsche 911 Sport Classic; 2021-2025 Porsche 911 Turbo; 2025 Porsche 911 Turbo 50 Years; 2021-2025 Porsche 911 Turbo S
• Application listing: CSF 2020+ Porsche 992 Turbo/S and 992.2 Carrera 3.0T High Performance Intercooler System
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.

Emissions: off-road or motorsports use only

This part is not CARB legal and is sold for off-road or motorsports use only. It is not intended for use on vehicles driven on public roads. By ordering, the buyer accepts responsibility for checking and following federal, state and local emissions laws where the vehicle is used. Questions? Ask us before you order.
