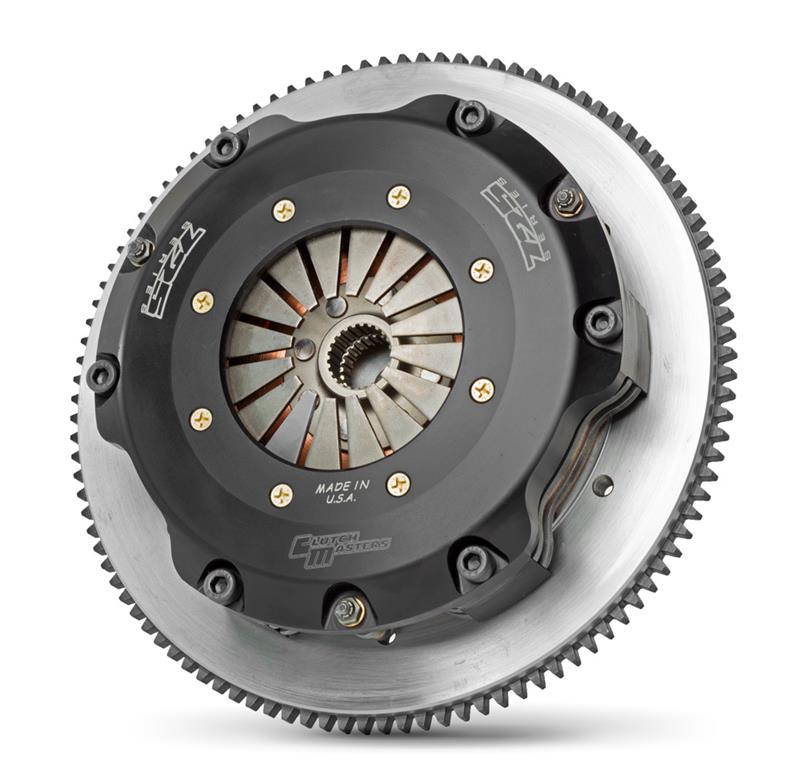

Clutch Masters 08-10 EVO X 2.0L Turbo 5 spd Street 7.25in Twin Disc Clutch Kit w/ Steel FW Push Type (clm05110-3D7R-SHV)

This is the Clutch Masters 08-10 EVO X 2.0L Turbo 5 spd Street 7.25in Twin Disc Clutch Kit w/ Steel FW Push Type. Part clm05110-3D7R-SHV. A performance clutch kit replaces the factory clutch to hold more torque and give a more consistent engagement.

Clutch Masters is proud to introduce the finest and most economical multi-plate clutch systems available for today's high performance vehicles, the 725 Series. Clutch Masters Twin Disc systems are pure racing technology that also works well in high performance street applications that will be used on the street on rare occasions. They are designed to hold tremendous horsepower and torque ratings, while being reasonable to operate on the track.

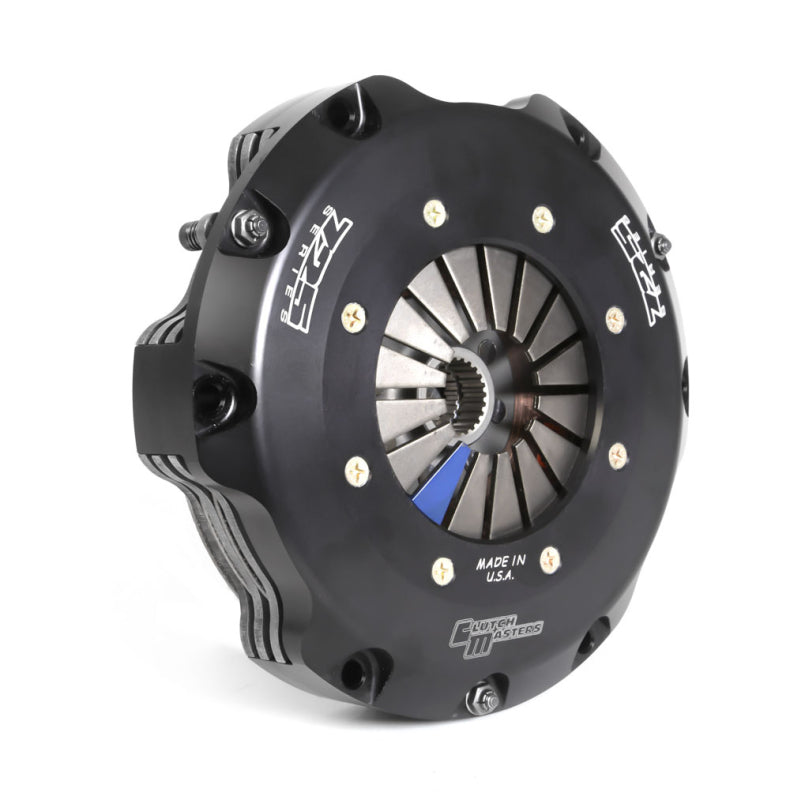

By increasing the clamping force of the pressure plate and adding to the square inches of usable disc area, CM Twin Discs significantly increase clamping values with an average of 50% increase in pedal pressure depending on the application. The cover assembly is machined from billet aluminum with 25% more tensile strength than the competition's cast unit.

The flywheel is machined from billet 6061-T6 aluminum to meet SFI spec 1.2 for competition in NHRA, NDRA, IDRC, IHRA, SCCA and NASA. Each aluminum flywheel includes a replaceable heat shield. Steel flywheels are also available on select applications.

The 725 series is a smaller diameter assembly, which creates less rotating mass and offering quicker, and smoother shifting with much better throttle response, ideal for Drag racing applications.

Available Stages:

"Street and Race" (TD7S) – 1 ceramic rigid disc, and 1 fiber tuff rigid disc

"Race" (TD7R) – 2 ceramic rigid discs

Clutch Masters Twin Disc features:

Components can be purchased separately for economical repair.

Positive release for ease of high RPM staging and shifting.

Most have experienced better 4/10's times and averaged hundreds of passes without complications or repair

Features and benefits

• Push Type Conversion

Product details

• Part type: Clutch Kits
• Brand: Clutch Masters
• Pilot Bearing Included: No
• Alignment Tool Included: Yes
• Pressure Plate Bolts included: Yes
• Flywheel Bolts Included: No
• Torque Capacity Rating: 900 ft.lbs
• Pressure Plate: 7.25" Billet Aluminum (Push Style)
• Disc Material: Triple ceramic
• Disc Type: Rigid
• Flywheel Included: Yes
• Release Bearing Included: Yes (Hydraulic)
• Flywheel Material: Steel
• Clutch Masters part number: clm05110-3D7R-SHV

Fitment

• Vehicle: Mitsubishi Lancer Evolution X
• Years and trims on file: 2015 Mitsubishi Lancer Evolution Final Edition; 2008 Mitsubishi Lancer Evolution GSR; 2010-2015 Mitsubishi Lancer Evolution GSR
• Application listing: Clutch Masters 08-10 EVO X 2.0L Turbo 5 spd Street 7.25in Twin Disc Clutch Kit w/ Steel FW Push Type
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.
