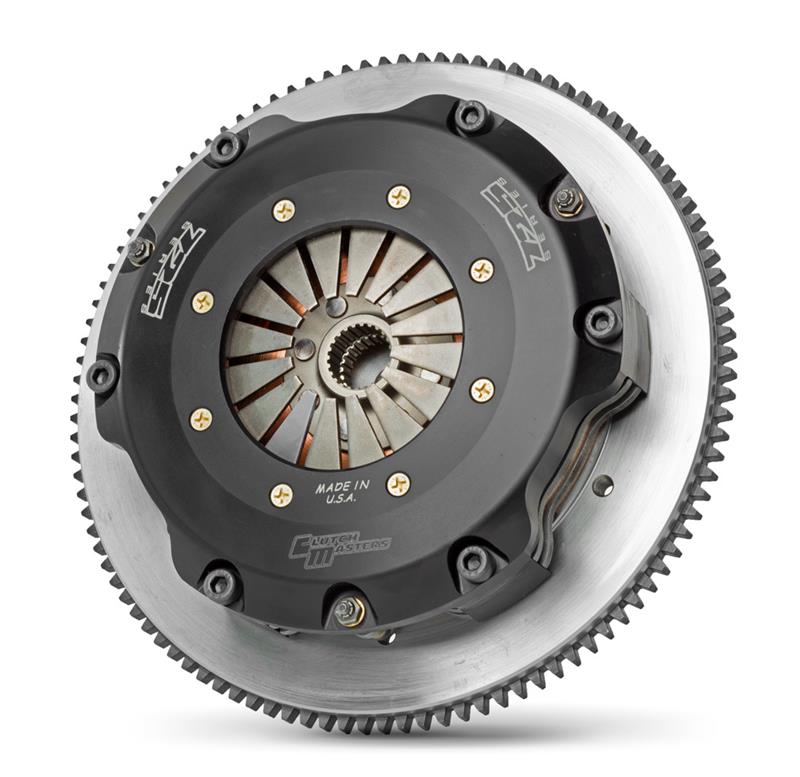

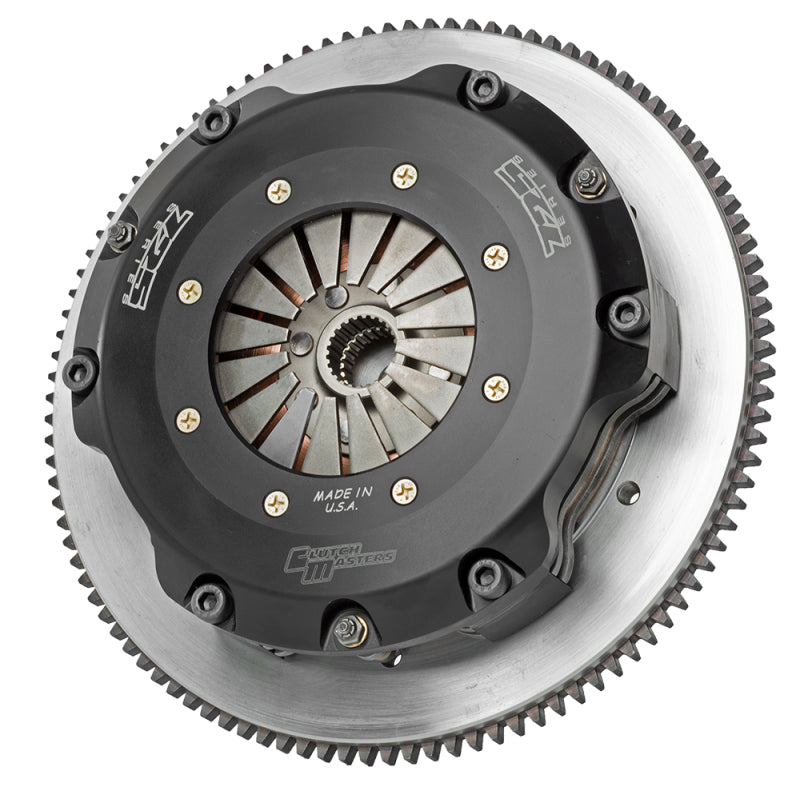

Clutch Masters 01-09 Honda S2000 2.0L/2.2L 725 Series Race Clutch Kit w/Steel Flywheel (clm08023-TD7R-SHV)

This is the Clutch Masters 01-09 Honda S2000 2.0L/2.2L 725 Series Race Clutch Kit w/Steel Flywheel. Part clm08023-TD7R-SHV. A performance clutch kit replaces the factory clutch to hold more torque and give a more consistent engagement.

Clutch Masters is proud to introduce the finest and most economical multi-plate clutch systems available for today's high performance vehicles, the 725 Series. Clutch Masters Twin Disc systems are pure racing technology that also works well in high performance street applications that will be used on the street on rare occasions. They are designed to hold tremendous horsepower and torque ratings, while being reasonable to operate on the track.

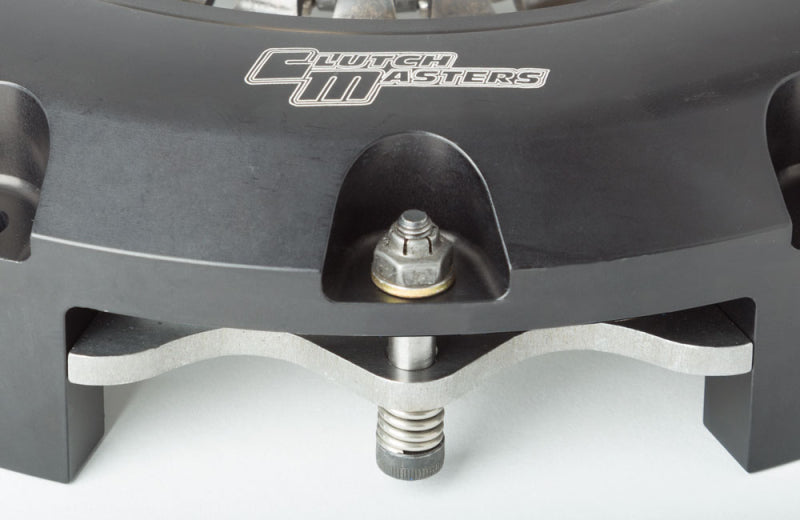

By increasing the clamping force of the pressure plate and adding to the square inches of usable disc area, CM Twin Discs significantly increase clamping values with an average of 50% increase in pedal pressure depending on the application. The cover assembly is machined from billet aluminum with 25% more tensile strength than the competition's cast unit.

The flywheel is machined from billet 6061-T6 aluminum to meet SFI spec 1.2 for competition in NHRA, NDRA, IDRC, IHRA, SCCA and NASA. Each aluminum flywheel includes a replaceable heat shield. Steel flywheels are also available on select applications.

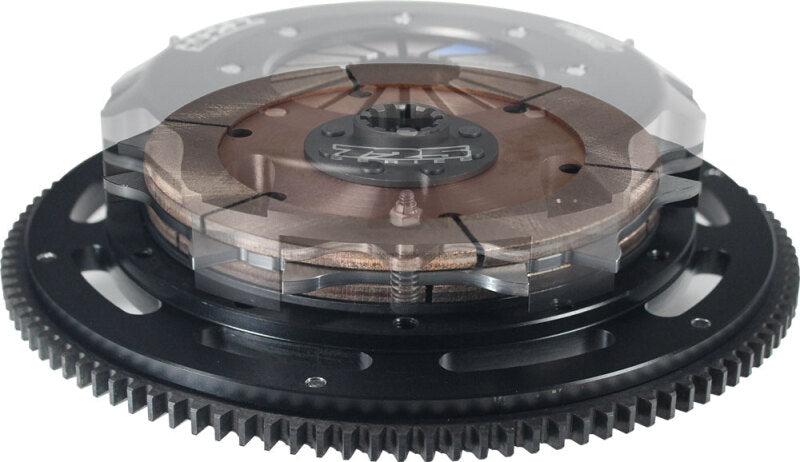

The 725 series is a smaller diameter assembly, which creates less rotating mass and offering quicker, and smoother shifting with much better throttle response, ideal for Drag racing applications.

Available Stages:

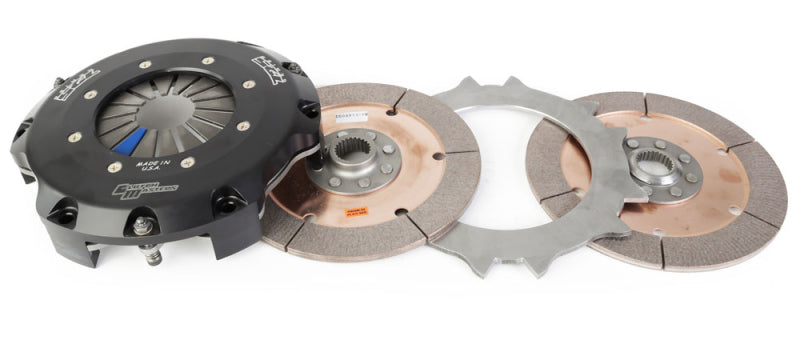

"Street and Race" (TD7S) – 1 ceramic rigid disc, and 1 fiber tuff rigid disc

"Race" (TD7R) – 2 ceramic rigid discs

Clutch Masters Twin Disc features:

Components can be purchased separately for economical repair.

Positive release for ease of high RPM staging and shifting.

Most have experienced better 4/10's times and averaged hundreds of passes without complications or repair

Product details

• Part type: Clutch Kits
• Brand: Clutch Masters
• Torque Capacity Rating: 700 ft.lbs
• Pressure Plate: 7.25" Billet Aluminum Cover (Push)
• Disc Material: Dual Ceramic
• Disc Type: Rigid
• Flywheel Included: Yes
• Flywheel Material: Steel
• Release Bearing Included: Yes (Hydraulic)
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes
• Pressure Plate Bolts included: Yes
• Flywheel Bolts Included: No
• Clutch Masters part number: clm08023-TD7R-SHV

Fitment

• Vehicle: Honda S2000
• Years and trims on file: 2001-2003 Honda S2000 Base; 2004-2009 Honda S2000 Base; 2008-2009 Honda S2000 CR
• Application listing: Clutch Masters 01-09 Honda S2000 2.0L/2.2L 725 Series Race Clutch Kit w/Steel Flywheel
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.

Shipping & returns

• Orders are processed within 1–3 business days; standard delivery is 3–7 business days within the United States.
• Clutch Masters parts are supplied through our distributor. We confirm availability and lead time with you after you order.
• We currently ship within the U.S. only. See our Shipping Policy.
• 30-day returns on unused parts in original packaging — see our Return Policy.

Installation at Team ANBD

Team ANBD is a performance shop in Andover, New Jersey. We can align or corner-balance the car, and prep track cars. Book an appointment or ask us about installation and fitment before you order.
