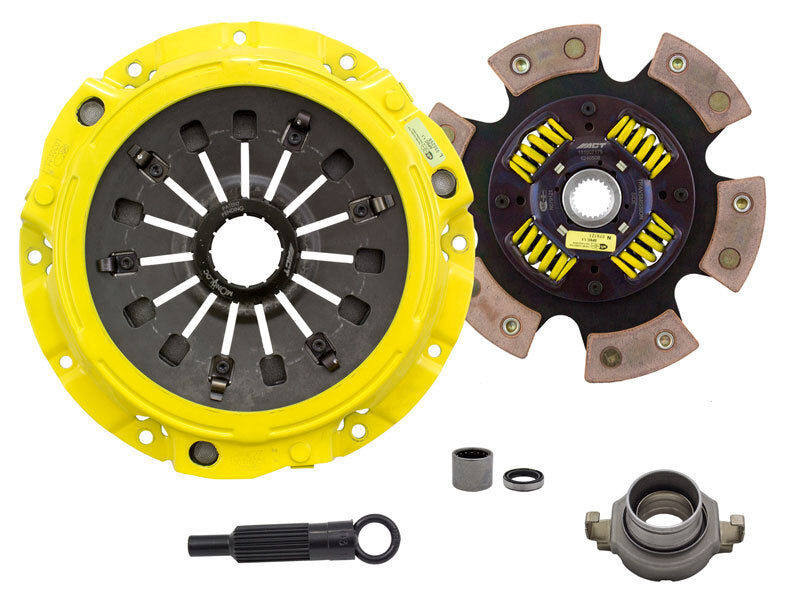

ACT 1993 Mazda RX-7 XT-M/Race Sprung 6 Pad Clutch Kit (actZX6-XTG6)

This is the ACT 1993 Mazda RX-7 XT-M/Race Sprung 6 Pad Clutch Kit. Part actZX6-XTG6. A performance clutch kit replaces the factory clutch to hold more torque and give a more consistent engagement.

ZX6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features and benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Product details

• Part type: Clutch Kits
• Brand: ACT
• Torque Capacity (ft/lbs.): 575
• Torque Capacity Over OE: 103%
• Pressure Plate Type: Xtreme
• Clutch Disc Diameter: 240
• Input Spline Quantity: 23
• Input Shaft Diameter: 1
• Disc Material: Ceramic
• Pilot Bushing Included: No
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Grease Included: Yes
• Pilot Bearing Included: Yes
• Clutch Slave Cylinder Included: No
• Clutch Master Cylinder Included: No
• ACT part number: actZX6-XTG6

Fitment

• Vehicle: Mazda RX-7 (FD3S)
• Years and trims on file: 1993-1995 Mazda RX-7 Base; 1993 Mazda RX-7 R1; 1994-1995 Mazda RX-7 R2; 1993-1995 Mazda RX-7 Touring
• Application listing: ACT 1993 Mazda RX-7 XT-M/Race Sprung 6 Pad Clutch Kit
• Check the vehicle, model years, engine and trim above against your car before ordering. Not sure? Ask us and we will check it against your VIN.

Shipping & returns

• Orders are processed within 1–3 business days; standard delivery is 3–7 business days within the United States.
• ACT parts are supplied through our distributor. We confirm availability and lead time with you after you order.
• We currently ship within the U.S. only. See our Shipping Policy.
• 30-day returns on unused parts in original packaging — see our Return Policy.

Installation at Team ANBD

Team ANBD is a performance shop in Andover, New Jersey. We can align or corner-balance the car, and prep track cars. Book an appointment or ask us about installation and fitment before you order.
