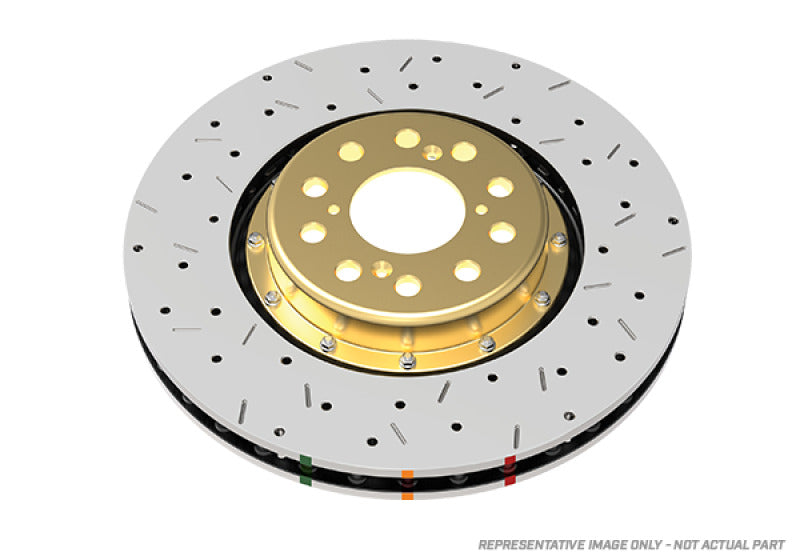

DBA Chevrolet Corvette (C5/C6) 5000 Series XS Drilled & Slotted 2-Piece Front Brake Rotor, Black Hat (DBA52990BLKXS)

The DBA 5000 Series XS Drilled & Slotted 2-Piece front rotor for the Chevrolet Corvette (C5/C6) is built by Disc Brakes Australia (DBA), a specialist rotor maker with more than 45 years in the business. This one has DBA's XS pattern: a non-directional drilled and slotted face that lets pad dust and gas escape. The hat is finished in black. DBA rotors are sold individually, so order two for a full axle set.

Rotor details

• Construction: two-piece, cast-iron ring with aluminum hat, vented
• Series: DBA 5000 Series
• Face: drilled & slotted
• Hat finish: Black
• Outer diameter: 340 mm (13.39 in)
• Thickness: 32 mm (1.26 in)
• Overall height: 45.5 mm (1.79 in)
• Center bore: 70 mm (2.76 in)
• Bolt pattern: 5 x 120.65 mm
• Weight: about 21.2 lb per rotor
• Sold: individually (one rotor per part number)

Fitment

• Vehicle: Chevrolet Corvette (C5/C6)
• Axle: Front
• DBA part number: DBA52990BLKXS
• Application listed by DBA: 2009 Chevrolet Corvette ZR1 5000 Series Drilled and Slotted Front Rotor (Black Hat)
• Brake packages and rotor sizes vary within a model line, so compare this rotor's 340 mm diameter with your current rotor before ordering. Not sure? Ask us and we will check it against your VIN.

About the DBA 5000 Series

The 5000 Series is DBA's two-piece composite rotor: a high-carbon cast-iron ring bolted to an aerospace-grade T6061-T6 aluminum hat with NAS bolts and crimp nuts. The aluminum hat lowers unsprung weight and passes less heat into the hub, while the iron ring expands evenly. DBA recommends it for high-performance street cars, track days, club racing and rally. Vented versions use DBA's Kangaroo Paw vane layout (144 diamond and teardrop-shaped pillars), which DBA says adds surface area and cooling efficiency compared with a straight-vane design.

Shipping & returns

• Orders are processed within 1–3 business days; standard delivery is 3–7 business days within the United States.
• DBA rotors are special-order items from our distributor. We confirm availability and lead time with you after you order.
• We currently ship within the U.S. only. See our Shipping Policy.
• 30-day returns on unused parts in original packaging — see our Return Policy.

Installation at Team ANBD

Team ANBD is a performance shop in Andover, New Jersey, and brakes are what we do. We handle big brake and rotor installation in house and can align or corner-balance the car in the same visit. Book an appointment or ask us about fitment before you order.
