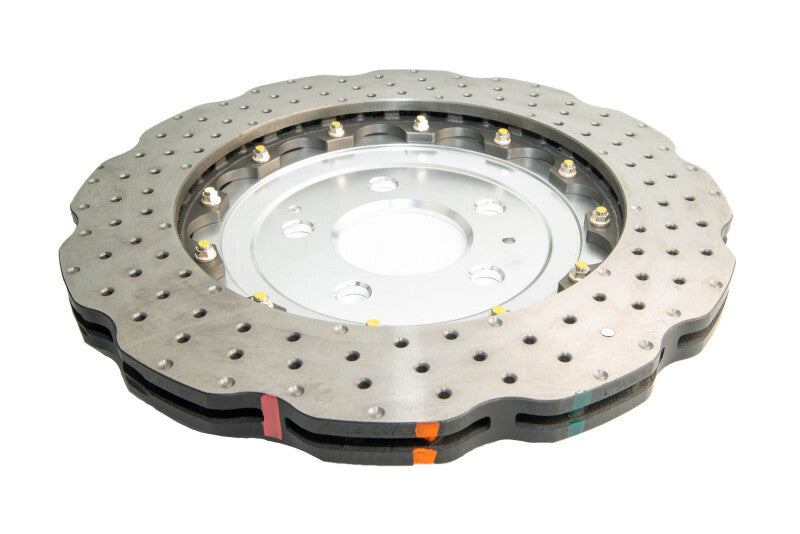

DBA Audi RS4 / RS5 5000 Series Wave XD Drilled & Dimpled 2-Piece Rear Brake Rotor, Silver Hat (DBA52841WSLVXD)

The DBA 5000 Series Wave XD Drilled & Dimpled 2-Piece rear rotor for the Audi RS4 / RS5 is built by Disc Brakes Australia (DBA), a specialist rotor maker with more than 45 years in the business. This one has DBA's XD pattern: a non-directional cross-drilled and dimpled face with a milled wave edge that sheds weight compared with a round rotor, that adds cooling over the plain HD finish while keeping more structural support than a drilled-only rotor. The hat is finished in silver. DBA rotors are sold individually, so order two for a full axle set.

Rotor details

• Construction: two-piece, cast-iron ring with aluminum hat, vented
• Series: DBA 5000 Series
• Face: drilled & dimpled
• Hat finish: Silver
• Outer diameter: 330 mm (12.99 in)
• Thickness: 22 mm (0.87 in)
• Overall height: 36.2 mm (1.43 in)
• Center bore: 68.04 mm (2.68 in)
• Bolt holes: 5
• Sold: individually (one rotor per part number)

Fitment

• Vehicle: Audi RS4 / RS5
• Axle: Rear
• DBA part number: DBA52841WSLVXD
• Application listed by DBA: 13-16 Audi RS5 (w/Scalloped edge Iron Discs) Rear 5000 Series Drilled Wavy Rotor w/Silver Hat
• Brake packages and rotor sizes vary within a model line, so compare this rotor's 330 mm diameter with your current rotor before ordering. Not sure? Ask us and we will check it against your VIN.

About the DBA 5000 Series

The 5000 Series is DBA's two-piece composite rotor: a high-carbon cast-iron ring bolted to an aerospace-grade T6061-T6 aluminum hat with NAS bolts and crimp nuts. The aluminum hat lowers unsprung weight and passes less heat into the hub, while the iron ring expands evenly. DBA recommends it for high-performance street cars, track days, club racing and rally. Vented versions use DBA's Kangaroo Paw vane layout (144 diamond and teardrop-shaped pillars), which DBA says adds surface area and cooling efficiency compared with a straight-vane design.

Shipping & returns

• Orders are processed within 1–3 business days; standard delivery is 3–7 business days within the United States.
• DBA rotors are special-order items from our distributor. We confirm availability and lead time with you after you order.
• We currently ship within the U.S. only. See our Shipping Policy.
• 30-day returns on unused parts in original packaging — see our Return Policy.

Installation at Team ANBD

Team ANBD is a performance shop in Andover, New Jersey, and brakes are what we do. We handle big brake and rotor installation in house and can align or corner-balance the car in the same visit. Book an appointment or ask us about fitment before you order.
