$1,795.00
Description

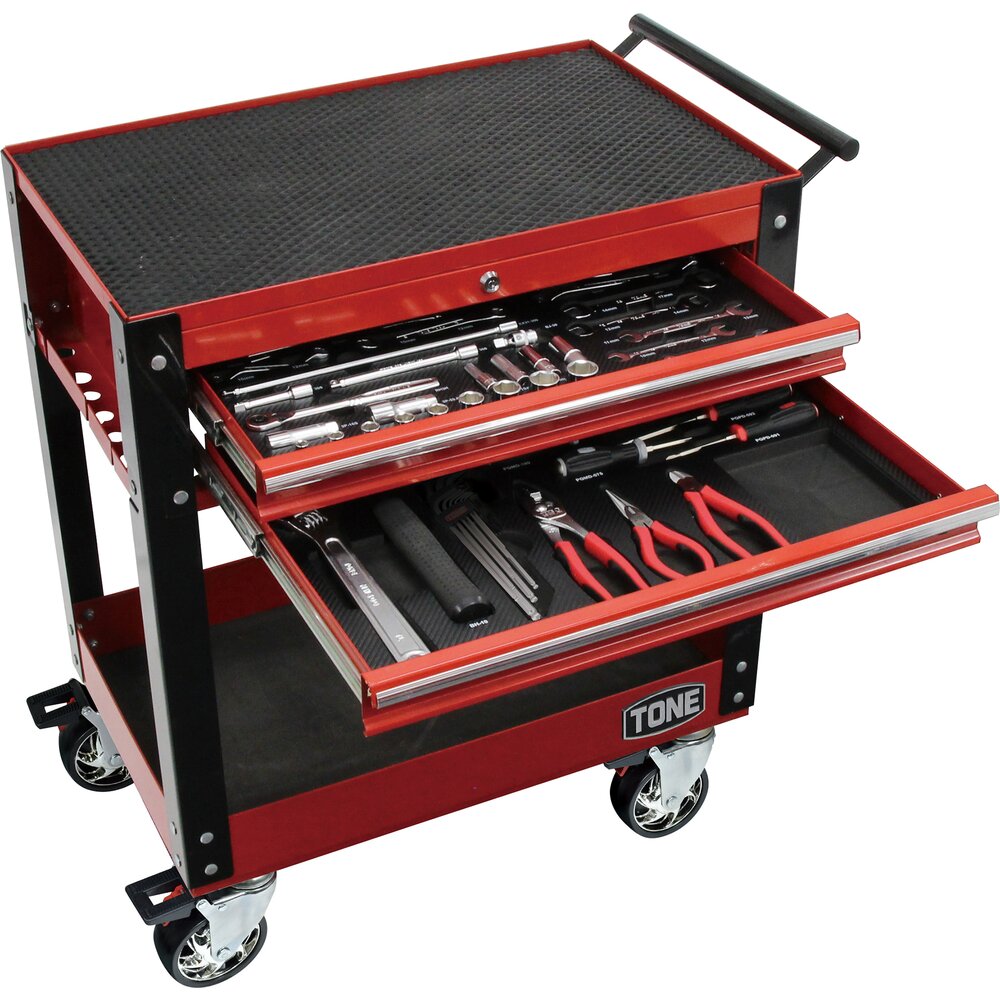

It is a product with tools set in the tool case TC1701R. It enables organization and loss prevention with size and product number indication.
Application: For automobile maintenance & various industrial machines
Specifications
| Part Number | TCA380 |
|---|---|
| Drive size | 9.5mm (3/8inch) |
| Pieces | 63 |
| Mm/inch | mm |
| Withstand load (N(kgf)) | Drawer (per sheet) load capacity: 196N (20kgf) Shelf (per sheet) load capacity: 294N (30kgf) Total load capacity: 883N (90kgf) |
| Color | red |
| Weight (g) | 35400 |
| Dimensions (W × D × H, mm) | 714 × 441 × 900 |
Set Contents
| Socket (Hexagonal) | 3S-08, 3S-10, 3S-12, 3S-13, 3S-14, 3S -17, 3S-19, 3S - 21, 3S-22 |
|---|---|
| Deep socket (hexagonal) | 3S-08L, 3S-10L, 3S-12L, 3S-14L |
| Extension Bar | 305, 306 |
| swing extension bar | EX31-300 |
| ball joint | BJ30 |
| Ratchet handle (hold type) | RH3H |
| Long ball point L-shaped wrench set | BL900 |
| spanner | DS-5.507, DS-0810, DS-1012, DS-1113, DS-1214, DS-1417 |
| Long Mechanic Box Wrench (45° x 10°) | M44-0810, M44-1012, M44-1214, M44-1417, M44-1921, M44-2224 |
| Short offset wrench (45°) | M46-1012 |
| Long offset wrench (15°) | M15-1012, M15-1417 |
| Flare nut wrench (15°) | M26-1012 |
| Power Grip Driver (Penetration) | PGMD-075, PGMD-100, PGPD-001, PGPD-002, PGPD-003 |
| power grip stubby driver | PGSD-M2, PGSD-P2 |
| Power Grip Split Driver (Penetrating) | PGYMD-150 |
| Hyper Worm adjustable wrench (with scale) | MWR-300 |
| Combination Slim Pliers (Master Grip) | CPS-200G |
| Needle-nose pliers (master grip type) | RP-150G |
| Powerful Nippers (Master Grip Type) | KN-150G |
| black shaft hammer | BH-10 |
| center punch | CP125 |
| Plug Socket (Hexagonal, with magnet) | 3P-16S, 3P-20.8S |
| brake shoe adjustment tool | BST-110 |
| stainless steel scraper | SSC-22 |
| flat chisel | FC165 |
| work cabin | TC1701R |
Tray Part Numbers
TCK001, TCK002
Additional Information
This is a product that you must assemble yourself. We also sell the tool cabin separately.
Notes
Do not use on sloping or uneven floors. Be sure to use the brakes on the casters.
