Description

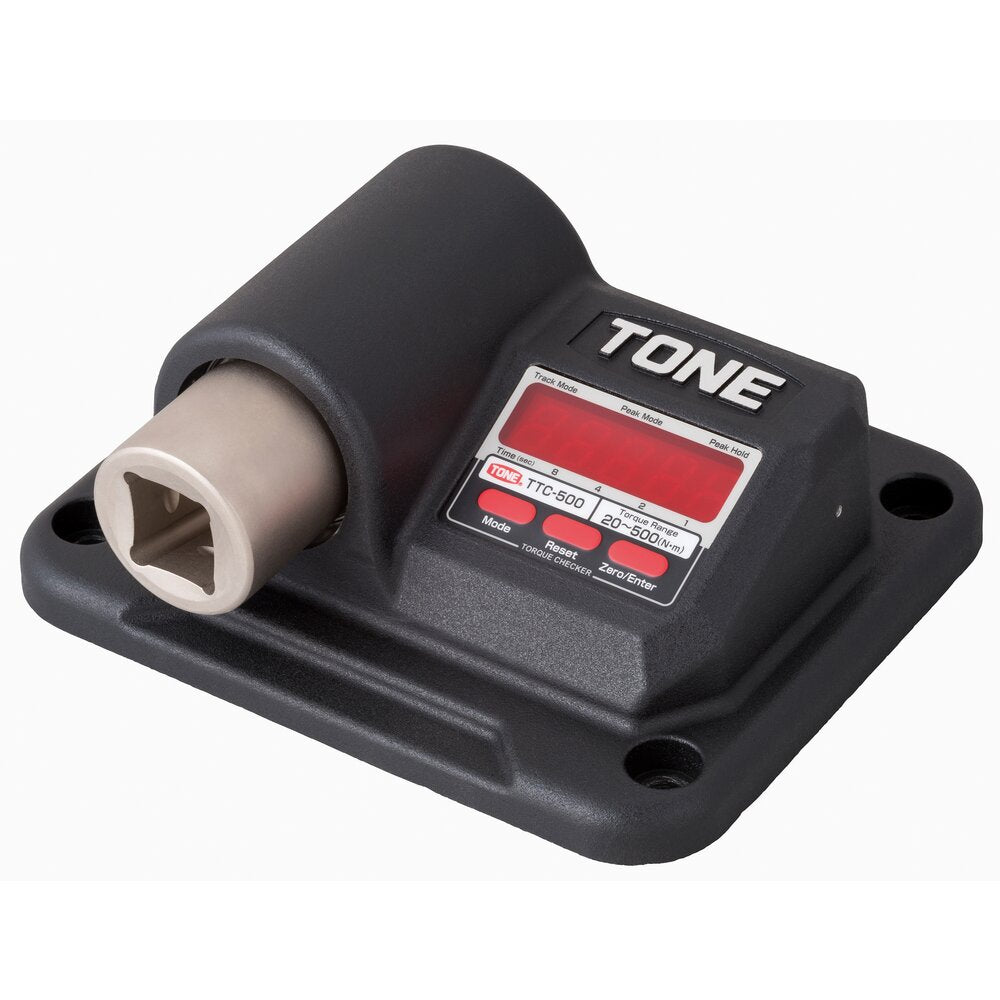

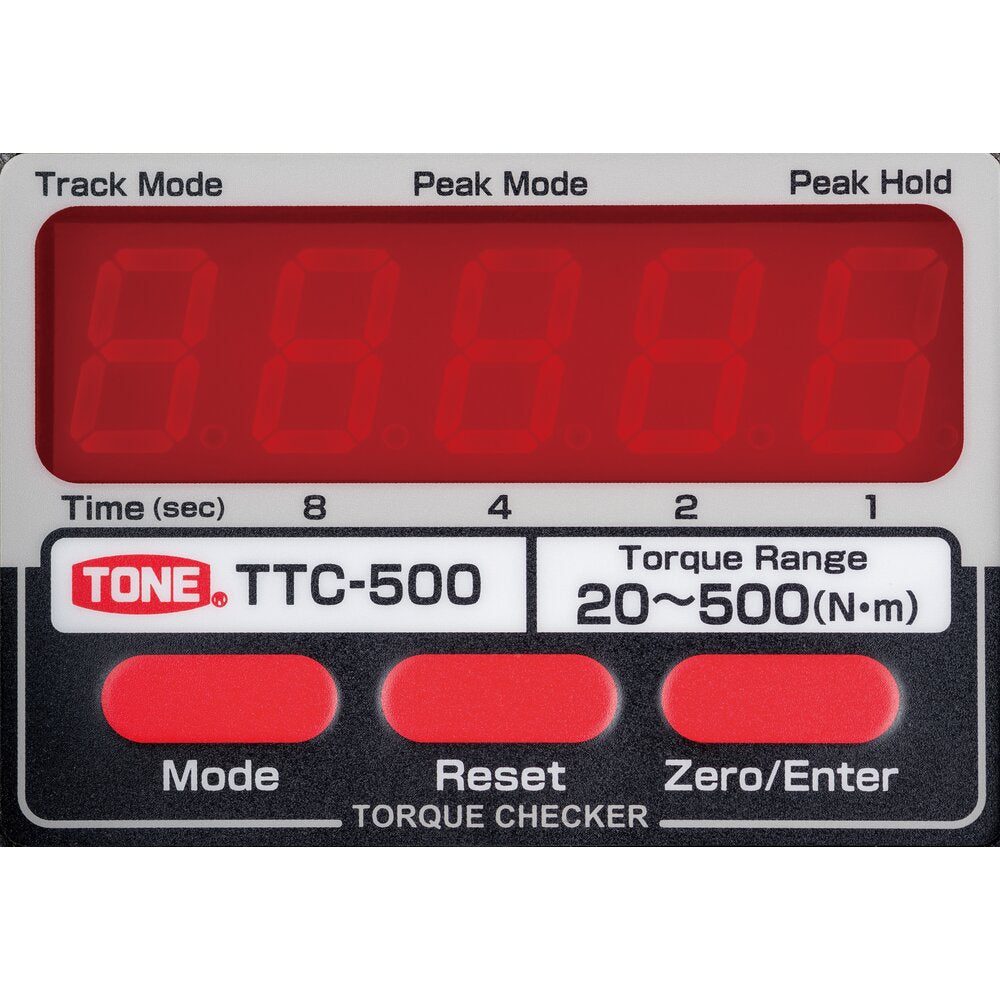

With simple operation, torque wrenches can be inspected daily before and after work. Numerical values can be read without error on the LED display. You can switch between 3 different measurement modes (peak mode, track mode, peak hold).

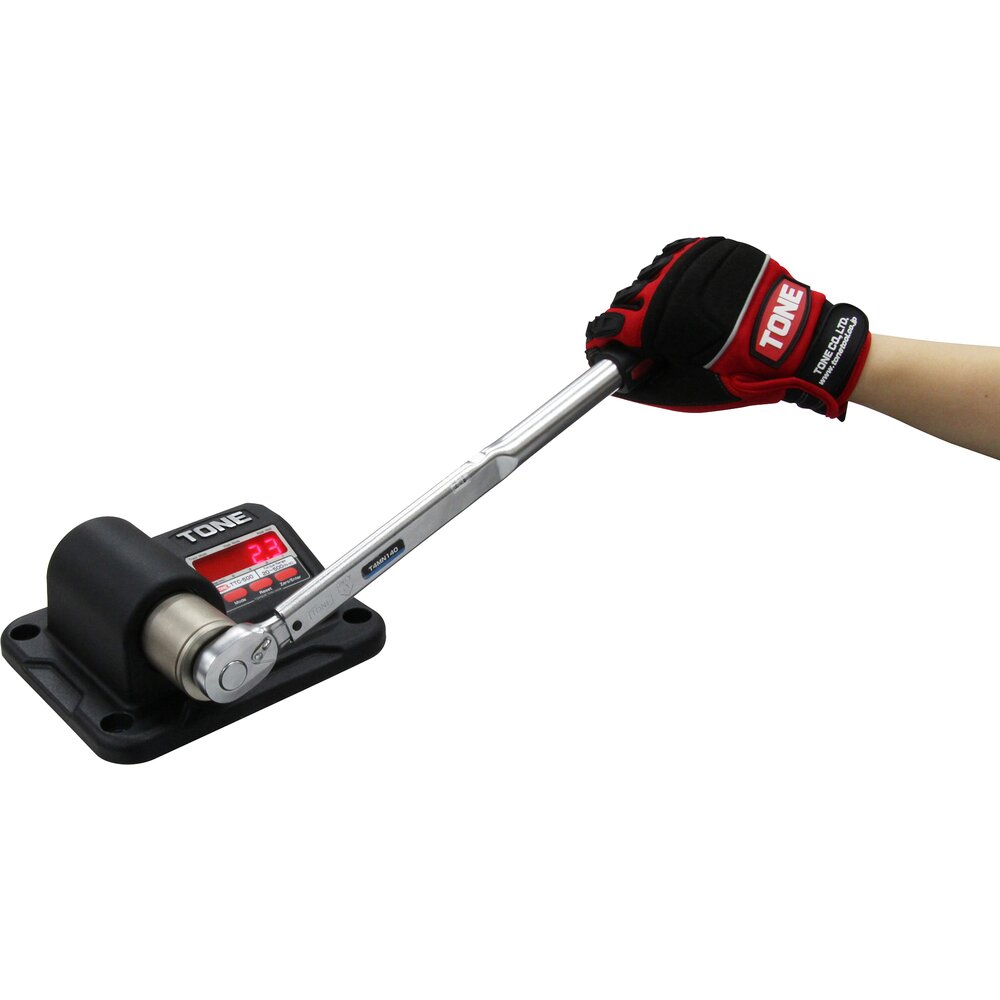

Application: For daily inspection of torque wrenches.
Specifications
| Part Number | TTC-500 |
|---|---|
| Torque Range (N·m) | 20 to 500 |
| Drive size | 9.5mm(3/8inch),12.7mm (1/2 inch),19.0mm (3/4 inch),25.4 mm (1 inch) |
| Accuracy | ±1% + 1 scale |
| Measuring Direction | right rotation (clockwise) |
| Display Resolution | 0.1 N･m |
| Display Unit | N･m |
| Power Supply | Wired |
| Operating Temperature | 5 to 40°C |
| Storage Temperature | -20 to 70°C |
| Weight (g) | 2600 |
| Dimensions (W × D × H, mm) | 205 × 173 × 85 |
Included Accessories

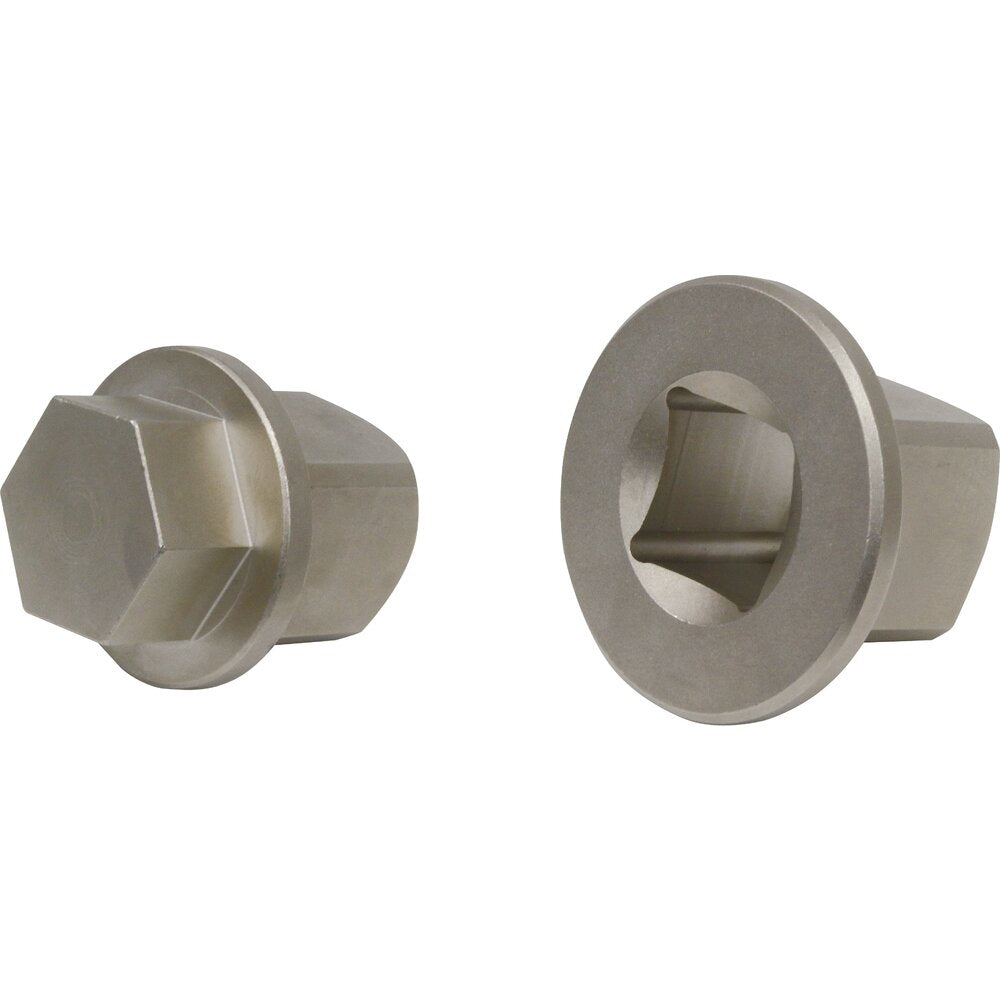

Calibration certificate (with traceability system diagram), instruction manual, conversion adapter: concave 9.5 mm x convex 25.4 mm CA0308, concave 12.7 mm x convex 25.4 mm CA0408, concave 19.0 mm x convex 25.4 mm CA0608, hexagonal convex adapter: convex 27 mm x convex 25.4 mm MA8-27, Convex 38mm x Convex 25.4mm MA8-38, AC adapter: 100-240V/50-60Hz, Hex socket bolt M10X45 (including washer and nut): 4 torque automatic conversion [Related data collection] Tightening torque value reference Materials [Related data collection] Width across flats dimension table viewed from bolt diameter
Notes
Torque equipment requires regular inspections. As a guideline, please have it inspected once a year after initial use (charges apply).
