Description

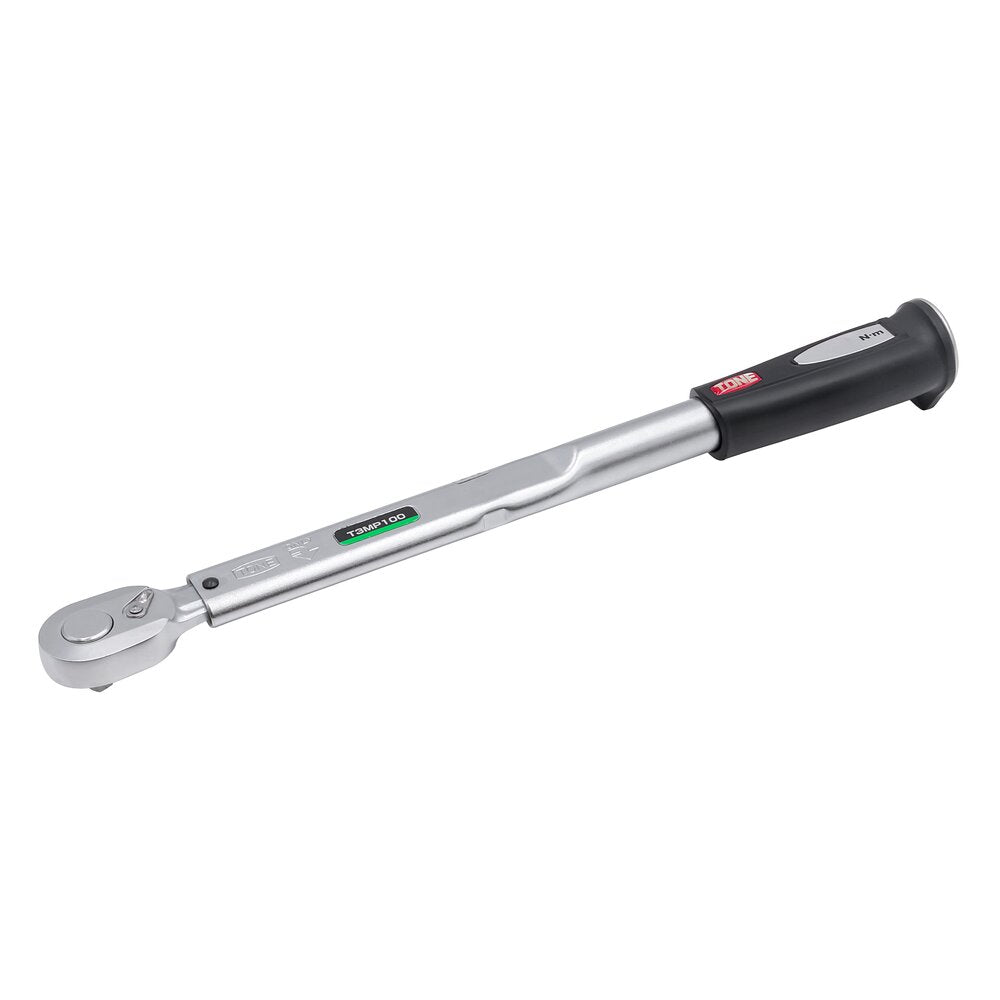

A torque wrench that presets the desired torque value from among the torque values within the torque capacity range using an adjustment tool.
Application: For on-site torque management without the need to change the tightening torque.
Specifications
| Part Number | T3MP100 |
|---|---|
| Torque Range (N·m) | 20 to 100 |
| Drive size | 9.5mm (3/8inch) |
| Tip shape | Square drive |
| Accuracy | ±3% |
| Measuring Direction | right rotation (clockwise) |
| Display Unit | N･m |
| Number of ratchet teeth | 18 |
| Weight (g) | 670 |
| Dimensions (W × D × H, mm) | 369 × 36 × 26.4 |
Included Accessories
Torque adjustment tool, instruction manual, resin case, calibration certificate (with traceability system diagram) * Torque is automatically converted only when torque is set by our company [Related data collection] Tightening torque value reference material [Related data collection] Bolt diameter Width across flats dimension table viewed from
Notes
Torque load direction is clockwise only. Calibration certificate expiry date 1. If unused, the warranty period is three years from the calibration date on the calibration certificate. 2. If use is commenced within three years of the calibration date on the calibration certificate, the warranty will be valid for one year from the commencement of use or up to 100,000 tightening cycles. Torque equipment requires regular inspection. As a guideline, we recommend that you have the equipment inspected once a year or once every 100,000 uses (fees apply). If you no longer hear the "click" or feel the "shock", the product is broken and will require repair or inspection (fees may apply). The accuracy may be affected due to rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
