Description

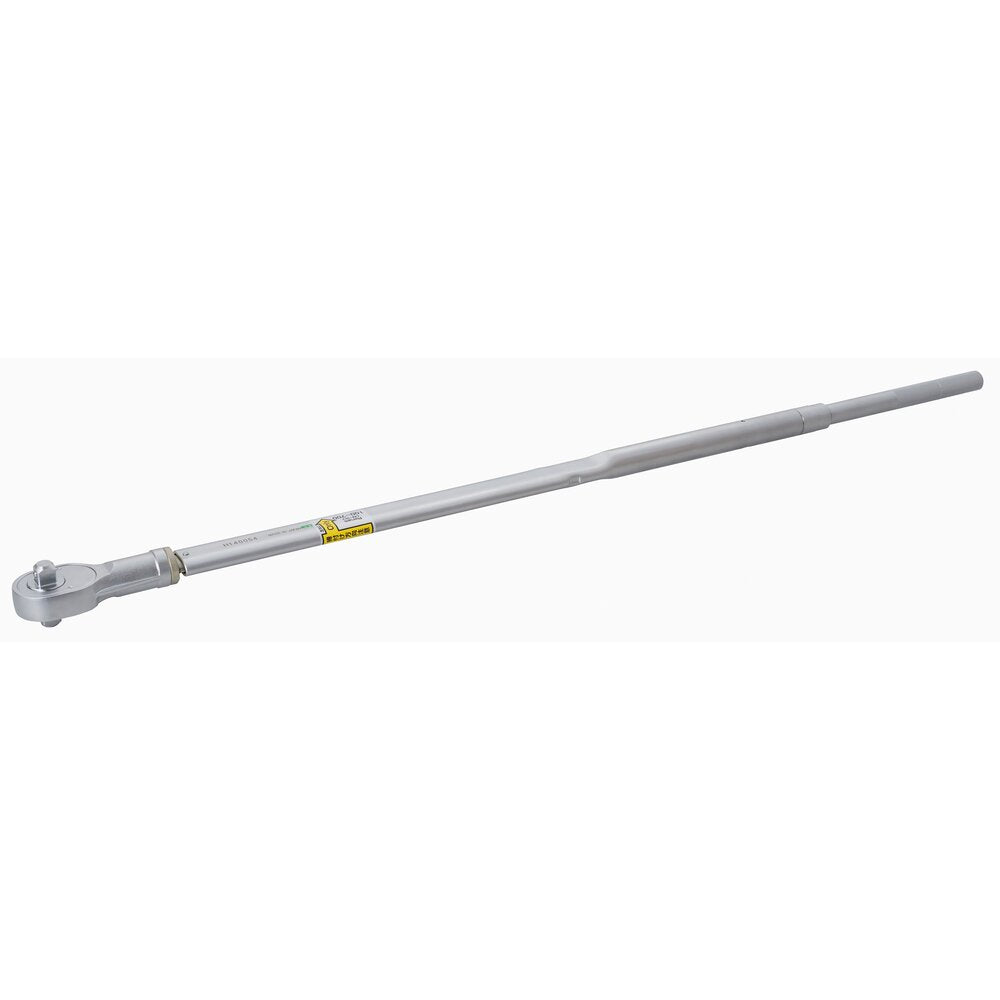

Left-hand screw tightening is possible by reversing the torque wrench body. When the preset torque value is reached, you will hear a “click” and feel it in your hand.
Application: For assembly/maintenance/inspection where torque management of right and left screws is required.
Specifications
| Part Number | T6L700NR |
|---|---|
| Torque Range (N·m) | 100-700 |
| Drive size | 19.0mm (3/4inch) |
| Tip shape | Square drive |
| Accuracy | ±3% |
| Measuring Direction | double rotation |
| Display Resolution | 5N m |
| Display Unit | N･m |
| Number of ratchet teeth | twenty four |
| Weight (g) | 6300 |
| Dimensions (W × D × H, mm) | 1314 × 68 × 69.5 |
Included Accessories
Calibration certificate (with traceability system chart), instruction manual, metal case torque automatic conversion
Notes
Calibration certificate expiry date 1. If unused, the warranty period is three years from the calibration date on the calibration certificate. 2. If use is commenced within three years of the calibration date on the calibration certificate, the warranty will be valid for one year from the commencement of use or up to 100,000 tightening cycles. Torque equipment requires regular inspection. As a guideline, we recommend that you have the equipment inspected once a year or once every 100,000 uses (fees apply). If you no longer hear the "click" or feel the "shock", the product is broken and will require repair or inspection (fees may apply). The accuracy may be affected due to rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
