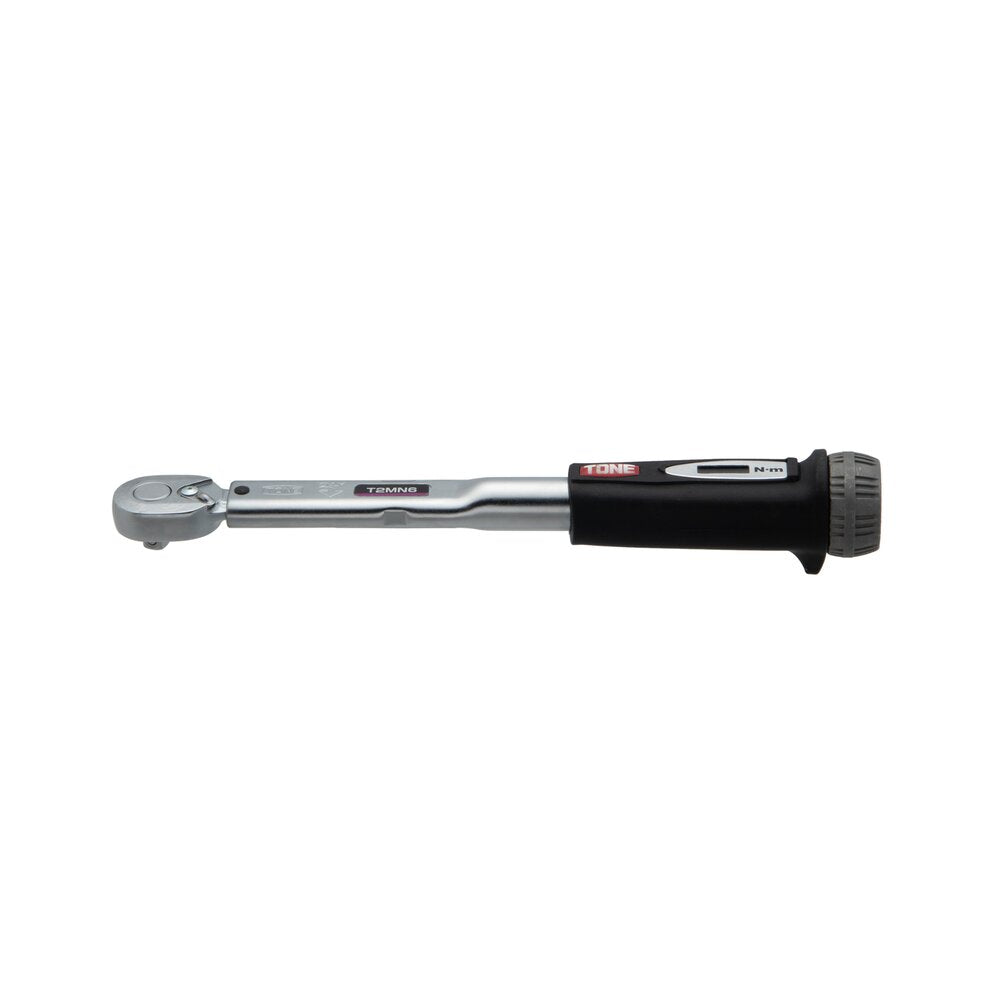

Description
The digital display value of the mechanical mechanism allows you to directly read the value and set the torque, which is convenient for preventing setting errors and managing tightening torque.
Application: For assembly, maintenance and inspection where torque setting is required.
Specifications
| Part Number | T2MN6 |
|---|---|
| Torque Range (N·m) | 1 to 6 |
| Drive size | 6.35mm (1/4inch) |
| Tip shape | Square drive |
| Accuracy | ±3% |
| Measuring Direction | right rotation (clockwise) |
| Display Resolution | 0.1 N･m |
| Display Unit | N･m |
| Number of ratchet teeth | 18 |
| Weight (g) | 260 |
| Dimensions (W × D × H, mm) | 222 × twenty four × 18.3 |
Included Accessories
Calibration certificate (with traceability system diagram), instruction manual, resin case torque automatic conversion
Additional Information
Accuracy after repair within ±4% is acceptable.
Notes
Torque load direction is clockwise only. Calibration certificate expiry date 1. If unused, the warranty period is three years from the calibration date on the calibration certificate. 2. If use is commenced within three years of the calibration date on the calibration certificate, the warranty will be valid for one year from the commencement of use or up to 100,000 tightening cycles. Torque equipment requires regular inspection. As a guideline, we recommend that you have the equipment inspected once a year or once every 100,000 uses (fees apply). If you no longer hear the "click" or feel the "shock", the product is broken and will require repair or inspection (fees may apply). The accuracy may be affected due to rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
