Description

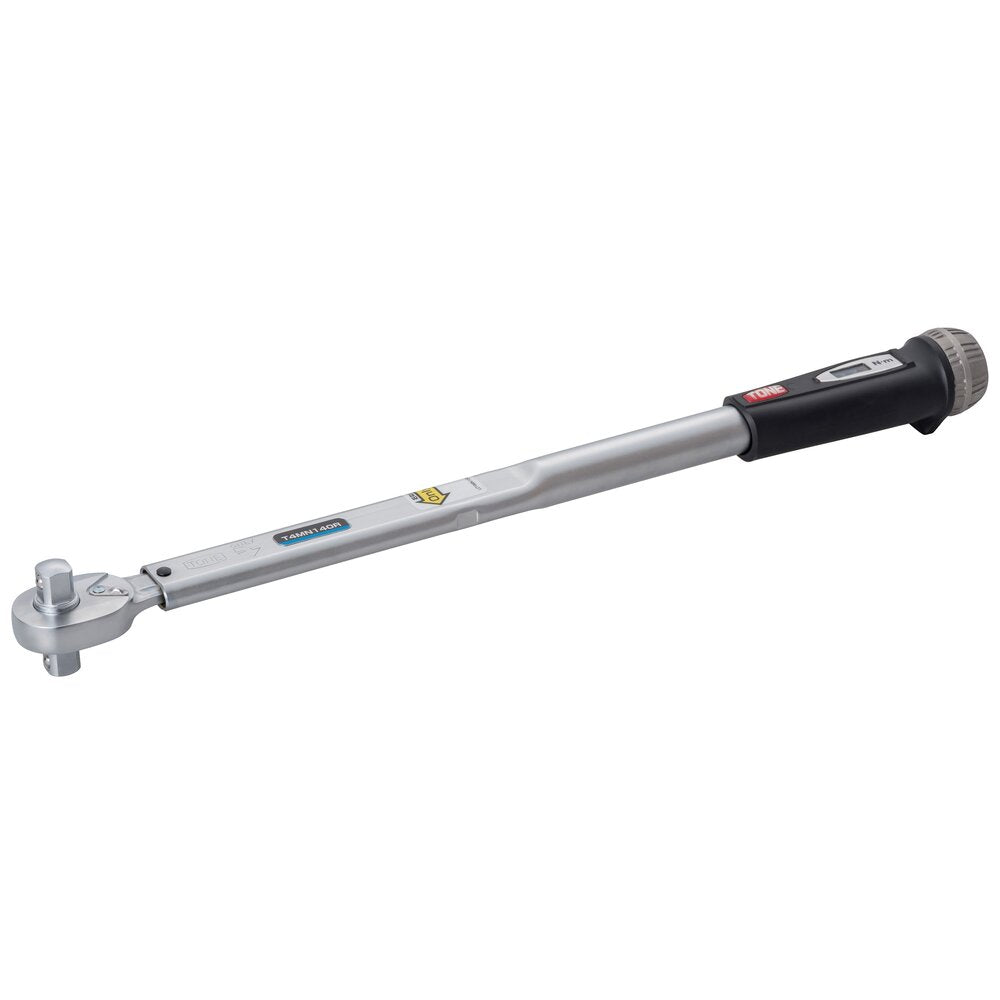

Left-handed tightening is possible by inverting the torque wrench body. The torque can be set by directly reading the numerical value from the digital display value of the mechanical mechanism, which is convenient for preventing setting errors and managing the tightening torque. *A dedicated storage case is not included.
Application: For assembly/maintenance/inspection where torque settings are required such as industrial complexes, electric facilities, automobiles, heavy machinery, and aircraft.
Specifications
| Part Number | T4MN140R |
|---|---|
| Torque Range (N·m) | 30 to 140 |
| Drive size | 12.7mm(1/2inch) |
| Tip shape | Square drive |
| Accuracy | ±3% |
| Measuring Direction | double rotation |
| Display Resolution | 1N･m |
| Display Unit | N･m |
| Number of ratchet teeth | 18 |
| Weight (g) | 880 |
| Dimensions (W × D × H, mm) | 450 × 36 × 49.2 |
Included Accessories
Calibration certificate (with traceability system diagram), instruction manual
Notes
Calibration certificate expiry date 1. If unused, the warranty period is three years from the calibration date on the calibration certificate. 2. If use is commenced within three years of the calibration date on the calibration certificate, the warranty will be valid for one year from the commencement of use or up to 100,000 tightening cycles. Torque equipment requires regular inspection. As a guideline, we recommend that you have the equipment inspected once a year or once every 100,000 uses (fees apply). If you no longer hear the "click" or feel the "shock", the product is broken and will require repair or inspection (fees may apply). The accuracy may be affected due to rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
