$220.00
Description

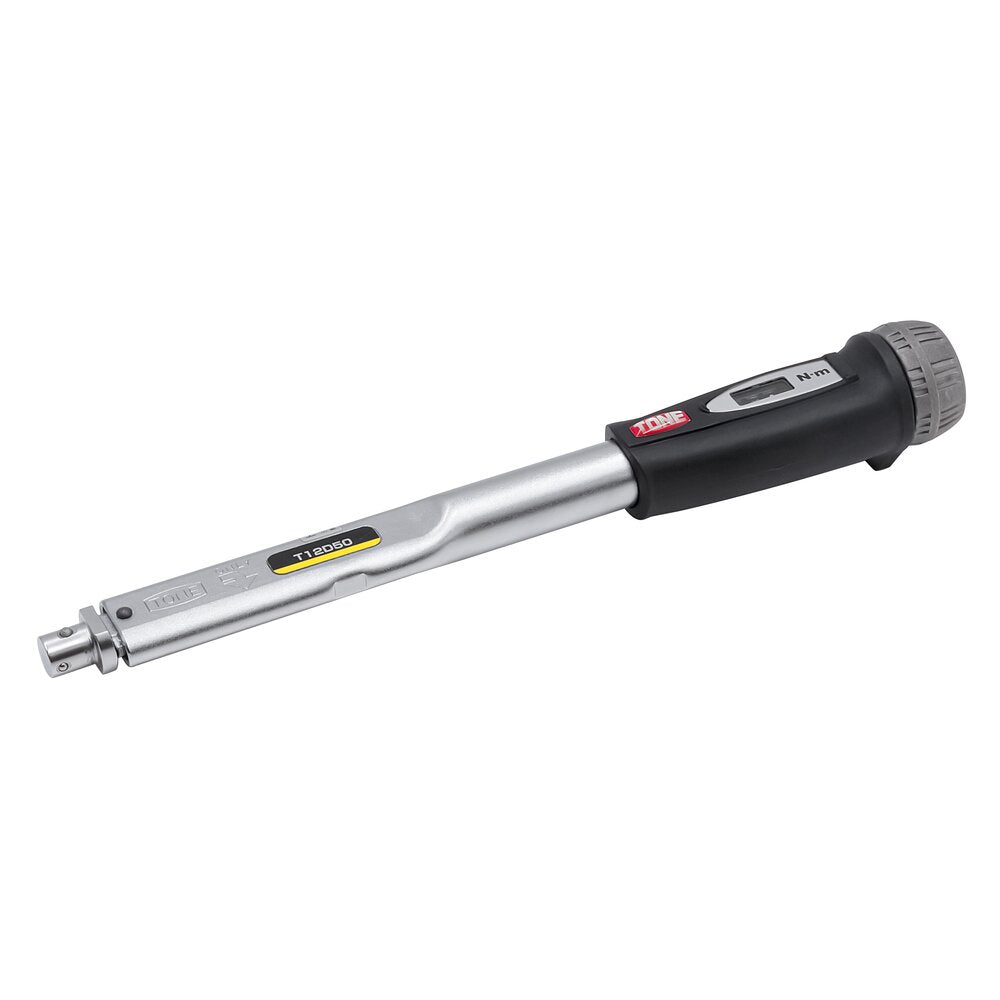

Torque wrench for tightening that is used with an interchangeable head attached. The replacement head can be exchanged according to the purpose of use, so it can be used in any work environment.
Application: For assembly/maintenance/inspection where torque settings are required such as industrial complexes, electric facilities, automobiles, heavy machinery, and aircraft.
Specifications
| Part Number | T15D100 |
|---|---|
| Torque Range (N·m) | 20 to 100 |
| Drive size | φ15mm |
| Tip shape | Adapter for interchangeable torque wrench |
| Accuracy | ±3% |
| Measuring Direction | right rotation (clockwise) |
| Display Resolution | 1N･m |
| Display Unit | N･m |
| Weight (g) | 590 |
| Dimensions (W × D × H, mm) | 356 × 32 × 35 |
Included Accessories
Calibration certificate (with traceability system diagram), instruction manual, resin case torque automatic conversion
Additional Information
This torque wrench does not come with a replacement head.
Notes
Do not use the tool for anything other than its intended purpose.
