Description

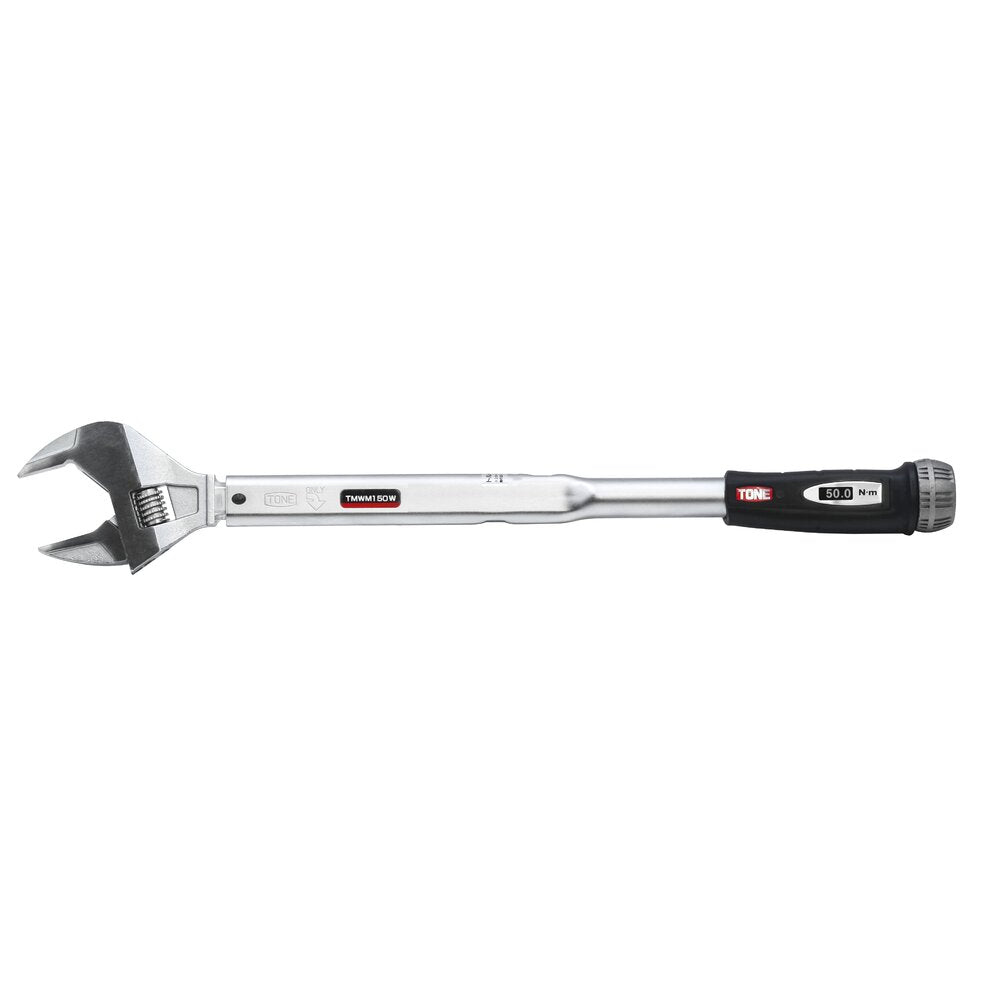

It can be adjusted and tightened to the required width across flats regardless of millimeter/inch size, square/variant bolts/nuts. The hexagonal width across flats is large, making it ideal for low-torque tightening of non-ferrous and resin nuts.
Application: For tightening piping such as air conditioners and coolers.
Specifications
| Part Number | TMWM150W |
|---|---|
| Torque Range (N·m) | 50 to 150 |
| Accuracy | ±4% |
| Measuring Direction | double rotation |
| Display Resolution | 1N･m |
| Display Unit | N･m |
| Weight (g) | 1000 |
| Dimensions (W × D × H, mm) | 500 × 83.3 × 35 |
Included Accessories
Calibration certificate (with traceability system diagram), instruction manual, resin case torque automatic conversion
Additional Information
Wide type. Wide type torque accuracy is ±7%. In the case of left-hand threads, it is used by reversing it.
Notes
Torque load direction is clockwise only. Calibration certificate expiry date 1. If unused, the warranty period is three years from the calibration date on the calibration certificate. 2. If use is commenced within three years of the calibration date on the calibration certificate, the warranty will be valid for one year from the commencement of use or up to 100,000 tightening cycles. Torque equipment requires regular inspection. As a guideline, we recommend that you have the equipment inspected once a year or once every 100,000 uses (fees apply). If you no longer hear the "click" or feel the "shock", the product is broken and will require repair or inspection (fees may apply). The accuracy may be affected due to rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
