$5,400.00
Description

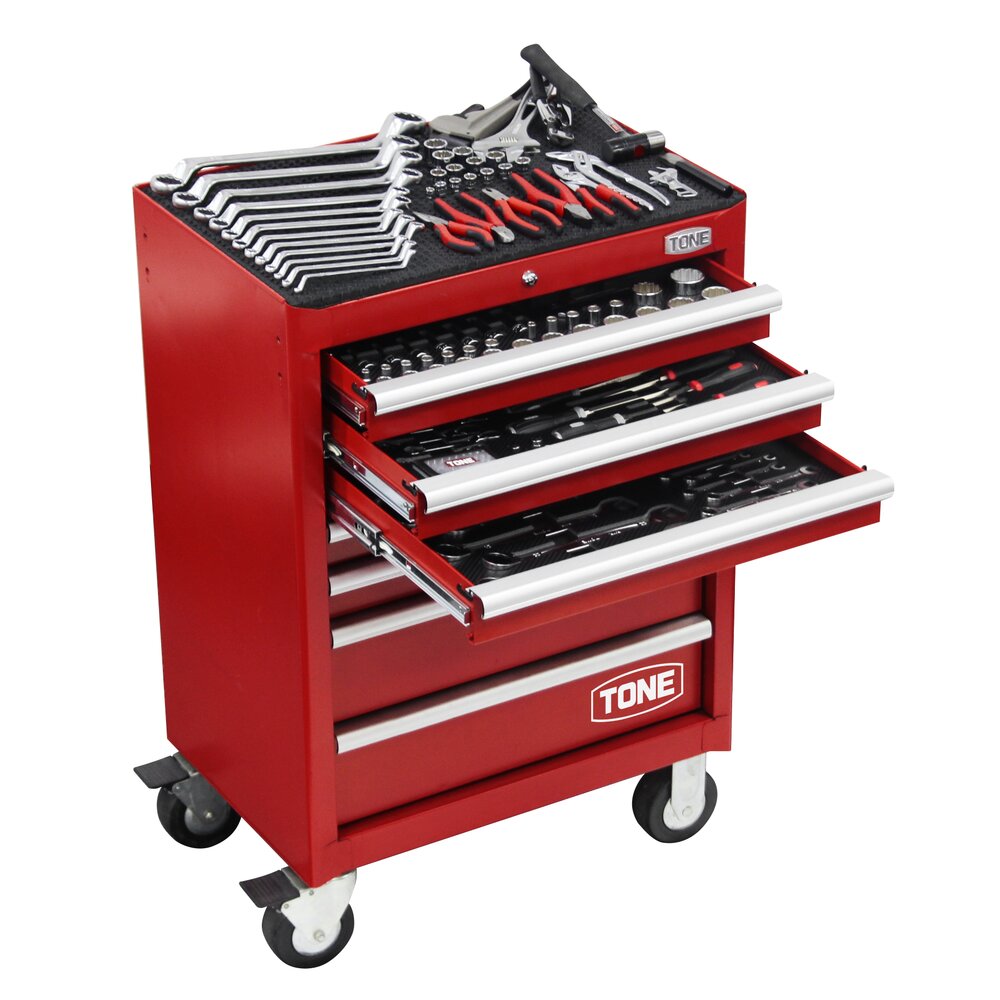

It is a product with tools set in the roller cabinet WS207. It enables organization and loss prevention with size and product number indication.
Application: For automobile maintenance & various industrial machines
Specifications
| Part Number | TCXT912SV |
|---|---|
| Drive size | 9.5mm(3/8inch),12.7mm (1/2 inch),Bit insertion 6.35mm (DIN3126 ISO1173 short bit) |
| Pieces | 160 |
| Mm/inch | mm |
| Withstand load (N(kgf)) | Top plate load capacity: 5,488N (560kgf) Drawer load capacity: 392N (40kgf) Total load capacity (at rest): 6,860N (700kgf) Total load capacity (when moving): 5,390N (550kgf) *Total load capacity includes product mass |
| Weight (g) | 86000 |
| Dimensions (W × D × H, mm) | 676 × 459 × 995 |
Set Contents
| Socket (hexagonal) | 3S-08, 3S-10, 3S-11, 3S-12, 3S-13, 3S-14, 3S-15 |
|---|---|
| Deep socket (hexagonal) | 3S-08L, 3S-10L, 3S-12L, 3S-13L, 3S-14L |
| Socket (12-sided) | 4D-16, 4D-17, 4D-18, 4D-19, 4D-21, 4D-22, 4D-23, 4D-24, 4D-26, 4D-27, 4D-29, 4D-30, 4D- 32, 4D-36 |
| hexagon socket | 4H-05, 4H-06, 4H-08, 4H-10, 4H-12, 4H-14, 4H-17 |
| Ratchet handle (hold type) | RH3H, RH4H |
| spinner handle | NS4 |
| T-shaped handle | TH3270 |
| Extension Bar | 305, 306, 320, 321, 407 |
| socket adapter | 58, 68 |
| ball joint | BJ30, BJ40 |
| quick spanner | DSQ-0810, DSQ-1012, DSQ-1113, DSQ-1214, DSQ-1618, DSQ-1719 |
| Long wrench (75d) | M75-0809, M75-0810, M75-1012, M75-1113, M75-1214, M75-1417, M75-1618, M75-1921, M75-2224, M75-2730, M75-3236, M75-5.507 |
| Oscillating Quick Ratchet Box Wrench | RMFQ-08, RMFQ-10, RMFQ-12, RMFQ-13, RMFQ-14, RMFQ-15, RMFQ-16, RMFQ -17, RMFQ -18, RMFQ-19, RMFQ-21, RMFQ-22, RMFQ- twenty four |
| Switchable Ratchet Box Wrench | RMR-07, RMR-08, RMR-10, RMR-12, RMR-13, RMR-14, RMR-15, RMR-16, RMR-17, RMR-18, RMR-19, RMR-21, RMR- 22, RMR-24 |
| Socket (for box-end) | RGD-08, RGD-10, RGD-11, RGD-12, RGD-13, RGD-14, RGD-15, RGD-16, RGD-17, RGD-18, RGD-19, RGD-21, RGD- 22, RGD-24 |
| Ratchet Box Adapter | RA2, RA3, RA4 |
| Ratchet socket adapter (for bits) | RABT2 |
| Hyper Warm adjustable wrench (with scale) | MWR-300 |
| Short hyper worm adjustable wrench | MWRS-26 |
| Power Grip Driver (Penetrating) | PGMD-075, PGMD-100, PGMD-150, PGPD-001, PGPD-002, PGPD-003 |
| Split Handle Driver (Penetrating) | PGYMD-150 |
| Long ball point L-shaped wrench set | BL900 |
| bit ratchet set | BRS20 |
| pliers | CT-175G |
| needle nose pliers | RP-150G |
| breaking screw pliers | BNP-175G |
| Heavy Duty Nippers | KN-150G |
| combination slim pliers | CPS-200G |
| safety pliers | SWP-250 |
| aluminum pipe wrench | ALPW-300 |
| mini cutter | MCH-200 |
| combination hammer | BHC-10 |
| flat chisel | FC165 |
| roller cabinet | WS207S |
Tray Part Numbers
TCKS-TCXT912
Notes
Do not use on sloping or uneven floors. Be sure to use the brakes on the casters.
