$2,787.00
Description

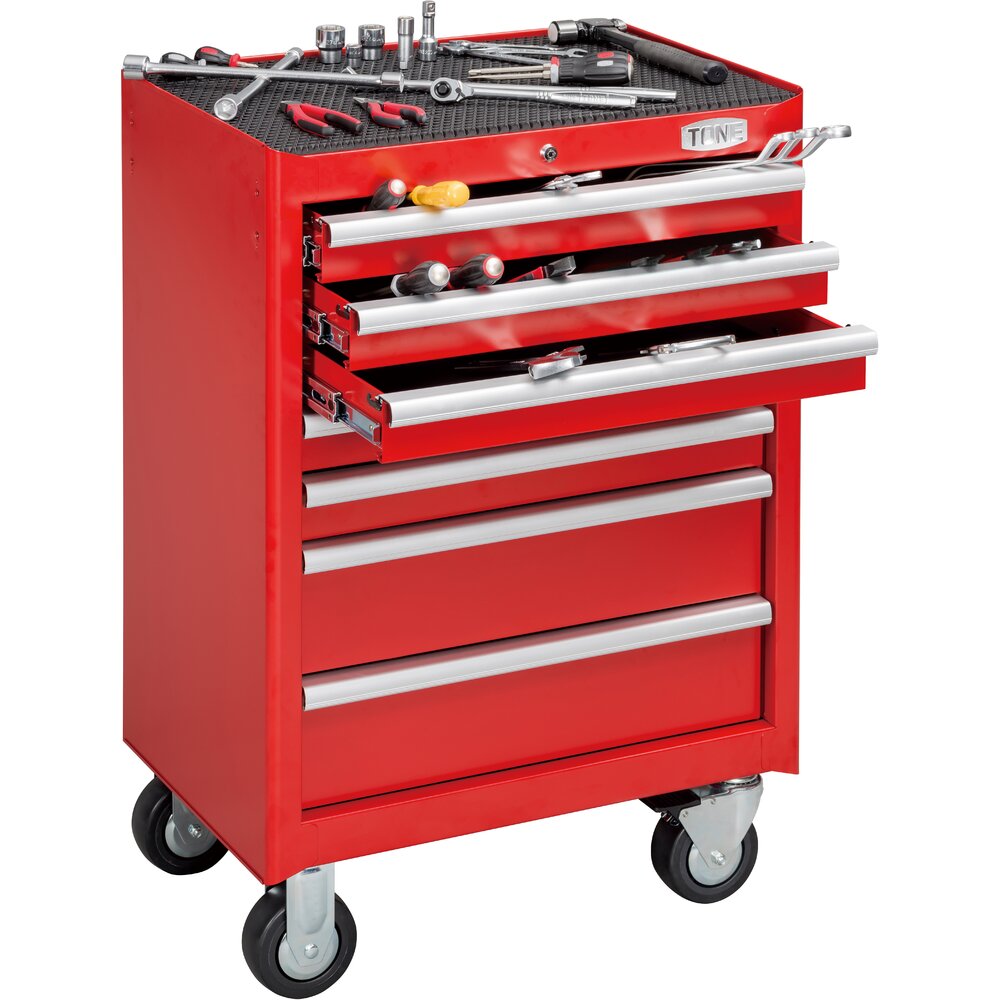

A cabinet set with a wide variety of tools necessary for automobile maintenance.
Application: for car maintenance
Specifications
| Part Number | TCA910SV |
|---|---|
| Drive size | 9.5mm(3/8inch),12.7mm (1/2inch) |
| Pieces | 71 |
| Mm/inch | mm |
| Withstand load (N(kgf)) | Top plate load capacity: 5490N (560kgf) Drawer load capacity: 392N (40kgf) Total load capacity: Stationary 6860N (700kgf) Moving 5390N (550kgf) *Total load capacity includes product weight |
| Color | silver |
| Weight (g) | 74900 |
| Dimensions (W × D × H, mm) | 676 × 459 × 995 |
Set Contents
| Socket (Hexagonal) | 3S-08, 3S-10, 3S-12, 3S-13, 3S-14 |
|---|---|
| Extension Bar | 305, 306, 307, 320, 321 |
| ball joint | BJ30 |
| Socket (12 angles) | 4D-17, 4D-19, 4D-21, 4D-22, 4D-24, 4D-27 |
| socket adapter | 68 |
| Ratchet handle (hold type) | RH3H, RH4H |
| spinner handle | NS3, NS4 |
| T type wrench short handle | TWS-10, TWS-12 |
| spanner | DS-0810, DS-1012, DS-1113, DS-1214, DS-1417, DS-1921 |
| combination spanner | CS-10, CS-12, CS-13, CS-14, CS-17 |
| Long offset wrench (45°) | M45-0810, M45-1012, M45-1214, M45-1417, M45-1719, M45-2224 |
| Short offset wrench (45°) | M46-1012, M46-1417 |
| Flare nut wrench (15°) | M26-1012 |
| Power Grip Driver (Penetration) | PGMD-075, PGMD-100, PGMD-150, PGPD-001, PGPD-002, PGPD-003 |
| power grip stubby driver | PGSD-M2, PGSD-P2 |
| Power Grip Split Driver (Penetrating) | PGYMD-150 |
| Power grip box driver (deep type) | PGBD-10L |
| long shaft driver | LD-M |
| Hyper Worm adjustable wrench (with scale) | MWR-300 |
| Combination Slim Pliers (Master Grip) | CPS-200G |
| safety pliers | SWP-250 |
| Pliers (master grip type) | CT-175G |
| Needle-nose pliers (master grip type) | RP-150G |
| Powerful Nippers (Master Grip Type) | KN-150G |
| Snap Ring Pliers (Straight Type/For Shafts) | SRPS-175 |
| Snap ring pliers (straight type, for holes) | SRPH-175 |
| black shaft hammer | BH-10 |
| Plug Socket (Hexagonal, with magnet) | 3P-16S, 3P-20.8S |
| cross wrench | CHW4 |
| power grip clip handle | PGCLH-200 |
| brake shoe adjustment tool | BST-110 |
| Oil filter wrench (φ75-95) | KW200 |
| roller cabinet | WS207R |
Additional Information
We also sell just the cabinet or just the contents.
Notes
Do not use on sloping or uneven floors. Be sure to use the brakes on the casters.
