$29.50
Description

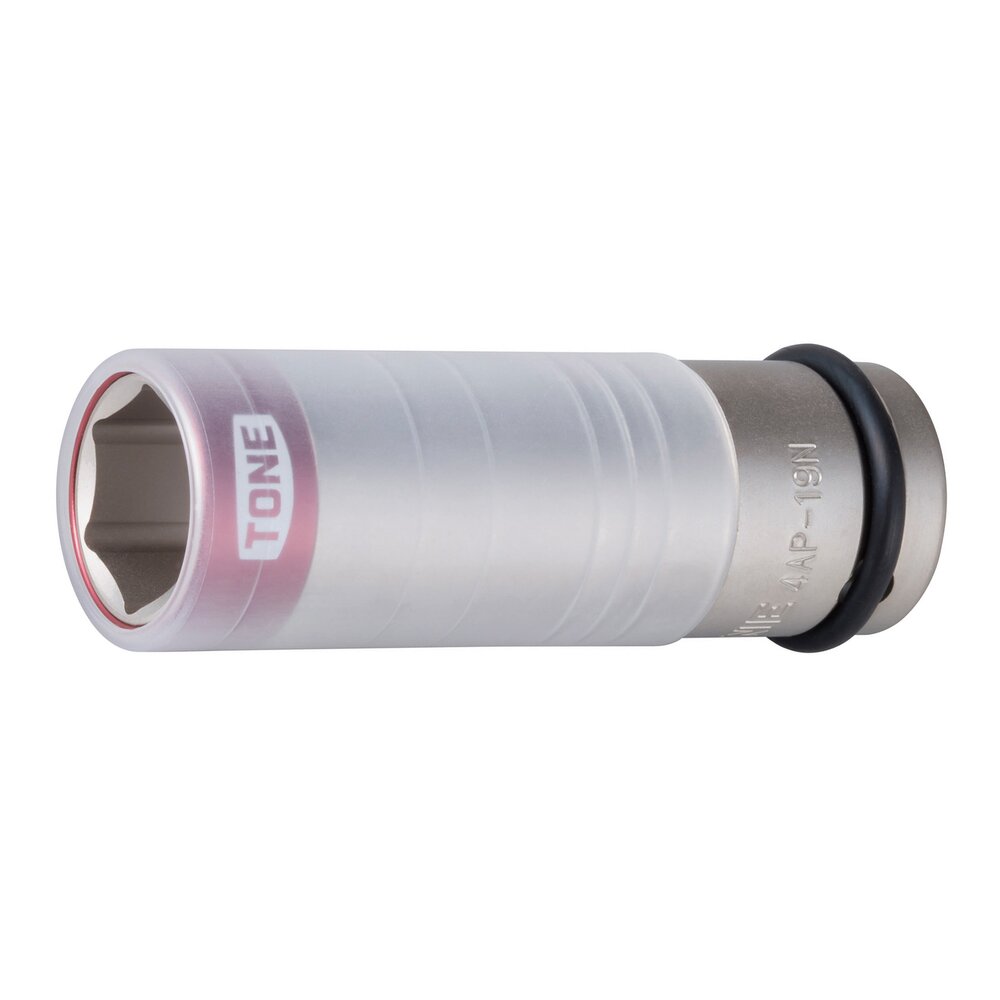

A thin socket suitable for attaching and detaching automotive wheel nuts. The resin protector and reinforcing ring prevent the aluminum wheel from being scratched.
Application: For undercarriage. Tightening and loosening of automobile wheel nuts.
Specifications
| Part Number | 4AP-19N |
|---|---|
| Drive size | 12.7mm(1/2inch) |
| Tip shape | Hexagonal |
| Tip standard dimensions | Width across flats 19mm |
| Mm/inch | mm |
| Pin applicable product number | PIN3522S |
| O-ring applicable product number | RP20S |
| Surface treatment | electroless plating |
| Material | structural steel |
| Weight (g) | 210 |
| Dimensions (W × D × H, mm) | 28 × 28 × 125 |
Additional Information
D2 dimension is the dimension when the resin protector is removed.
Notes
Use O-rings and pins of the correct size and fix them securely. O-rings and pins are consumables. Replace deteriorated or worn parts.
